About this product
- Materials: copper conducotr PVC
- Size: 2.5 mm 4 mm 6 mm
- Color: red,green,blue.white,black etc
- Exports to: Africa, Southeast Asia, South Asia, Latin America
- Made in: Henan, China
About this product
- Materials: copper conducotr PVC
- Size: 2.5 mm 4 mm 6 mm
- Color: red,green,blue.white,black etc
- Exports to: Africa, Southeast Asia, South Asia, Latin America
- Made in: Henan, China
Product details
| Materials | copper conducotr PVC |
|---|---|
| Size | 2.5 mm 4 mm 6 mm |
| Color | red,green,blue.white,black etc |
From the supplier

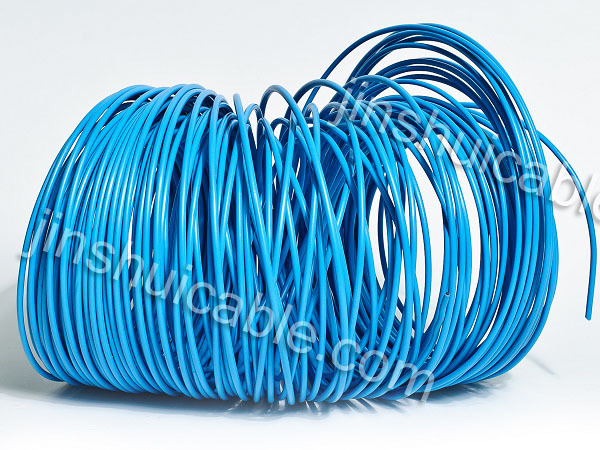

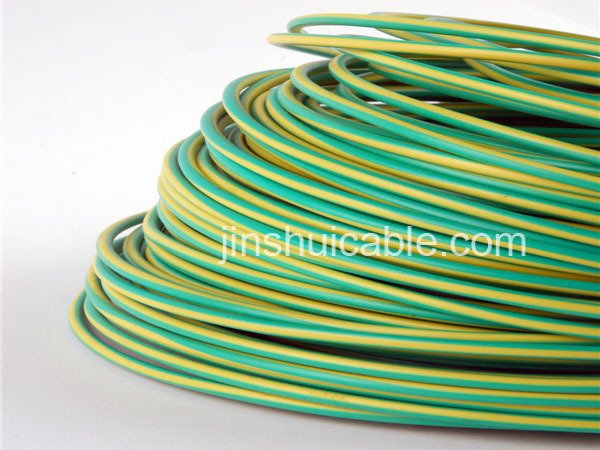

Product Description:
Indoor 300/500V AWG PVC insulated copper wire; AC voltage not exceeding 450/750 volts, suitable for household appliances, electricity meters and telecommunications equipment.
Conductor: Solid or Stranded Copper
Insulation: PVC insulation
Rated voltage: 300/500V, 450/750V
Operating Temperature: Model RV-105 does not exceed 105ºC. Others do not exceed 70ºC.
Model and name:
Indoor 300/500V AWG PVC insulated copper wire
Model
Name
RV
Copper Core PVC Insulation Flexible Wire
RVB
Copper Core PVC Insulation Flat Flexible Wire
RVS
Copper Core PVC Insulation Twisted Flexible Wire
RVV
Copper Core PVC Insulation Sheath Round Flexible Wire
RVVB
Copper Core PVC Insulation Sheath Flat Flexible Wire
RV-90
Copper Core Heat-resistak Losc PVC Flexible Wire
RV 450/750V
Nominal Section (mm2)
Core Structure No./Dia.(mm)
Max Dia.(mm)
Reference Weight(kg/km)
0.3
16/0.15
2.3
6.4
0.4
23/0.15
2.5
8.1
0.5
16/0.2
2.6
9.1
0.75
24/0.2
2.8
12.2
1.0
32/0.2
3.0
15.1
Nominal Section (mm2)
Core Structure No./Dia.(mm)
Max Dia.(mm)
Reference Weight(kg/km)
1.5
30/0.25
3.5
21.4
2.5
49/0.25
4.2
24.5
4
56/0.20
4.8
51.8
6
84/0.30
6.4
74.1
10
84/0.30
8.0
12.4
Indoor 300/500V AWG PVC-insulated Copper Wire
Nominal section (mm²)
No./Diameter
(mm)
Max. overall Diameter (mm)
Cooper Weight
(kg/100m)
Plastic Weight
(kg/100m)
Total Weight (kg/100m)
0.75
1/0.97
2.25
0.66
0.48
1.14
1
1/1.13
2.4
0.89
0.53
1.42
1.5
1/1.38
2.9
1.33
0.75
2.08
2.5
1/1.78
3.4
2.2
1.1
3.16
4
1/2.25
3.9
3.54
1.31
4.73
6
1/2.76
4.4
5.33
1.42
6.72
10
7/1.35
6.2
9.02
2.6
11.7
16
7/1.70
7.2
14.3
3
17.3
25
7/2.14
9
22.7
4.8
27.5
35
7/2.52
10.1
31.4
5.6
37
50
19/1.78
11.9
42.8
7.5
50.3
70
19/2.14
13.7
62
8.5
70.5
95
19/2.52
16
85.7
11.3
97
120
37/2.03
17.6
108.4
12.6
121
150
37/2.25
19.5
133.2
15.8
149
185
37/2.52
22
167.1
20.4
187.5
240
61/2.24
25
218.7
26.8
245.5
300
61/2.50
27.5
271.5
29
300.5
400
61/2.85
31
352.5
35.8
388.3
Size: 1.5-400mm2Other Sizes Can Be Produced as Needed
Company Profile:
Zhengzhou Jinshui Industry & Trade Co., Ltd. is a professional cable manufacturer and exporter with more than 20 years of experience, located in Zhengzhou, China. The products mainly include bare conductors, overhead bundled cables (ABC), construction wires, XLPE insulated power cables, coaxial cables, etc. We have a number of proprietary basic manufacturing technologies and have passed ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS18001 Occupational Health Management System, ISO 10012 Measurement Management System and other certifications from home and abroad. With high-quality products and professional services, we have won the trust of many customers and established long-term business relationships with them. Products have been exported to more than 30 countries.

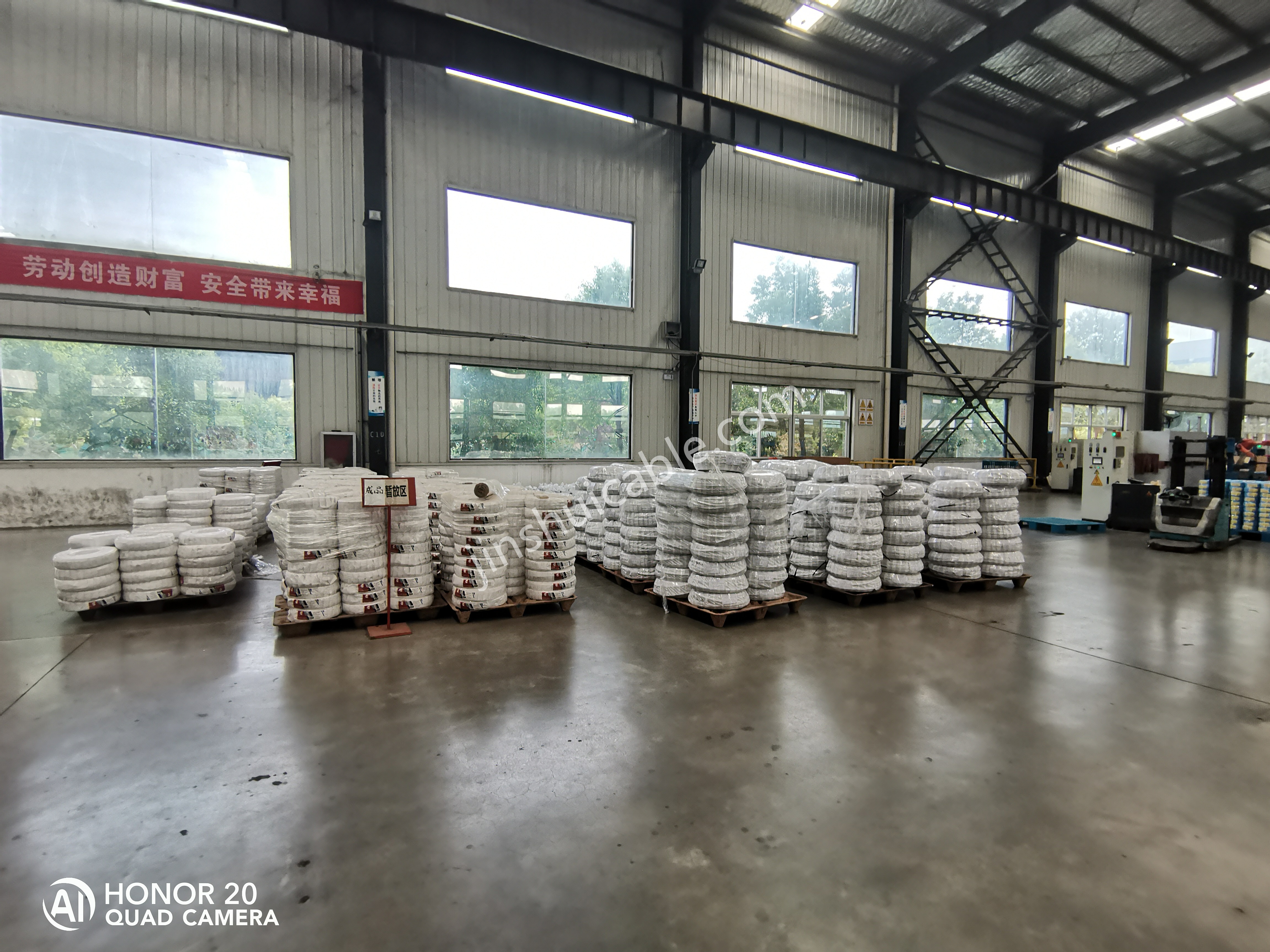

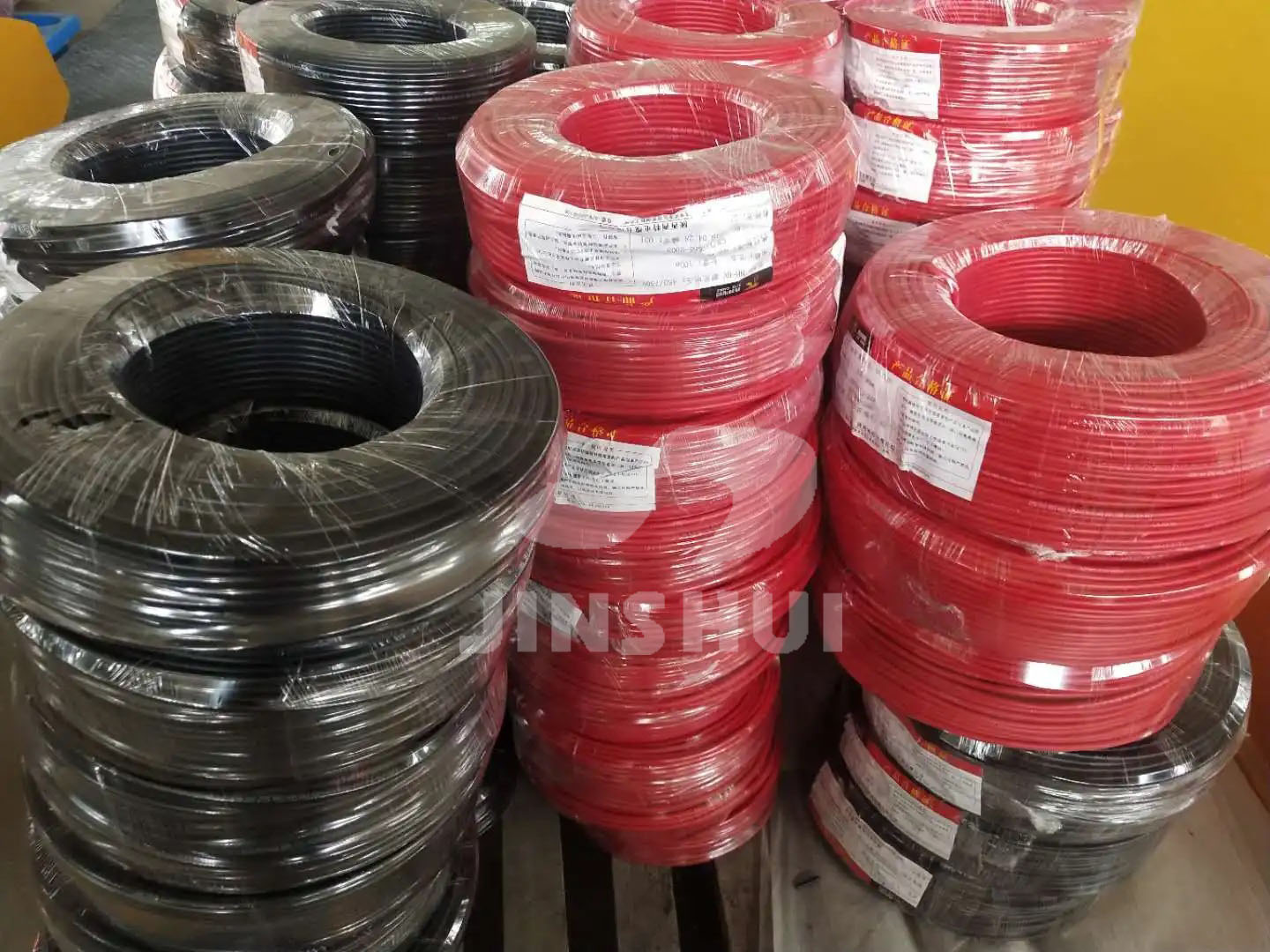

Packaging and Shipping:
Inner packing: easy-open box, plastic film, plastic reel, wooden reel.
Outer packing: carton, pallet available.
Other packaging can be provided according to customer requirements
FAQ
(1) Are you a factory or a trading company?
We are Alibaba's manufacturer and 12 years gold supplier. We have been engaged in cable export for nearly 15 years.
(2) When can I get the price?
We usually quote within 6 hours after receiving your inquiry. If you are desperate to get a price, please call us or let us know in your email so we can prioritize your enquiry.
(3) How to get samples to check the quality of the product?
After the price is confirmed, you can ask for samples to check our quality. Samples are free, but shipping should be paid.
(4) What are the payment terms?
30% T/T deposit, 70% T/T after checking copy of bill of lading or irrevocable letter of credit.
(5) What is the lead time for mass production?
In fact, it depends on the order quantity and the season in which the order is placed. In general, we recommend that you start your inquiry two months before the date you want to purchase the product in your country.
Welcome your inquiry!
