About this product
- Materials: Copper Conductor PVC Insulated Nylon sheath
- Size: AWG 8 ,10 . 12, 14
- Color: red, blue, black, yellow/green etc.
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Other European Countries, Others
- Made in: Henan, China
About this product
- Materials: Copper Conductor PVC Insulated Nylon sheath
- Size: AWG 8 ,10 . 12, 14
- Color: red, blue, black, yellow/green etc.
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Other European Countries, Others
- Made in: Henan, China
Product details
| Materials | Copper Conductor PVC Insulated Nylon sheath |
|---|---|
| Size | AWG 8 ,10 . 12, 14 |
| Color | red, blue, black, yellow/green etc. |
From the supplier

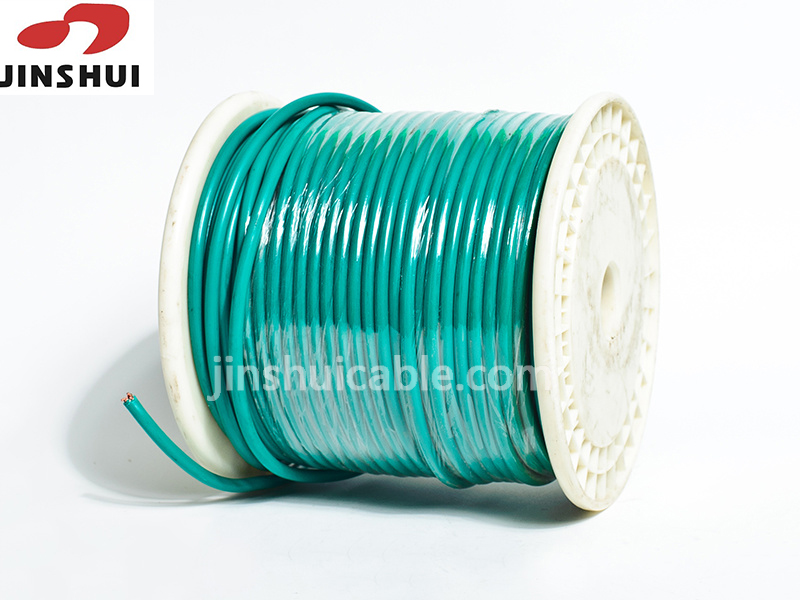

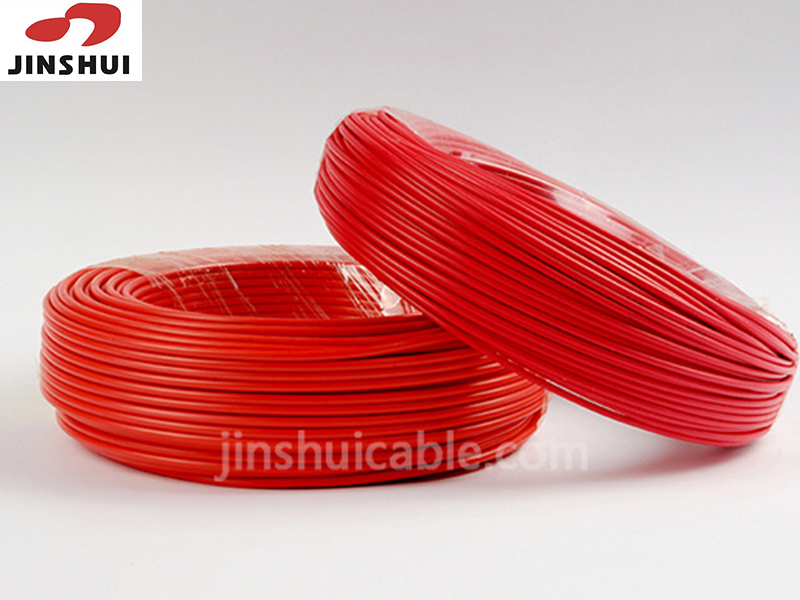

Product Introduction
AWG #8 10 12 14 THHN Wire
*Product : PVC insulated electric Nylon sheath wire
*Conductor:Single or stranded copper
*PVC insulation
*Rated voltage: 300/500V,450/750V
*The long-time working temperature should not beyond 70ºC.
*Adopt standard thickness, easy truncation.
Service Conditions
AWG #8 10 12 14 THHN Wire
Working temperature:Not more than 105ºC for RV-105 model.The other no more than 70ºC.
Model and Name:see table1
AWG #8 10 12 14 THH Wire
SIZE
Conductor structure
±0.01mm
cable diameter±0.1mm
jacket material
insulation material
approx.cross sectionarea
(mm2）
PVC insulation thickness
±0.05mm
Nylon thickness±0.05mm
approx.weight(kg/km)
8AWG
19/0.75
6.2
NYLON
PVC
8.39
1.0
0.2
104.35
9AWG
19/0.67
5.8
NYLON
PVC
6.7
1.0
0.2
86.24
10AWG
19/0.59
5.4
NYLON
PVC
5.19
1.0
0.2
69.95
11AWG
19/0.53
4.7
NYLON
PVC
4.19
0.8
0.2
54.75
12AWG
19/0.47
4.4
NYLON
PVC
3.3
0.8
0.2
45.00
13AWG
7/0.69
4.1
NYLON
PVC
2.62
0.8
0.2
37.5
14AWG
7/0.61
3.9
NYLON
PVC
2.05
0.8
0.2
31.06
15AWG
7/0.55
3.5
NYLON
PVC
1.66
0.7
0.2
25.15
16AWG
7/0.49
3.3
NYLON
PVC
1.32
0.7
0.2
21.22
18AWG
7/0.38
3.0
NYLON
PVC
0.79
0.7
0.2
14.98

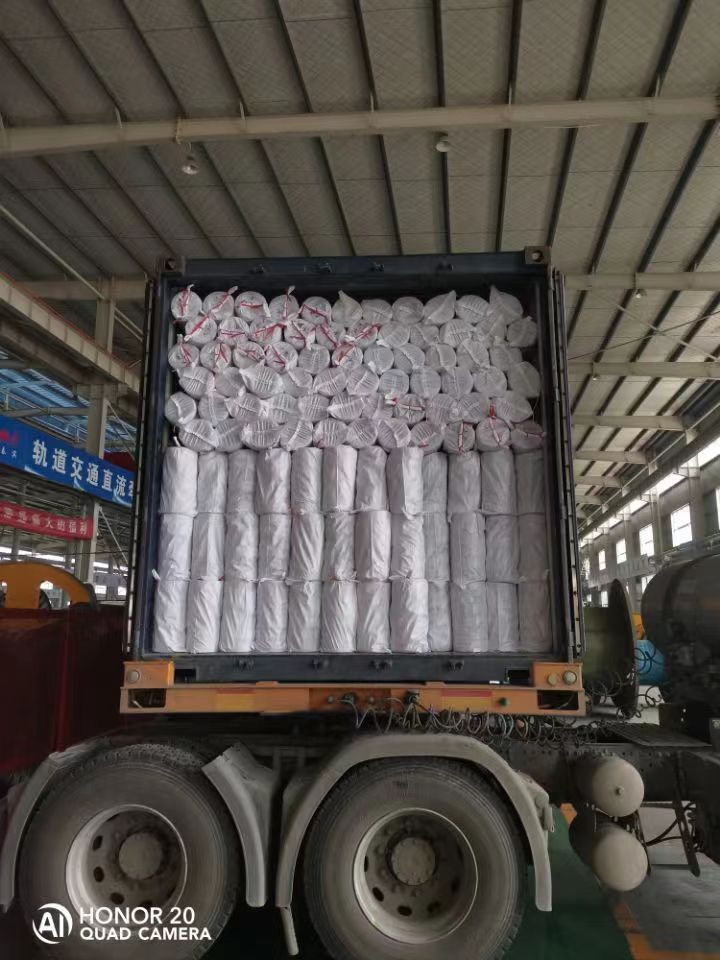

Packaging and shipping
Inner packing: Easy pull box, plastic film, plastic reel ,wooden reel.
Outer packing: Carton box, pallet available.
Other packages are available according to client's request.
Company Description
Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou, Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm, ISO 14001 Environmental Management Systerm, OHSAS18001 occupational Heath Management Systerm, ISO 10012 Measurement Management Systerm and others from China and abroad.
We have been engaged in producing electric cable and wire for nearly 20 years, and we are also 12 year gold supplier. And we are confident that we can offer the best service and quality for you.
We take part in many fairs and exhibitions in China and abroad. Our aim is to be our customer's factory in Zhengzhou, China. We are here to help you placing orders of cost-effective electric cable and keep tracking your products and shipment.

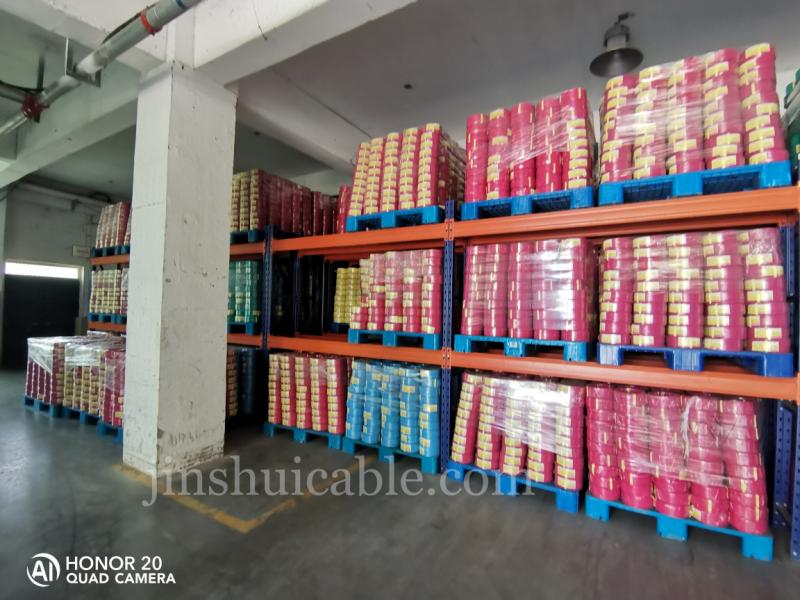

Our Factory
1. Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.
2. We choose excellent raw materials carefully to ensure the quality and meet the need of customers.
3. Mechanical testing of Cables is done to determine the quality and mechanical characteristics before delivery.
FAQ
=====================================================
(1) Are you the factory or trading company?
We are the manufacturer and 12 years gold supplier on alibaba.We are engaged in exporting cables for nearly 15 years.
(2) When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(3) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(4) What is the payment terms?
30% deposit by T/T,70% T/T after checking the copy of B/L. Or irrevocable L/C at sight .
(5) What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Welcome your kind enquiry!
