CR918 test bench use import the flow sensor for the measurement means, it can test common rail inject-or and common rail pump, it can add EUI/EUP CAMBOX and HEUI function.
The device uses high-power inverter and motor, heavy plate casting table for different power and torque of the common rail pump test. It can test Bosch, Denso, Delphi, Siemens, CAT and other brands of electr-onic control fuel injector,oil flow measurement using imported flow sensor. Measurement parameters, ra-il pressure, speed, temperature, fuel, computer display.
Common rail pump test, the test bench is another major function. Through the pump flow sensoryou can test the maximum common rail fuel supply, economic oil supply, has been zero for the detection of oil, a-nd other technical indicators.The test bench has independent diesel active oil supply system,the pressur-e size can be adjusted with different adapters, can increase the EUI/EUP and HEUI test.
CR918 test bench use import the flow sensor for the measurement means, it can test common rail inject-or and common rail pump, it can add EUI/EUP CAMBOX and HEUI function.
The device uses high-power inverter and motor, heavy plate casting table for different power and torque of the common rail pump test. It can test Bosch, Denso, Delphi, Siemens, CAT and other brands of electr-onic control fuel injector,oil flow measurement using imported flow sensor. Measurement parameters, ra-il pressure, speed, temperature, fuel, computer display.
Common rail pump test, the test bench is another major function. Through the pump flow sensoryou can test the maximum common rail fuel supply, economic oil supply, has been zero for the detection of oil, a-nd other technical indicators.The test bench has independent diesel active oil supply system,the pressur-e size can be adjusted with different adapters, can increase the EUI/EUP and HEUI test.

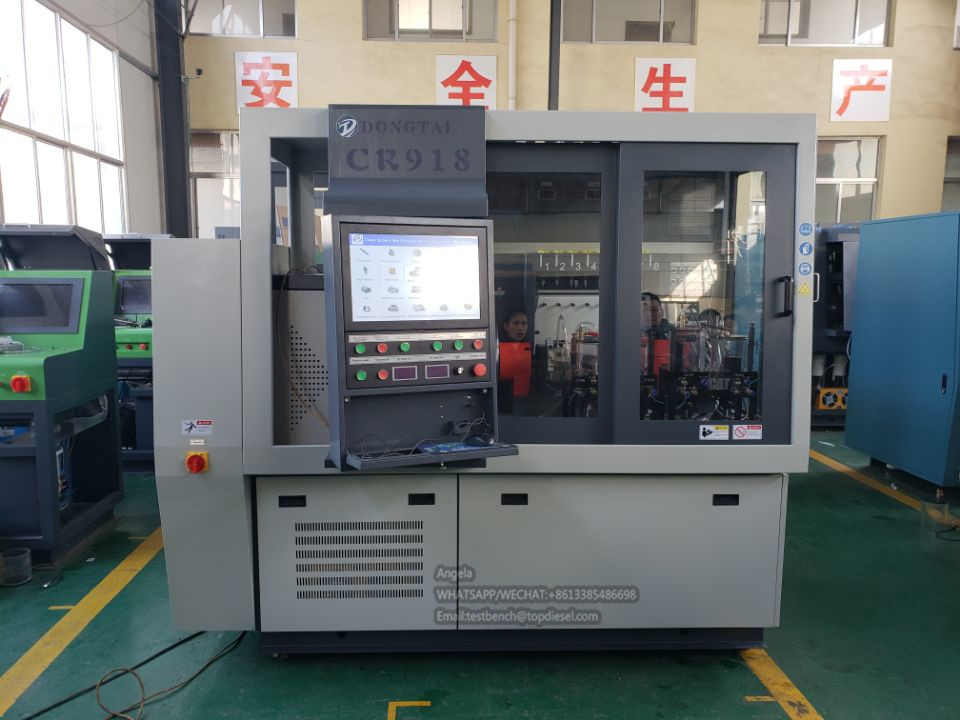

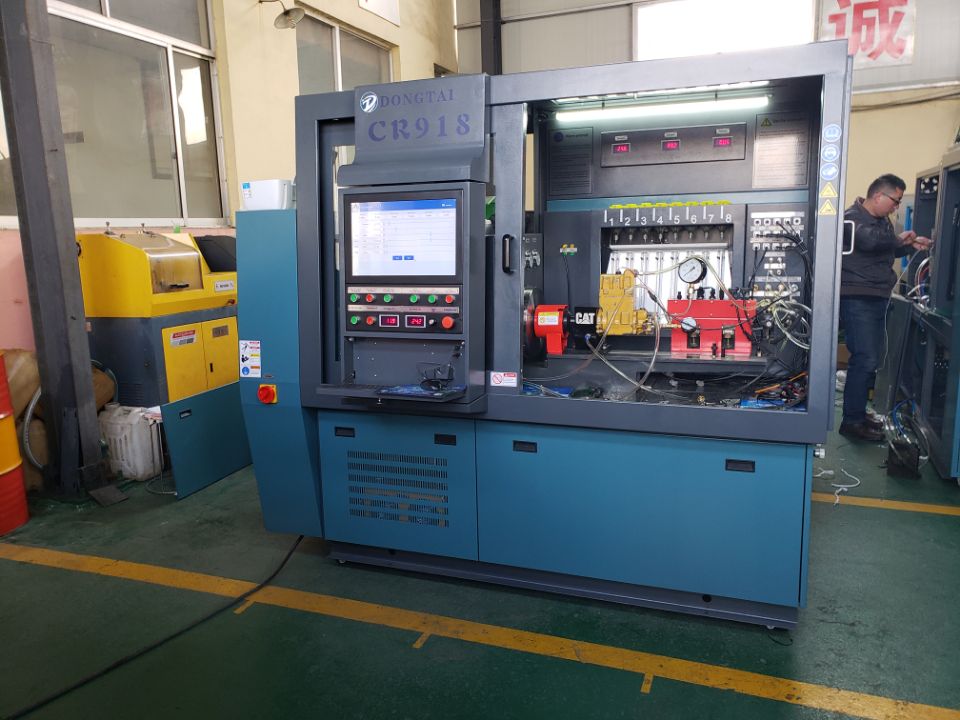

CR918 high pressure common rail injector pump test bench
TAIAN DONGTAI MACHINE MANUFACTURING CO.,LTD10/10 fairsManufacturerModel CR918 common rail injector pump test bench
New for the 140th FairGreen / low-carbonSmart product
$16,50000–$22,50000/ unit FOB
Unit not stated by the supplier (piece, set, box); we confirm it when we get the quote.
MOQ 1 unit
Estimated landed cost
$25,101 / unit
range $21,242–$28,960 · total ≈ $2,510,122
See what’s includedHide breakdown
- FOB goods (100)
- $1,950,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $68,250
- Section 301 tariff (25.0%)
- $487,500
- Customs fees (MPF/HMF)
- $3,072
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,950,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $68,250
- Section 301 tariff (25.0%)
- $487,500
- Customs fees (MPF/HMF)
- $3,072
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
CR918 high pressure common rail injector pump test bench
TAIAN DONGTAI MACHINE MANUFACTURING CO.,LTD10/10 fairsManufacturerModel CR918 common rail injector pump test bench
New for the 140th FairGreen / low-carbonSmart product
$16,50000–$22,50000/ unit FOB
Unit not stated by the supplier (piece, set, box); we confirm it when we get the quote.
MOQ 1 unit
Estimated landed cost
$25,101 / unit
range $21,242–$28,960 · total ≈ $2,510,122
See what’s includedHide breakdown
- FOB goods (100)
- $1,950,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $68,250
- Section 301 tariff (25.0%)
- $487,500
- Customs fees (MPF/HMF)
- $3,072
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,950,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $68,250
- Section 301 tariff (25.0%)
- $487,500
- Customs fees (MPF/HMF)
- $3,072
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: steel
- Color: green
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: steel
- Color: green
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | steel |
|---|---|
| Color | green |
Product details
| Materials | steel |
|---|---|
| Color | green |
From the supplier
CR918 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing
It have three oil tank,engine oil tank and diesel tank,and have test EUIEUP, HEUI caterpillar pump, common rail injector function.
TECHNICAL PARAMETERS Main power380V AC 220V AC(Optional)PhaseThree single(optional)Frequncy50Hz/60HzCurrent45A(MAX)Mian motor 22KWMain motor rotation0-4000 RPM/MINOil motor HP/ Flow 0.19KW / 13L/MINDiesel motor HP /Flow0.19KW / 13L/MINControl circuit voltageDC12V/24V 350WECU internal voltage0-200V DC(MAX)Oil tank volume30LDiesel Tank volume52LTemperature controlHeating/Forced coolingMax rail pressure180MPa,240MPa(Optional)Flowmeter(injection)4-550ml/minFlowmeter(fuel supplying)1-400L/HFlowmeter(fuel flow back)1-400L/HFlowmeter(Oil)5-600L/HCenter distance between motor and working bench125mmWeight1700KGOutlook size net(LXWXH)2250X1260X1920Wooden cage(LXWXH)2350X1500X2100CR918 Heui eui eup common rail diesel injector pump test bench Application :CR918 test bench use import the flow sensor for the measurement means, it can test common rail inject-or and common rail pump, it can add EUI/EUP CAMBOX and HEUI function.
The device uses high-power inverter and motor, heavy plate casting table for different power and torque of the common rail pump test. It can test Bosch, Denso, Delphi, Siemens, CAT and other brands of electr-onic control fuel injector,oil flow measurement using imported flow sensor. Measurement parameters, ra-il pressure, speed, temperature, fuel, computer display.
Common rail pump test, the test bench is another major function. Through the pump flow sensoryou can test the maximum common rail fuel supply, economic oil supply, has been zero for the detection of oil, a-nd other technical indicators.The test bench has independent diesel active oil supply system,the pressur-e size can be adjusted with different adapters, can increase the EUI/EUP and HEUI test.
From the supplier
CR918 New All In One Line Multifunctional Common Rail Diesel Fuel Injector&Pump Testing
It have three oil tank,engine oil tank and diesel tank,and have test EUIEUP, HEUI caterpillar pump, common rail injector function.
TECHNICAL PARAMETERS Main power380V AC 220V AC(Optional)PhaseThree single(optional)Frequncy50Hz/60HzCurrent45A(MAX)Mian motor 22KWMain motor rotation0-4000 RPM/MINOil motor HP/ Flow 0.19KW / 13L/MINDiesel motor HP /Flow0.19KW / 13L/MINControl circuit voltageDC12V/24V 350WECU internal voltage0-200V DC(MAX)Oil tank volume30LDiesel Tank volume52LTemperature controlHeating/Forced coolingMax rail pressure180MPa,240MPa(Optional)Flowmeter(injection)4-550ml/minFlowmeter(fuel supplying)1-400L/HFlowmeter(fuel flow back)1-400L/HFlowmeter(Oil)5-600L/HCenter distance between motor and working bench125mmWeight1700KGOutlook size net(LXWXH)2250X1260X1920Wooden cage(LXWXH)2350X1500X2100CR918 Heui eui eup common rail diesel injector pump test bench Application :CR918 test bench use import the flow sensor for the measurement means, it can test common rail inject-or and common rail pump, it can add EUI/EUP CAMBOX and HEUI function.
The device uses high-power inverter and motor, heavy plate casting table for different power and torque of the common rail pump test. It can test Bosch, Denso, Delphi, Siemens, CAT and other brands of electr-onic control fuel injector,oil flow measurement using imported flow sensor. Measurement parameters, ra-il pressure, speed, temperature, fuel, computer display.
Common rail pump test, the test bench is another major function. Through the pump flow sensoryou can test the maximum common rail fuel supply, economic oil supply, has been zero for the detection of oil, a-nd other technical indicators.The test bench has independent diesel active oil supply system,the pressur-e size can be adjusted with different adapters, can increase the EUI/EUP and HEUI test.
