About this product
- Materials: Metal, Plastic
- Size: 1300*2500*200mm
- Color: Black,Orange
- Movement method: PointtoPointControlLinearControlContourControl
- Certification: CEISO9001Other
- Performance classification: High-EndCNCMachineTools
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: Metal, Plastic
- Size: 1300*2500*200mm
- Color: Black,Orange
- Movement method: PointtoPointControlLinearControlContourControl
- Certification: CEISO9001Other
- Performance classification: High-EndCNCMachineTools
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | Metal, Plastic |
|---|---|
| Size | 1300*2500*200mm |
| Color | Black,Orange |
| Movement method | PointtoPointControlLinearControlContourControl |
| Certification | CEISO9001Other |
| Performance classification | High-EndCNCMachineTools |
| Control method | Semi-ClosedLoopControlClosed-LoopControl |
| Numerical control | Nc |
| Process usage | Other |
From the supplier
Product Feature:
1.Engraving, drilling, cutting, edge guide, milling and so on are in one operation.The four processes switch heads, and the tool changing process is uninterrupted, realizing automation.

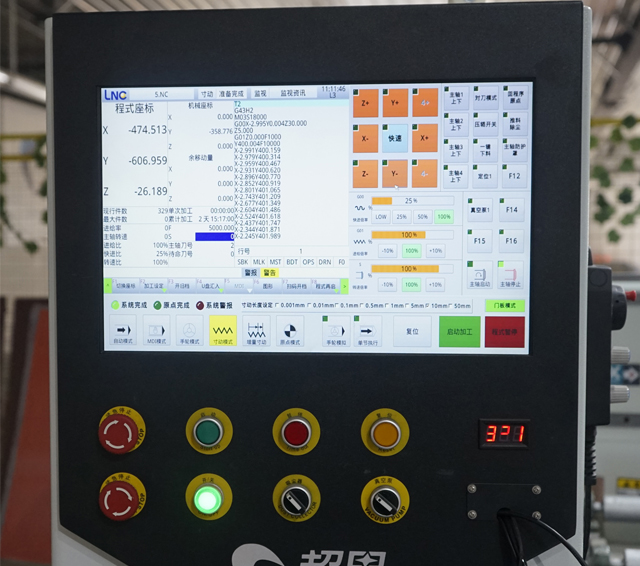

2.Taiwan LNC control system, the control interface design is easy to learn and operate.

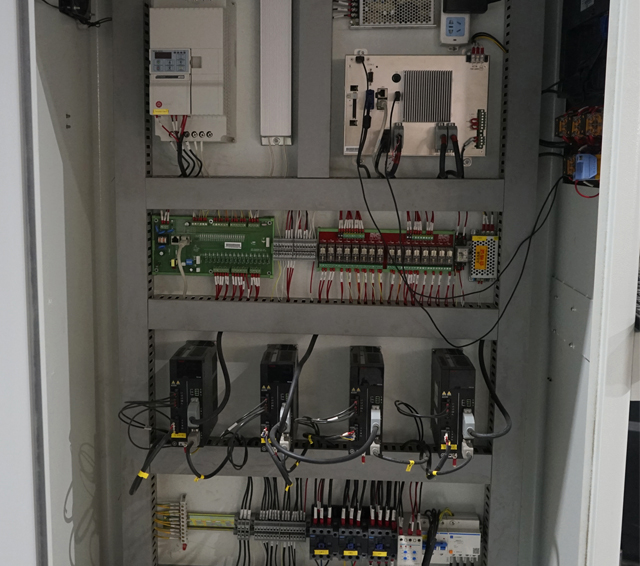

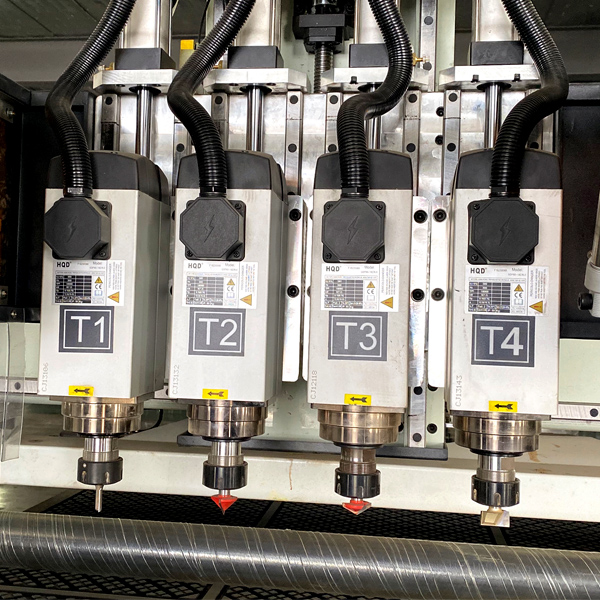

3.The machine adopts HQD 4.5KW/6KW air-cooled spindle, full servo drive system. Original electrical components with stable performance.

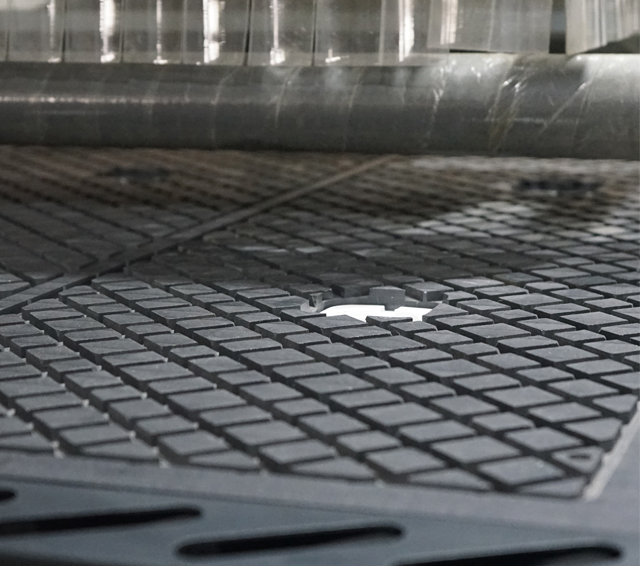

4.The table top is vacuum adsorption, which can strongly absorb materials of different areas. The processing of small plates has no displacement. It confirms the processing surface smooth and accurate plate size .
5.Automatic electric oiling system can be set according to the time. It ensures the lubrication of the sliders, screw and rails, so that extend the service life.
6.Taiwan high-precision square rail is high precision, long service life, large contact surface and strong load-bearing capacity. The vertical rail technology can ensure the operation stability.
7.The integral cast iron side plate is tempered at high temperature to prevent the deformation of side plate from affecting the travel accuracy of Y axis.
Specification:
Model
CX-B1 CNC ROUTER
X Working Area
1300mm
Y Working Area
2500mm
Z Working Area
200mm
Countertop Structure
Vacuum adsorption table
Command Code
G code
XYZ Axis Structure
X/Y Rack rail; Z Screw rail
Input Power
11KW
Power
AC380V / 60Hz
Spindle
HQD air cooling spindle 4.5kw*2+6kw*2
Spindle Rotation Speed
18000rpm / min
Inverter
9KW inverter
Drive Motor
750W JMK servo
Operating System
LNC control system
Vacuum Pump Power
5.5KWair pump
Linear Rail
Taiwan 25
Weight
1200KGS
