About this product
- Materials: Steel
- Size: 7500*800*1300
- Color: blue
- Made in: Hebei, China
About this product
- Materials: Steel
- Size: 7500*800*1300
- Color: blue
- Made in: Hebei, China
Product details
| Materials | Steel |
|---|---|
| Size | 7500*800*1300 |
| Color | blue |
From the supplier

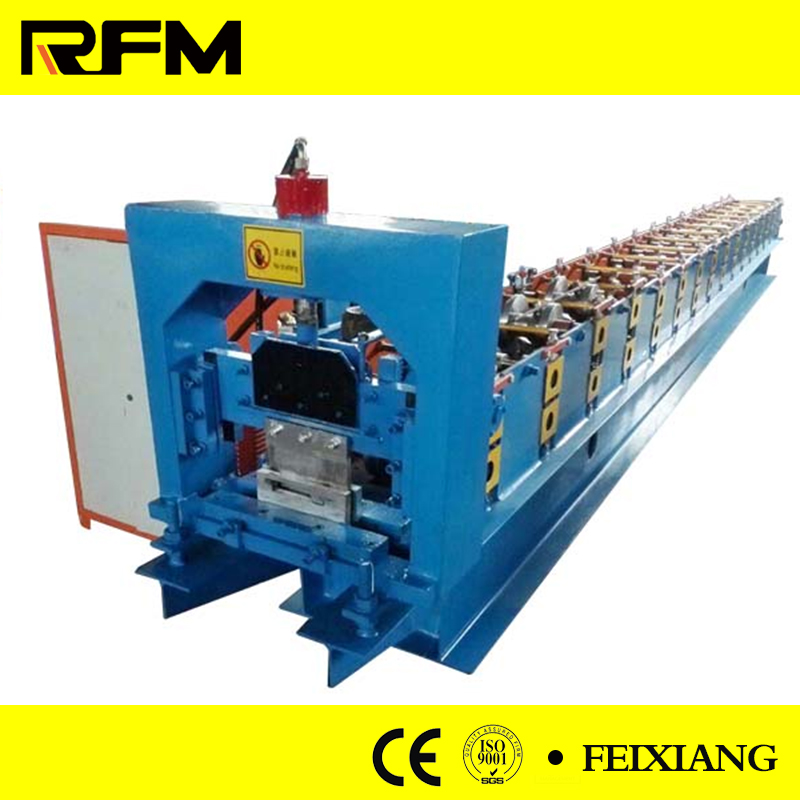

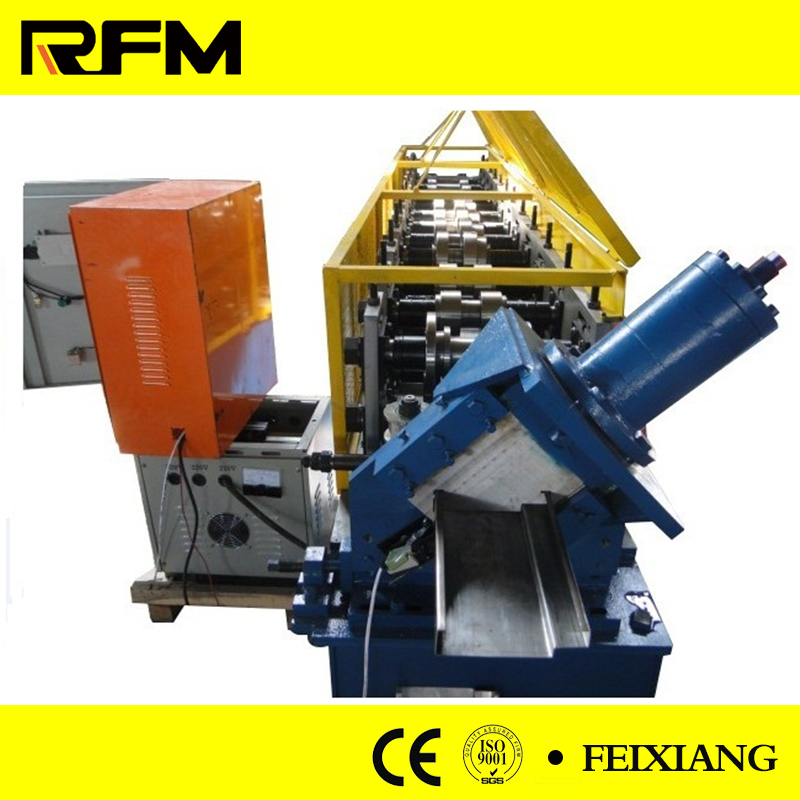

FX130 Door frame roll forming machine
Properties of processed material：
Material： galvanized steel or iron sheet
Material thickness：1 -2mm
Yield strength: Below 550mpa
Profile drawing
Products after roll forming
Machine details
Brand: Feixiang
Model number: FX90
Machine size: 12000*800*1300mm
Weight: 5T
Voltage requirement: 380v50hz3p
Working speed：10-15 m/min
Electric support wires: 8m²
Labor request:2-3 workers
Whole line components
No.
Item
Qty
1.
Deciler
1set
2.
Main forming machine
1set
3.
Control panel
1pcs
4.
Hydraulic pump
1pcs
5.

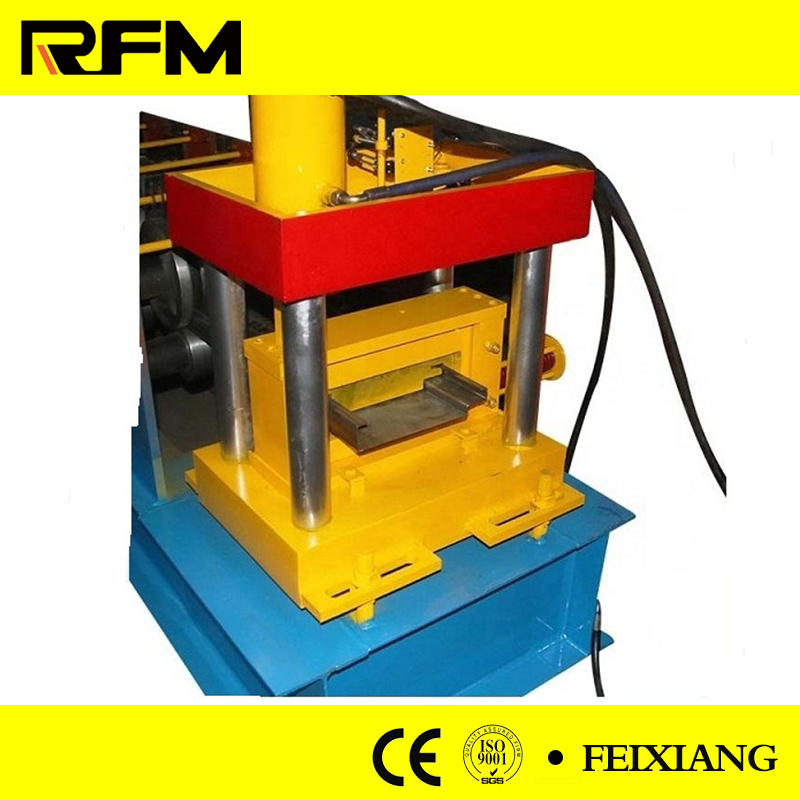

Cutting device
1pcs
6.
Manual holder
1pcs
Technical parameters
Machine base: 400H steel plate welded
Frame: 20mm middle plate
Forming stations: 16steps
Roller: Cr15 with quenching
Shaft: 45#steel,diameter 90mm
Transportation: 1.5 inch chain
Motor: 11 kw
Pump: Yuken 4kw
Cutter: Cr12
Machine quick view
Decoiler：Loading capacity 3T,material width 600mm

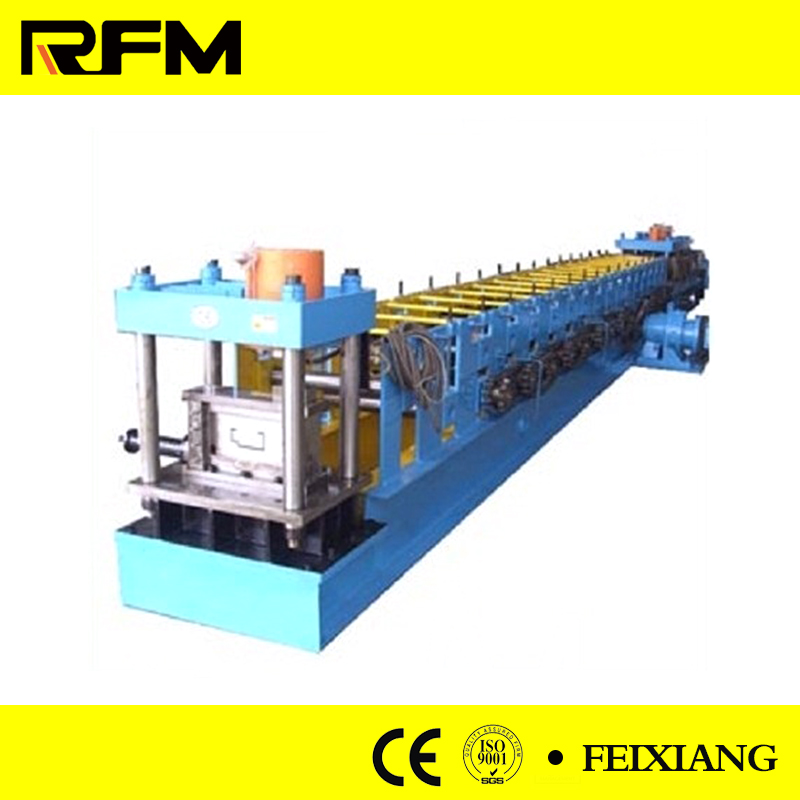

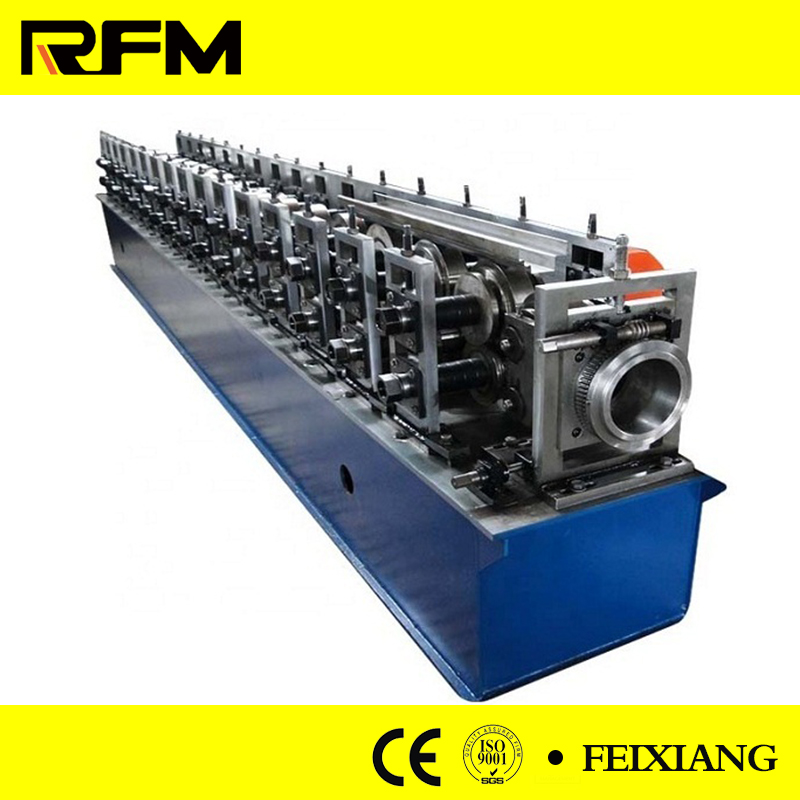

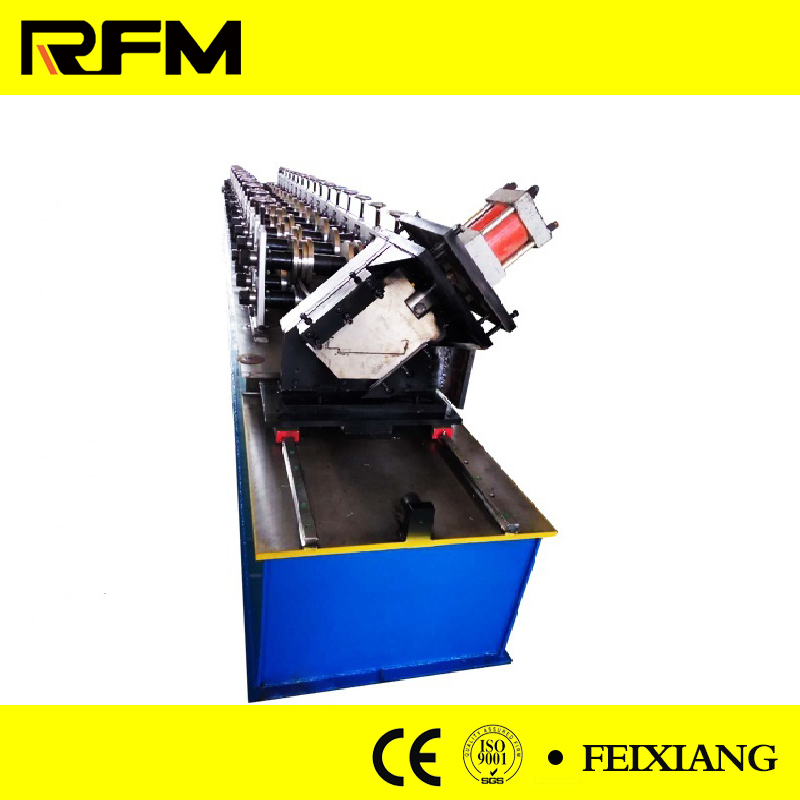

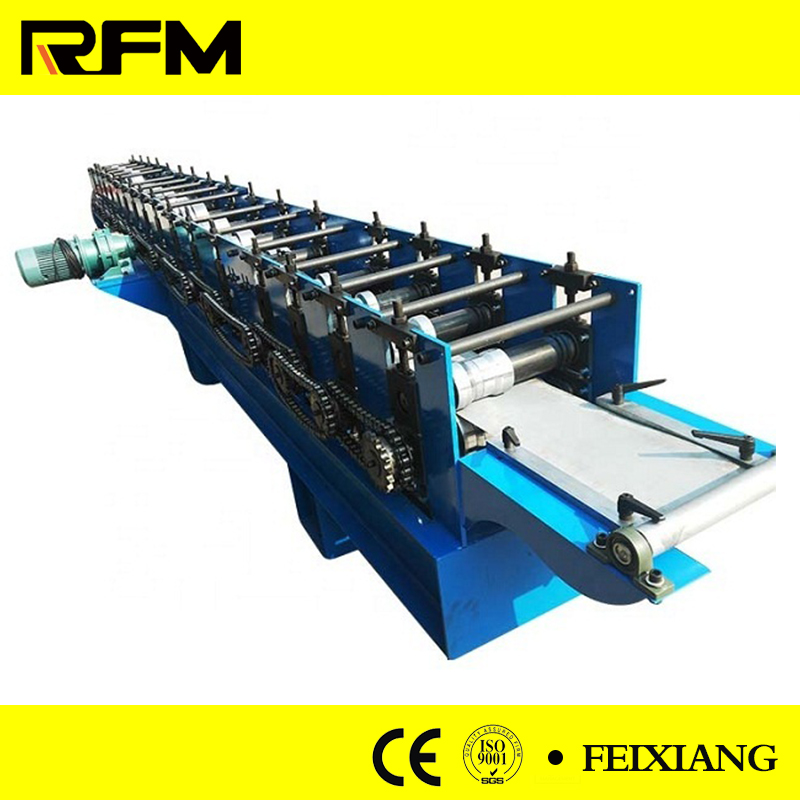

Main forming machine：

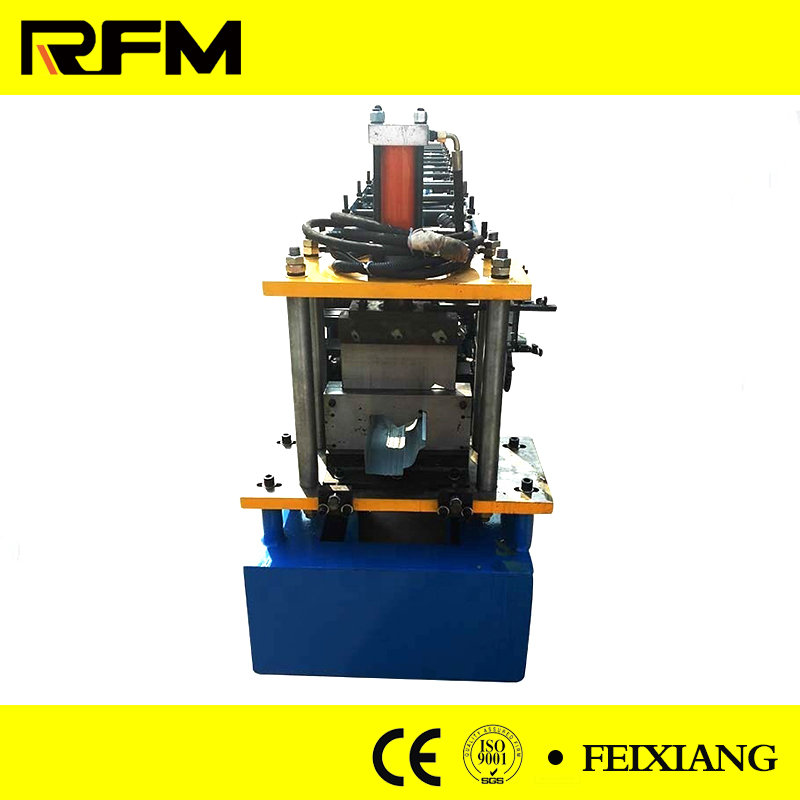

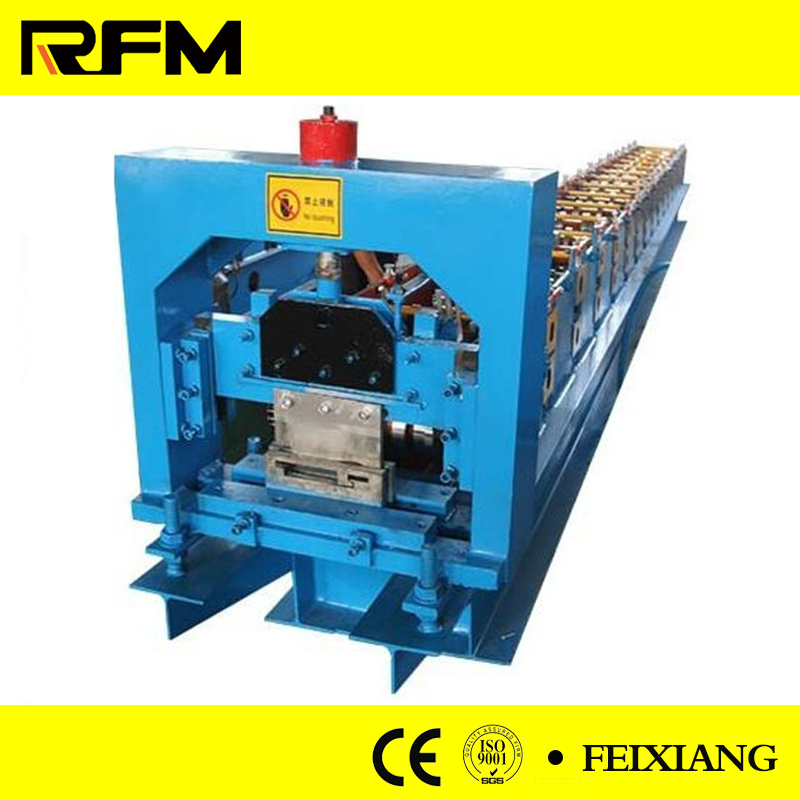

Front View，
Left side，
Right side，
Control panel：
Hydraulic pump：
Manual holder：
CE and Letters patent
Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 2 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
Machine adjusting in customer’s factory
