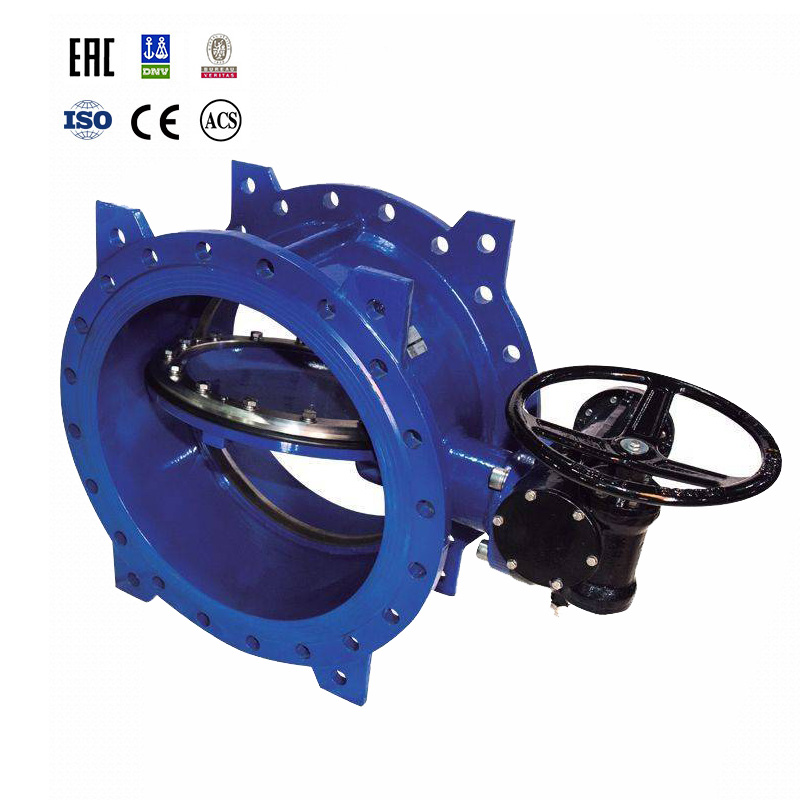

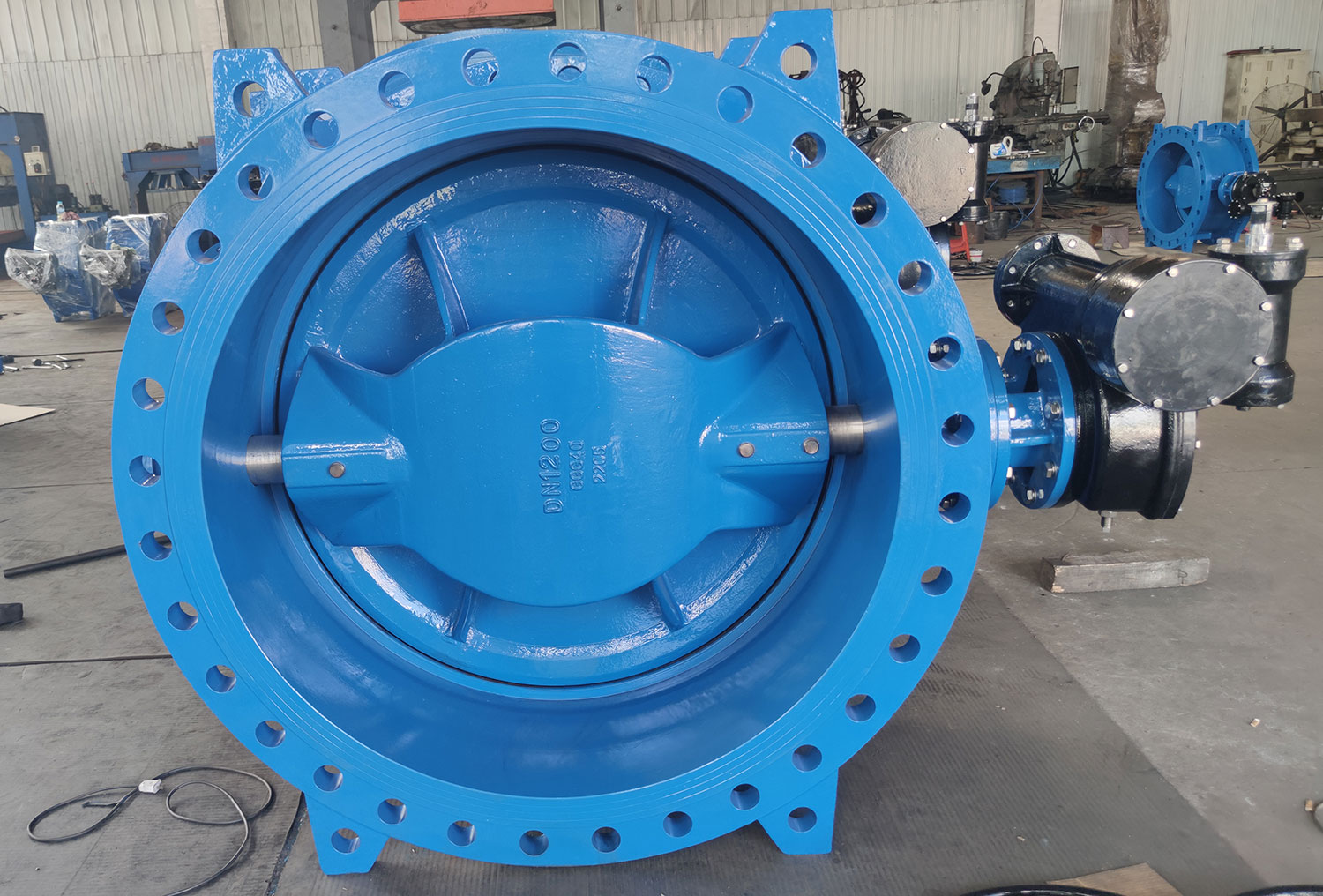

Double Eccentric Butterfly Valve
TIANJIN UNION VALVE CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Double Eccentric Butterfly Valve
TIANJIN UNION VALVE CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: cast iron
- Size: DN200
- Color: bule
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Russia, EU, Other European Countries
- Made in: Tianjin, China
About this product
- Materials: cast iron
- Size: DN200
- Color: bule
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Russia, EU, Other European Countries
- Made in: Tianjin, China
Product details
| Materials | cast iron |
|---|---|
| Size | DN200 |
| Color | bule |
Product details
| Materials | cast iron |
|---|---|
| Size | DN200 |
| Color | bule |
From the supplier
Performance:
Nominal pressue (MPa)
1.0
1.6
Nominal diameter(mm)
50-3200
50-3200
Test pressure
Shell
1.5
2.4
(MPa)
Seal
1.1
1.76
Applicable temperature
150
Applicable medium
Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc.
Operating mode
manual, worm gear, pneumatic, electric, etc.
Standard:
Design & Manufacture
Flange Connection
Face to Face Dimension
Test & Inspection
MSS SP-67
API609
EN593
DIN PN10/16/25; ANSI B 16.1
BS4504; ISO PN10/16
JIS B 2212/2213
BS 10 table D; BS 10 table E
API609
ISO5752 series 20
BS5155
API 598
Material List:
No.
Part Name
Material
1
Body
Carbon Steel/Stainless Steel/Cast Iron/Ductile Iron/ Al-Bronze
2
Disc
Al-Bronze/CF8M/Ductile iron/WCB
3
Seat
EPDM/PEFE/Buna/NBR/Hypalon
4
Stem
Carbon Steel/Stainless Steel314/Stainless Steel316
5
Bushing
PTFE/Lubricating
6
O ring
EPDM/PEFE/Buna/NBR/Hypalon
7
Pin
SS316/SS416/SS304
From the supplier
Performance:
Nominal pressue (MPa)
1.0
1.6
Nominal diameter(mm)
50-3200
50-3200
Test pressure
Shell
1.5
2.4
(MPa)
Seal
1.1
1.76
Applicable temperature
150
Applicable medium
Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc.
Operating mode
manual, worm gear, pneumatic, electric, etc.
Standard:
Design & Manufacture
Flange Connection
Face to Face Dimension
Test & Inspection
MSS SP-67
API609
EN593
DIN PN10/16/25; ANSI B 16.1
BS4504; ISO PN10/16
JIS B 2212/2213
BS 10 table D; BS 10 table E
API609
ISO5752 series 20
BS5155
API 598
Material List:
No.
Part Name
Material
1
Body
Carbon Steel/Stainless Steel/Cast Iron/Ductile Iron/ Al-Bronze
2
Disc
Al-Bronze/CF8M/Ductile iron/WCB
3
Seat
EPDM/PEFE/Buna/NBR/Hypalon
4
Stem
Carbon Steel/Stainless Steel314/Stainless Steel316
5
Bushing
PTFE/Lubricating
6
O ring
EPDM/PEFE/Buna/NBR/Hypalon
7
Pin
SS316/SS416/SS304
