About this product
- Materials: Cast Iron
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Other European Countries, Others
- Made in: Fujian, China
About this product
- Materials: Cast Iron
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Other European Countries, Others
- Made in: Fujian, China
Product details
| Materials | Cast Iron |
|---|
From the supplier

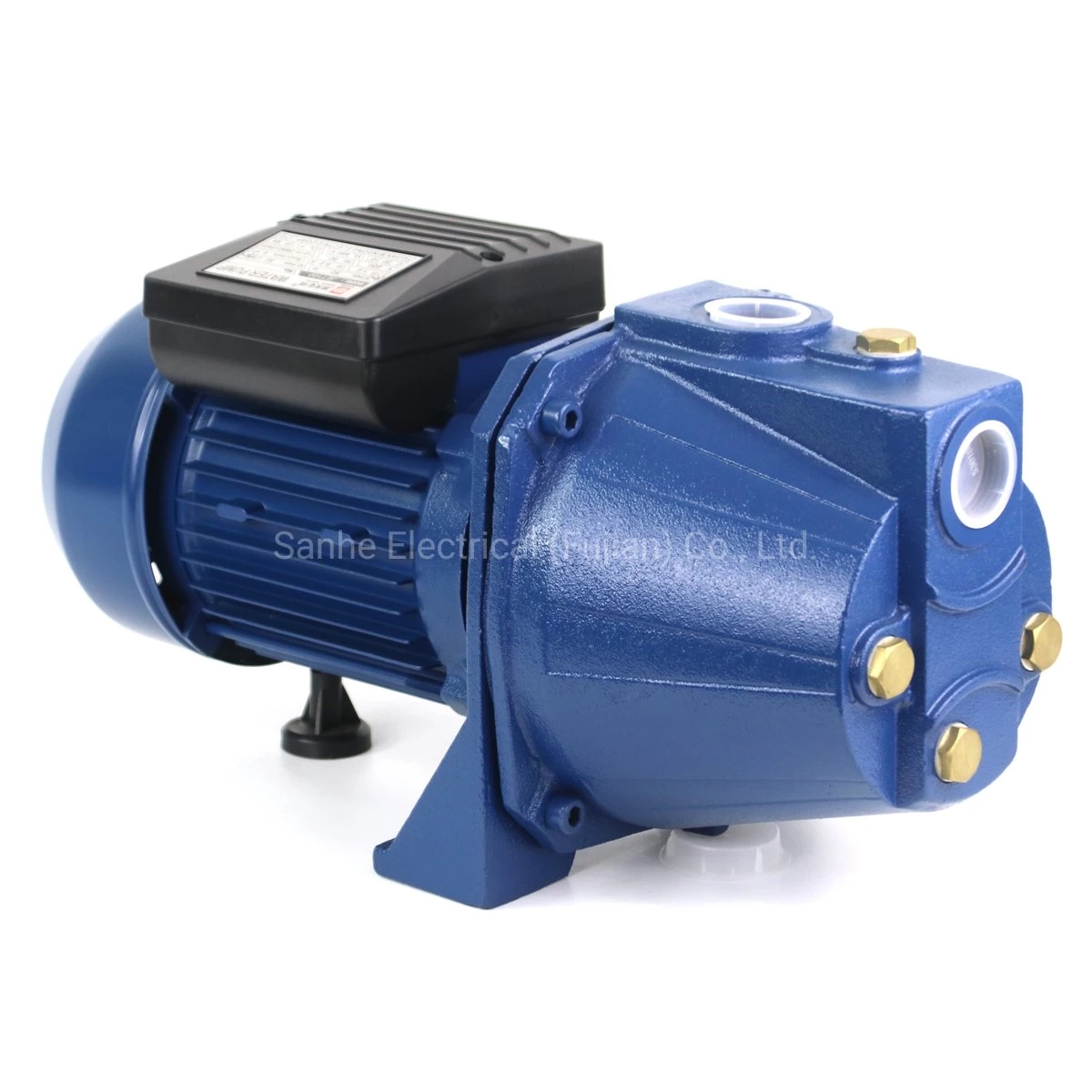

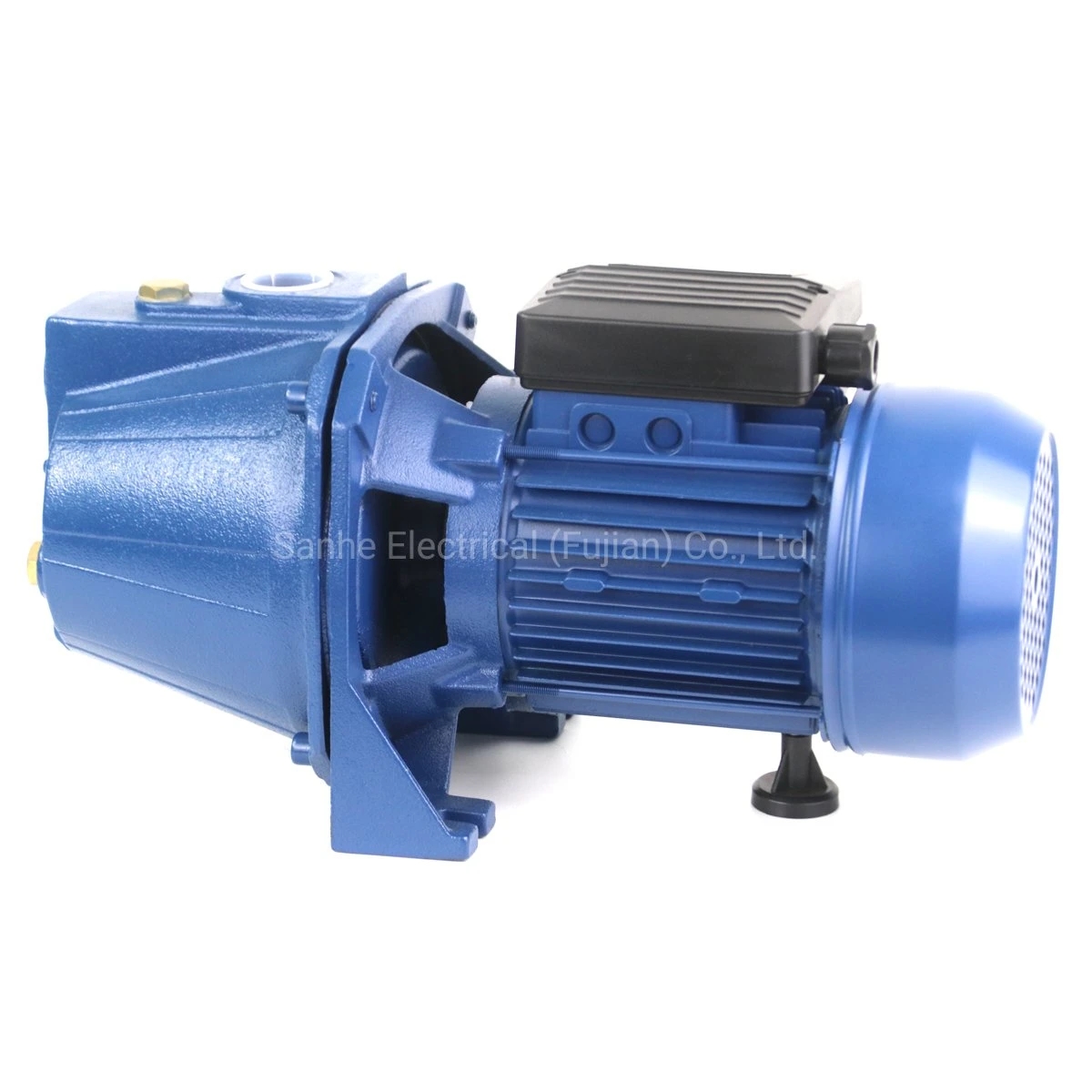

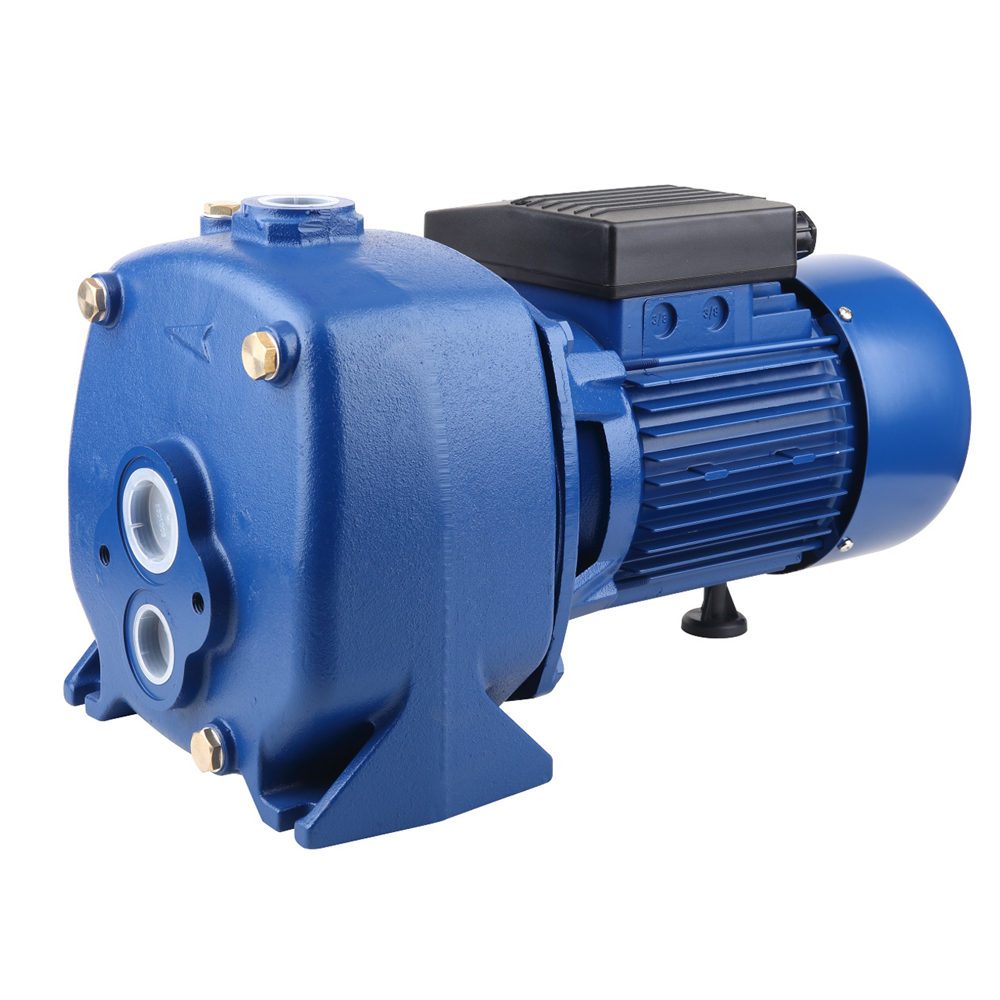

DP SELF-PRIMING DEEP WELL PUMP
CONSTRUCTION FEATURES
PUMP
Pump Body: Cast iron
Impeller: Brass / Stainless steel optional
Mechanical Seal: Ceramic steatite/metalized carbon
MOTOR
Single phase
Duty: Continuously rated
Motor Housing: Aluminum
Shaft: 45# steel / Stainless steel
Motor. Closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44 /IP54
APPLICATIONS AND INSTALLATION
The DP pumps are regarded as one of the best pumps for deep well.In fact they consist of two pumps connected in series, one is ejector-pump and the other is centrifugal pump. The ejector pump is lowered in well and connected to the centrifugal pump body by two pipes.
The most remarkable character is that they can be used to supply clean water from extremely deep well. To ensure adequate counter-pressure, it is always to install a foot valve with a filter on the suction opening.
TECHNICAL DATA
max Output power Current Q.max H.max Suct max L/min 0 5 10 15 20 25 30 35 40 kW kW HP A L/min m m DP255 0.68 0.55 0.75 3.5 35 45 15 H meter 45 42 38 32 27 22 16 9 DP355 0.85 0.75 1. 4 38 50 25 50 47 44 38 33 28 21 15 9 DP505 1.75 1.1 1.5 8.5 40 85 30 60 80 72 64 54 45 35 25 12
SANHE ELECTRICAL (FUJIAN) CO., LTD. is a professional designer and manufacturer of water pumps and electric motors in Fuan, Fujian, China. It is subsidiary of Mindong Group which was founded in 1958.
Our main products are water pumps, electric motors and alternators, which are 50 series over 1000 varieties export to more than 60 countries and areas.
Years of manufacturing development, we are willing to work with global customers and partners to create a brighter future together.
