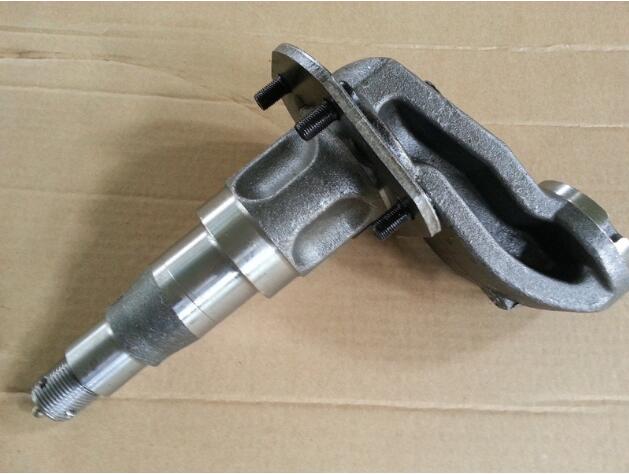

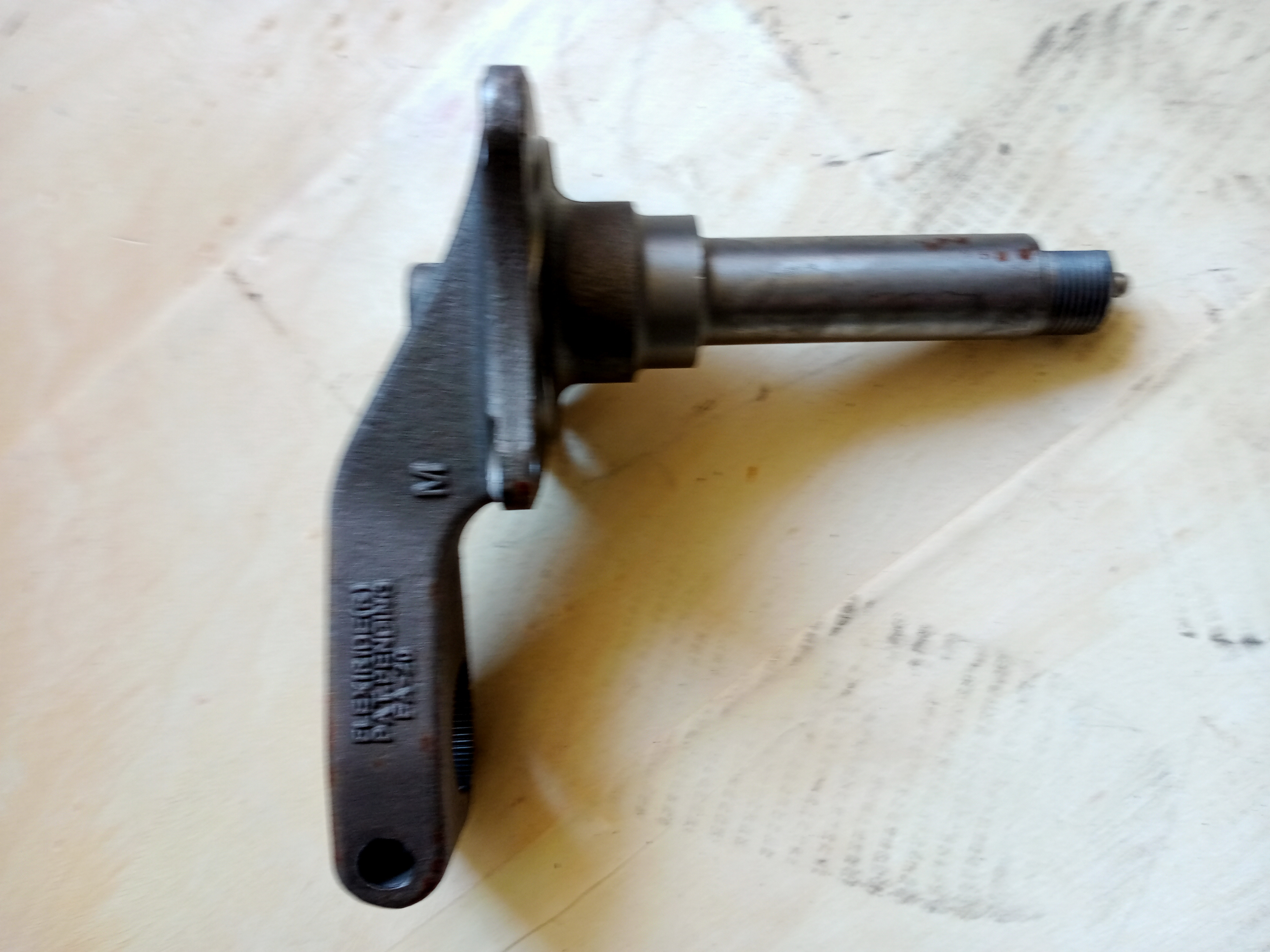

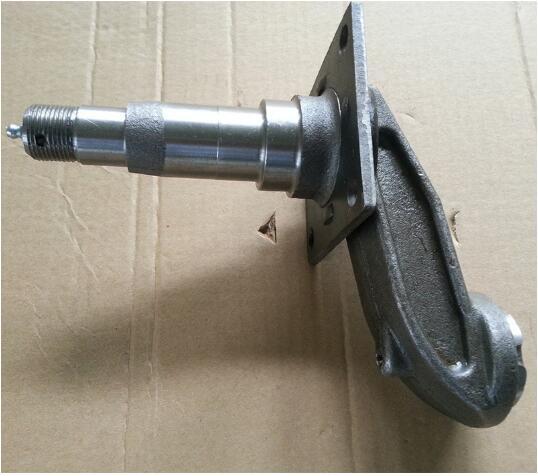

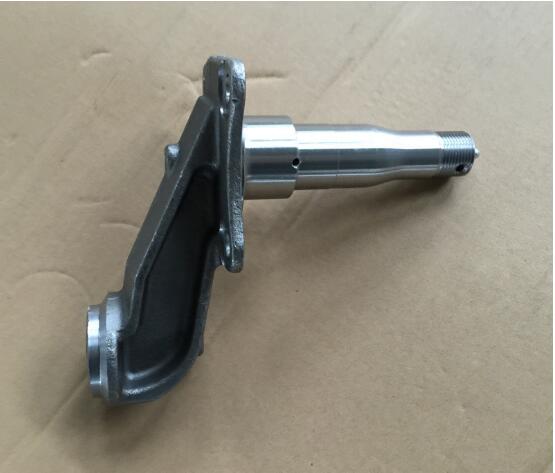

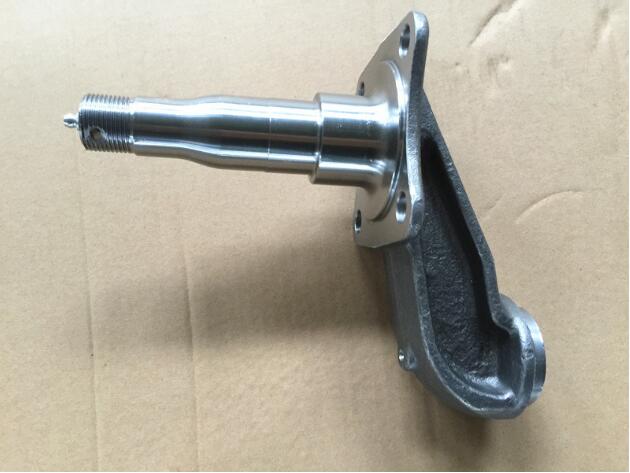

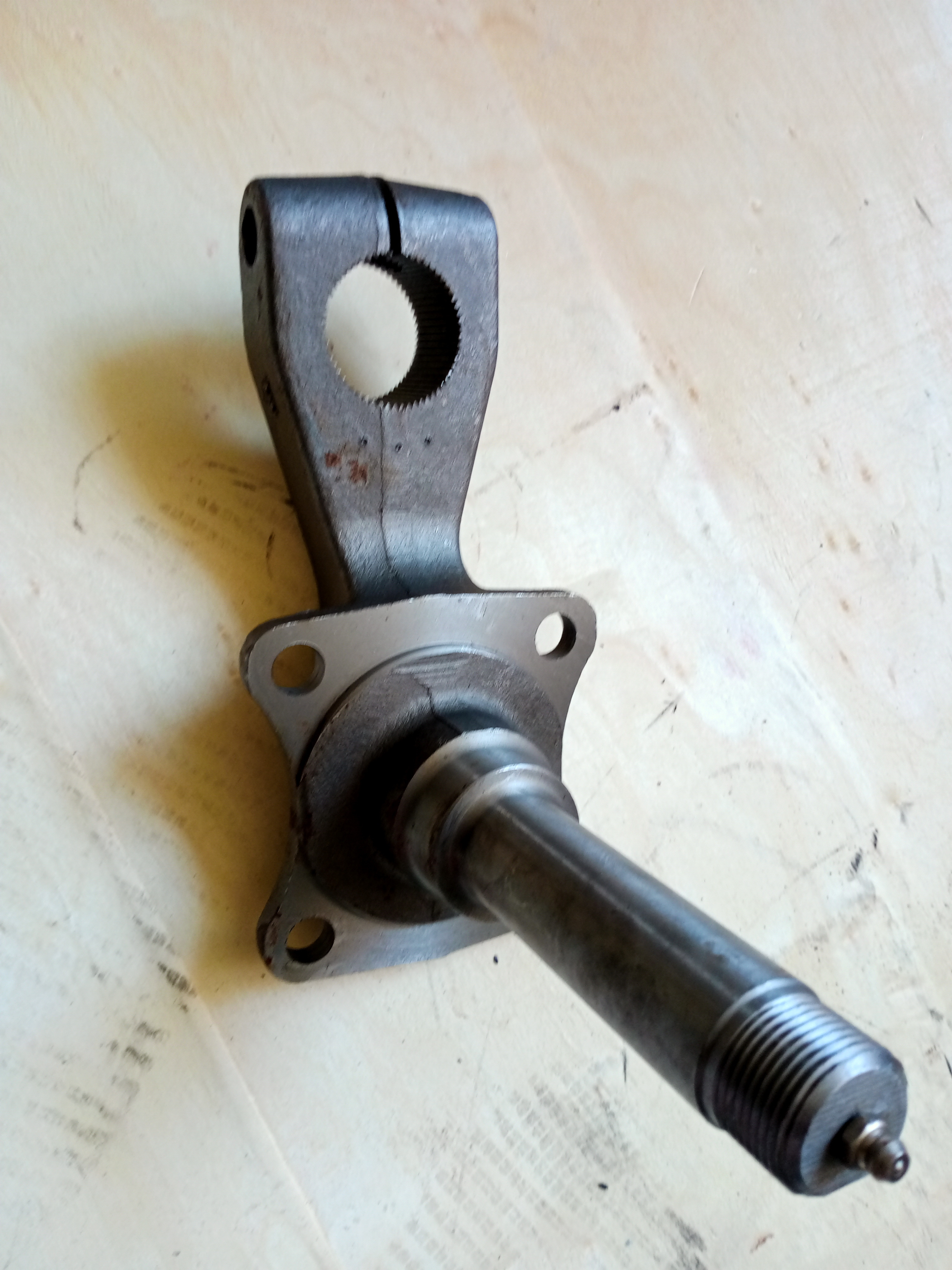

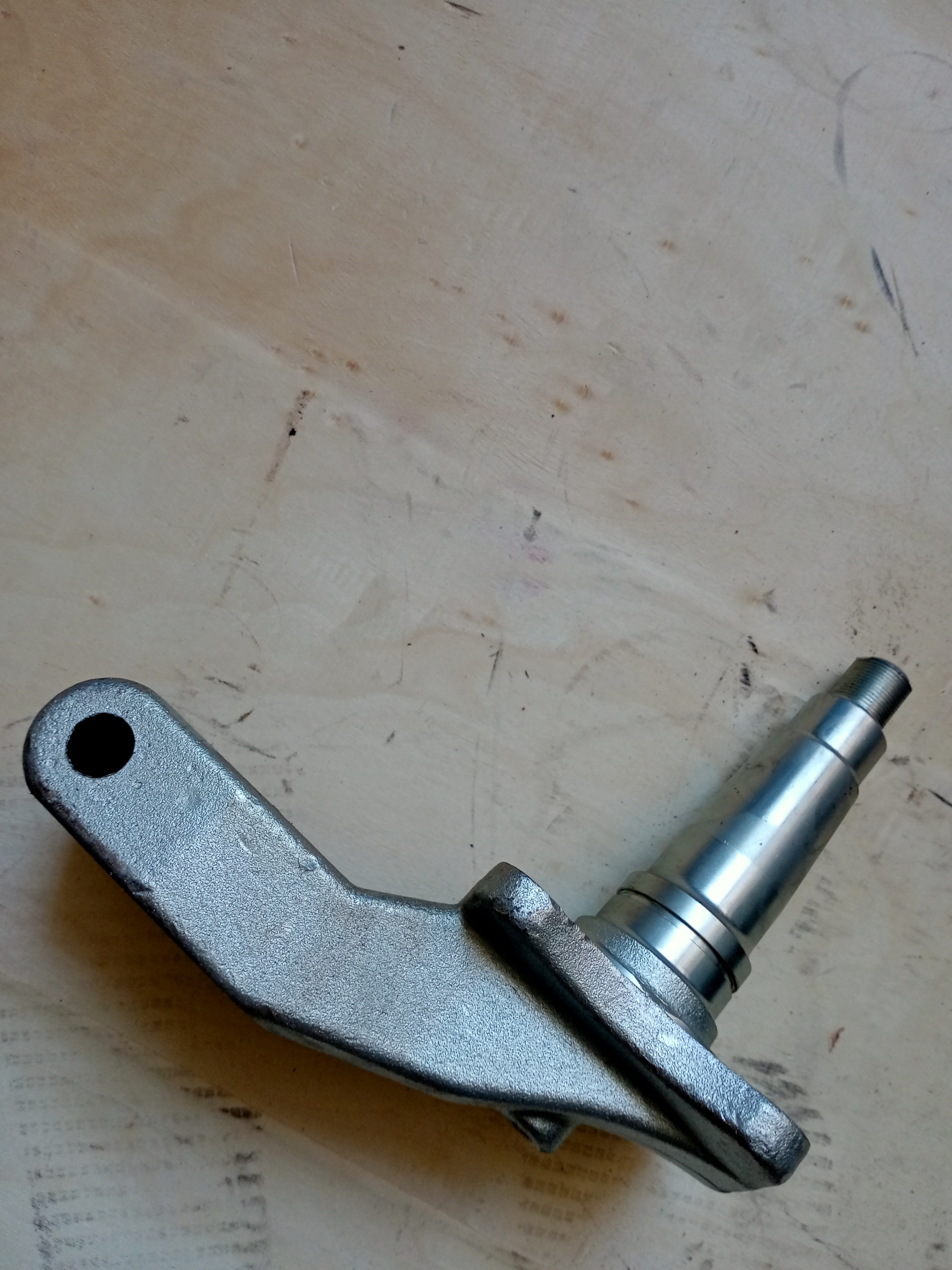

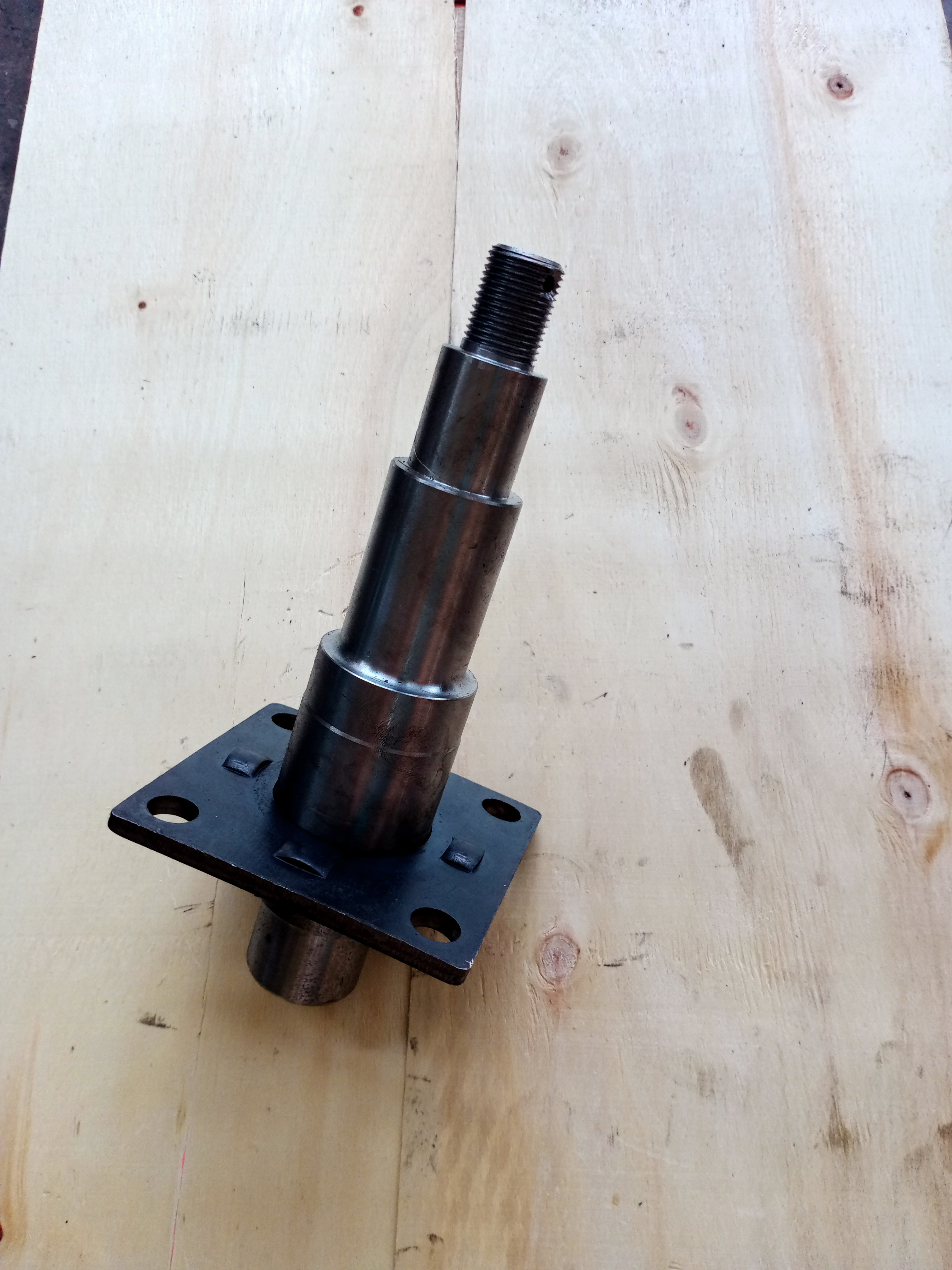

Drop Spindle Sale for Boat Trailer 6000lbs

Product Description

Welcome to Guilin Pengyuan

A spindle provides the mounting areas for the tires, wheels, and other 'spinning' components that make contact with the road. The spindle must match the capacity of the axle. They are available in the following capacities: 2000lbs, 3500lbs, and 6000lbs-8000lbs.

Pengyuan offers a wide selection of hardened steel stock machined spindles that meet critical requirements of bearing and hub fit. Each spindle is turned from high tensile, cold rolled steel and 100% quality control checked for accuracy.

Specifications of 6000lbs Drop Spindle Sale for Boat Trailer:

• All spindles are machined to 1"-14 UNS-2A Thread(E) with 0.190" cotter pin hole.
• Welding of brake flange is available upon request; please add "F" to the end of the part number.
• Drilling for lubrication is available upon request; please add "G" to the end of the part number.
• Machining of D-Flat is available upon request; please add "D" to the end of the part number.
• Above dimensions are for reference only.
• Custom machining available upon request.

PART NUMBER PRODUCT DESCRIPTION DIMENSIONS REF NO WEIGHT EACH A B C D F 55370 3500 lb. axle, 4" Drop for 2 3/8" tube 2.770" 1.720" 1.377" 1.062" 5.360" 2-132 7.40 lb. 55372 3500 lb. axle, 4" Drop for 3" tube 2.770" 1.720" 1.377" 1.062" 5.360" 2-156 8.20 lb. 55890 6000 lb. axle, 4" Drop for 3" tube 2.640" 2.250" 1.750" 1.249" 7.250" 2-121 13.70 lb. 55892 8000 lb. axle, 4" Drop with forged flange for 3 1/3" tube 3.000" 12.250" 1.750" 1.249" 57.250" 9020152 18.90 lb.

Related products

Company Information

Establishing in 1995, Guilin Pengyuan Trading Co., Ltd. is a manufacturer and trader combined company. We have enough tests on the products to ensure the quality of the products and their goods will be delivered after strict quality inspection. We had associated and independent factory named "Guilin Pengda Automobile Parts Manufactory Co., Ltd." which located in Guilin, occupying an area of 23,067 square meters. We have successful foreign trading experience in Europe, North America, South America etc..,

As a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China. In March 2005, Pengyuan passed TS16949 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.

Our factory:

We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.

Production workshop and equipment:

Pengyuan is well-equipped with all kinds of trailer parts.

We has 487 sets of physical performance, chemical analysis,

metallographic inspection and other testing equipment.

Productive process:

Our products include:
1. Spindle
2. Hub and drum assembly
3. Brake assembly
4. Leaf spring
5. Square axle beam and axle
6. Other axle part
1) Couple
2) U-bolt kit

More Products

More Details, click here

Exhibitions

Welcome to visit us in exhibition!

Packaging & Shipping

As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.

Choose to contact us>>

FAQ

1: Could you please make us an offer as soon as possible?

In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.

2: Could you please provide us with the specifications of the products?

Sure, please confirm the product code you need before that.

3: How can you guarantee the quality of your products?

Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.

4: How to solve the problems in the later stage?

We are confident in our products. We pack them well to make sure they are well protected.
