About this product
- Materials: 304L Stainless Steel
- Size: 700*152*152
- Color: Metallic silver
- Exports to: Mainland China, Southeast Asia, South Asia, USA and Canada, Latin America, Russia, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: 304L Stainless Steel
- Size: 700*152*152
- Color: Metallic silver
- Exports to: Mainland China, Southeast Asia, South Asia, USA and Canada, Latin America, Russia, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | 304L Stainless Steel |
|---|---|
| Size | 700*152*152 |
| Color | Metallic silver |
Product details
| Materials | 304L Stainless Steel |
|---|---|
| Size | 700*152*152 |
| Color | Metallic silver |
From the supplier
1. Satelit + ESE lightning rod working characteristics
● Excellent performance
I. Under the same conditions (height), "Satelit +" has a larger protection range than ordinary lightning rods.
II. Lightning strike is more accurate, reducing the probability of a lightning strike point falling on a non-lightning needle body.
● Safe and reliable: no radioactive elements, stainless steel material, corrosion resistance, strong wind resistance.
● Maintenance-free: passive, no power supply, no energy-consuming components.
● Simple installation: light weight, no need to install coaxial shielded cable.
● Beautiful appearance

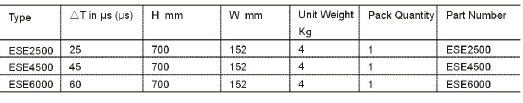

2.Satelit + ESE lightning rod product modelModelEarly discharge time △ TESE250025μs ESE450045μs ESE600060μs △T：According to the preemptive start time specified by France International NFC17-102, the actual test value is greater than the specified value3. Satelit + ESE lightning rod protection radius
According to NFC17-102, the needle tip should be 2m (h1) above the level of the protected object. When the height of the lightning rods is different (h2, h3, ... hn), the protection scope (radius) is Rp2, Rp3 ... Rpn, respectively, and the calculation formula should consider the lightning protection level of the protected object, the local thunderstorm activities and geological landforms.
The protection radius of "satelit +" is related to the height (h), its preemption time (model), and the selected protection level:
When h≥5 ,;
Note: In the formula, Rp is the protection radius on the horizontal plane under consideration h is the difference in horizontal height of the needle tip relative to the top of the object to be protected D is the radius of the ball (flash distance)
The first type of building is 20m (GB50057-94 requires D = 30m)
The second type building is 45m
The third type of building is 60m
△ L is the upstream lead distance of "satelit +"
△ L = V (meter / microsecond) · △ T (microsecond)
V is the speed of pilot propagation, the experimental data shows: V = 1 meter / microsecond
When h
Tip heightH=Above the level of the protected object(m)234561015204560The first type of buildingESE25002029394949515354--ESE45002842577171727374--ESE60003552698687888989--The second type building ESE2500233446575861636570-ESE4500324865818283858690-ESE6000395878979799101102105-The third type of buildingESE250026395265666972758485ESE45003654728991929597104105ESE6000436485
From the supplier
1. Satelit + ESE lightning rod working characteristics
● Excellent performance
I. Under the same conditions (height), "Satelit +" has a larger protection range than ordinary lightning rods.
II. Lightning strike is more accurate, reducing the probability of a lightning strike point falling on a non-lightning needle body.
● Safe and reliable: no radioactive elements, stainless steel material, corrosion resistance, strong wind resistance.
● Maintenance-free: passive, no power supply, no energy-consuming components.
● Simple installation: light weight, no need to install coaxial shielded cable.
● Beautiful appearance
2.Satelit + ESE lightning rod product modelModelEarly discharge time △ TESE250025μs ESE450045μs ESE600060μs △T：According to the preemptive start time specified by France International NFC17-102, the actual test value is greater than the specified value3. Satelit + ESE lightning rod protection radius
According to NFC17-102, the needle tip should be 2m (h1) above the level of the protected object. When the height of the lightning rods is different (h2, h3, ... hn), the protection scope (radius) is Rp2, Rp3 ... Rpn, respectively, and the calculation formula should consider the lightning protection level of the protected object, the local thunderstorm activities and geological landforms.
The protection radius of "satelit +" is related to the height (h), its preemption time (model), and the selected protection level:
When h≥5 ,;
Note: In the formula, Rp is the protection radius on the horizontal plane under consideration h is the difference in horizontal height of the needle tip relative to the top of the object to be protected D is the radius of the ball (flash distance)
The first type of building is 20m (GB50057-94 requires D = 30m)
The second type building is 45m
The third type of building is 60m
△ L is the upstream lead distance of "satelit +"
△ L = V (meter / microsecond) · △ T (microsecond)
V is the speed of pilot propagation, the experimental data shows: V = 1 meter / microsecond
When h
Tip heightH=Above the level of the protected object(m)234561015204560The first type of buildingESE25002029394949515354--ESE45002842577171727374--ESE60003552698687888989--The second type building ESE2500233446575861636570-ESE4500324865818283858690-ESE6000395878979799101102105-The third type of buildingESE250026395265666972758485ESE45003654728991929597104105ESE6000436485
