About this product
- Materials: Steel
- Size: 3860*1420*1940mm
- Color: White
- Power source: Other
- Horsepower: Other
- Drive wheel: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Steel
- Size: 3860*1420*1940mm
- Color: White
- Power source: Other
- Horsepower: Other
- Drive wheel: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Steel |
|---|---|
| Size | 3860*1420*1940mm |
| Color | White |
| Power source | Other |
| Horsepower | Other |
| Drive wheel | Other |
| Engine capacity | Other |
| Tire certification | Other |
| Load capacity | 1-10t |
Product details
| Materials | Steel |
|---|---|
| Size | 3860*1420*1940mm |
| Color | White |
| Power source | Other |
| Horsepower | Other |
| Drive wheel | Other |
| Engine capacity | Other |
| Tire certification | Other |
| Load capacity | 1-10t |
From the supplier

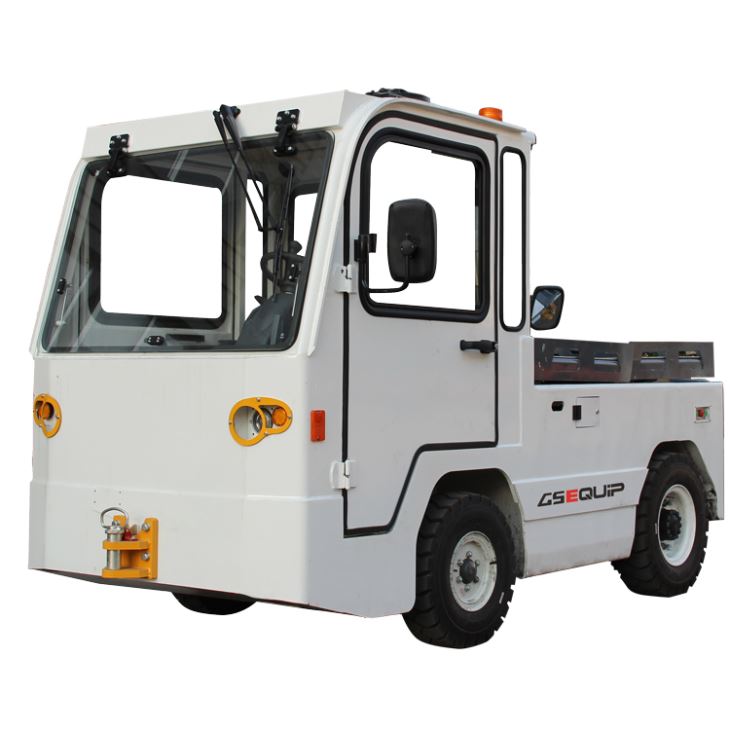

TB25 Electric Tow Tractors are designed for airport, post office, railway station, and food industries. Reliable and excellent performance greatly increases the work efficiency, easy access to all major components largely reduces maintenance costs.
Product and Feature
>Hydraulic steering system with shock absorption device, easy and flexible operation
>Towing couplers both in front and rear, the rear couplers can be adjusted by the control leveler in the cab;
>Semi-sealed cab with sunshade type provides a wide visual,harmonious color and beautiful outlook;
>American import CURTIS controller,precise control with self-diagnosis unction;
>Vacuum booster hydraulic dual re-circulation four wheel braking system,reliable and safe.
1
Model
TB25
2
Power Type
Battery
3
Rated Traction
kg
25000
4
Service Weight
kg
4500
Dimension Parameter
5
Overall Length
mm
3860
6
Overall Width
mm
1420
7
Height
mm
1940
8
Wheelbase
mm
1610
9
Front Overhang
mm
1225
10
Wheel Tread(F/R)
mm
1235/1185
11
Towing Coupler Height(Uner/On)
mm
304.8
12
Ground Clearance
mm
110
13
Turning Radius
mm
3450
Performance Parameter
14
Travel(Loaded/Unloaded)
km/h
10/22
15
Front Axle Load
kg
1680
16
Rear Axle Load
kg
3320
17
Max Drawbar Pull
Kn
22
18
Max Drawbar Pull @ 6km/h
Kn
13
19
Mileage
km
52
20
Braking Distance(Full Draw @ 10km/h)
m
≤5.5
Motor
21
Rated Output
Kw
23
22
Rated Torque
N.m
106.5
23
Rated Speed
r.p.m
2063
24
Rated Current
A
295
25
Motor Rating
S2 60min
Battery
26
Type
Lead-acid Battery
27
Voltage/Capacity
V/Ah
80/660
From the supplier
TB25 Electric Tow Tractors are designed for airport, post office, railway station, and food industries. Reliable and excellent performance greatly increases the work efficiency, easy access to all major components largely reduces maintenance costs.
Product and Feature
>Hydraulic steering system with shock absorption device, easy and flexible operation
>Towing couplers both in front and rear, the rear couplers can be adjusted by the control leveler in the cab;
>Semi-sealed cab with sunshade type provides a wide visual,harmonious color and beautiful outlook;
>American import CURTIS controller,precise control with self-diagnosis unction;
>Vacuum booster hydraulic dual re-circulation four wheel braking system,reliable and safe.
1
Model
TB25
2
Power Type
Battery
3
Rated Traction
kg
25000
4
Service Weight
kg
4500
Dimension Parameter
5
Overall Length
mm
3860
6
Overall Width
mm
1420
7
Height
mm
1940
8
Wheelbase
mm
1610
9
Front Overhang
mm
1225
10
Wheel Tread(F/R)
mm
1235/1185
11
Towing Coupler Height(Uner/On)
mm
304.8
12
Ground Clearance
mm
110
13
Turning Radius
mm
3450
Performance Parameter
14
Travel(Loaded/Unloaded)
km/h
10/22
15
Front Axle Load
kg
1680
16
Rear Axle Load
kg
3320
17
Max Drawbar Pull
Kn
22
18
Max Drawbar Pull @ 6km/h
Kn
13
19
Mileage
km
52
20
Braking Distance(Full Draw @ 10km/h)
m
≤5.5
Motor
21
Rated Output
Kw
23
22
Rated Torque
N.m
106.5
23
Rated Speed
r.p.m
2063
24
Rated Current
A
295
25
Motor Rating
S2 60min
Battery
26
Type
Lead-acid Battery
27
Voltage/Capacity
V/Ah
80/660
