Electric customized sightseeing bus
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Electric customized sightseeing bus
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: electric
- Size: 5320×1520×2245
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Materials: electric
- Size: 5320×1520×2245
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Materials | electric |
|---|---|
| Size | 5320×1520×2245 |
| Color | blue |
From the supplier

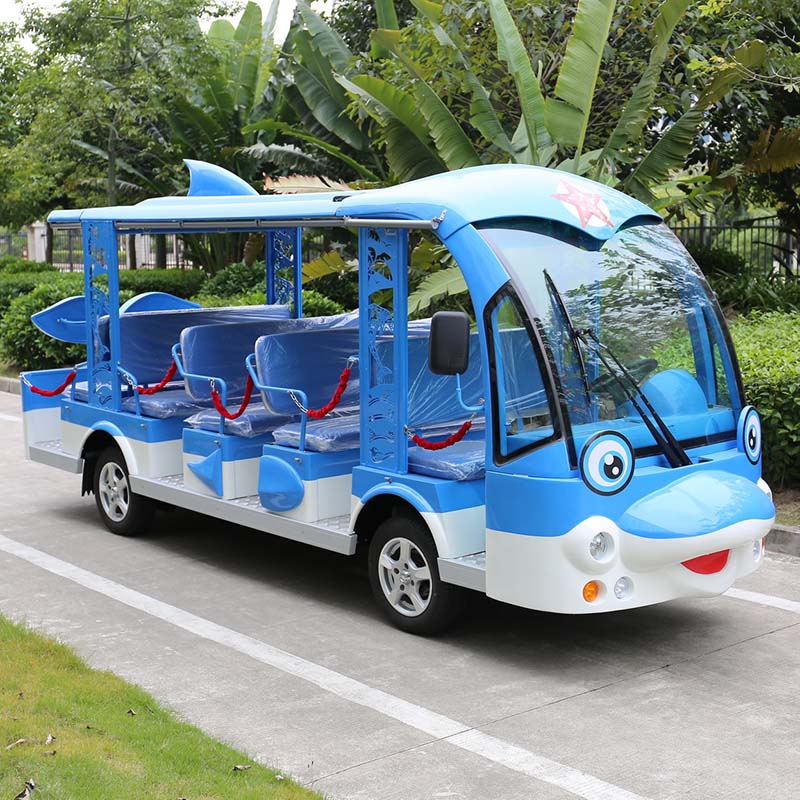

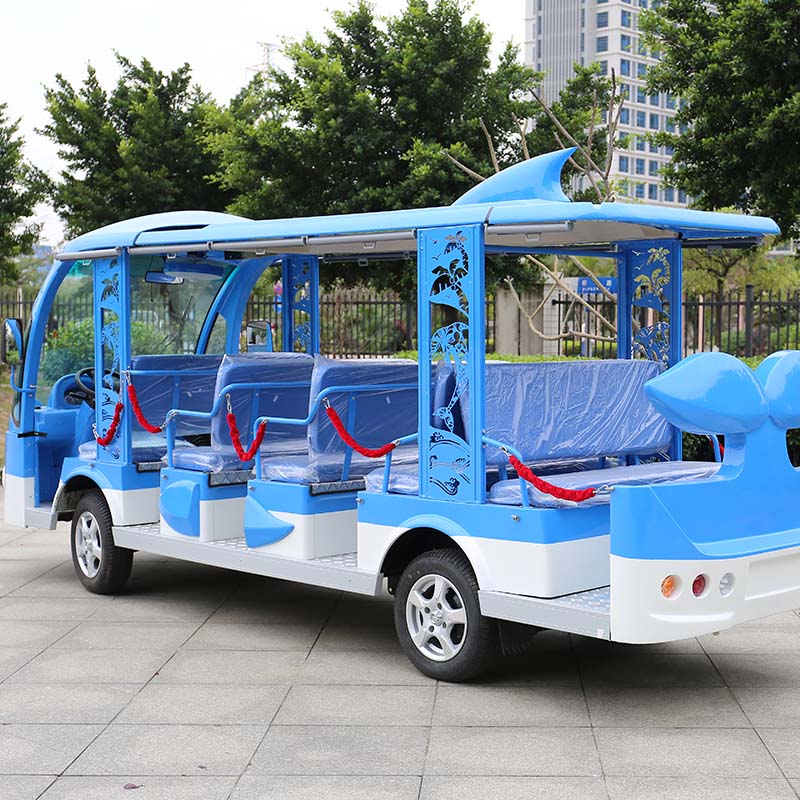

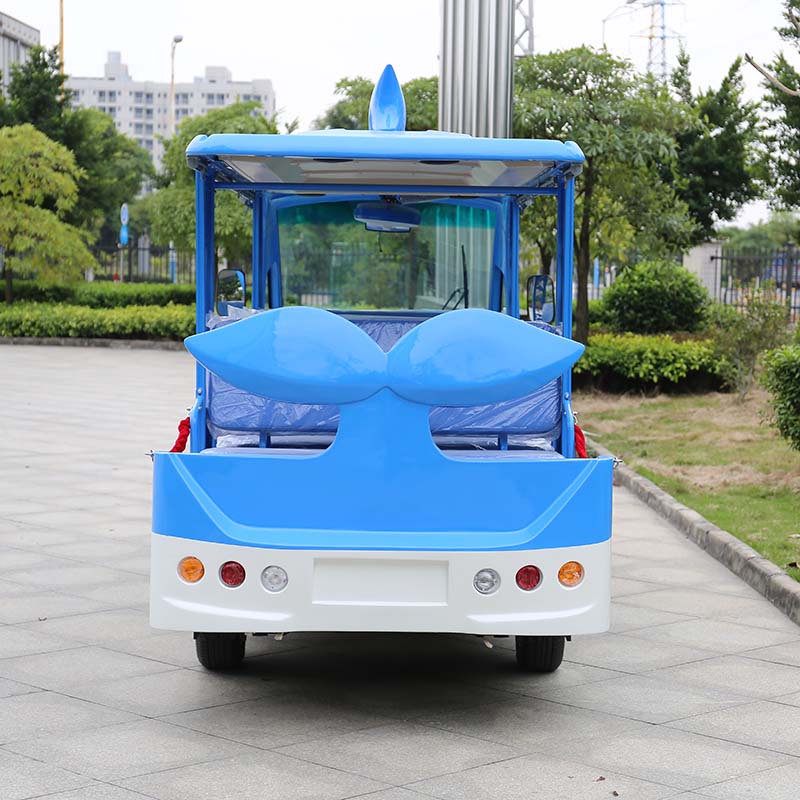

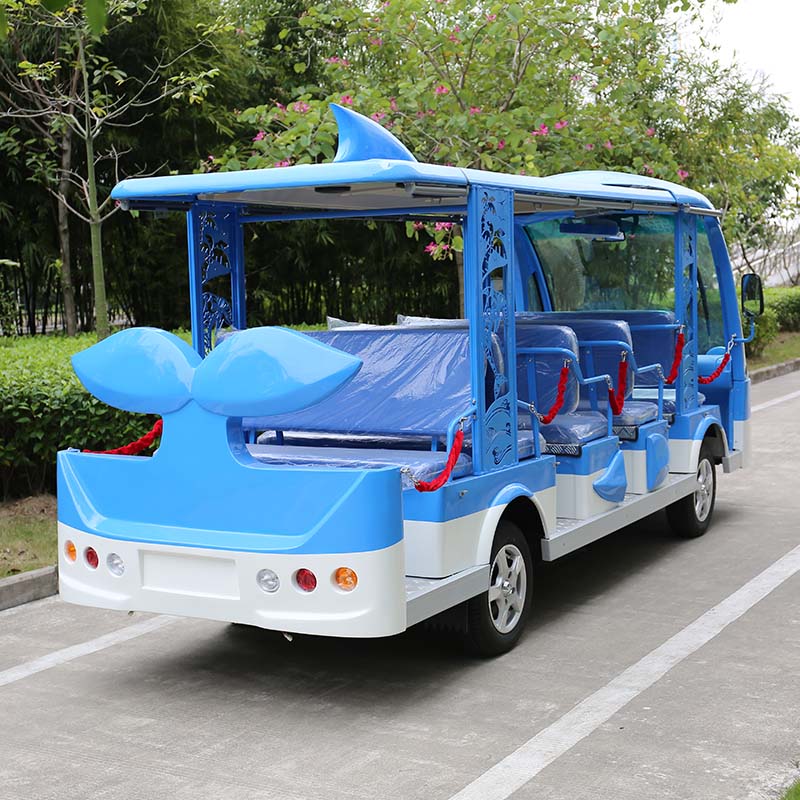

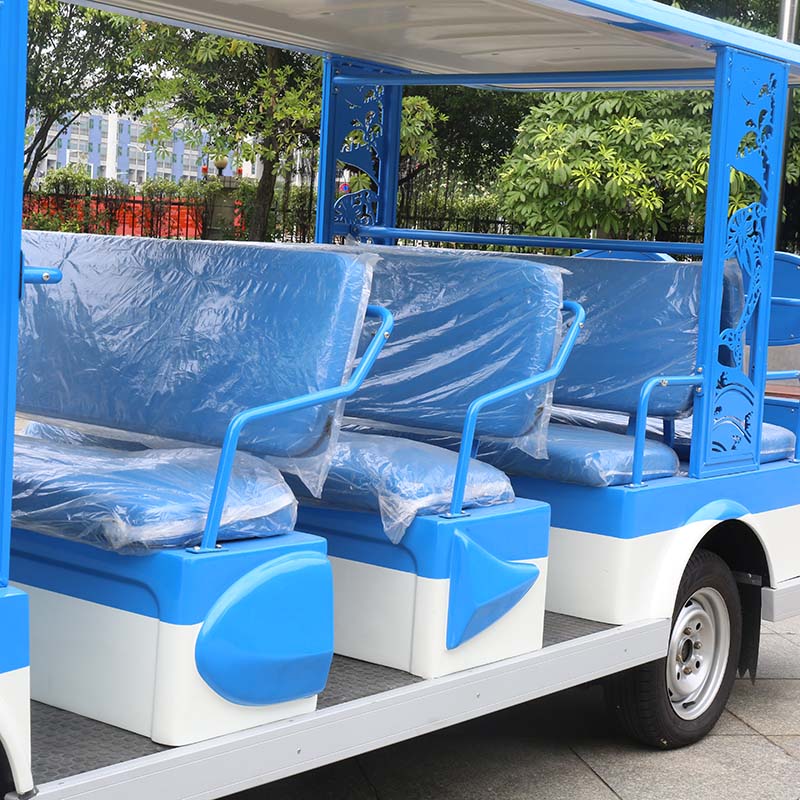

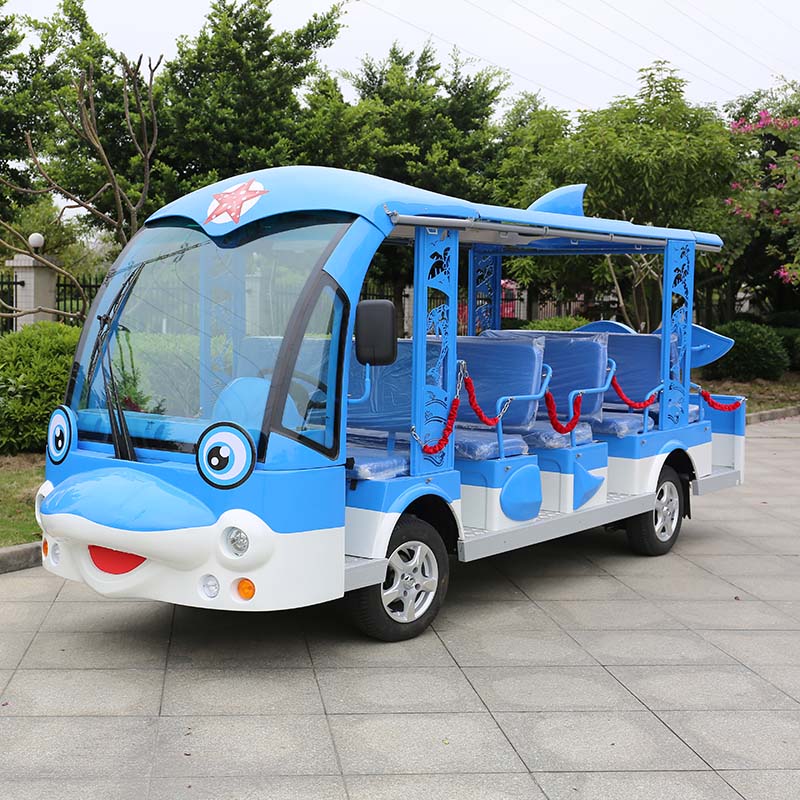

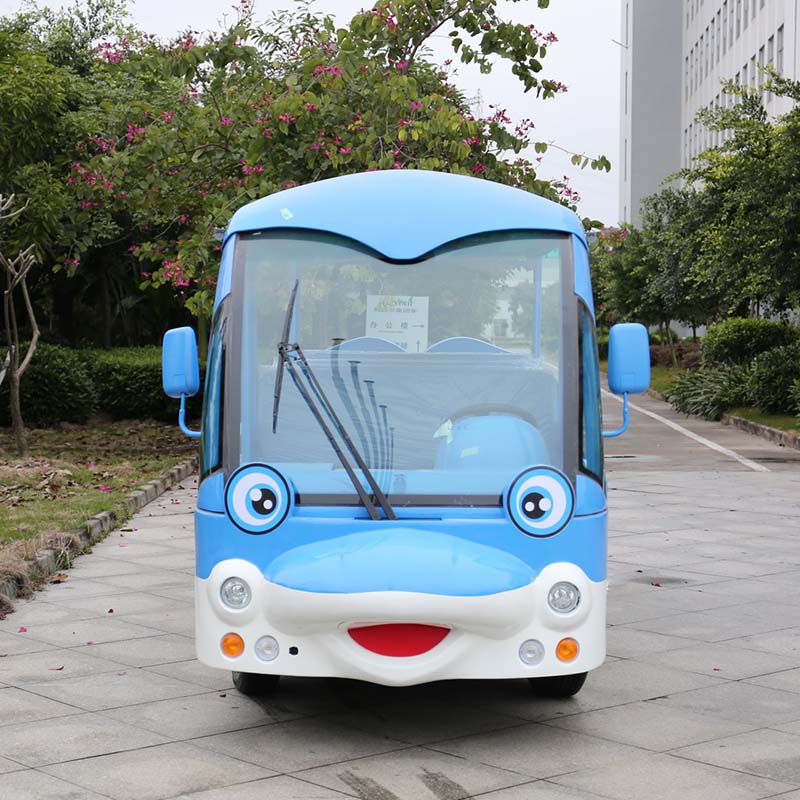

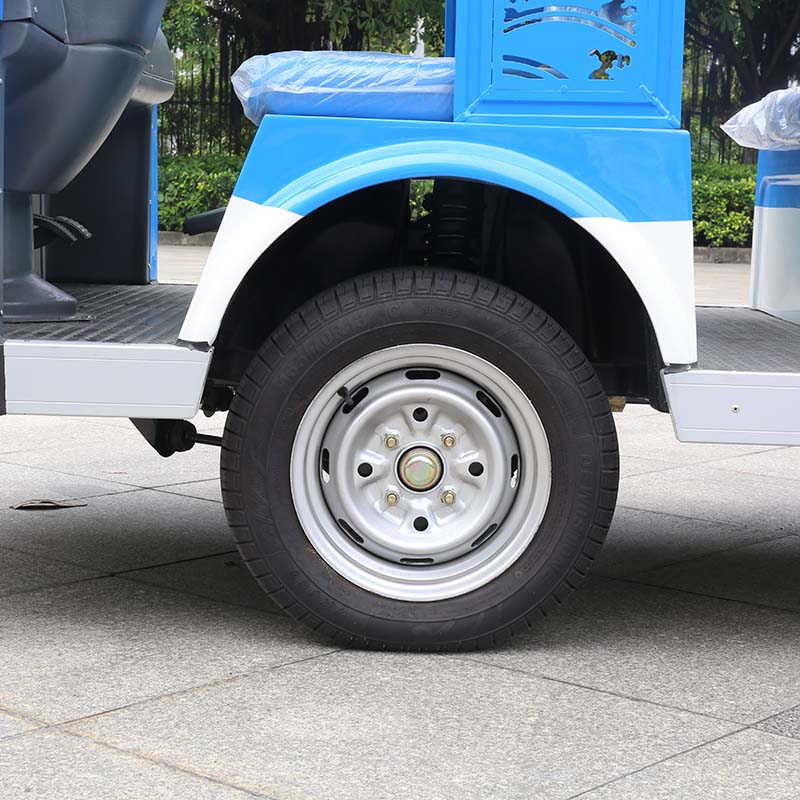

electric customized sightseeing bus DN-14 Dolphin Design features:
1. Arractive design and powerful in appearance, with strong carrying capacity and lower noise;
2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure;
3. Small turning radius; and smart steering system; Whole style steel rear axle;
4. Can be easy modified to transportation vechicles;
5. CE certificate for whole carts;
6. Import main parts: Maintenance free batteries and Curtis controller(From USA);
7. Four wheels hydraulic braking system and independent parking brake.
electric customized sightseeing bus DN-14 Dolphin Design specifications:
MODEL NO.DN-14 DOLPHINGENERAL SPECIFICATIONMax. speed (km/h)28km/hWheelbase2700mmFront wheel tread1240mmRear wheel tread1220mmBattery6V 225AH*12pcsMinimum turning radius (m)6.5mMotor51V7.5KW AC motorBrake range (m)≤6.5ControllerEnpower controller 72V400AMax climbing ability (loaded)20%Charger72V Overall dimensions(mm)5320×1520×2245mmSuspensionMcPherson independent front suspension and rear parallel leaf spring Max. loading weight (kgs)1190SteeringRack and pinion type with power steering Curb weight (kgs)1300Brake SystemFour wheels hydraulic braking systemGround clearance (mm)130Passenger capacity14 personChassisSteelRange (loaded) (km)90-100kmQuantity per Container1PCS/20FT,

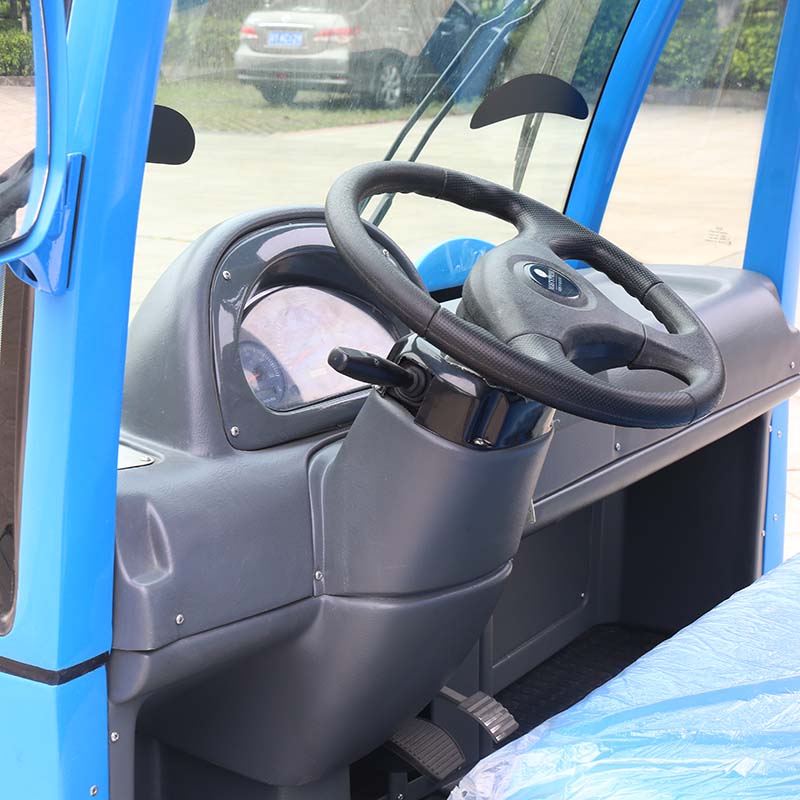

2PCS /40HQSTANDARD CONFIGURATION:DESCRPTIONSREMARKSBodyFiber glass body RoofSteel frame + fiber glass coverWindshieldOne-piece see-through laminated windshield with wiperlights ystemfront lights, tail lights, turing lights, brake lights, fog lightsmirrorsside mirrors, inner mirrorDashboard speedo meter combined with battery capacity indicator, hours meter, current meter, voltage meter, range meterOPTIONAL CONFIGURATION/ACCESSIOIRIES:Enclosure weather curtains, fans, Sunshade Curtain, Seat belts, Loud speaker, CD player, Solar panel on top, Aluminum rim wheels, Front disc brakes, Bus seatCOLORS: Standard color is blue&white, also can do the other colors
