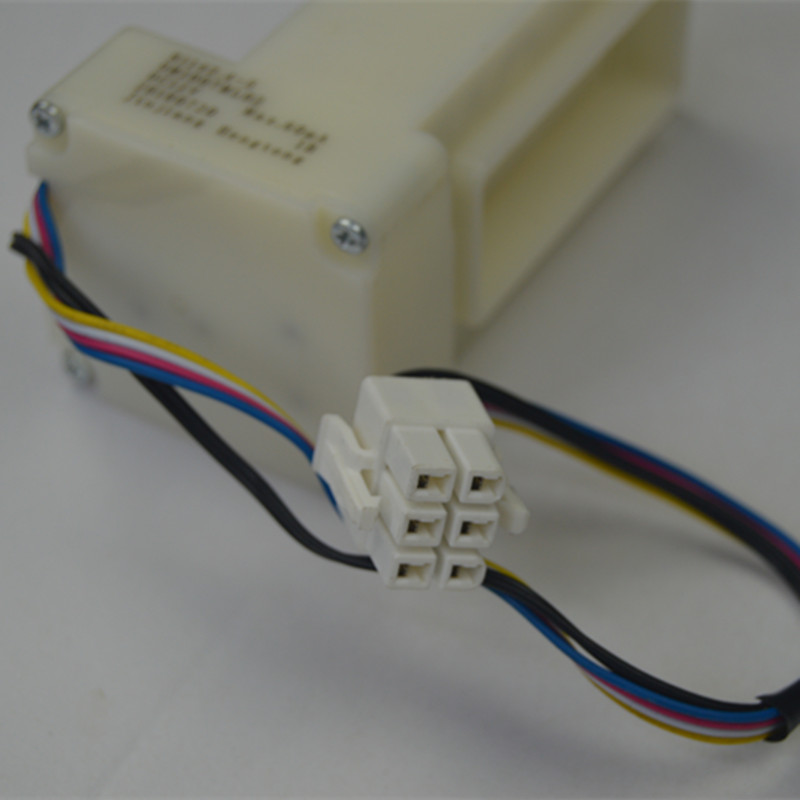

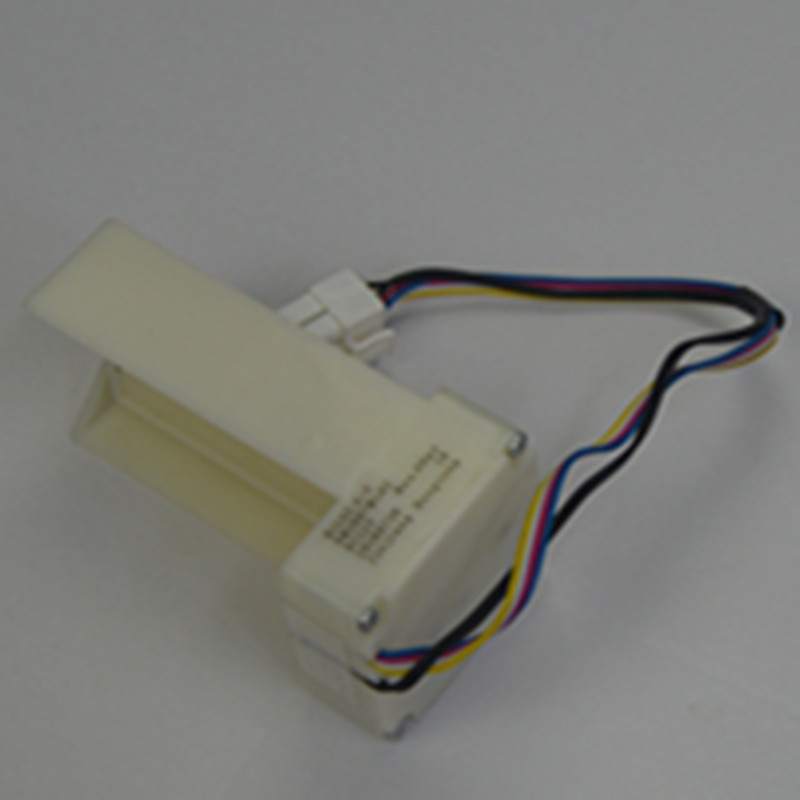

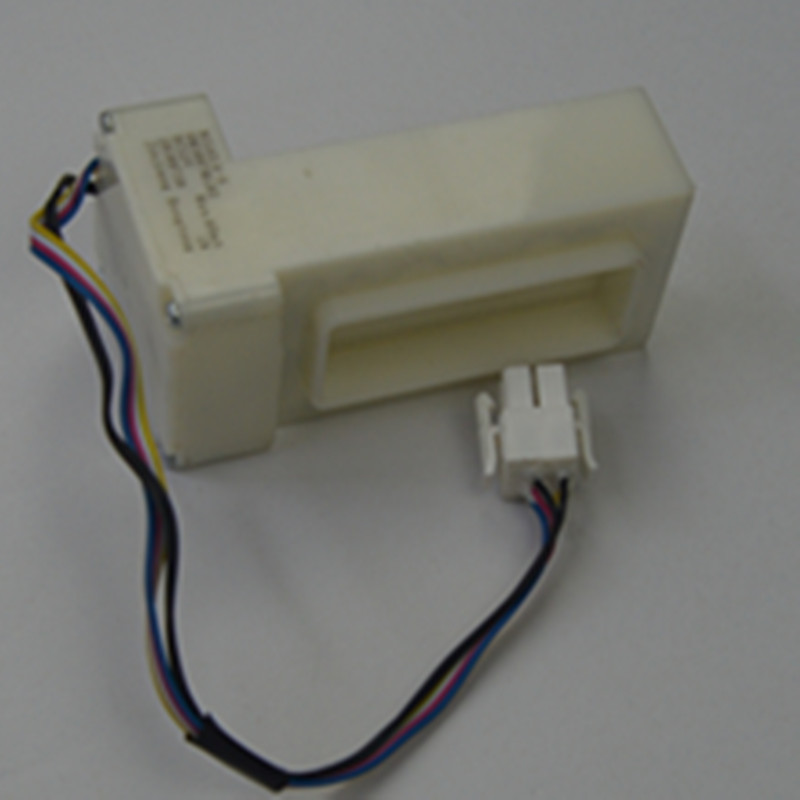

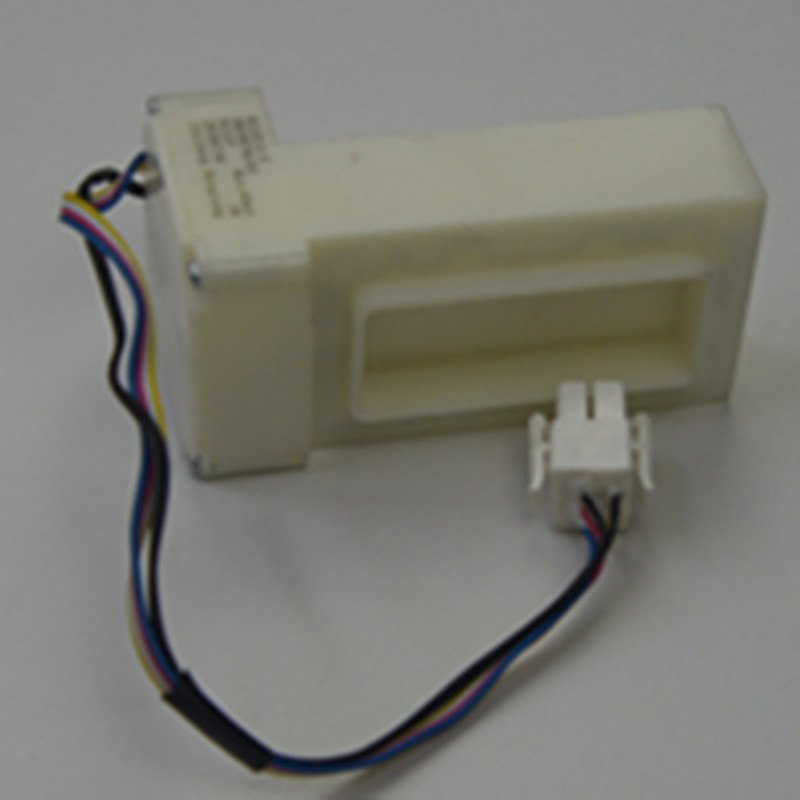

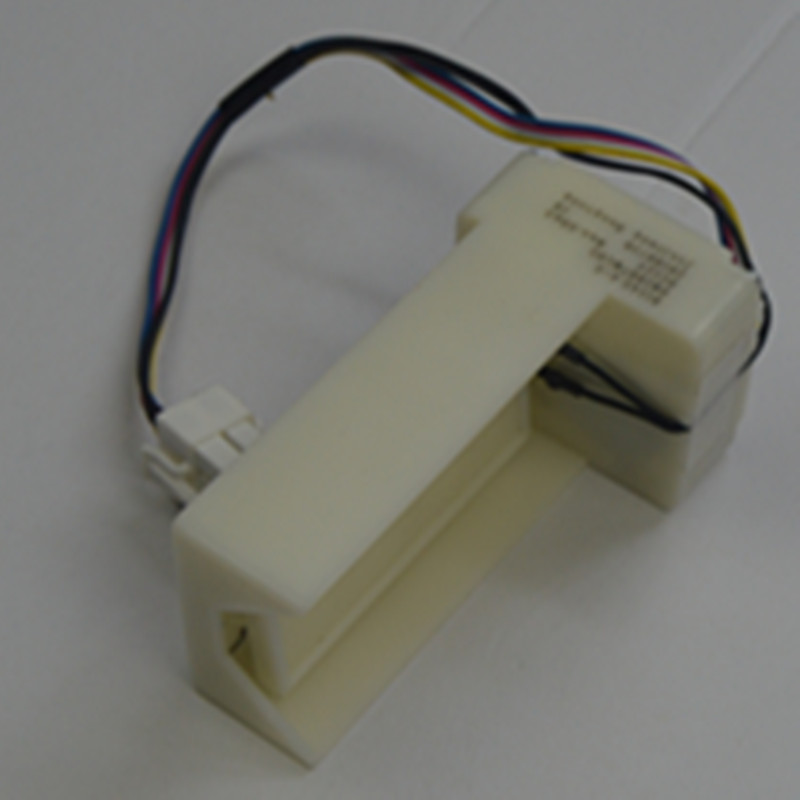

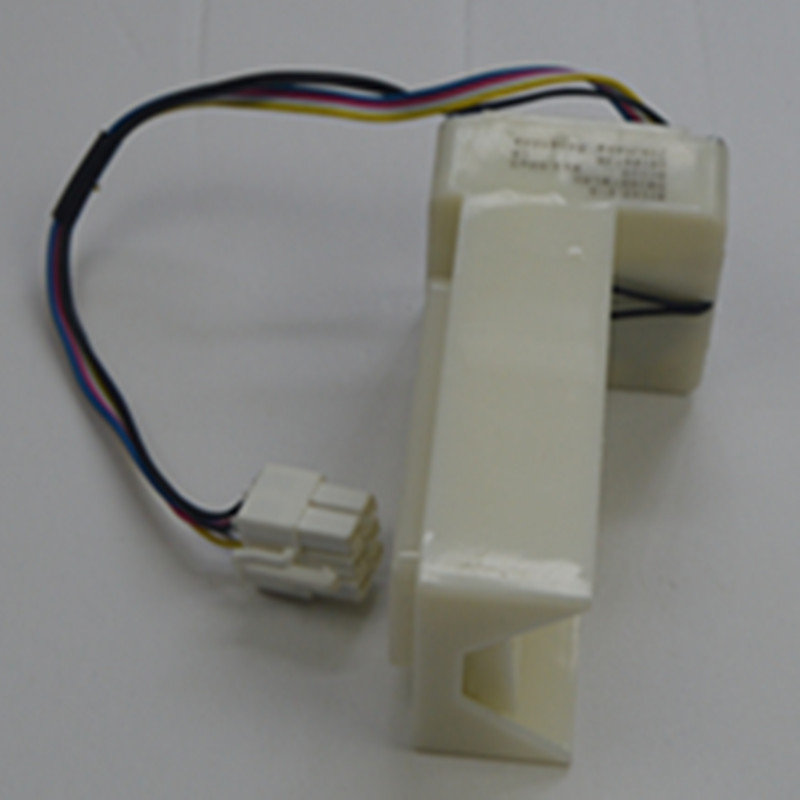

Item code: DM1007

Main Parameters

Item

Rate

Motor Rating

Rated Voltage

12±1( Vd.c)

Frequency

300PPS

Input Current

Excitation

2 phases

Step Angle

7.5°/step

Heater

NO

Motor Rating

Open-Close

1850 steps

(including lock 100 steps)

Close-Open

1750 steps

Operating Angle

Plate/output shaft about 0.05°/ step

Operating Time

Open-close about 6.2s

Operating Environment

-35℃~40℃

Damper code meaning

DM ¨  ¨  ¨¨  ¨¨ ¨¨

1   2  3   4     5    6

1. DM= Damper (Motor type;stepping motor)
2. Air vents: 1=Single  2=Double
3. Steps from open to close  0=1750、 2=2720； 5=500、 6=6330
4. Frame size: 01、02、03、......99
5. Customer code: ML= Meiling, MD= Midea, CW= Skyworth
6. Series number: 01 02 03.......

Appliance

The electric damper is mainly used in air-cooled refrigerator controled by PCBA, the refrigerator manufacturers, according to the requirement of structure design, can use 1 single damper or 2 single dampers or double vents damper which respectively controlled two rooms.

  The damper is mainly mounted in the air vent of refrigerator, the setting temperature in fridge and variable temperature areas can be adjusted through opening or closing the damper controlled by PCBA, can be obtained in different temperature zones (such as soft frozen temperature -7℃ to -6℃; micro freezing -4℃ to -3℃, ice refrigerated temperature -2℃ to -1℃; low temperature -1℃ to 0℃; common cold storage 1℃ to 5℃), to meet the different requirements for food storage.

Damper Background

The damper is derived from the development needs of the market to fully research and enterprise restructuring, with the widespread use of PCBA in the refrigerator industry, some functional components have been widely used too, therefore, in 2014 Hengtong Co.,developed PCBA, ice maker, vacuum pump, electric damper, and have been gradually going into mass production. For electric damper, we based on absorbing products were improved and optimized for many times in the material selection, mold design and production process, so far, the technology, equipment and quality control ability of electric damper is the leading level in China.

Damper series

1000 Series(Single): 1750 Steps(90°)、500 Steps(90°)

2600 Series(Double): 6330 Steps(90°)

Key materials

1. Outer case: ABS

   Origin: CHIMEI In Taiwan

   Characteristics: Heat resistance, Rigidity, Luster, Stability in size.

1. Gear: POM

   Origin: MITSUBISHI

   Characteristics: High strength, Self-lubrication, Anti-friction

1. Motor shell: SECC

   Origin: BAOSTEEL

   Characteristics: Anti-corrosion, strong tensile

1. Harness and Connector

   Origin: Molex、JST、AMP

   Characteristics: Top quality from Brand supplier
