About this product
- Size: 1
- Color: Blue
- Pressure: Other
- Structure: Butterfly
- Standard or nonstandard: Standard
- Temperature of media: Normal TemperatureMedium TemperatureLow Temperature
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 1
- Color: Blue
- Pressure: Other
- Structure: Butterfly
- Standard or nonstandard: Standard
- Temperature of media: Normal TemperatureMedium TemperatureLow Temperature
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 1 |
|---|---|
| Color | Blue |
| Pressure | Other |
| Structure | Butterfly |
| Standard or nonstandard | Standard |
| Temperature of media | Normal TemperatureMedium TemperatureLow Temperature |
| Media | GasOilBaseAcid |
| Material | Other |
Product details
| Size | 1 |
|---|---|
| Color | Blue |
| Pressure | Other |
| Structure | Butterfly |
| Standard or nonstandard | Standard |
| Temperature of media | Normal TemperatureMedium TemperatureLow Temperature |
| Media | GasOilBaseAcid |
| Material | Other |
From the supplier

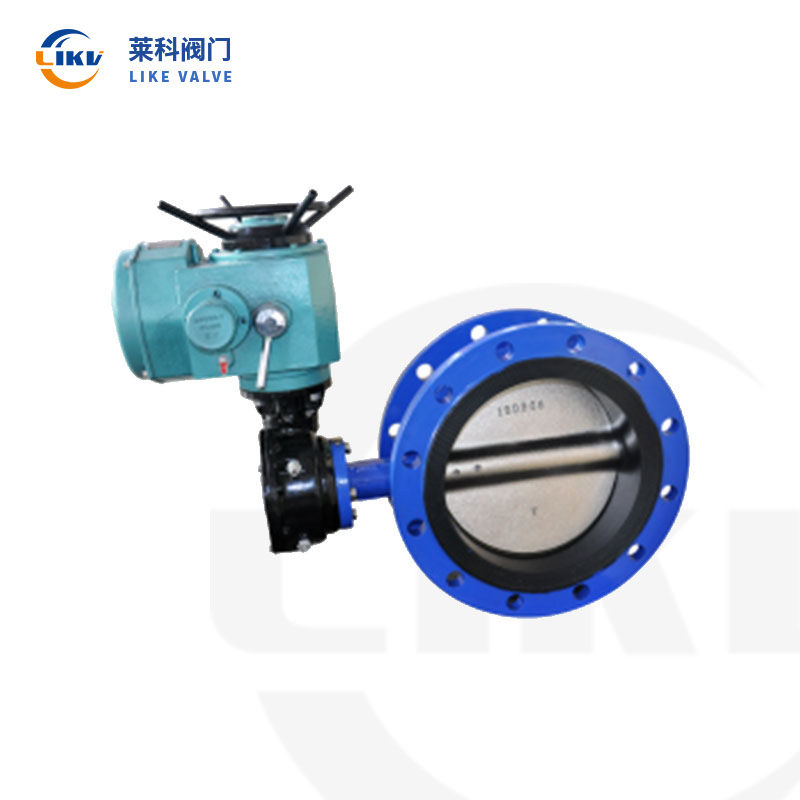

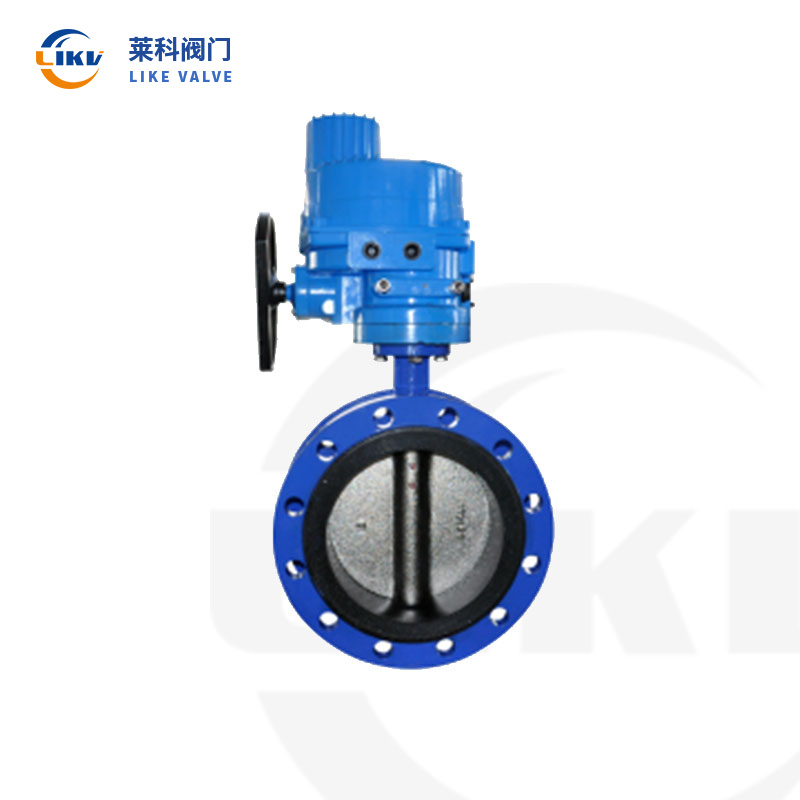

Electric flanged butterfly valve
product presentation
Product structure features:
1. Upper flange: Standardized drive device flange, in accordance with ISO5211.
2. Valve body: Made of ductile iron and other applicable materials.
3. Valve Plate: The streamlined valve plate effectively reduces pressure loss and flow loss. The edges of the valve plate are processed with spherical surfaces and polished by hand, featuring low operating torque, long service life of the valve seat, and excellent sealing performance. Various materials can be selected based on the medium.
4. Rubber valve seat: An integrated valve seat, suitable for various working conditions. It has an extremely low torque value. The rubber surfaces at both ends of the valve and the flange joint surface are relatively wide. During installation, there is no need for the special flange for the compression butterfly valve. The rubber valve seat is bonded to the valve body body, which is more suitable for pipelines with higher vacuum levels. It avoids the movement and deformation of the valve seat due to the negative pressure of the pipeline vacuum.
5. Valve stem: Center-type integral valve stem design, providing bidirectional sealing with no leakage, and allowing for installation without any flow direction restrictions.
6. Sleeve: Copper alloy. It is more wear-resistant and effectively reduces torque.
7. "O" Ring: NBR diene block rubber, effectively dust-proof and leak-proof.
8. Pin: Conical pin. It can effectively transmit torque and ensure a tight seal without any leakage.
Main Performance Specifications:
Nominal Diameter DN(mm)
DN50-DN1400
DN50-DN1400
DN600-DN2400
Nominal Pressure PN (MPa)
1.0
1.6
0.6
Test pressure
Sealing (MPa)
1.1
1.76
0.66
Housing (MPa)
1.5
2.4
0.9
Applicable temperature
-10℃~100℃
Applicable medium
Water, Wastewater, Air, Steam, Food, Pharmaceutical, Various Oils, Acids, Alkalis, Salts, Etc.
Main Component Materials:
Part Name
Material
valve body
Ductile Iron, Gray Iron, Cast Steel, Stainless Steel
valve plate
Ductile Iron (Surface Treatment: Nickel Plated, Spray N11, Full EPDM Lined, Full PTFE Lined), CF8, CF8M, Copper Alloy, Monel, Duplex Steel, etc.
valve stem
SS410、SS416、SS431、SS304、20Cr13
valve seat
EPDM (Ethylene Propylene Diene Monomer), NBR (Nitrile Rubber), Natural Rubber, Fluorine Rubber, Silicone Rubber, PTFE (Polytetrafluoroethylene), etc.
O-Ring
EPDM, NBR
sleeve
PTFE, Bronze
From the supplier
Electric flanged butterfly valve
product presentation
Product structure features:
1. Upper flange: Standardized drive device flange, in accordance with ISO5211.
2. Valve body: Made of ductile iron and other applicable materials.
3. Valve Plate: The streamlined valve plate effectively reduces pressure loss and flow loss. The edges of the valve plate are processed with spherical surfaces and polished by hand, featuring low operating torque, long service life of the valve seat, and excellent sealing performance. Various materials can be selected based on the medium.
4. Rubber valve seat: An integrated valve seat, suitable for various working conditions. It has an extremely low torque value. The rubber surfaces at both ends of the valve and the flange joint surface are relatively wide. During installation, there is no need for the special flange for the compression butterfly valve. The rubber valve seat is bonded to the valve body body, which is more suitable for pipelines with higher vacuum levels. It avoids the movement and deformation of the valve seat due to the negative pressure of the pipeline vacuum.
5. Valve stem: Center-type integral valve stem design, providing bidirectional sealing with no leakage, and allowing for installation without any flow direction restrictions.
6. Sleeve: Copper alloy. It is more wear-resistant and effectively reduces torque.
7. "O" Ring: NBR diene block rubber, effectively dust-proof and leak-proof.
8. Pin: Conical pin. It can effectively transmit torque and ensure a tight seal without any leakage.
Main Performance Specifications:
Nominal Diameter DN(mm)
DN50-DN1400
DN50-DN1400
DN600-DN2400
Nominal Pressure PN (MPa)
1.0
1.6
0.6
Test pressure
Sealing (MPa)
1.1
1.76
0.66
Housing (MPa)
1.5
2.4
0.9
Applicable temperature
-10℃~100℃
Applicable medium
Water, Wastewater, Air, Steam, Food, Pharmaceutical, Various Oils, Acids, Alkalis, Salts, Etc.
Main Component Materials:
Part Name
Material
valve body
Ductile Iron, Gray Iron, Cast Steel, Stainless Steel
valve plate
Ductile Iron (Surface Treatment: Nickel Plated, Spray N11, Full EPDM Lined, Full PTFE Lined), CF8, CF8M, Copper Alloy, Monel, Duplex Steel, etc.
valve stem
SS410、SS416、SS431、SS304、20Cr13
valve seat
EPDM (Ethylene Propylene Diene Monomer), NBR (Nitrile Rubber), Natural Rubber, Fluorine Rubber, Silicone Rubber, PTFE (Polytetrafluoroethylene), etc.
O-Ring
EPDM, NBR
sleeve
PTFE, Bronze
