Electric Fork Reach Truck
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Electric Fork Reach Truck
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: STEEL
- Size: HEIGH 3M --6.5M
- Color: YELLOW + DARK GREY
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: STEEL
- Size: HEIGH 3M --6.5M
- Color: YELLOW + DARK GREY
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | STEEL |
|---|---|
| Size | HEIGH 3M --6.5M |
| Color | YELLOW + DARK GREY |
Product details
| Materials | STEEL |
|---|---|
| Size | HEIGH 3M --6.5M |
| Color | YELLOW + DARK GREY |
From the supplier

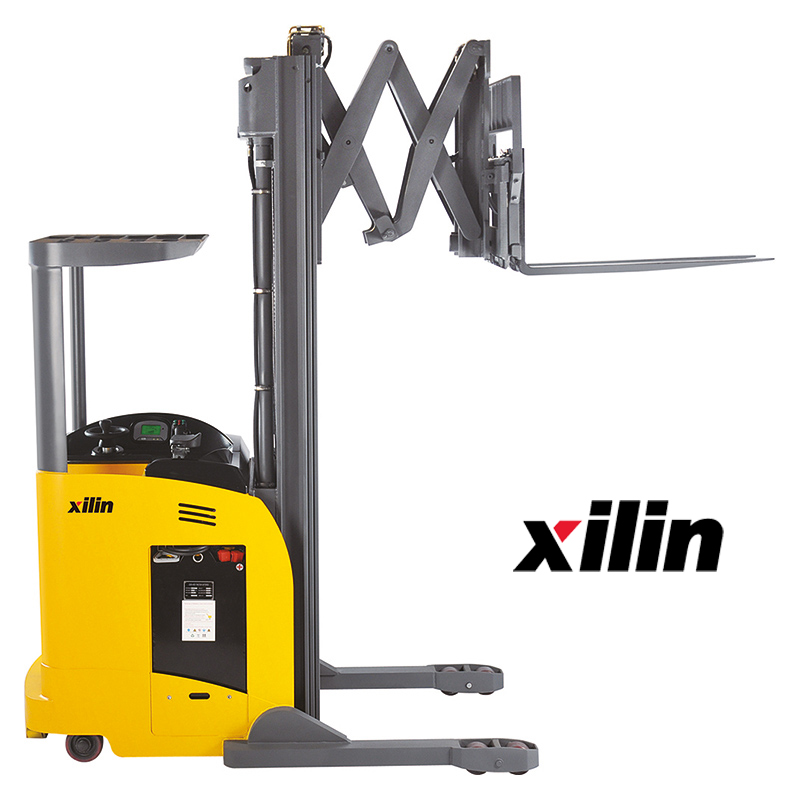

ELECTRIC FORK REACH TRUCK
CQDH18C standing driving type single fork reach truck , the Rated load capacity is 1800kg, lifting height from 3M to 6.5M , the load capacity can reach 700kg at the max height of 6.5M , this machine equipped with big battery with strong power motor , realized the high working efficiency . Most used in the big warehouse with high rack systems .
Advantages:
SAFETY AND STABILITY
● AC motor drive with high efficiency, no need to replace carbon brush, very good ramp starting performance.
● Two model function can control the speed of lift and lowering.
● Low center of gravity, excellent stability for operation.
● Small turning radius, good turning performance.
● With advanced variable frequency AC motor free maintenance and excellent performance.
● Can control the speed of driving and lifting in the same time.
● Shock absorber system support good noise reduction.
● With full free lifting, can work in the limited roof environment.
● Import proportional hydraulic valve, adjustable speed for lifting/lowering.
● Multi-function display: battery status, hour meter, fault code, slow running state, etc
● Big power controller (350A) with big power electric motor (10KW), support excellent reliability.
● Double scissors reach fork let the reach distance up to 1000mm.
● The mast fixed with the frame, when fork move forward, the mast can become the balance weight, reduce the total service weight.
● With advanced 36V electric control system, smaller electric current , ensure the reliability of the battery system.
● High speed of lifting and lowering, 300% faster than normal type truck.
STRUCTURAL
● Side way battery is very convenient to do maintenance and replace batteries.
● CANbus technology reduces wiring complexity, making the line clear and orderly. increases the truck’s reliability and easy to repair.
● The Mast can be separate from the frame, very good interchange ability (option).
MODEL CQDH15CCQDH18CFORK REACH SINGLE SCISSORS SINGLE SCISSORS CAPACITY 1500KG1800KGLOAD CENTER 600MM600MMLIFTING HEIGHT FORK ( MM ) 3000/3500/4000/ 4500/5000/60003000/3500/4000/ 4500/5000/6000REACH DISTANCE 500MM500MMAISLE WIDTH (1.2MX0.8M pallet) 1650MM1650MMFORK SIZE 1070MM1070MMTURNING RADIUS 1718MM1848MMBATTERY 24V/420(560)AH 36V/700AH CHARGER 3PHASE 380V3PHASE 380V
From the supplier
ELECTRIC FORK REACH TRUCK
CQDH18C standing driving type single fork reach truck , the Rated load capacity is 1800kg, lifting height from 3M to 6.5M , the load capacity can reach 700kg at the max height of 6.5M , this machine equipped with big battery with strong power motor , realized the high working efficiency . Most used in the big warehouse with high rack systems .
Advantages:
SAFETY AND STABILITY
● AC motor drive with high efficiency, no need to replace carbon brush, very good ramp starting performance.
● Two model function can control the speed of lift and lowering.
● Low center of gravity, excellent stability for operation.
● Small turning radius, good turning performance.
● With advanced variable frequency AC motor free maintenance and excellent performance.
● Can control the speed of driving and lifting in the same time.
● Shock absorber system support good noise reduction.
● With full free lifting, can work in the limited roof environment.
● Import proportional hydraulic valve, adjustable speed for lifting/lowering.
● Multi-function display: battery status, hour meter, fault code, slow running state, etc
● Big power controller (350A) with big power electric motor (10KW), support excellent reliability.
● Double scissors reach fork let the reach distance up to 1000mm.
● The mast fixed with the frame, when fork move forward, the mast can become the balance weight, reduce the total service weight.
● With advanced 36V electric control system, smaller electric current , ensure the reliability of the battery system.
● High speed of lifting and lowering, 300% faster than normal type truck.
STRUCTURAL
● Side way battery is very convenient to do maintenance and replace batteries.
● CANbus technology reduces wiring complexity, making the line clear and orderly. increases the truck’s reliability and easy to repair.
● The Mast can be separate from the frame, very good interchange ability (option).
MODEL CQDH15CCQDH18CFORK REACH SINGLE SCISSORS SINGLE SCISSORS CAPACITY 1500KG1800KGLOAD CENTER 600MM600MMLIFTING HEIGHT FORK ( MM ) 3000/3500/4000/ 4500/5000/60003000/3500/4000/ 4500/5000/6000REACH DISTANCE 500MM500MMAISLE WIDTH (1.2MX0.8M pallet) 1650MM1650MMFORK SIZE 1070MM1070MMTURNING RADIUS 1718MM1848MMBATTERY 24V/420(560)AH 36V/700AH CHARGER 3PHASE 380V3PHASE 380V
