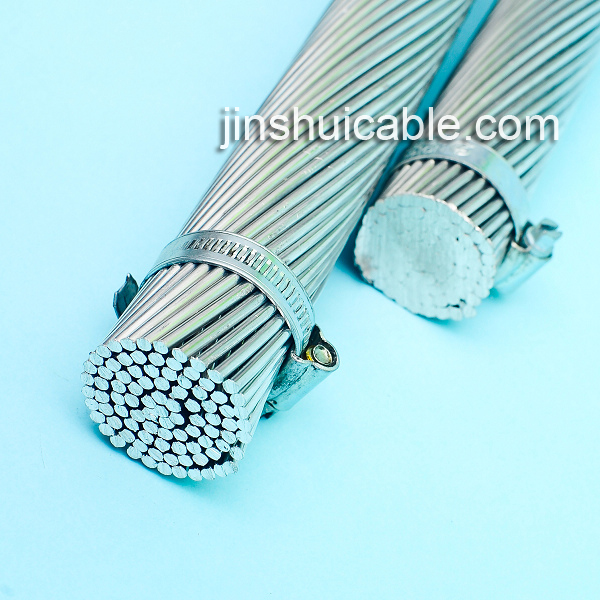

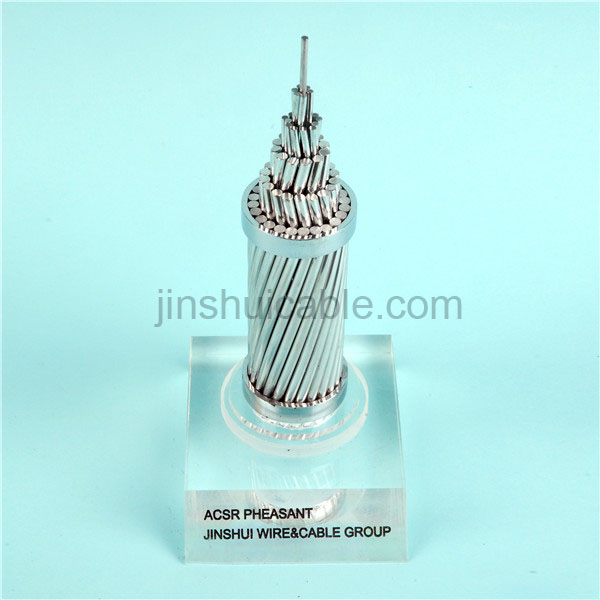

Product Applications

AAC and ACSR have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Service Performance

(1) The permissible long-time operating temperature for aerial conductor is 70oC.

(2) Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area,the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.

(3) When connecting conductors, the conductor beside the connecting tube can’t be prominent.Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.

(4) Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.

Product Performance

(1) The electrical performance of AAC and ACSR is indicated in DCΩ/km(20oC). The resistivity of the hard aluminum wire for stranded wires is not greater than 28.264 nΩ.m of international standard value.

(2) The rated tensile strength of AAC is denoted with the result of total cross-section of all aluminum conductors multiplied by min.tensile of corresponding size specified in the standard for aluminum wire.

(3) The rated tensile strength of ACSR is denoted with sum of all aluminum conductors’ tensile strength and steel’s tensile strength.

a.The tensile strength of all aluminum conductors is denoted with the result of all cross-sections of aluminum conductors multiplied by min.tensile strength of corresponding size specified in the standard for aluminum wire.

b.The tensile strength of all steel wire is denoted with the result of all cross-sections of steel wires multiplied by the stress at 1% elongation of corresponding size specified in the standard for steel wire.

Material Standard

(1)The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).

(2)The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.

(3)Production can be arranged according to customer’s requirements for material standard,e tc.

Compressed Round Stranded Aluminum Conductors Using Single Input Wire.

It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

Code Name

Size AWG or MCM

Strand

Insulation Thickness(mls)

Outside Diameter(inches)

Rated Strength(lbs)

Weight

Ampacity(Amps)

XLPE

Poly

ACSR

Walnut

6

6/1

30

.258

1131

49

47

105

Butternut

4

6/1

30

.303

1170

71.8

70.0

135

Hickory

4

7/1

30

.309

2240

81.6

79.8

135

Pignut

2

6/1

45

.397

2710

118.1

114.8

180

Beech

2

7/1

45

.405

3460

134.1

130.7

180

Chestnut

1

6/1

45

.434

3370

145.5

141.8

210

Almond

1/0

6/1

60

.506

4160

190.4

184.9

235

Pecan

2/0

6/1

60

.554

5040

234.2

227.9

270

Filbert

3/0

6/1

60

.607

6290

288.5

281.4

305

Buckeye

4/0

6/1

60

.666

7930

356.5

348.5

345

Hackberry

266.8

18/1

60

.711

6540

354.8

346.8

435

ALLOY 6201-T81

Hornbeam

4

7/w

30

.310

1480

62.1

60.1

145

Linden

2

7/w

45

.406

2520

96.1

93.3

190

Oilnut

1/0

7/w

60

.518

4010

166.1

160.0

250

Waterash

2/0

7/w

60

.567

4850

203.3

196.4

290

Shellbark

3/0

7/w

60

.622

6110

249.4

241.4

335

Planetree

4/0

7/w

60

.683

7700

307.3

298.1

385

Company Description
Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou, Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm, ISO 14001 Environmental Management Systerm, OHSAS18001 occupational Heath Management Systerm, ISO 10012 Measurement Management Systerm and others from China and abroad. We have been engaged in producing electric cable and wire for nearly 20 years, and we are also 12 year gold supplier. And we are confident that we can offer the best service and quality for you.

Our product range is as following:
*Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)
*Aerial Bounded Cable (Duplex, Triplex, Quadruplex)
* PVC insulated wire (Rated voltage to 450/750V)
*THHN/THWN wire
*PVC insulated Power Cable
*XLPE insulated Power Cable
*Rubber sheathed Cable
*Control Cable
*Welding Cable
*Cable Accessories

We take part in many fairs and exhibitions in China and abroad. Our aim is to be our customer's factory in Zhengzhou, China. We are here to help you placing orders of cost-effective electric cable and keep tracking your products and shipment.

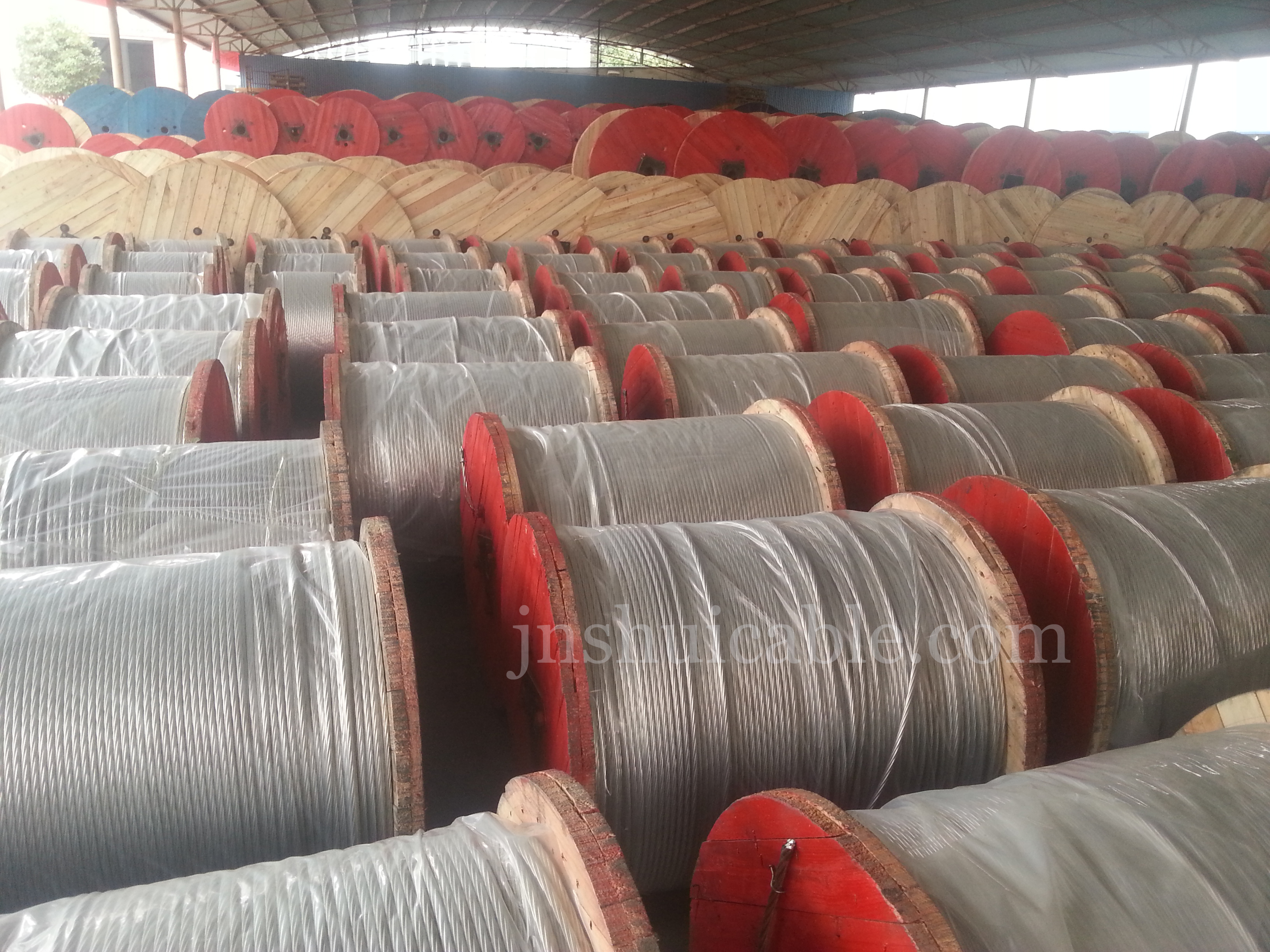

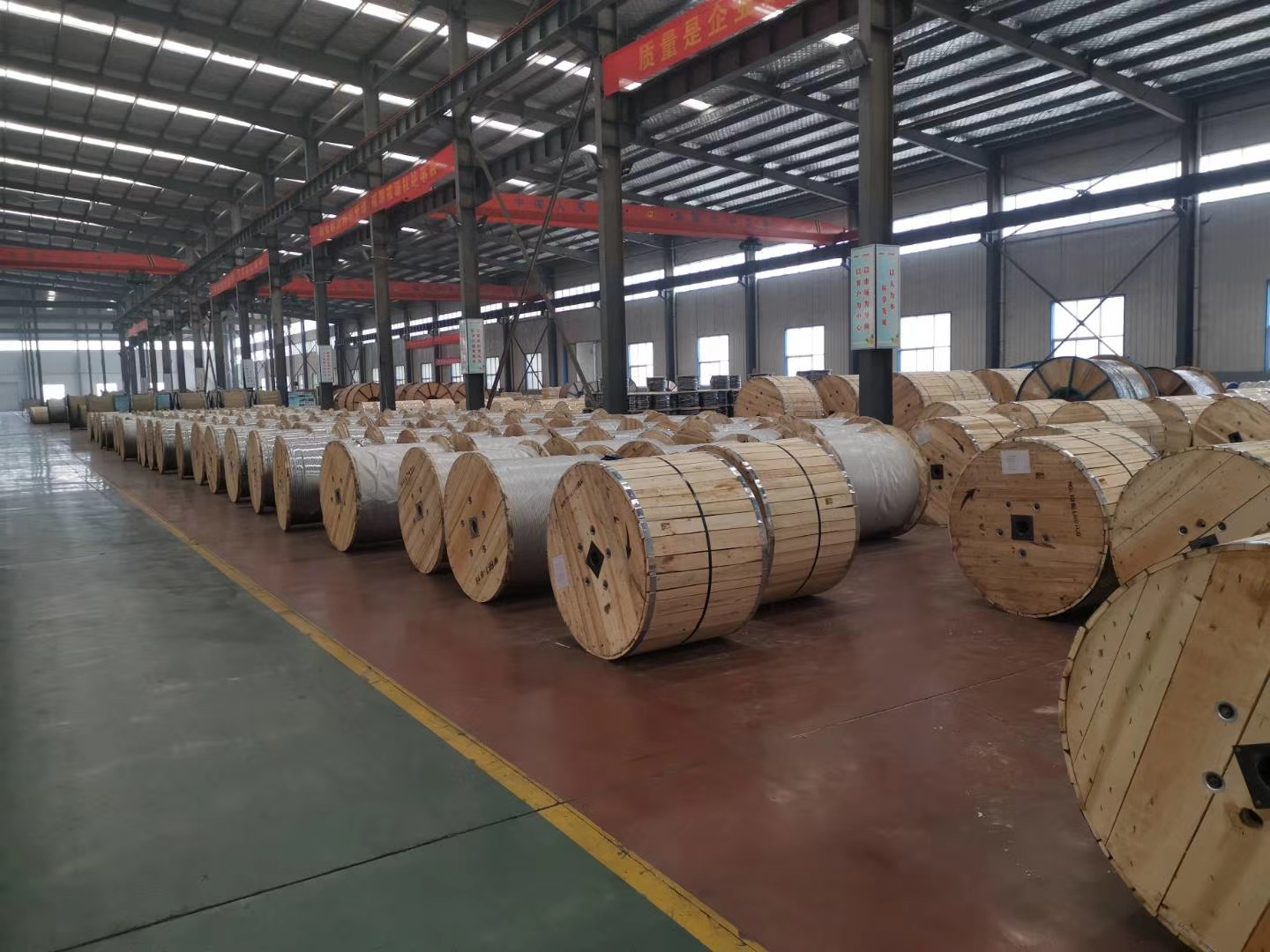

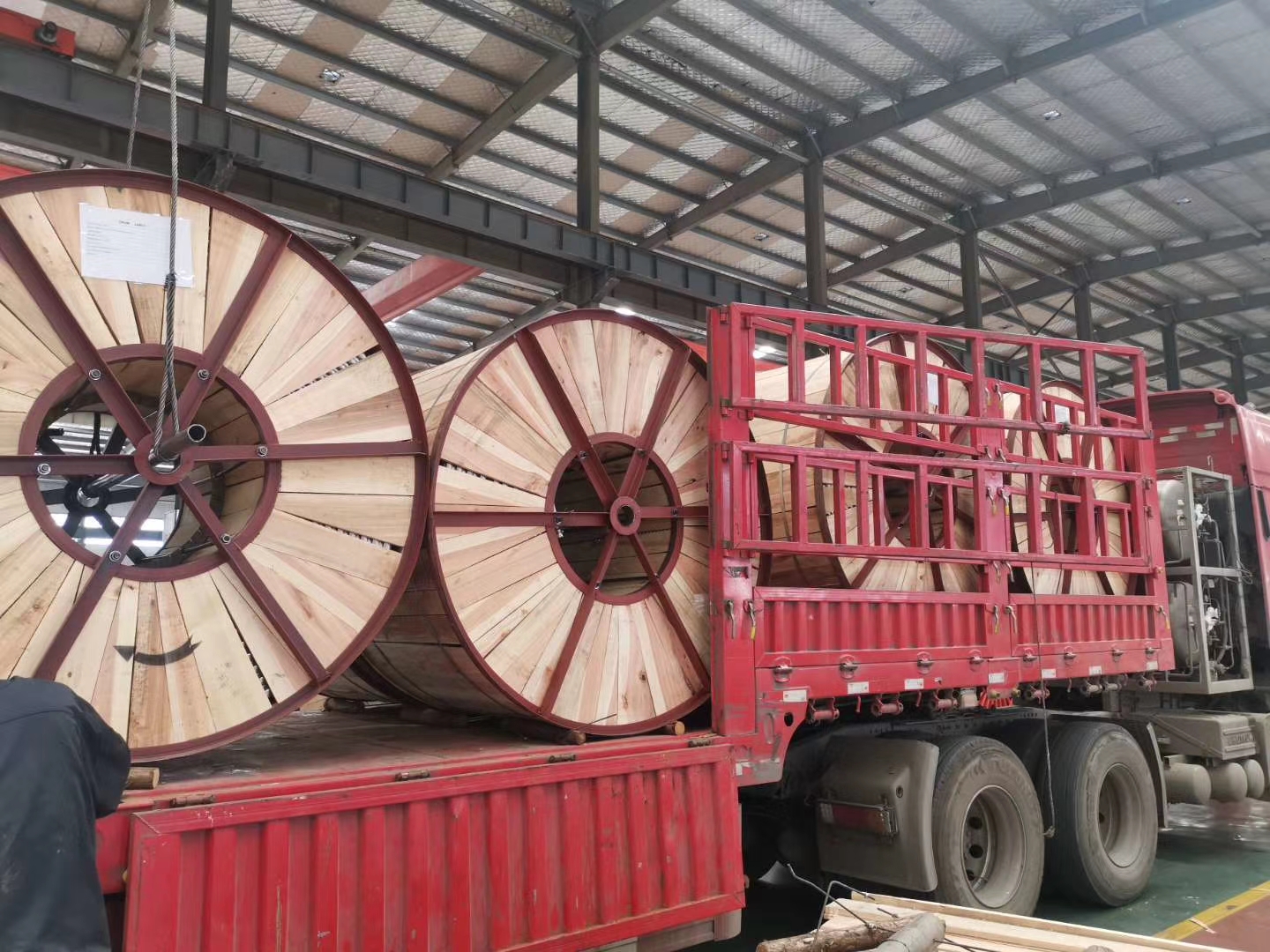

Our Factory
1. Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.

2. We choose excellent raw materials carefully to ensure the quality and meet the need of customers.

3. Mechanical testing of Cables is done to determine the quality and mechanical characteristics before delivery.

Welcome your kind enquiry!
