From the supplier

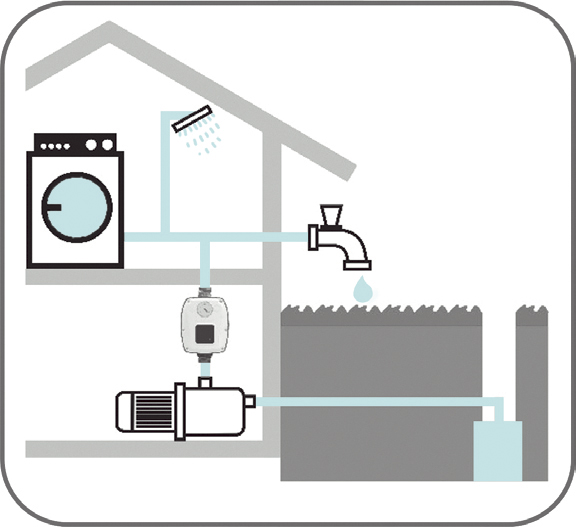

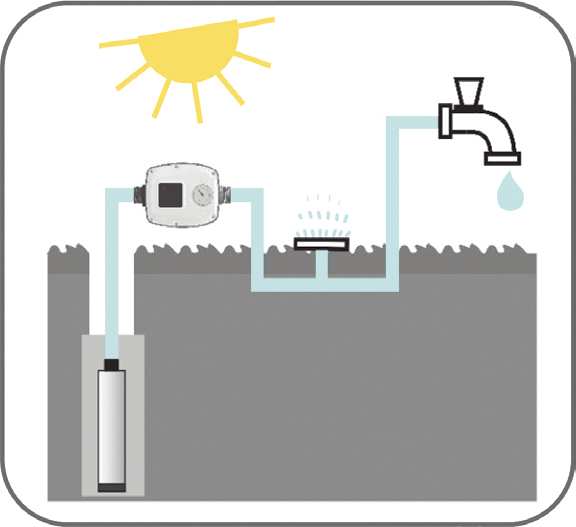

It automatizes the start and stop operations of single-phase electric pumps (surface, vertical and submersible) up to 2HP.
• It completely replaces the traditional water system with pressure switch and pressure tank.
• It starts the electric pump after a pressure decrease (taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closing).
• A small 0,4 l water tank is integrated and it prevents unlikely frequent start and stop of the pump in case of small request of water and in case of leakages on the installation.
• Replaceable BUTYL bladder of the pressure tank.
• Adjustable pre-charge pressure (factory setting 1,5 bar) of the pressure tank.
• Integrated pressure gauge.
• Protection against dry running and water hammering.
• Adjustable starting pressure.
• Installation in any position - both vertical and horizontal.
• Electronic board with protecting conformal coating placed in a waterproof compartment against water condensation.
APPLICATIONS:
ELECTRONIC CONTROLLERS
PROTECTION AGAINST DRY RUNNING
