Advantages of compound wall panel

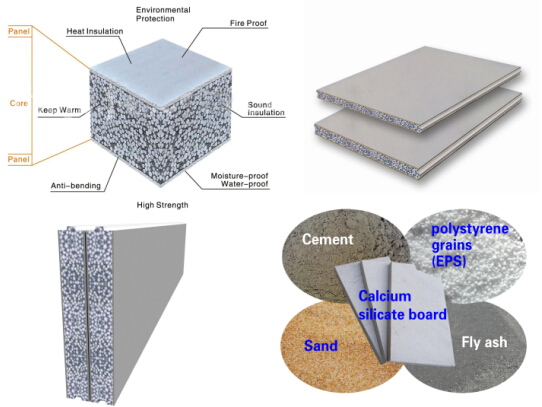

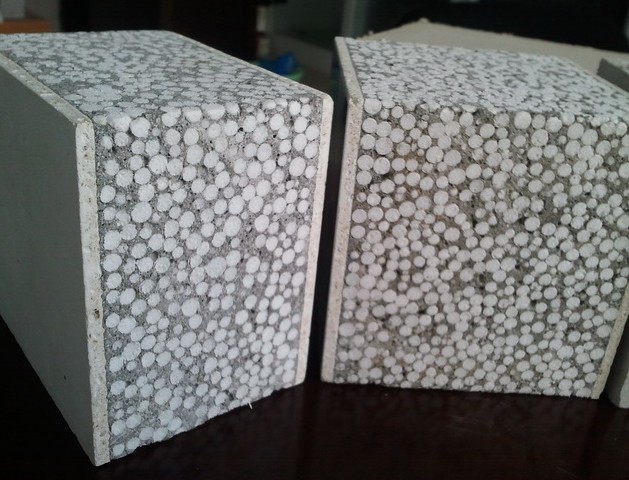

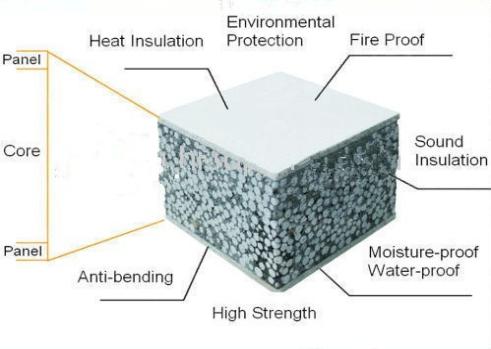

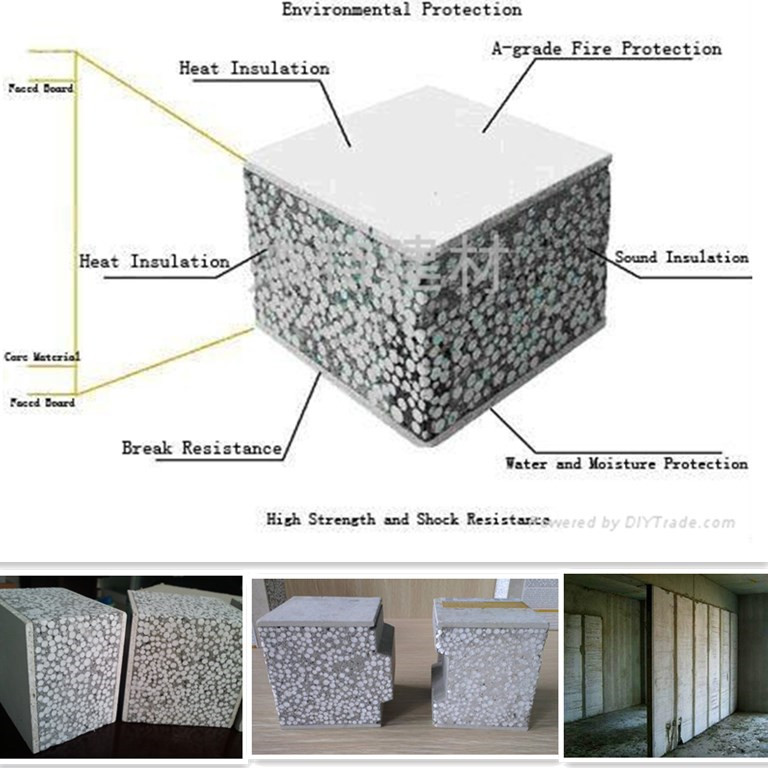

The new type light compound wall panel is a kind of lightweight, energy saving and environmental protection compound board with thin fiber cement or calcium silicate board as faceplate and filled with high polymer cement, polystyrene foaming granule, coal ash and other lightweight core materials in the middle in one-off molding.As the core material, polystyrene granule in the wall panel not only can greatly reduce the wall panel weight but also has the advantages of heat preservation, sound insulation, waterproofness and durability. It also has the advantages of non-degradation, anti-mildew and mothproofing and has strong binding force with the cement glue powder and uniformly distributed in the core board to make cement mortar form the cellular structure with best stress and decomposition and make the impact resistance, hanging force and other properties of the wall panel itself greatly enhanced. The compound wall panel has the advantages of high strength, light weight, fire prevention, sound insulation, moisture preservation, seismic resistance and durability, which inseparable with its material properties and scientificity of internal structure.

●Light and anti-seismic:

Compound wall panel is 10 times lighter than clay solid brick and much lighter than hollow block so as to solve the problem of girder, big column and deep foundation. The board column connection has good seismic performance. So the wall panel is not only suitable for low-rise buildings but also suitable for high-rise buildings, soft geology and sand beach and beach buildings.

●Good heat preservation performance:

Many vacuum bubbles are formed in compound foaming wall panel in the production process. These bubbles formed static air layer in the materials, which makes the heat conductivity of the board only 0.12W/mk with thermal resistance value 2.00, which greatly reduce power consumption and cost of coal to save energy.

●Good sound insulation and waterproof performance:

Cellular structure is densely covered inside the board, which can effectively block the transmission of sound and absorb sound with sound insulation≥40dB. The waterproof, moistureproof and freeze-thaw resisting function all conform to the national standards.

●Increasing usable area:

Wall panel is thinner, which can increase the usable area of more than 8% to 10%.

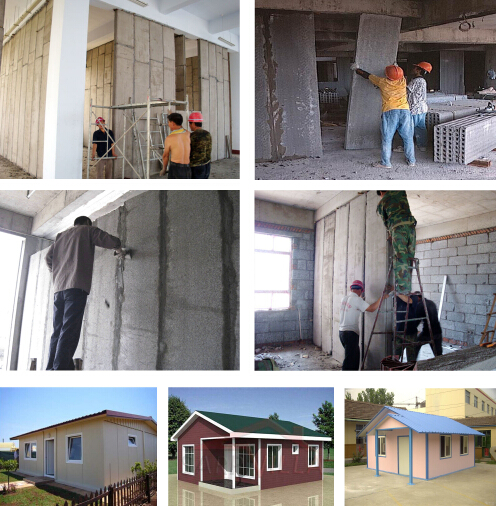

●Good installation processing performance:

The wall panel can be sawn, nailed, drilled, cut and made arbitrary manufacturing building structure.

●Fast construction:

Dry process operation with simple and convenient installation; the board is more than 6 times faster than the block and can greatly shorten the construction period.

●Good surface decorative performance:

Wall panel surface is flat and can be directly wallpapered, built wall bricks and sprayed after caulking.

●Low comprehensive cost:

Due to the load of beams and foundation is reduced, wall panel construction will be fast with short cycle and the project cost will be reduced by 20% compared with clay brick and hollow block.

●Civilized construction operation:

Normative dry construction and site construction with less construction waste and high degree of construction civilization.

●Environmental protection, energy saving and waste utilization:

Wall panel materials do not contain toxic and harmful substances with waste recycling and energy saving function and is the green product our country promotes to develop.
