Product Core Positioning

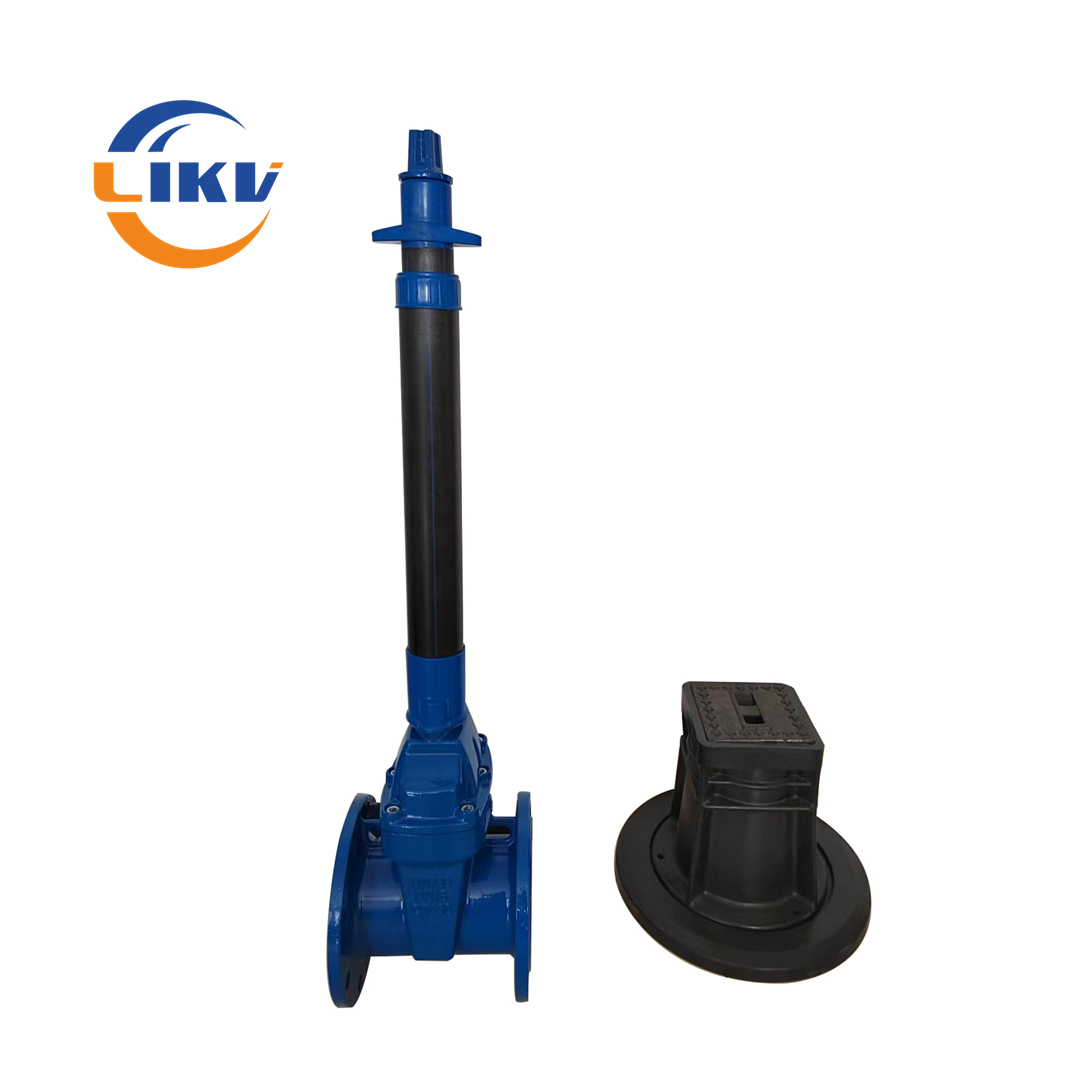

This industrial-grade extended rod gate valve is specially designed for special working conditions such as underground pipelines, high-temperature explosion-proof, and equipment-intensive environments. Through the extension technology of the rod body, it achieves physical isolation between the operating end and the dangerous or harsh environment. It integrates high sealing, strong structure, and easy maintenance features, and is suitable for fluid control requirements in multiple fields such as municipal, petrochemical, and power stations. It is the preferred valve for safe and efficient operation in complex scenarios.

??️ Core Performance: Building a Strong Safety Barrier
1. Dual Guarantee of Sealing and Strength
Ultra-sealing: Complies with ISO 15848-1 Class A emission standard, with a leakage rate of ≤ 1×10⁻⁶m³/s. In low-pressure scenarios, it meets GB/T 4213-2008 Class A, ensuring zero leakage for toxic, flammable, and explosive media.
Super-strong Structure: The extended rod is made of high-quality materials such as 2205 duplex steel, with an anti-tensile strength of ≥ 620MPa. The deflection of the rod is ≤ 3mm when the length is ≤ 3 meters. With a control deflection of ≤ L/1000 when the length exceeds 3 meters and with a bracket, it is ≤ 3mm. This prevents the risk of jamming and breakage during operation.
Wide Adaptability: The nominal pressure covers PN1.6 to 42.0MPa, with a temperature range of -29℃ to 425℃ (normal), and up to -253℃ to 800℃ for special materials. The neutral salt spray test is ≥ 1000 hours, enabling it to easily handle extreme conditions.
2. Upgrade in Operation and Protection
Convenient Operation: The manual operation torque is ≤ 300N・m (with a reduction gear ≤ 150N・m), the electric type DN300 valve opening and closing time is ≤ 30 seconds, and the adjusting type has a linear error of ≤ ±2%.
Full-Scenario Protection: The ground actuator has IP66 protection, the underground/water environment actuator is upgraded to IP68, with dust, water, and corrosion protection, and the actuator life is extended by 3 to 5 times.
?? Scenario-based Solutions: Precisely Address Industry Pain Points
1. Isolation of Hazardous Environments
Explosion-proof Safety: The dedicated model for oil and gas storage tank areas has passed ATEX Zone 1 explosion-proof certification. The extended rod keeps the actuator ≥ 3 meters away from the tank, eliminating the risk of electric sparks triggering an explosion.
High Temperature Protection: The model for power station boilers uses the extended rod to isolate the 300℃+ high-temperature zone, with the actuator placed in a normal temperature environment, combined with a heat insulation pad and a high-temperature resistant alloy rod, suitable for 800℃ extreme temperatures.
2. Adaptation to Special Spaces

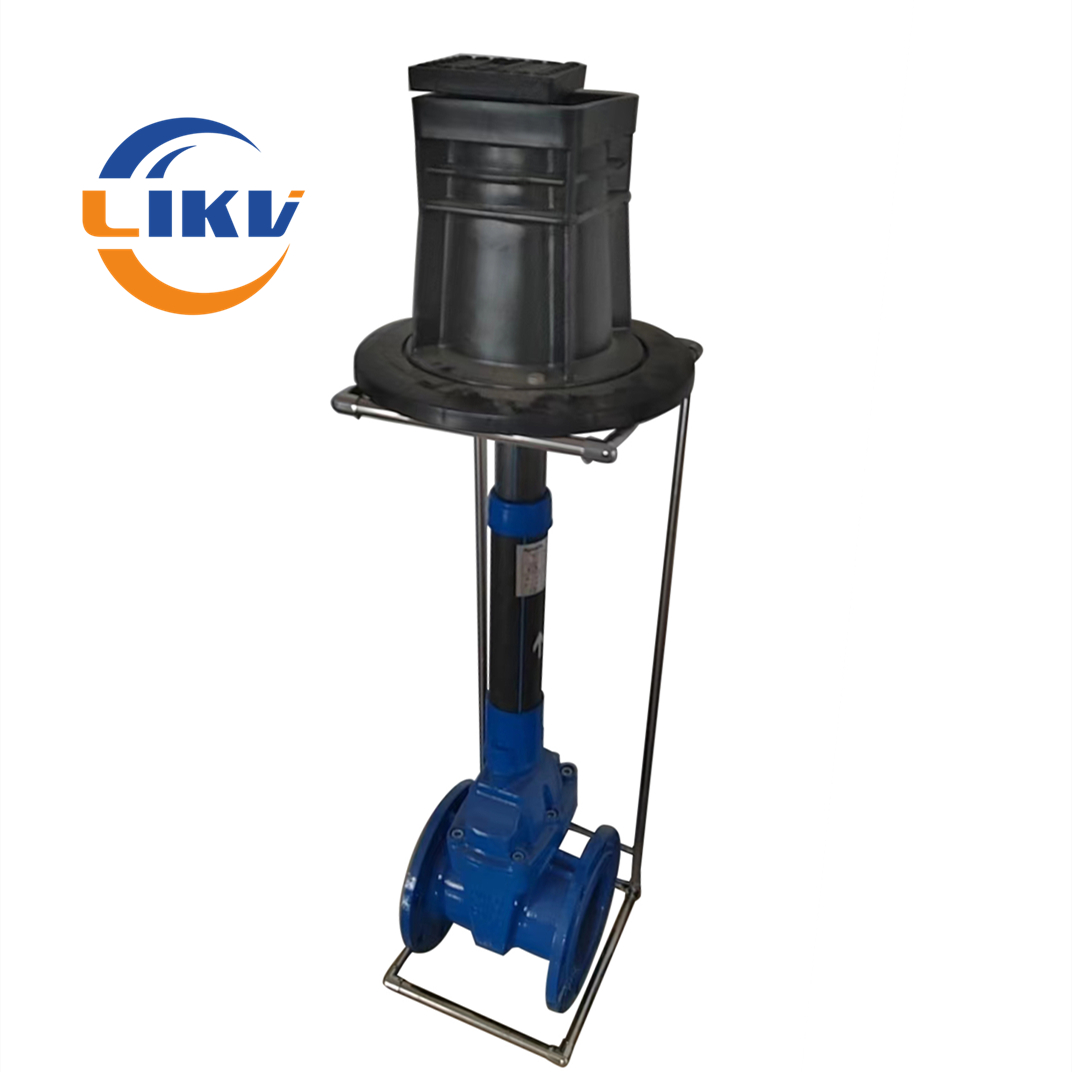

Underground Maintenance: The municipal pipeline model has galvanized steel body + epoxy resin coating, equipped with waterproof sleeves and inspection wells, allowing for ground operation without excavation, reducing costs by 60%.
Intensive Scenarios: The pipe gallery/production workshop model can bypass equipment obstructions and direct the operating end to the maintenance platform, solving the problem of operating in narrow spaces.
3. Customization for Extreme Conditions
Low Temperature Anti-freezing: The -40℃ cold-resistant model has a heating jacket to prevent the rod from freezing and getting stuck.
Anti-vibration and Wear Resistance: The model for the outlet of chemical pumps is equipped with an elastic bracket to absorb vibration, with the surface of the rod polished Ra ≤ 0.8μm, suitable for food and pharmaceutical clean requirements.
