About this product
- Size: Touch screen:7 inch
- Color: Black
- Function: Monitoring
- Structure: Other
- Mathematical model: Other
- Signal: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: Touch screen:7 inch
- Color: Black
- Function: Monitoring
- Structure: Other
- Mathematical model: Other
- Signal: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | Touch screen:7 inch |
|---|---|
| Color | Black |
| Function | Monitoring |
| Structure | Other |
| Mathematical model | Other |
| Signal | Other |
| Customized | Non-Customized |
| Task | Program |
| Material | Other |
From the supplier

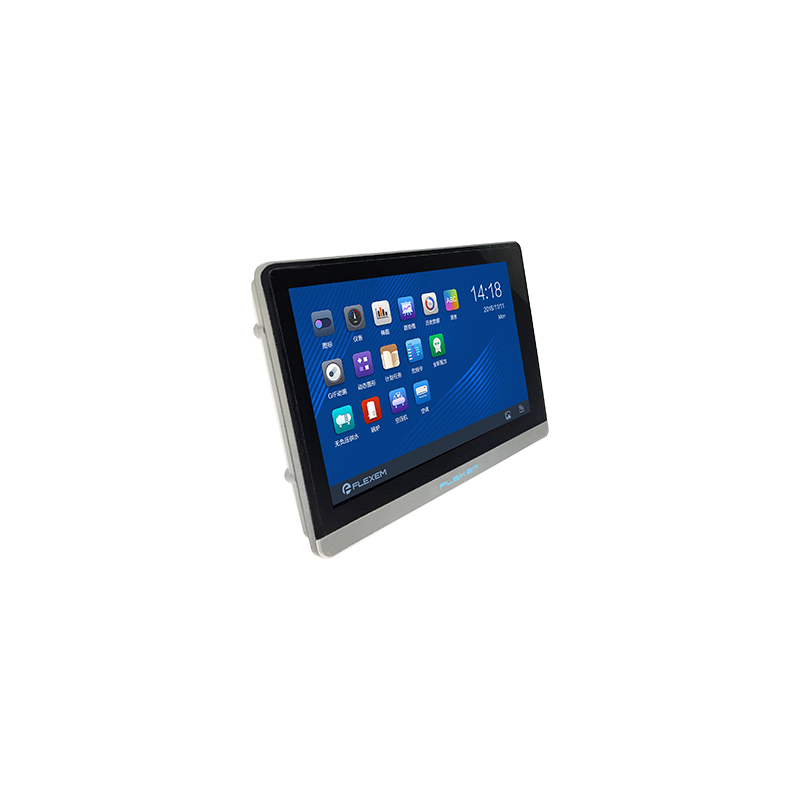

Flexem F007N capacitive touchscreen, featuring a 7" multi-touch capacitive touchscreen, high-definition high-brightness full-view display, 1024x600 resolution, 24-bit colors, high-performance CPU, high-capacity storage, and 1 Ethernet port, multi-touch gestures supported, provides a sleek and smoother touch-and-control solution.
FEATURES F007N Display 7" 16:9 TFT LCD LCD Viewing Angles(T/B/L/R) 85'/85'/85'/85' Resolution 1024×600 Colors 24-bit Brightness 350 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel Glass+Glass projective multi-touch capacitive touchscreen CPU 1GHz, Dual core Cortex-A7 Storage 4GB eMMC + 256MB DDR3 RTC Built-in SD Card NA Ethernet port 1*RJ45, based on10/100Mbps USB Port 1*USB Type-C 2.0 port, 1*USB Type-A 2.0 port Download Method USB slave / Flash drive/Ethernet Serial port
COM1: RS232/RS485/RS422,
COM2/COM4: RS485,
COM3: RS232
Rated power ≤6W Input Voltage DC24V, working range DC9V-28V Power supply protection With lightning surge protection Power Interruption Tolerance <5mS Certification CE, RoHS Operating Temperature -10-60℃ StorageTemperature -20-70℃ UV Resistance Operating in high UV environment is prohibited Environmental Humidity 10-90%RH (Non condensing) Vibration Endurance 10-25Hz (X,Y,Z direction 2G/30 minutes) Cooling Mode Natural Cooling Protection Level Front:IP65, Rear:IP20 Enclosure Material Zinc alloy + Engineering plastic Cutout Size 178mm×125mm Dimensions 185.1mm×130.9mm×32.6mm Weight About 600gAbout the supplier
