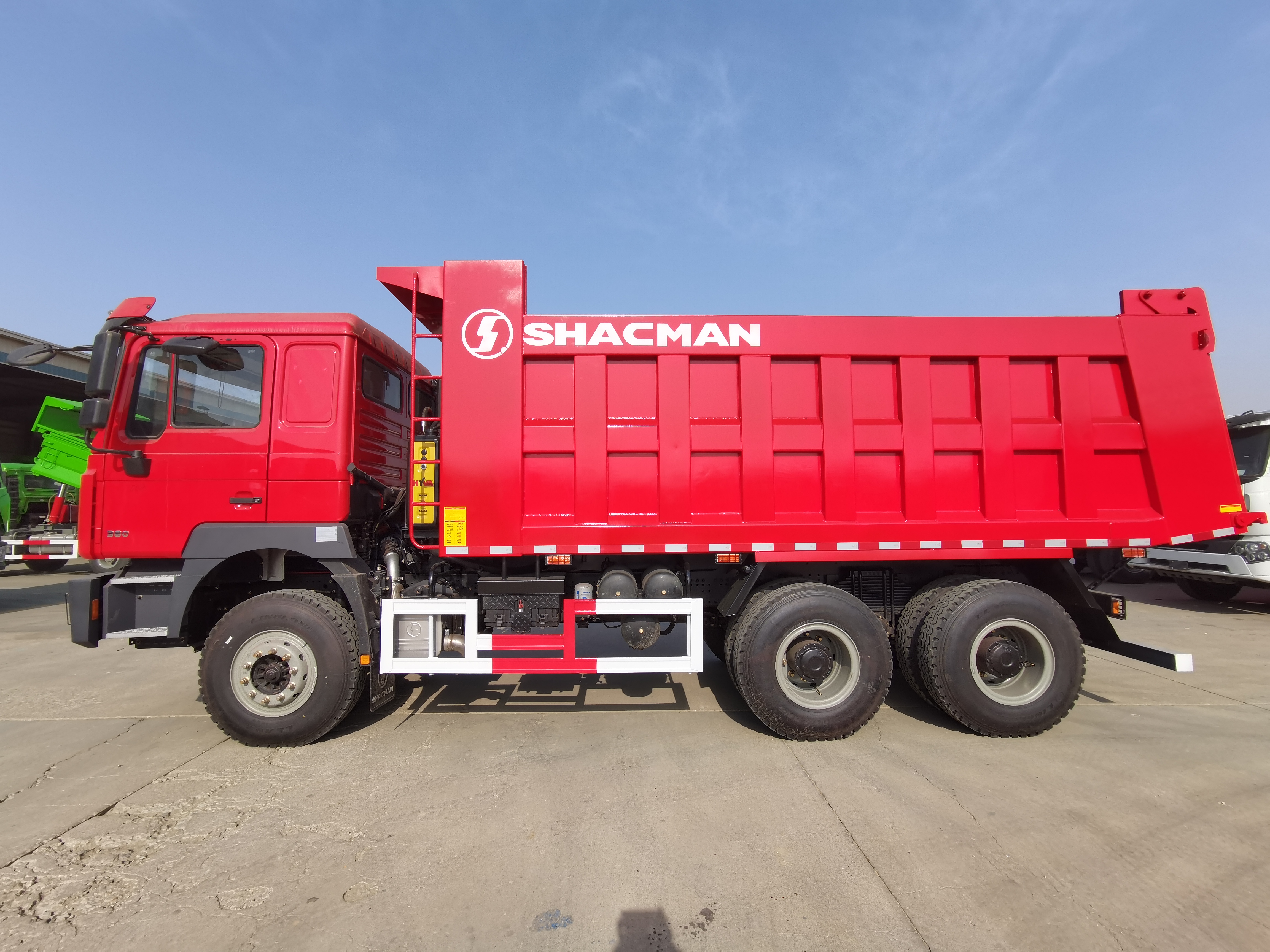

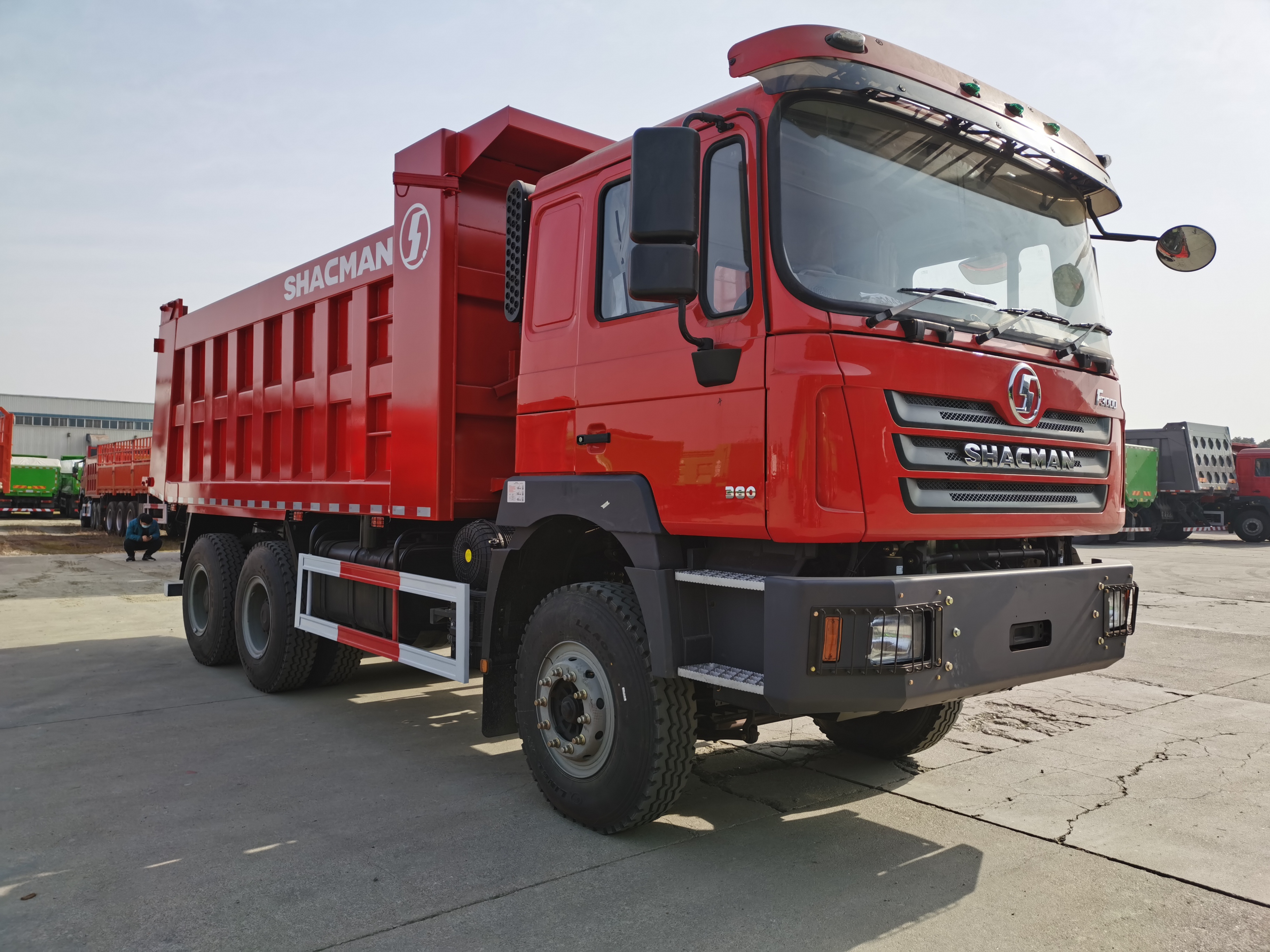

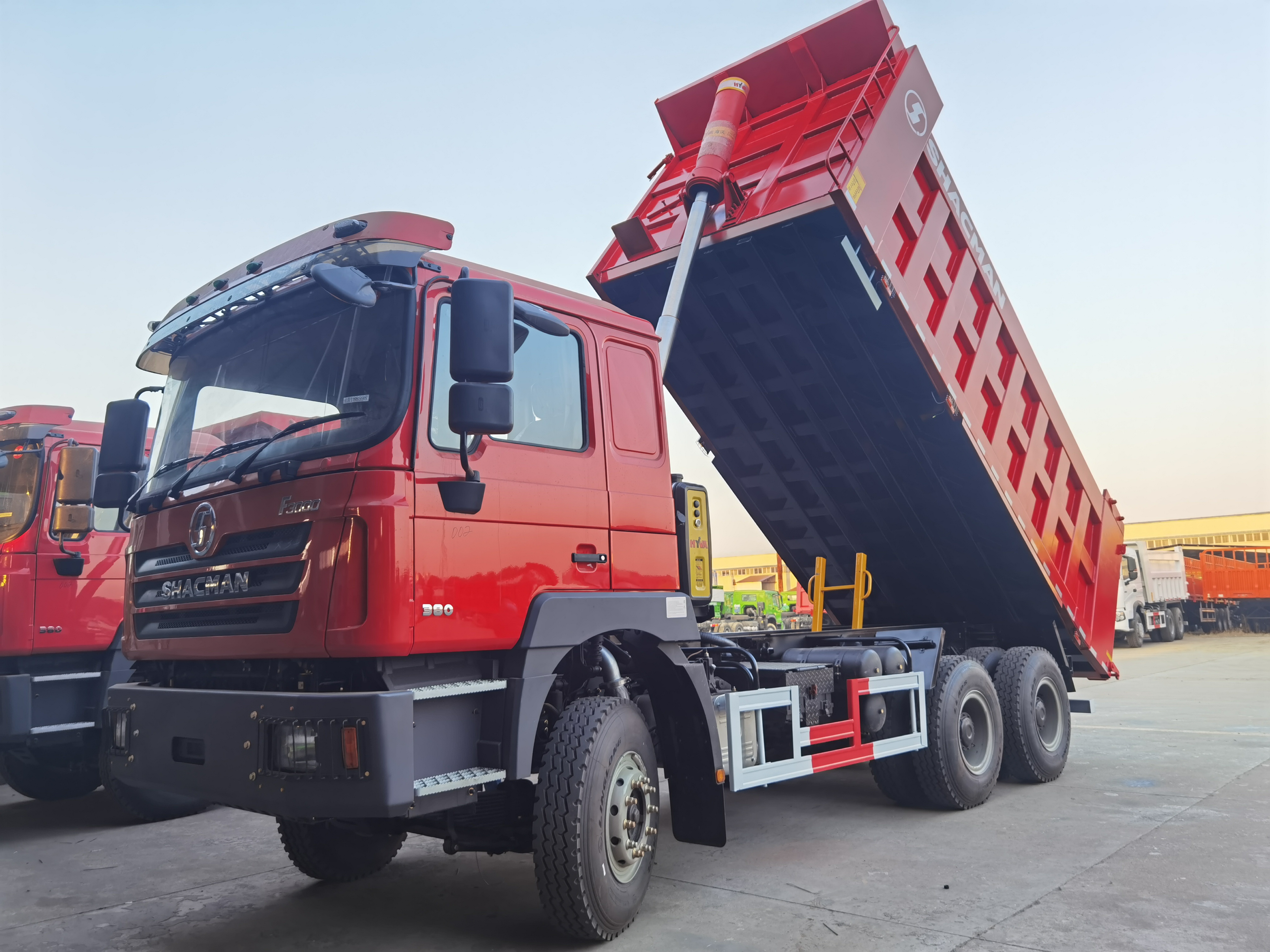

F3000 Super Dump Truck 6×4, SX3255DV384 (WP12.430E201/Europe II), hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, manual flip, ordinary air filter, metal bumper, water tank protection grille, 165Ah maintenance-free battery ( Cummins models with180Ah maintenance-free battery), super version optional package 2 (steel plate bumper, reinforced leaf spring, long-term coarse filter , three-pull belt 400L iron fuel tank with protection grille, headlight protection grille, LED taillight with protection grille, rear axle stabilizer bar, oil pan protection, fuel anti-theft design, anti-theft battery box ), 12JSD200T-B+QH50, 9.5T MAN front axle, 16T MAN double reduction axle, ratio 5.262, 850×300 (8+7) double-layer frame, front and rear multi-leaf springs, four main springs + four U-bolts, 300L aluminum alloy fuel tank, 12.00R20 tires, front lift 5600x2300x1500, suitable for muddy, pothole roads, and roads with large slopes.

F3000 Super Dump Truck 6×4, SX3255DT384 (WP10.380E22/Europe II), hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, manual flip, ordinary air filter, metal bumper, water tank protection grille, 165Ah maintenance-free battery ( Cummins models with180Ah maintenance-free battery), super version optional package 2 (steel plate bumper, reinforced leaf spring, long-term coarse filter , three-pull belt 400L iron fuel tank with protection grille, headlight protection grille, LED taillight with protection grille, rear axle stabilizer bar, oil pan protection, fuel anti-theft design, anti-theft battery box ), 10JSD180+QH50, 9.5T MAN front Axle, 16T MAN double reduction axle, ratio 5.92, 850×300 (8+7) double-layer frame, front and rear multi-leaf springs, four main springs + four U-bolts, 300L aluminum alloy fuel tank, 12.00R20 tires, front lift 5600x2300x1500, suitable for muddy, pothole roads, and roads with large slopes.

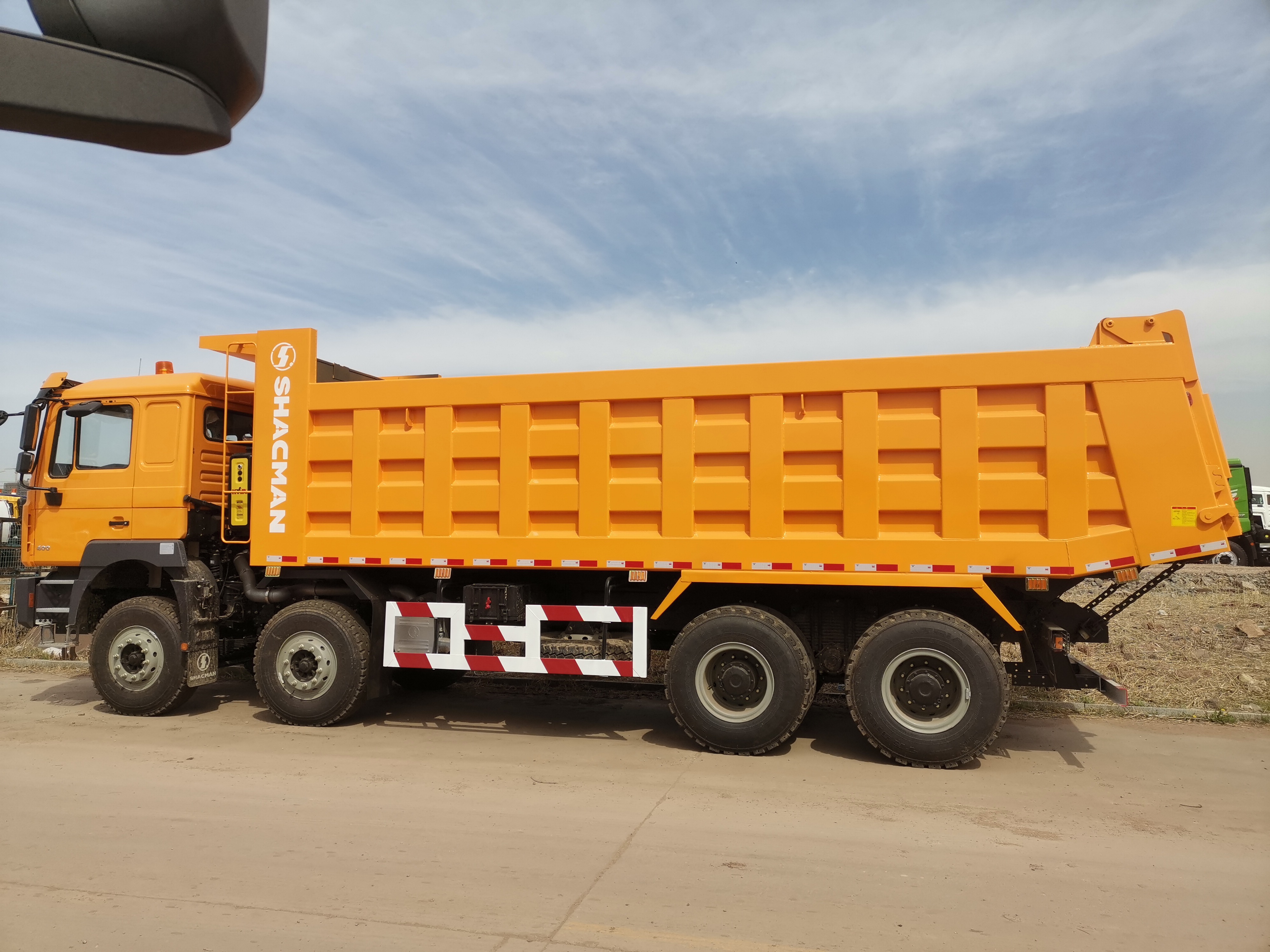

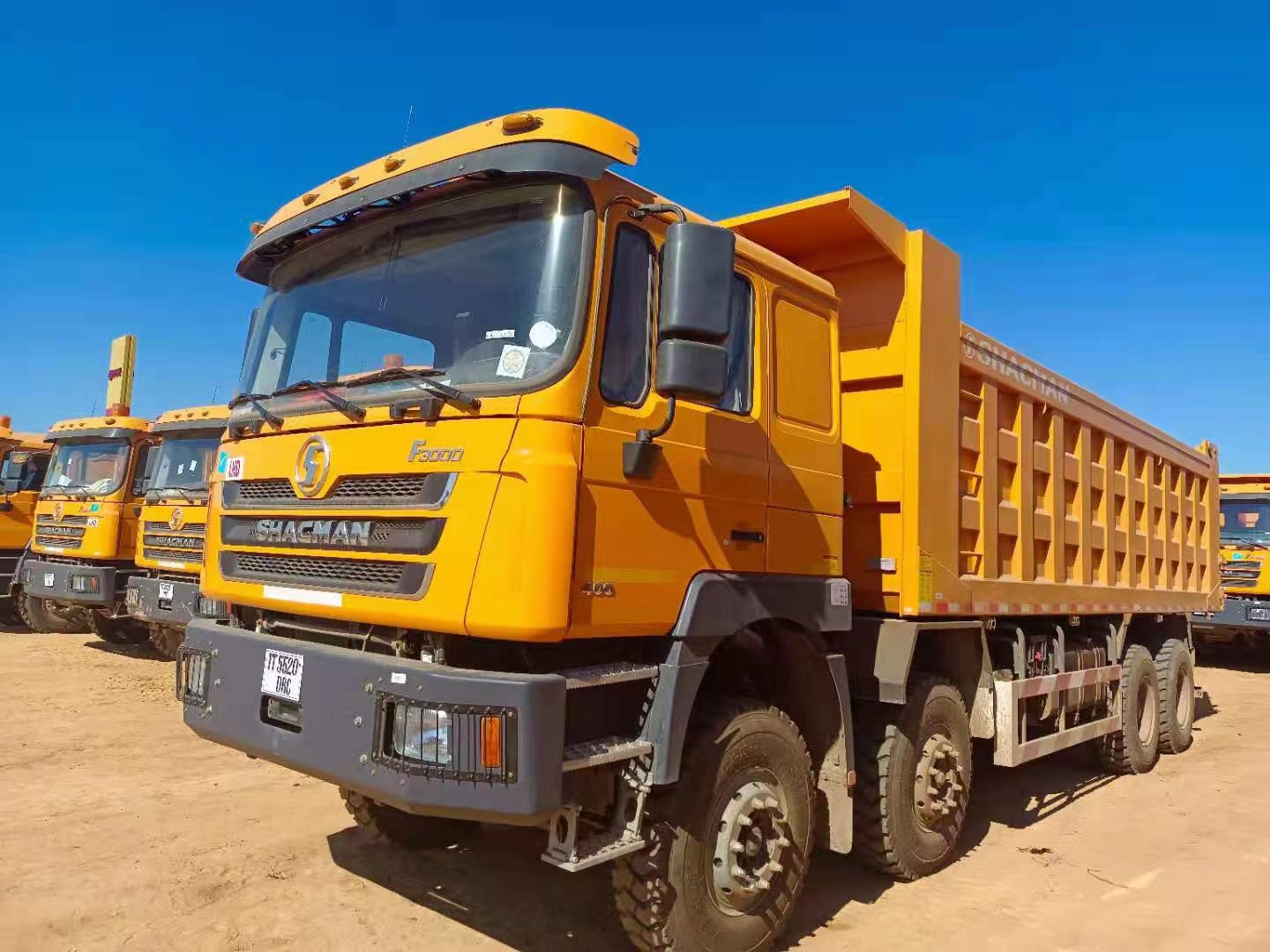

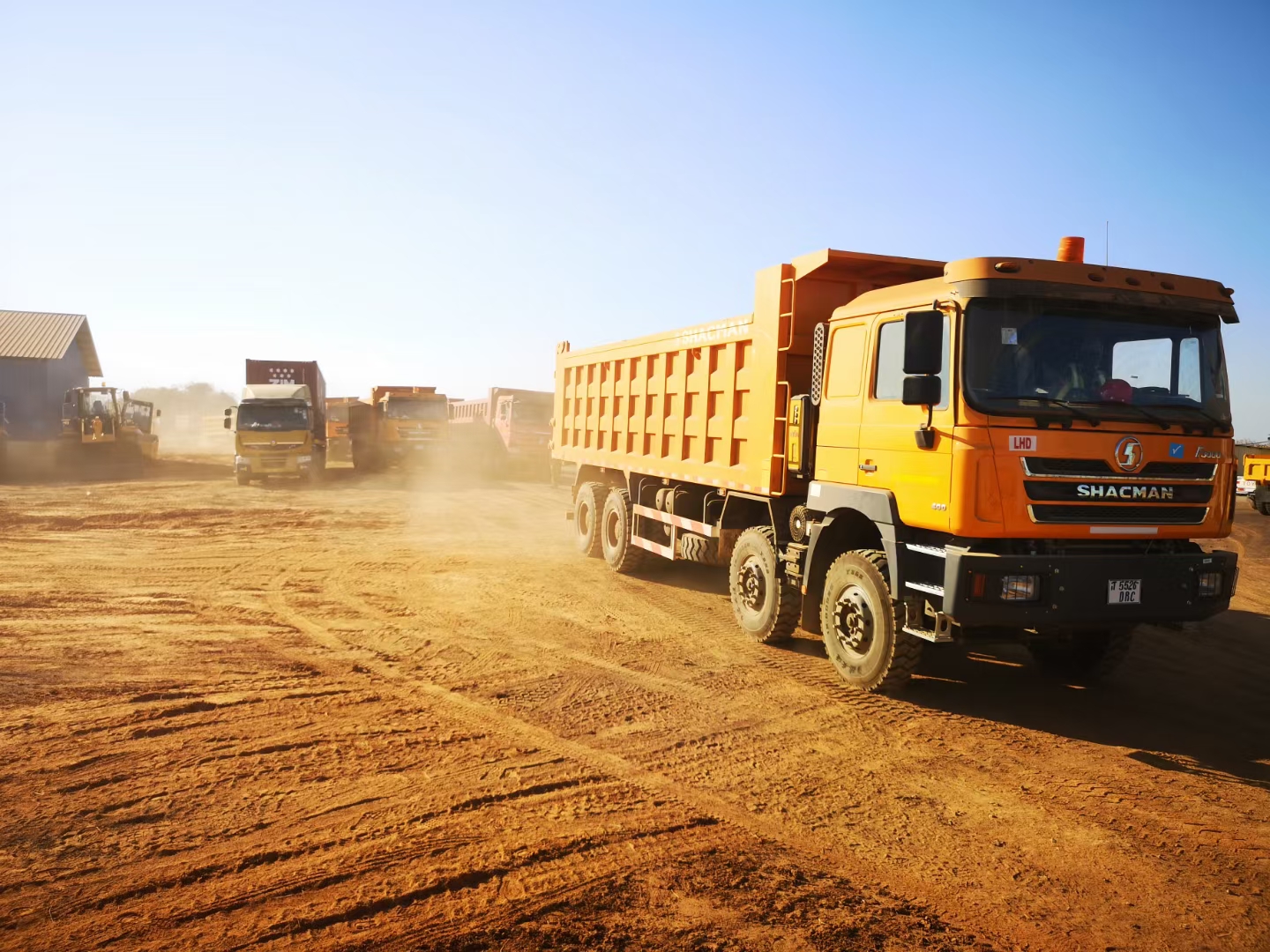

F3000 Super Dump Truck 8×4, SX3315DU366 (WP12.430E201/Europe II), hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, manual flip, ordinary air filter, metal bumper, water tank protection grille, 165Ah maintenance-free battery ( Cummins models with180Ah maintenance-free battery), super version optional package 2 (steel plate bumper, reinforced leaf spring, long-term coarse filter , three-pull belt 400L iron fuel tank with protection grille, headlight protection grille, LED taillight with protection grille, rear axle stabilizer bar, oil pan protection, fuel anti-theft design, anti-theft battery box ), 12JSD200T-B+QH50, 9.5T MAN front axle, 16T MAN double reduction axle, ratio 4.769, 850×300 (8+7+8) three-layer frame, front and rear multi-leaf springs, four main springs + four U-bolts, 300L aluminum alloy fuel tank, 12.00R20 Tires, front lift 5600x2300x1500, suitable for muddy, pothole roads, and roads with large slopes.

Cab：

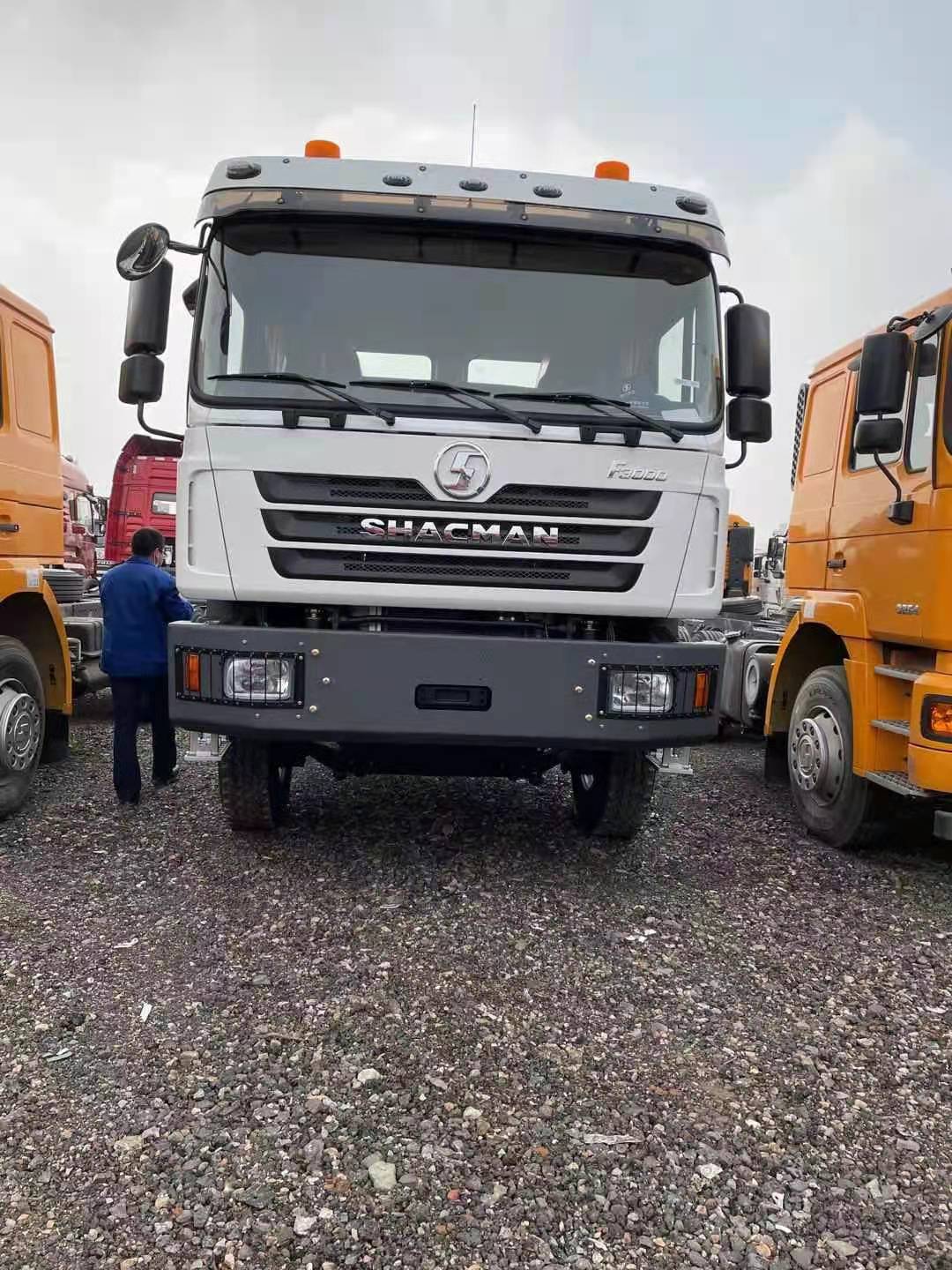

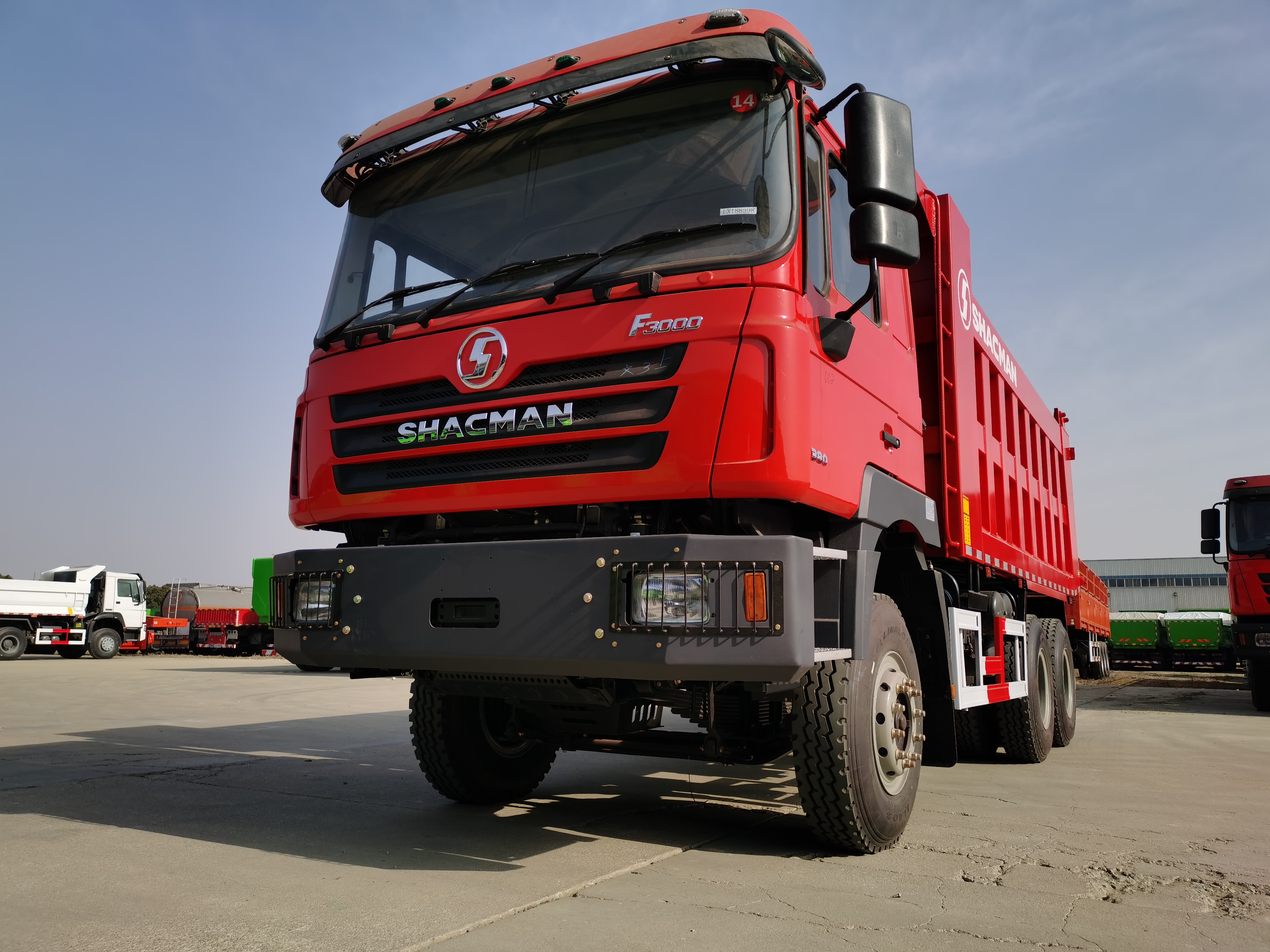

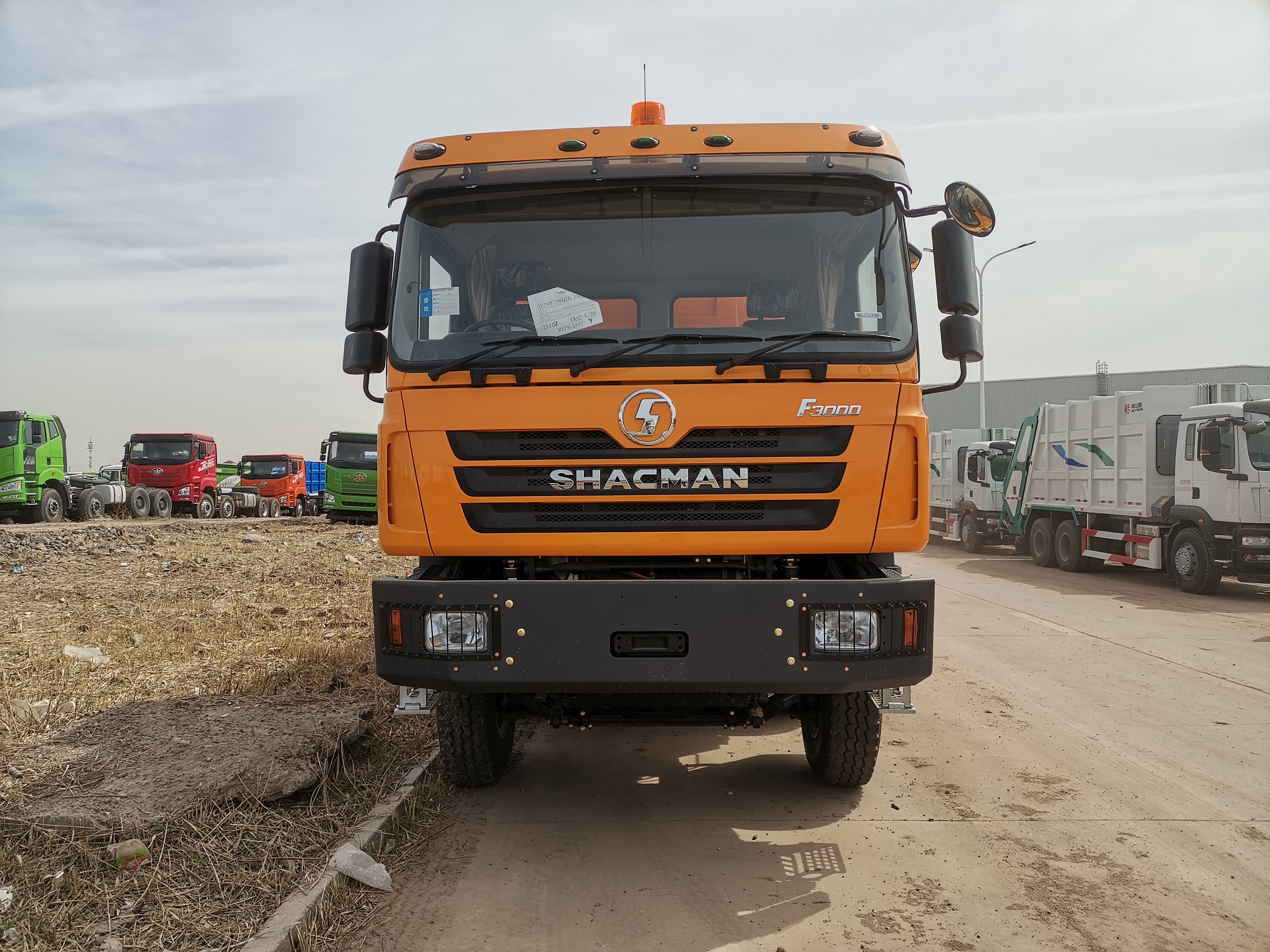

1.It adopts the classic F3000 cab exterior, reflecting the chrome-plating strip. The pedals, fenders and bumpers of the vehicle are equipped with the matte finish.

2.The bumper is made of 5mm thick steel plate with great reliability.

3.The steel plate bumper is embedded in the headlight, which matches the reinforced headlight guard fence to reduce the risk of the headlamp being damaged in bad road conditions.

4.The bottom of the cab is equipped with cast beam and cast front traction device, which improves the traction ability.

5.Super Carrying Capacity：9.5T MAN front axle + 16T MAN rear axle, 12.00R20 radial tire with 18mm thickness of rim, bearing capacity of single tire is increased by about 200kg, the diameter of U-bolt of front leaf spring is 20 mm, and the thickness of rear leaf spring is 319.5 mm

6.Super Trafficability：The ground clearance of the battery compartment is 910mm, and 660mm for guard gating of oil pan, 590mm for bottom plate of flat iron oil tank, 610mm for air reservoir, 630mm for muffler.

7.Super Reliability: .Closed alternator for WP10 engine, muffler, fender and air filter are equipped with casting bracket, tailpipe is designed with alterable direction, LED tail lamp is equipped with reliable integral safety fence.

8..Rear axle matching reinforced gray-iron brake drum, the oil tank is fixed with three tension straps and equipped with the long-acting filter, so as the filtration efficiency of 3-5um impurities is 99.82%, and the oil-water separation efficiency is 99.65%, dust-proof nut helmet for wheel bolt.

9.The bottom of the engine is equipped with a reinforced oil pan protective fence made of 6mm steel plate; the muffler is made of stainless steel, which improved the anti-rust ability; the diameter of the U-shaped bolt of the front suspension is 20 cm; the battery compartment is equipped with anti-theft device.
