Industrial Automation Systems and Equipment

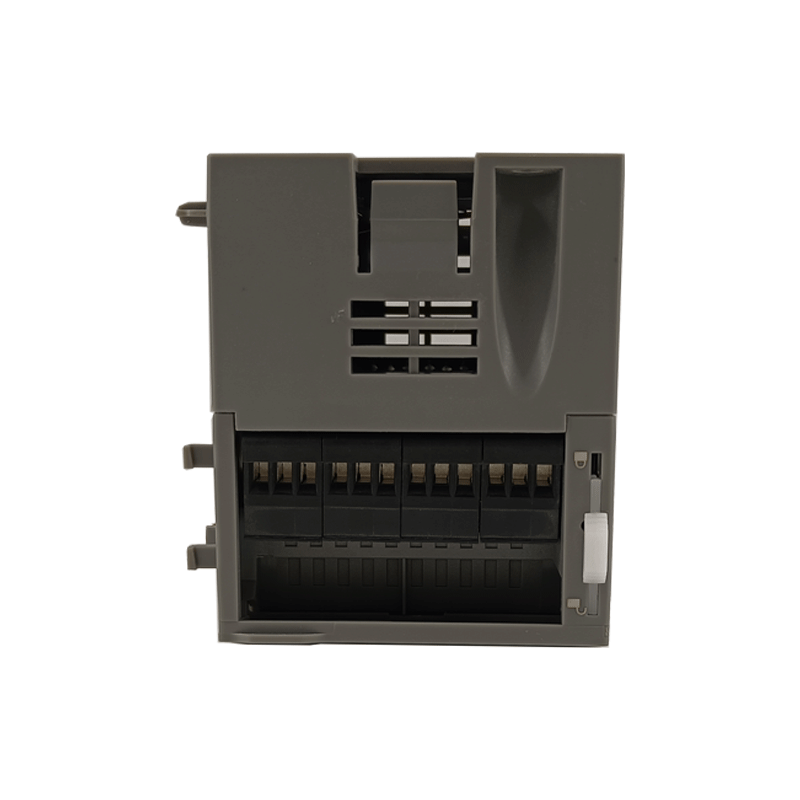

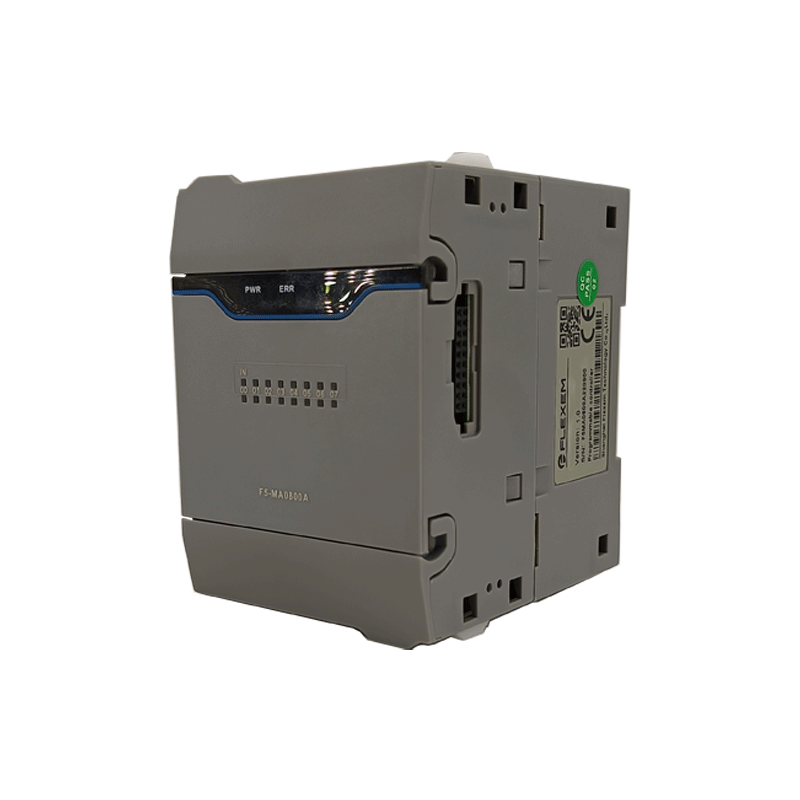

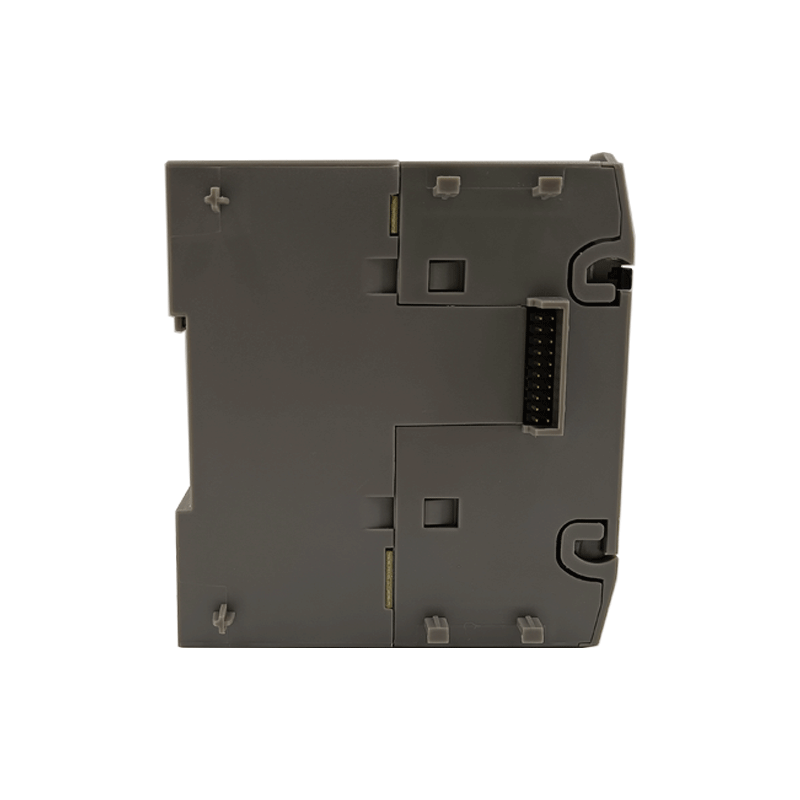

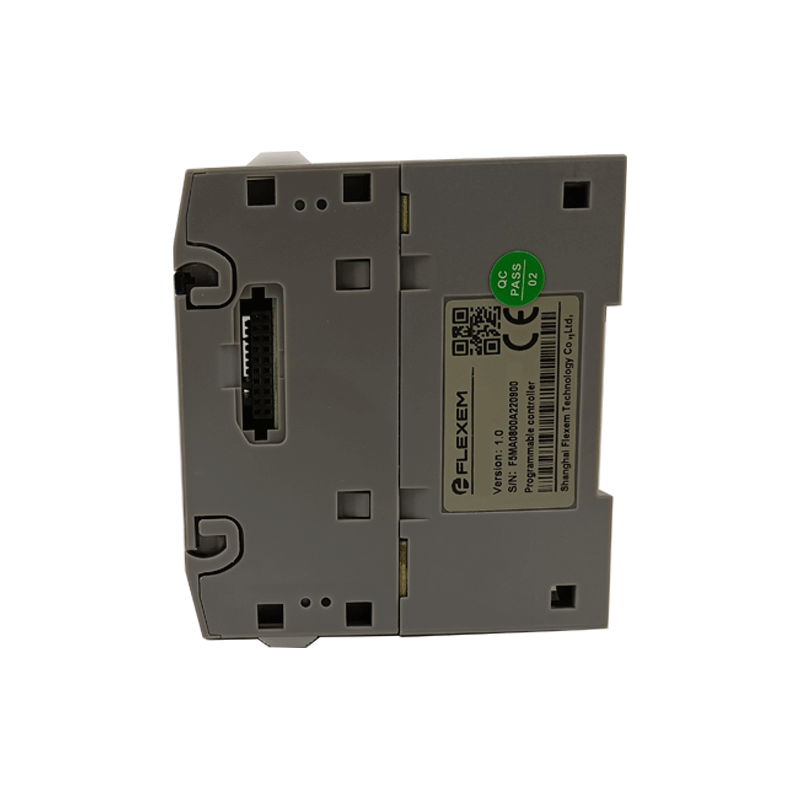

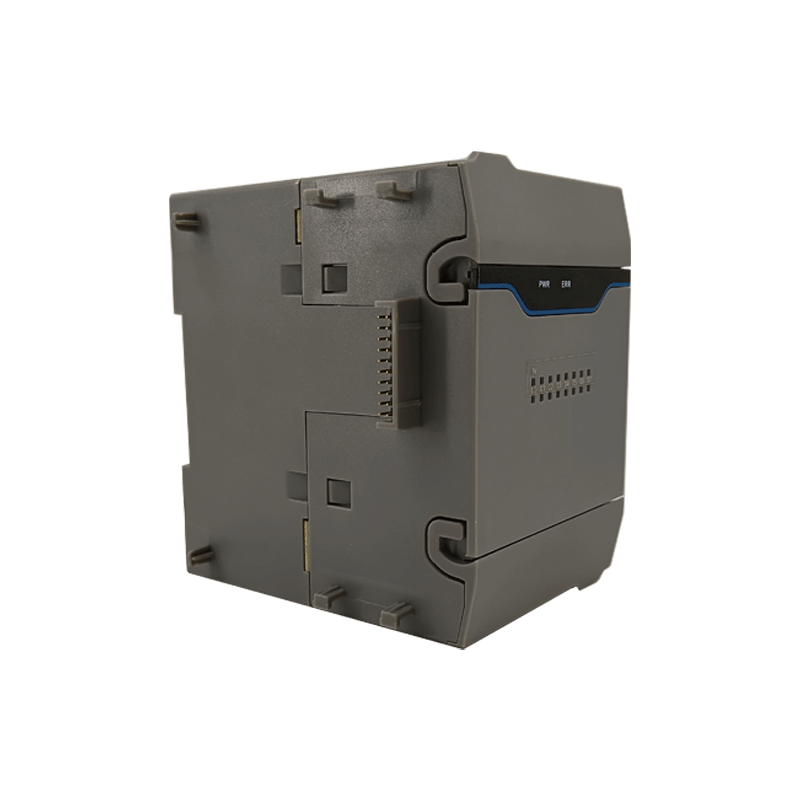

F5-MD0016N Digital expansion module
Shanghai Flexem Technology Co. Ltd.5/10 fairsManufacturerModel F5-MD0016N
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
F5-MD0016N Digital expansion module
Shanghai Flexem Technology Co. Ltd.5/10 fairsManufacturerModel F5-MD0016N
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 66mmx90mmx83mm
- Color: Gray
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: 66mmx90mmx83mm
- Color: Gray
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | 66mmx90mmx83mm |
|---|---|
| Color | Gray |
Product details
| Size | 66mmx90mmx83mm |
|---|---|
| Color | Gray |
From the supplier
CPU DIGITAL / ANALOG EXPANSION MODULES， MODULAR COMBINATION AND FLEXIBLE CONFIGURATION，REMOVABLE TERMINALS.
FEATURES F5-MD0016N(P) Output Characterstics 16 Point Output Type NPN(PNP) Rated Voltage 24VDC Voltage Range 19.2~28.8VDC Rated Current 0.5A Current/group 0.5A Output point of each group Voltage/drop Maximum1VDC Leakage Current When Turned Off <5μA Maximum Power of Incandescent Lamp 2.4W Derating None Start Time Maximum 34μs Tum-off Time Maximum 250μs Maximum Output Frequency 1KHz Short Circuit Protection Available Peak Short-circuit Output Current 1.3A Self-recovery After Short Circuit or Overload Per10ms Clamping Voltage Maximum39VDC,±1V Isolation 500V AC between output and internal logic Type of Electrical Channel Unshielded Cable Length Unshielded 50m Wiring Structure Removable terminal block Dimension Dimension B
From the supplier
CPU DIGITAL / ANALOG EXPANSION MODULES， MODULAR COMBINATION AND FLEXIBLE CONFIGURATION，REMOVABLE TERMINALS.
FEATURES F5-MD0016N(P) Output Characterstics 16 Point Output Type NPN(PNP) Rated Voltage 24VDC Voltage Range 19.2~28.8VDC Rated Current 0.5A Current/group 0.5A Output point of each group Voltage/drop Maximum1VDC Leakage Current When Turned Off <5μA Maximum Power of Incandescent Lamp 2.4W Derating None Start Time Maximum 34μs Tum-off Time Maximum 250μs Maximum Output Frequency 1KHz Short Circuit Protection Available Peak Short-circuit Output Current 1.3A Self-recovery After Short Circuit or Overload Per10ms Clamping Voltage Maximum39VDC,±1V Isolation 500V AC between output and internal logic Type of Electrical Channel Unshielded Cable Length Unshielded 50m Wiring Structure Removable terminal block Dimension Dimension B
About the supplier
Shanghai Flexem Technology Co. Ltd.
Main products: PLC Programmable Controller Systems and Software, Human-Machine Interfaces, Servo Motors and Drives
- ✓Exhibited at 5 recent Canton Fairs
- ✓Manufacturer
- ✓Founded 2010
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- ✓1 certificate on file
70
trust
- Exhibited at 5 recent Canton Fairs
- Manufacturer
- Founded 2010
- Canton Fair Premium Supplier
