FD1024600E-S100-SS-10.1 inch HMI
Shanghai Flexem Technology Co. Ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
FD1024600E-S100-SS-10.1 inch HMI
Shanghai Flexem Technology Co. Ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: Touch screen :10.1 inch
- Color: None
- Material: Other
- Mathematical model: Other
- Signal: Other
- Structure: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: Touch screen :10.1 inch
- Color: None
- Material: Other
- Mathematical model: Other
- Signal: Other
- Structure: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | Touch screen :10.1 inch |
|---|---|
| Color | None |
| Material | Other |
| Mathematical model | Other |
| Signal | Other |
| Structure | Other |
| Task | Program |
| Function | Other |
| Customized | Non-Customized |
Product details
| Size | Touch screen :10.1 inch |
|---|---|
| Color | None |
| Material | Other |
| Mathematical model | Other |
| Signal | Other |
| Structure | Other |
| Task | Program |
| Function | Other |
| Customized | Non-Customized |
From the supplier

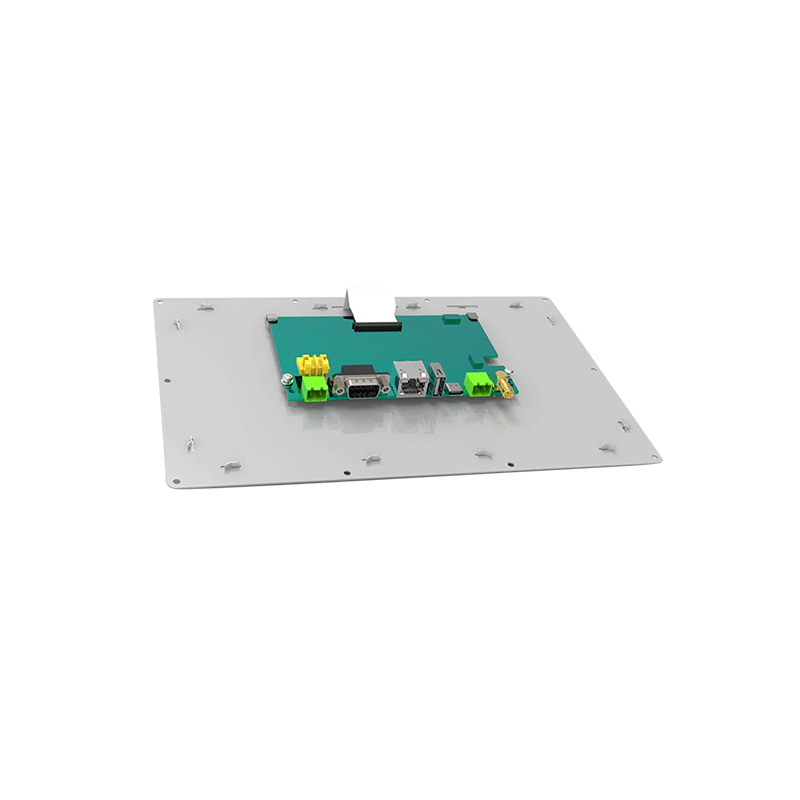

Industrial high quality components are used. Built-in installation structure without enclosure, compatible with serial port HMI. Various communication connections, supporting USB, SD card expanding connection. Compatible with powerful HMI configuration software. Reliable industrial design and high quality.
FEATURES FD1024600E-S100-SS Display 10.1" 16:9 TFT LCD Resolution(WxH) 1024×600 Colors 24-bit Brightness 400 cd/m² Backlight LED LCD Life 50000 hours Touch Panel 4 wires resistive touch screen CPU 1GHz,dual core Cortex-A7 Memory 4GB eMMC+128MB DDR RTC Built in Ethernet 1 way 10M/100M adaptive USB Port USB Slave 2.0 port*1,USB Host 2.0 port*1 Download Project USB Host/USB Slave/Ethernet COM Port COM1:RS232/RS485/RS422
COM2:RS485
COM3:RS232 LCD viewing angle (T/B/L/R) 85'/85'/85'/85' Power Consumption <10W Input Power DC24V,working range DC9V~28V Power Protection Protected from thunderstrike and surging Power Down Allowed <5mS CE &RoHS Complied with EN61000-6-2:2005,EN61000-6-4:2007,RoHS, Surge Immunity:±1KV,EFT:±2KV,ESD:4KV,Air:8KV Operating Temperature 0~50℃ Storage Temperature -20~60℃ Anti-UV Not suitable to work in strong ultraviolet light(such as direct sunlight) Operating Humidity 10~90%RH(no condensate) Vibration Endurance 10~25Hz(X,Y,Z direction 2G/30 minutes) Cooling Natural air cooling Panel Cutout 236*144mm Dimension 260*170mm*28mm Weight About 500g
From the supplier
Industrial high quality components are used. Built-in installation structure without enclosure, compatible with serial port HMI. Various communication connections, supporting USB, SD card expanding connection. Compatible with powerful HMI configuration software. Reliable industrial design and high quality.
FEATURES FD1024600E-S100-SS Display 10.1" 16:9 TFT LCD Resolution(WxH) 1024×600 Colors 24-bit Brightness 400 cd/m² Backlight LED LCD Life 50000 hours Touch Panel 4 wires resistive touch screen CPU 1GHz,dual core Cortex-A7 Memory 4GB eMMC+128MB DDR RTC Built in Ethernet 1 way 10M/100M adaptive USB Port USB Slave 2.0 port*1,USB Host 2.0 port*1 Download Project USB Host/USB Slave/Ethernet COM Port COM1:RS232/RS485/RS422
COM2:RS485
COM3:RS232 LCD viewing angle (T/B/L/R) 85'/85'/85'/85' Power Consumption <10W Input Power DC24V,working range DC9V~28V Power Protection Protected from thunderstrike and surging Power Down Allowed <5mS CE &RoHS Complied with EN61000-6-2:2005,EN61000-6-4:2007,RoHS, Surge Immunity:±1KV,EFT:±2KV,ESD:4KV,Air:8KV Operating Temperature 0~50℃ Storage Temperature -20~60℃ Anti-UV Not suitable to work in strong ultraviolet light(such as direct sunlight) Operating Humidity 10~90%RH(no condensate) Vibration Endurance 10~25Hz(X,Y,Z direction 2G/30 minutes) Cooling Natural air cooling Panel Cutout 236*144mm Dimension 260*170mm*28mm Weight About 500g
