Industrial Automation Systems and Equipment
FE5043H-V2-4.3 inch Capacitve HMI
Shanghai Flexem Technology Co. Ltd.5/10 fairsManufacturerModel FE5043H-V2
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
FE5043H-V2-4.3 inch Capacitve HMI
Shanghai Flexem Technology Co. Ltd.5/10 fairsManufacturerModel FE5043H-V2
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: Touch screen:4.3 inch
- Color: Black
- Mathematical model: Other
- Function: Monitoring
- Structure: Other
- Material: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: Touch screen:4.3 inch
- Color: Black
- Mathematical model: Other
- Function: Monitoring
- Structure: Other
- Material: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | Touch screen:4.3 inch |
|---|---|
| Color | Black |
| Mathematical model | Other |
| Function | Monitoring |
| Structure | Other |
| Material | Other |
| Task | Program |
| Signal | Other |
| Customized | Non-Customized |
Product details
| Size | Touch screen:4.3 inch |
|---|---|
| Color | Black |
| Mathematical model | Other |
| Function | Monitoring |
| Structure | Other |
| Material | Other |
| Task | Program |
| Signal | Other |
| Customized | Non-Customized |
From the supplier

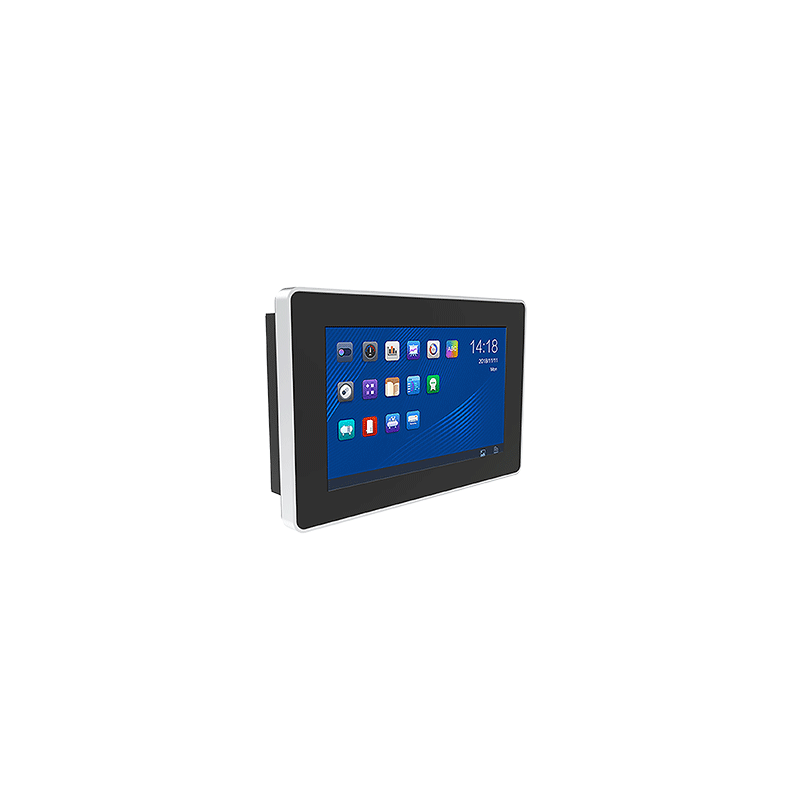

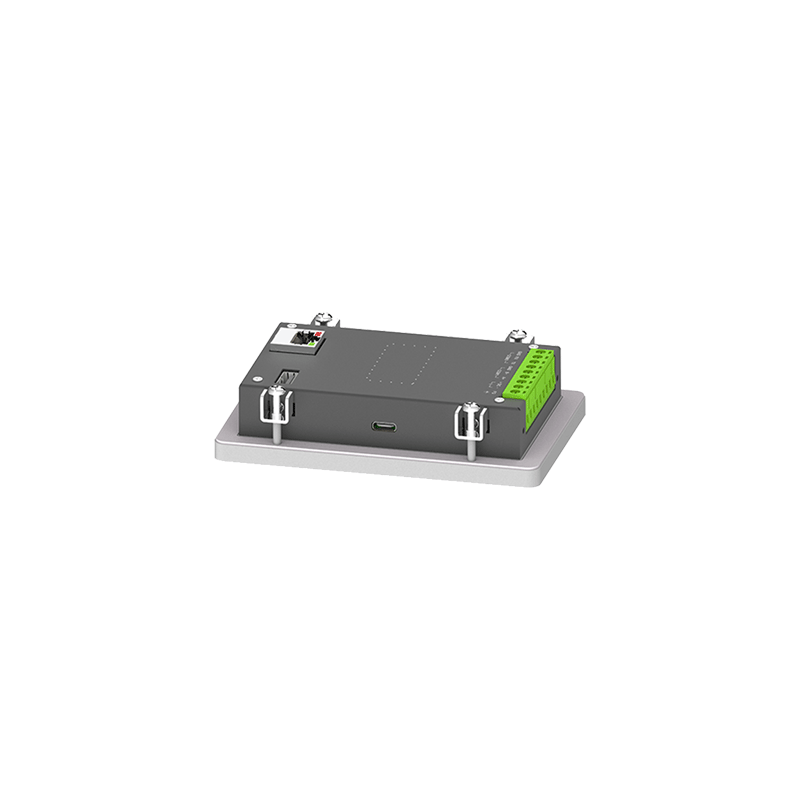

The FlexSee 1 series capacitive HMI is suitable for a range of small and medium-sized device applications.
FEATURES FE5043H-V2 Display 4.3" 16:9 TFT LCD LCD Viewing Angles(T/B/L/R) 70'/70'/70'/70' Resolution 800×480 Colors 24-bit Brightness 320 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel Glass+Glass projective multi-touch capacitive touchscreen CPU 600MHz ARM Cortex-A8 Storage 128MB DDR3+128MB Flash RTC Built-in SD Card / Bluetooth / Ethernet port 1*RJ45, based on10/100Mbps USB Port 1*USB Type-C 2.0 port, 1*USB Type-A 2.0 port Download Method USB slave / Flash drive/Ethernet Serial port COM1: RS485,COM3: RS232 Rated power 5W Input Voltage DC24V, working range DC9V-28V Power supply protection With lightning surge protection Power Interruption Tolerance <5mS Certification CE, RoHS Operating Temperature 0-50℃ StorageTemperature -20-60℃ UV Resistance Operating in high UV environment is prohibited Environmental Humidity 10-90%RH (Non condensing) Vibration Endurance 10-25Hz (X,Y,Z direction 2G/30 minutes) Cooling Mode Natural Cooling Protection Level Front:IP65, Rear:IP20 Enclosure Material Metal shell Cutout Size 107mm×64mm Dimensions 124mm×80mm×31.5mm Weight About 500g
From the supplier
The FlexSee 1 series capacitive HMI is suitable for a range of small and medium-sized device applications.
FEATURES FE5043H-V2 Display 4.3" 16:9 TFT LCD LCD Viewing Angles(T/B/L/R) 70'/70'/70'/70' Resolution 800×480 Colors 24-bit Brightness 320 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel Glass+Glass projective multi-touch capacitive touchscreen CPU 600MHz ARM Cortex-A8 Storage 128MB DDR3+128MB Flash RTC Built-in SD Card / Bluetooth / Ethernet port 1*RJ45, based on10/100Mbps USB Port 1*USB Type-C 2.0 port, 1*USB Type-A 2.0 port Download Method USB slave / Flash drive/Ethernet Serial port COM1: RS485,COM3: RS232 Rated power 5W Input Voltage DC24V, working range DC9V-28V Power supply protection With lightning surge protection Power Interruption Tolerance <5mS Certification CE, RoHS Operating Temperature 0-50℃ StorageTemperature -20-60℃ UV Resistance Operating in high UV environment is prohibited Environmental Humidity 10-90%RH (Non condensing) Vibration Endurance 10-25Hz (X,Y,Z direction 2G/30 minutes) Cooling Mode Natural Cooling Protection Level Front:IP65, Rear:IP20 Enclosure Material Metal shell Cutout Size 107mm×64mm Dimensions 124mm×80mm×31.5mm Weight About 500g
About the supplier
Shanghai Flexem Technology Co. Ltd.
Main products: PLC Programmable Controller Systems and Software, Human-Machine Interfaces, Servo Motors and Drives
- ✓Exhibited at 5 recent Canton Fairs
- ✓Manufacturer
- ✓Founded 2010
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- ✓1 certificate on file
70
trust
- Exhibited at 5 recent Canton Fairs
- Manufacturer
- Founded 2010
- Canton Fair Premium Supplier
