FE9121M-12.1 inch HMI
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
FE9121M-12.1 inch HMI
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: Touch Screen:12.1 inch
- Color: Gray
- Material: Other
- Function: Monitoring
- Customized: Non-Customized
- Task: Program
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: Touch Screen:12.1 inch
- Color: Gray
- Material: Other
- Function: Monitoring
- Customized: Non-Customized
- Task: Program
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | Touch Screen:12.1 inch |
|---|---|
| Color | Gray |
| Material | Other |
| Function | Monitoring |
| Customized | Non-Customized |
| Task | Program |
| Structure | Other |
| Signal | Other |
| Mathematical model | Other |
From the supplier

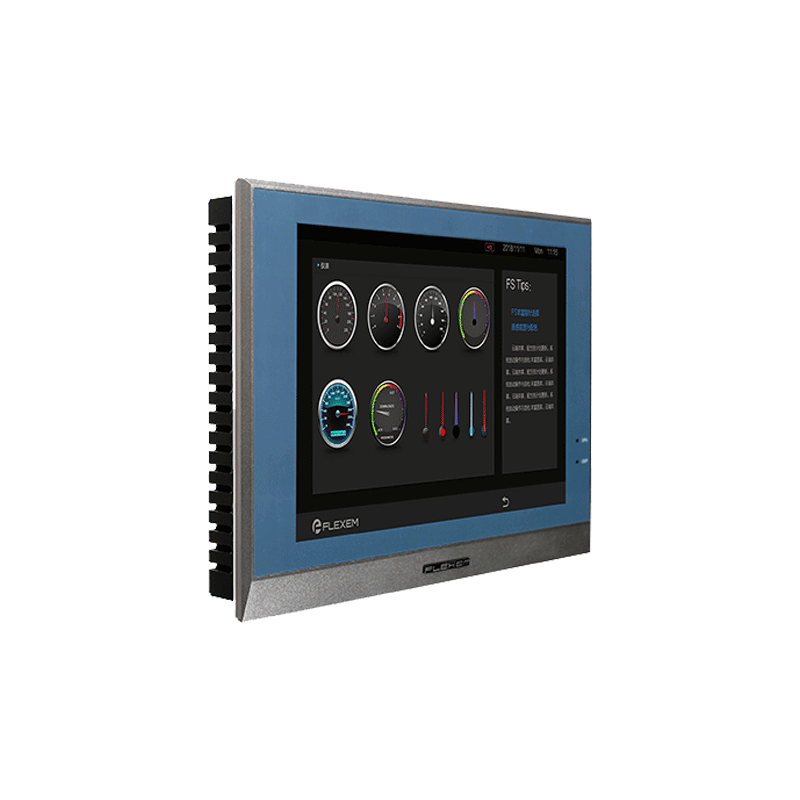

Flexem FE9121M high-performance touchscreen, featuring a 12.1" resistive touchscreen, gray metal enclosure, high-definition, high-brightness wide-view display, 1024x768 resolution, 16-bit colors, high-performance CPU, high-capacity storage, and 1 Ethernet port, provides a high-performance touch-and-control solution.

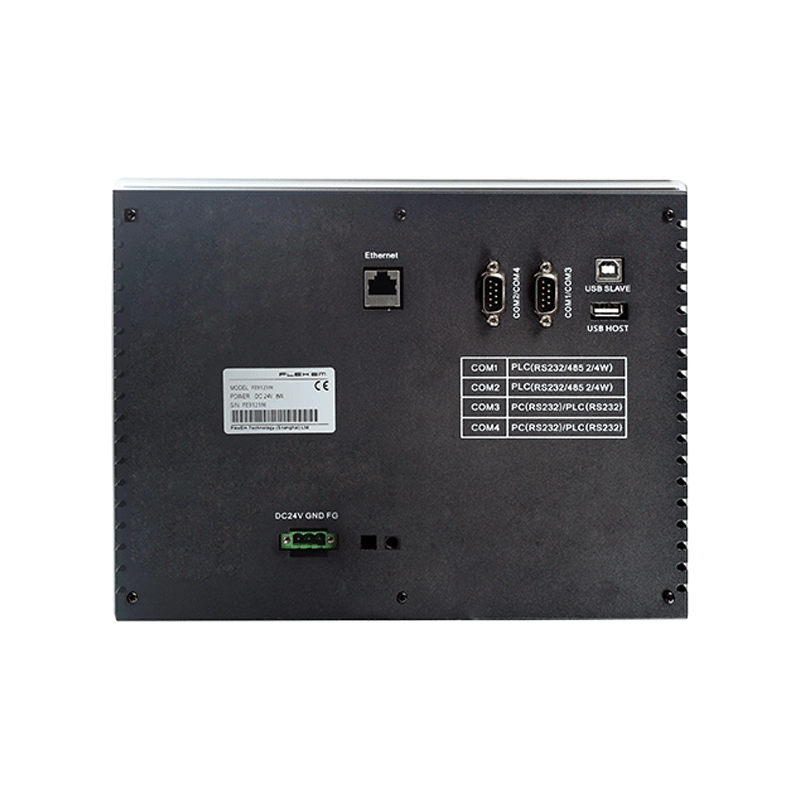

FEATURES FE9121M Display 12.1" 4:3 TFT LCD LCD Viewing Angles(T/B/L/R) 80'/80'/80'/80' Resolution 1024×768 Colors 16-bit Brightness 350 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel 4-wire resistive touchscreen CPU 1.2GHz，4 cores Cortex-A53 Storage 8GB Flash + 1GB DDR3 RTC Built-in SD Card NA Ethernet port 1*RJ45,based on 10/100Mbps USB Port 1*USB Slave 2.0 port, 1*USB Host 2.0 port Download Method USB slave/Flash drive/Ethernat Serial port COM1/COM2: RS232/RS485/RS422, COM3/COM4: RS232 Rated power <15W Input Voltage DC24V,Working range DC18V-28V Power supply protection With lightning surge protection Power Interruption Tolerance <5mS Certification CE,RoHS Operating Temperature -10-60℃ StorageTemperature -20-70℃ UV Resistance Operating in high UV environment is prohibited Environmental Humidity 10-90%RH(Non condensing) Vibration Endurance 10-25Hz(X,Y,Z direction 2G/30 minutes) Cooling Mode Natural Cooling Protection Level Front:IP65,Rear:IP20 Enclosure Material Aluminum alloy Cutout Size 291mm×219mm Dimensions 310mm×240mm×48.5mm Weight About 2710g
About the supplier
Main products: PLC Programmable Controller Systems and Software, Human-Machine Interfaces, Servo Motors and Drives
- ✓Exhibited at 5 recent Canton Fairs
- ✓Manufacturer
- ✓Founded 2010
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- ✓1 certificate on file
- Exhibited at 5 recent Canton Fairs
- Manufacturer
- Founded 2010
- Canton Fair Premium Supplier
