About this product
- Size: Touch Screen:15.6 inch
- Color: Grey
- Material: Other
- Task: Program
- Function: Monitoring
- Mathematical model: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: Touch Screen:15.6 inch
- Color: Grey
- Material: Other
- Task: Program
- Function: Monitoring
- Mathematical model: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | Touch Screen:15.6 inch |
|---|---|
| Color | Grey |
| Material | Other |
| Task | Program |
| Function | Monitoring |
| Mathematical model | Other |
| Customized | Non-Customized |
| Structure | Other |
| Signal | Other |
From the supplier

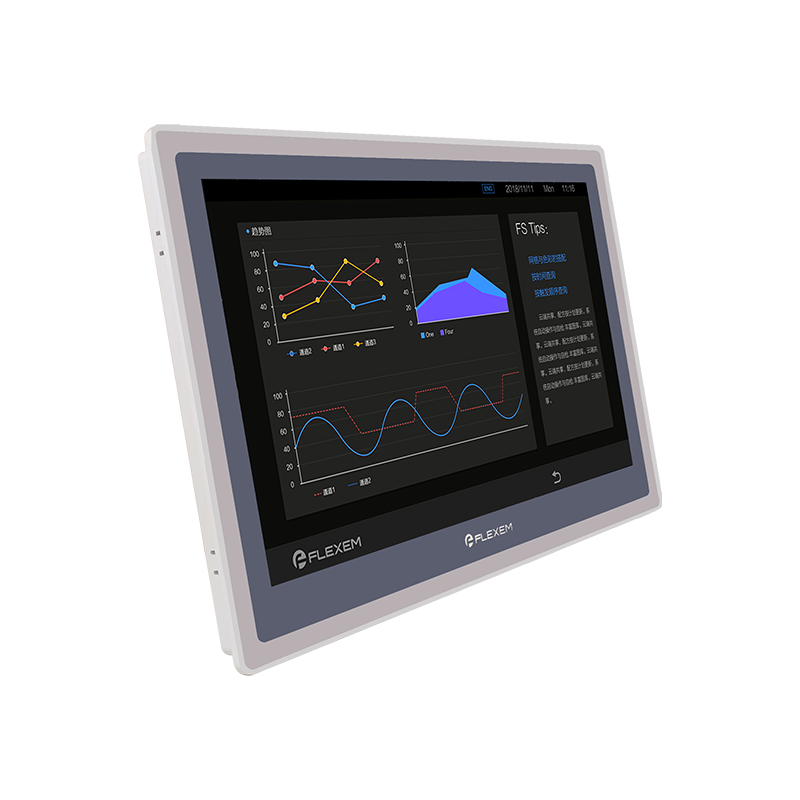

Flexem FE9156M high-performance touchscreen, featuring a 15.6" resistive touchscreen, gray metal enclosure, high-definition high-brightness full-view display, 1920x1080 resolution, 16-bit colors, high-performance CPU, high-capacity storage, and 2 Ethernet ports, provides a high-performance touch-and-control solution. It is CE, RoHS and UL listed.
FEATURES FE9156M Display 15.6" 16:9 TFT LCD LCD Viewing Angles(T/B/L/R) 85'/85'/85'/85' Resolution 1920×1080 Colors 16-bit Brightness 250 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel 4-wire resistive touchscreen CPU 1.2GHz, 4 cores Cortex-A53 Storage 8GB Flash + 1GB DDR3 RTC Built-in SD Card NA Ethernet port 2* 10M/100M self-adaptive RJ45 port USB Port 1*USB Slave 2.0 port, 1*USB Host 2.0 port Download Method USB slave/Flash drive/Ethernat Serial port
COM1/COM2: RS232/RS485/RS422,
COM2: RS485/RS422,
COM3: RS232
Rated power <18W Input Voltage DC24V, Working range DC18V-28V Power supply protection Power isolation module with lightning surge protection Power Interruption Tolerance <5mS Certification CE, RoHS, UL Operating Temperature 0-50℃ StorageTemperature -20-60℃ UV Resistance Operating in high UV environment is prohibited Environmental Humidity 10-90%RH(Non condensing) Vibration Endurance 10-25Hz (X,Y,Z direction 2G/30 minutes) Cooling Mode Natural Cooling Protection Level Front: IP65, Rear: IP20 Enclosure Material Aluminum alloy Cutout Size 380mm×245mm Dimensions 394mm×256mm×36mm Weight About 2250gAbout the supplier
Main products: PLC Programmable Controller Systems and Software, Human-Machine Interfaces, Servo Motors and Drives
- ✓Exhibited at 5 recent Canton Fairs
- ✓Manufacturer
- ✓Founded 2010
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- ✓1 certificate on file
