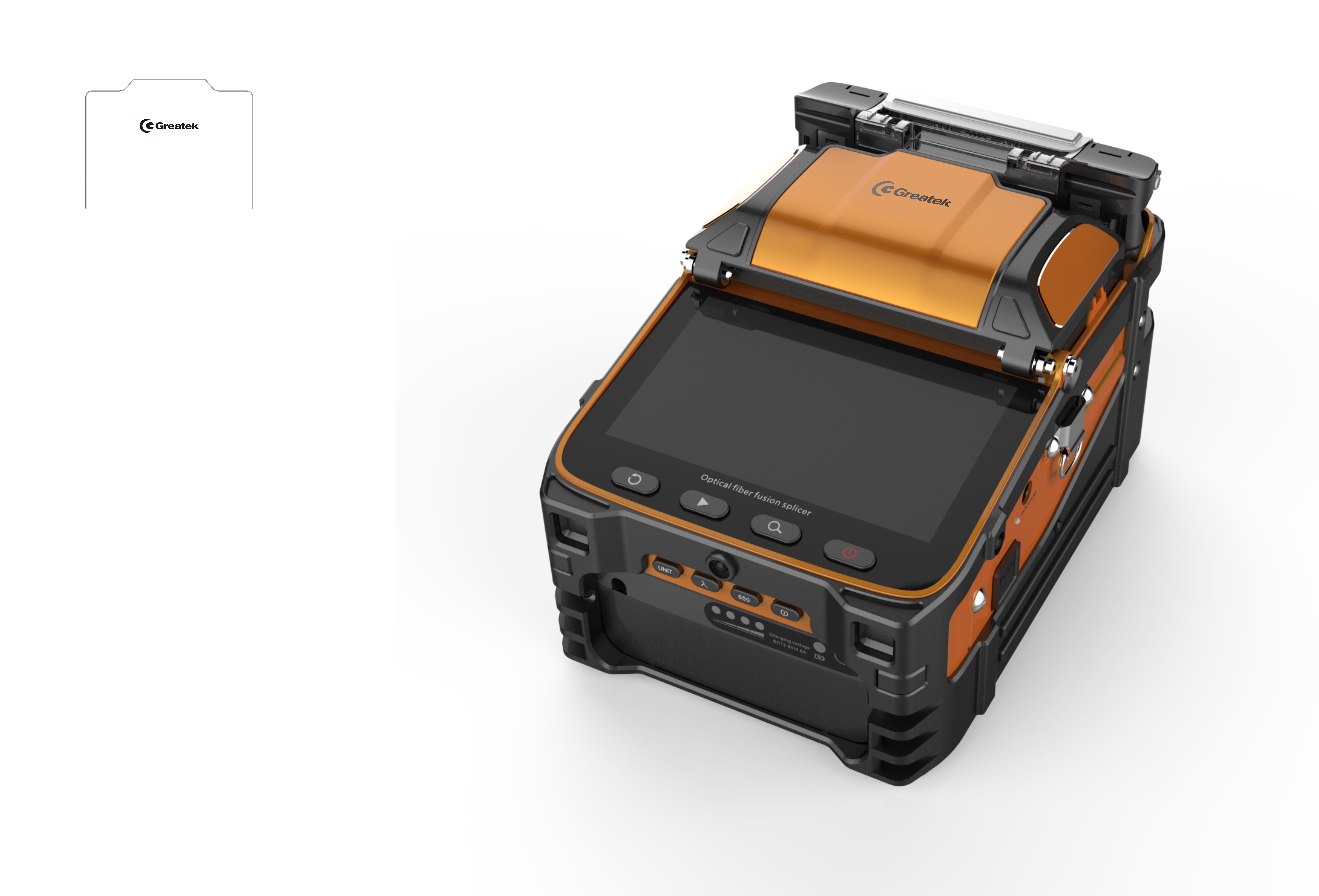

Fiber fusion splicer
Zhuhai Zhanquan Electronic Technology Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Fiber fusion splicer
Zhuhai Zhanquan Electronic Technology Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Application: Industrial
- Grade: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries
About this product
- Application: Industrial
- Grade: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries
Product details
| Application | Industrial |
|---|---|
| Grade | Other |
Product details
| Application | Industrial |
|---|---|
| Grade | Other |
From the supplier
iber alignment Core/cladding
Motor number 6 motors Splicing time 8s Heating mode 18s， can be customized according to the external environment
Fiber type
Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion;
The cladding diameter 80-150 μm
Splicing loss 0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）
Splicing mode Automatic focusing core alignment, conventional/high precision welding
Splicing way Automatic, semi-automatic Fiber holder
Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail
fiber, jumper fiber,drop cable Battery capacity
7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about
260 cores Magnification 300x (X or Y axis single display) ，150x (x and Y axis dual display)
Fiber diameter Coating diameter: 80-150μm/Coating diameter: 100-1000μm
Cutting length Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm
Heat shrink tube 60mm、50mm、40mm、25mm
Tensile testing standard 2N
display 5 inch TFT color display screen Boot time 1s, boot can enter the working mode Data is stored Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data. Wireless communication Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission
range is 60m
Software upgrade Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software Management function
The equipment owner can be bound as the highest authority, and can remotely view the welding
records, welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple
equipment. Return loss Better than 60 db
Product protection Waterproof, dustproof and fall proof
Power supply
Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level
The work environment Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s
