About this product
- Materials: Metal
- Size: 11585x1916x2250 (11585x4750x2250 with Feeding Mechanism)
- Color: Red, Black and White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Metal
- Size: 11585x1916x2250 (11585x4750x2250 with Feeding Mechanism)
- Color: Red, Black and White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Metal |
|---|---|
| Size | 11585x1916x2250 (11585x4750x2250 with Feeding Mechanism) |
| Color | Red, Black and White |
From the supplier
Fiber Laser Cutting Tube Machine

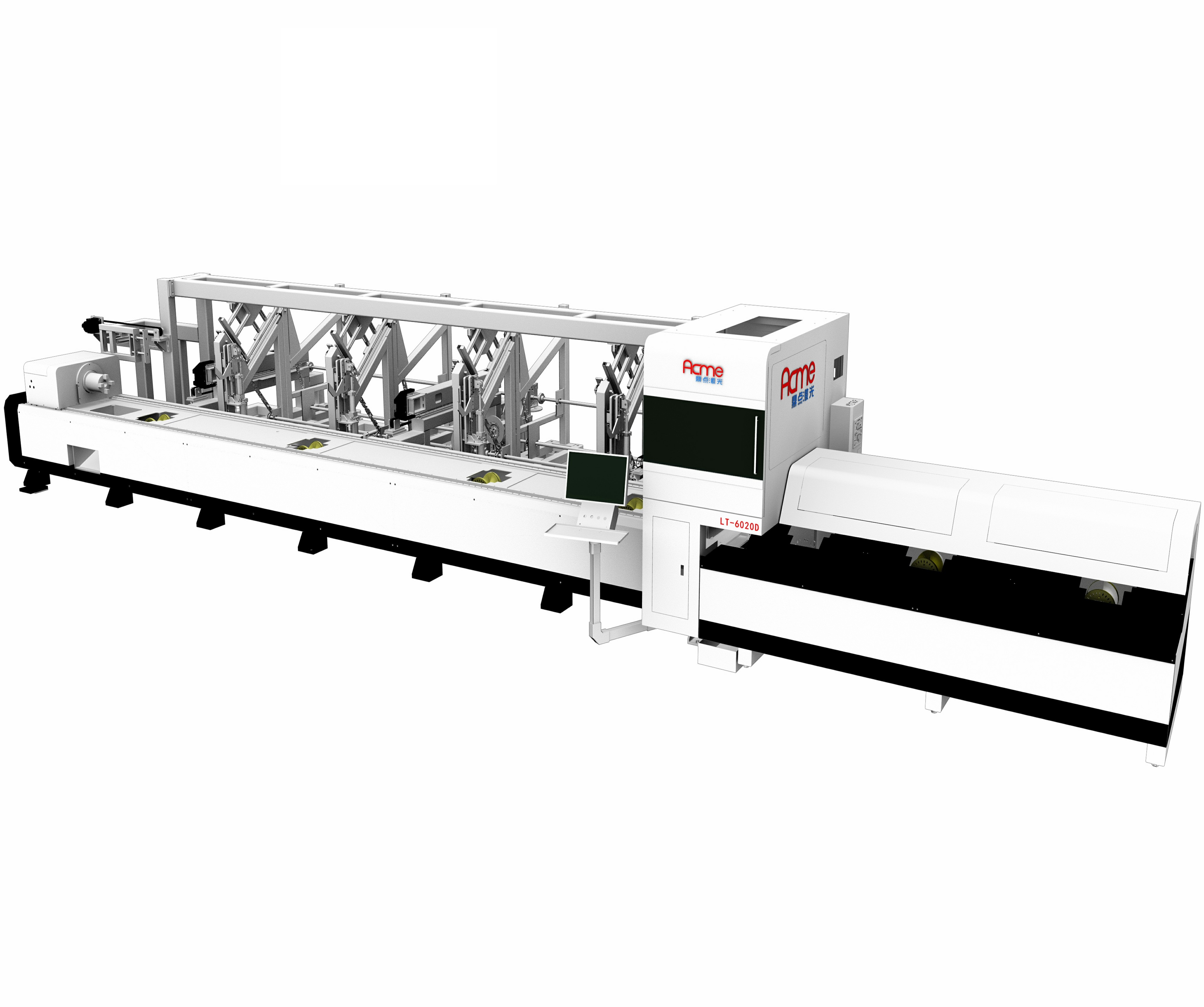

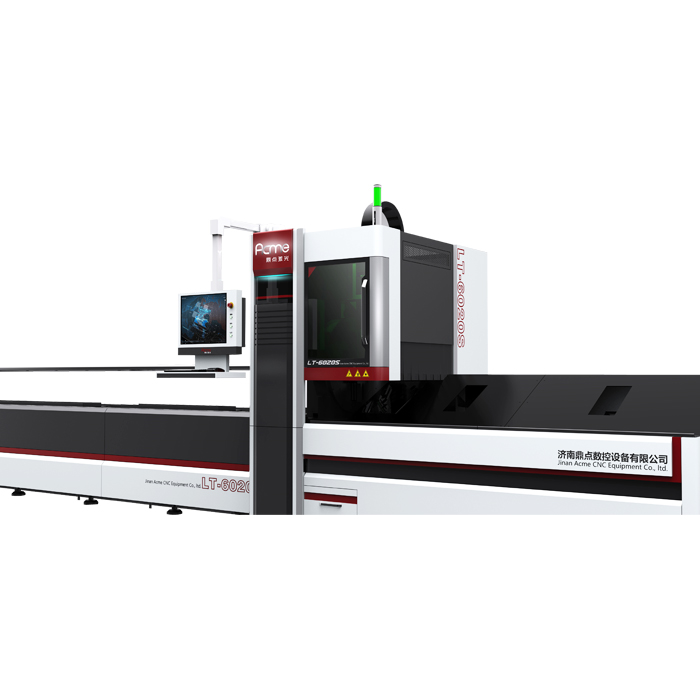

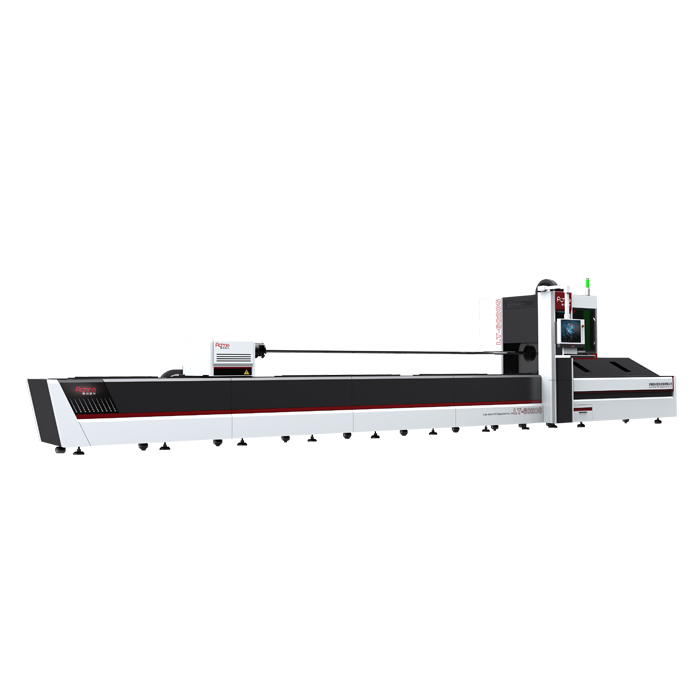

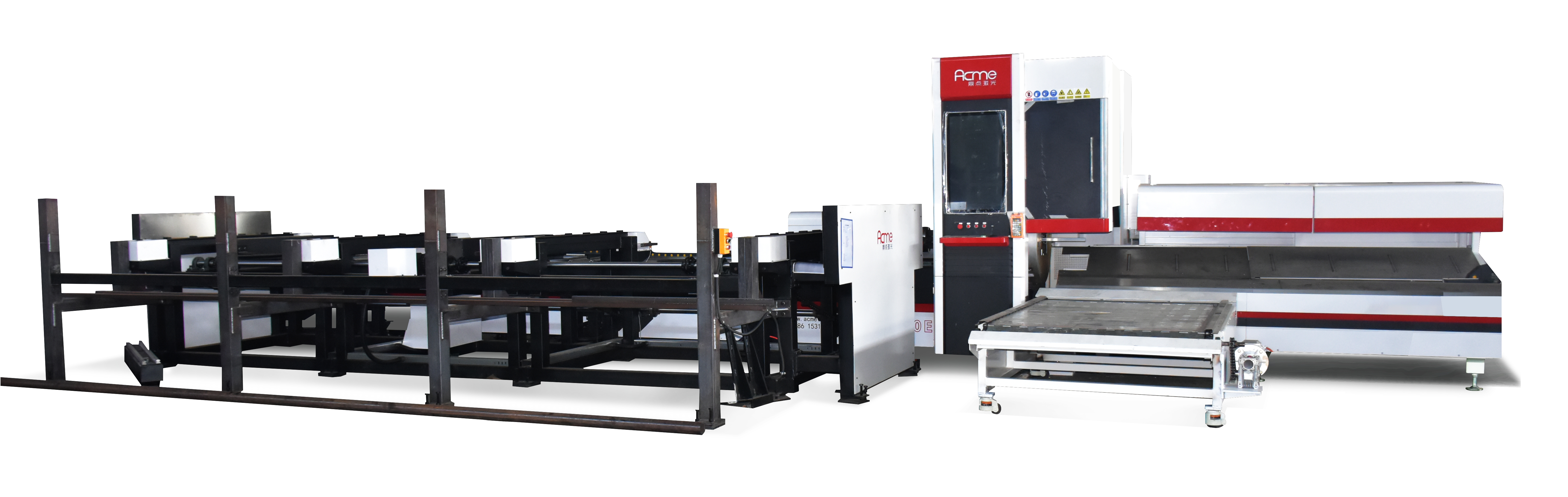

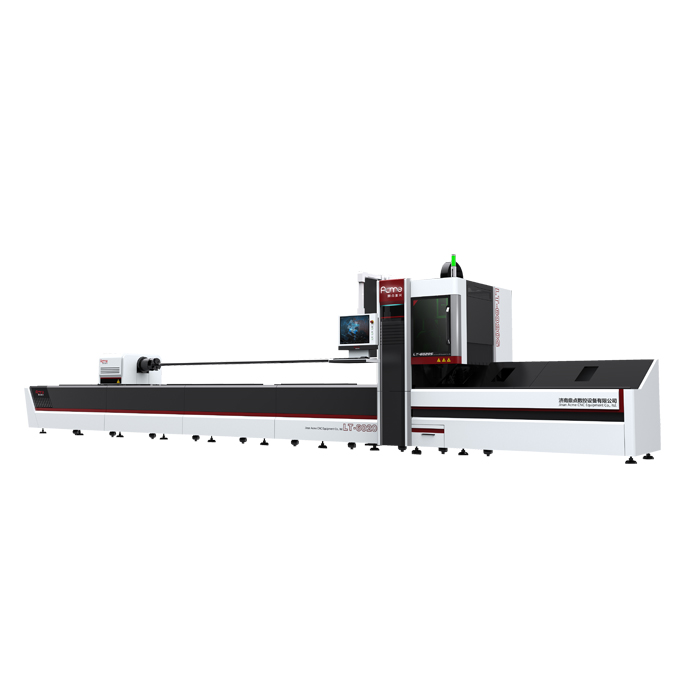

The LT6020E laser pipe cutting machine is independently developed by ACME Laser. The main components such as the bed chuck are independently developed, designed and produced by our company. The equipment is equipped with a full-stroke pneumatic chuck, servo support and fully automatic loading and unloading functions. The cutting, modeling and blanking of metal pipes are suitable for all kinds of metal pipes with different shapes.
Advantage
1. Equipped with a fully automatic loading and unloading system, which greatly improves production efficiency and reduces labor costs.
2. The pneumatic chuck independently developed by Dingdian Laser can have a maximum diameter of 350mm and 450mm, and can also be customized according to customer needs.
3. Reduce tailings. The shortest tail material can reach 35mm.
4. Servo support, high cutting precision and fast speed.
5. Suitable for various shapes of metal pipes.
Tarameter
Machine modelLT-6020ELaser sourceMAX / Raycus / IPGWater coolerHanli / TonfeiLaser headRaytool / PrecitecPLC systemCypcut Driving system and engineYaskawa / PanasonicGuide railHIWIN, TaiwanTransmissionYYC, TaiwanChucks (front and back)Pneumatic chuck, automatic centeringCutting length200-6000mmDiameter of pipe20-230mmAvailable cut tube shapeRound, square, rectangular, oval, angle, channel, etcMaterial availableCarbon steel, stainless steel, copper, brass, aluminumElectricity requirements380 / 50.60 V / HzWorkshop
Sample
Related Products
Shipping
Application
Factory
Our production base in Jinan covers an area of 45,000 square meters, with dozens of high-precision imported CNC machining centers and large-scale gantry milling machines. The total value of production equipment exceeds 3 million US dollars. It realizes independent research and development design and high-precision manufacturing of the core components of the cutting machine. The company has more than 200 talents of various types and has an annual production capacity of 1,000 fiber laser cutting machines, of which more than 1,200 laser pipe cutting machines have been sold in total, and the products are sold in more than 60 countries and regions around the world.
FAQ
- Q1. Do you have the manual of machine?
Yes ,we can provide manual, CD software and installing video to help you operate the machine expertly.
- Q2. I don’t know how to use after I receive Or I have problem during use, how to do?
(1) We have detailed user manual with pictures and CD, you can learn step by step. And our user manual update every month for your easy learning if there is any update on machine.
(2) If have any problem during use, you need our technician to judge.
The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. We can also provide Door service if you need.
- Q3. How about your after-sales service?
We offer professional and timely after sale 24 hours online service via phone, Skype or Whatsapp. We our technician will contact you once you got the machine and we could provide secure teaching as a professional factory.
