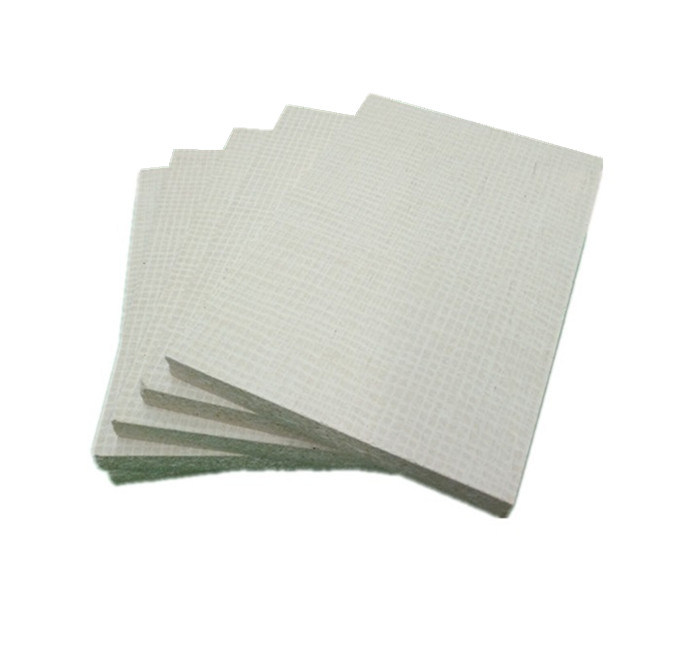

Magnesium Oxide Board is virtually impervious to fire, water,insects; does not feed mold or mildew; is non-toxic, nonflammable
and non-combustible; is durable, maintains its dimensional stability-even when wet; and, has exceptional bonding surface.
Magnesium Oxide Board is a mineral based green builder product. And it is homogeneous-no de-lamination.

Fire Resistance limit of fireproof MgO board:

3mm thickness can reach the request of fireproof.

9mm Wellyoung MgO board could be applied for >= 120mins fireproof lightweight partition wall;

12mm Wellyoung MgO board could be applied for >= 180mins fireproof lightweight partition wall.

The data is for reference only.Please contact us for more details on fireproof MgO board in different specifications.

Features of magnesium oxid board:

1. Normal MgO board: one smooth, one rough surface;

2. Pasted with wall paper;

3. Coated with latex paint;

4. Glued with ceramic tile;

5. With a design of wood or water or other grain.

Specifications and datas of mgo sheet:

TEST ITEM UNIT TEST RESULT Bending Strength Mpa 6MM Width: >18 Length: >15 9MM&12MM-18MM Width: >16 Length: >13 Water Absorption % <10% Thermal Contraction % <0.14(w/mk) (30 °C ) Density g/cm3 0.9-1.15 Freezing Resistance After 25 Freezing cycles No Delaminated Combustibility - Incombustible (class A1) Fire Resistance Limit Min 2 Layers Mineral Wool:180 Thermal Conductivity W/(m • k) <0.12 Wall Average Acoustical Deduction Factor dB 2 Layers 50mm Mineral Wool: 44 Impact Strength kg/C :2.0 Water resistance no condensation on the opposite side

Item Size Thickness weight

Quantity/20GP(pallet packing)

1 1220*2440mm 3mm 10kg 1800pcs 2 1220*2440mm 4mm 14kg 1300pcs 3 1220*2440mm 6mm 18kg 1080pcs 4 1220*2440mm 8mm 24kg 808pcs 5 1220*2440mm 10mm 28kg 648pcs 6 1220*2440mm 12mm 34kg 540pcs

Appilications for mgo boad:

In many applications, MgO boards can be used in the same ways as gypsum and Portland cement sheathings.The substitution is not fully direct in terms of sheet thicknesses,fastening methods and joint treatments,but is very similar.This makes MgO board an easy product to use.The possible uses of MgO board are vast, and some of them include:Firewalls. Partitions.Structural sheathing for wood or metal stud walls.Shower stall tile backer board.Facings for structural panels engineered to use MgO as the facing.Shaft liners.Ceilings.Soffits.Fascia.Substrates for coatings and insulated systems (such as Direct-Applied Finish Systems, EIFS, and stucco).
