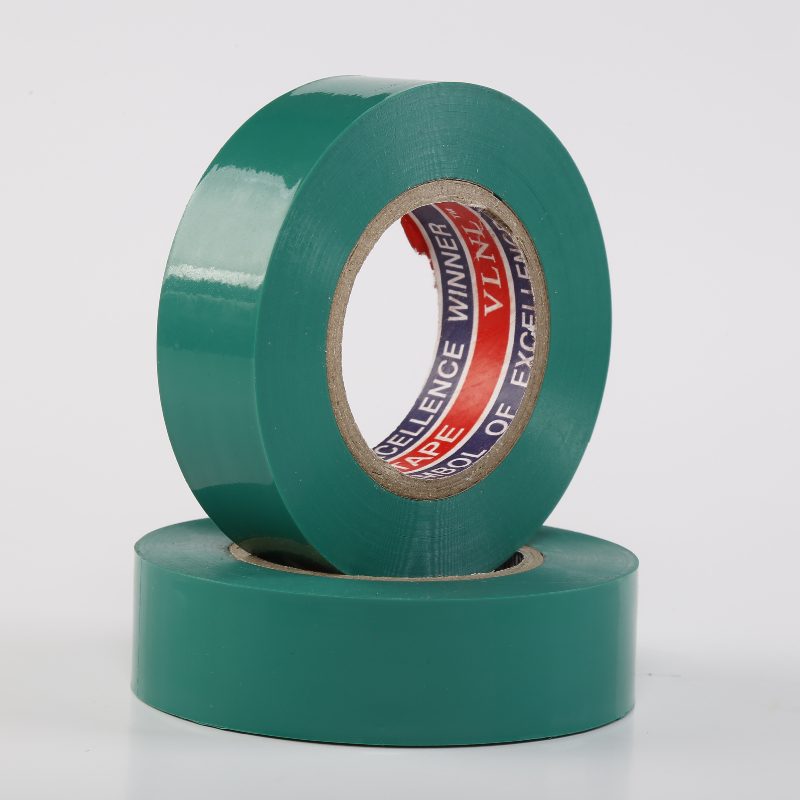

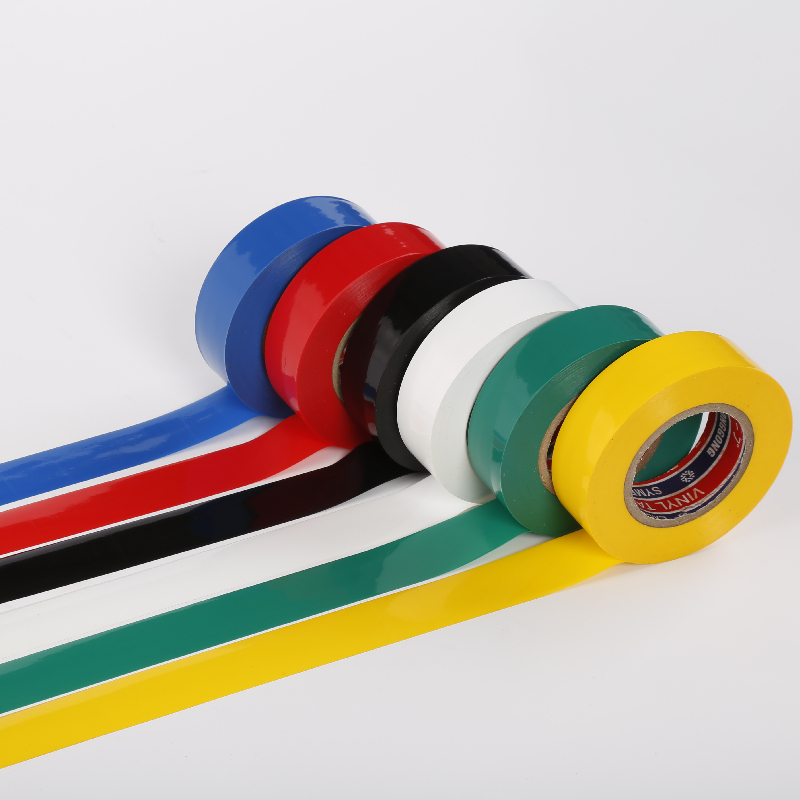

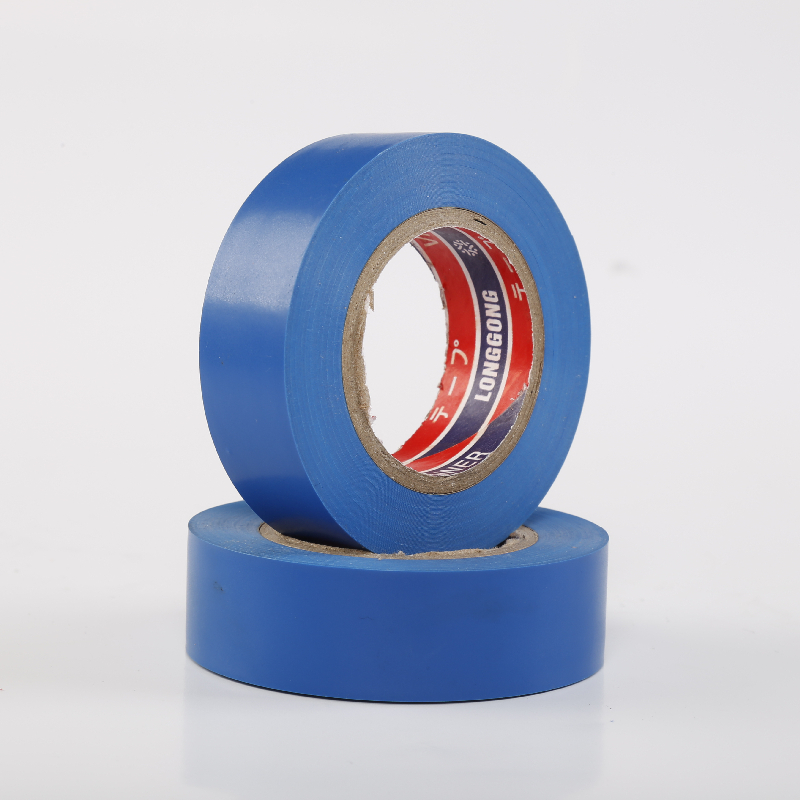

Flame Retardant PVC Electrical Insulation Tape

Properties:

Has excellent insulation, withstand voltage. Weather resistance and other properties and flexibility, conforms to ROHS directive requirements, high temperature 80 ℃, fire resistance less than 2s.

Small Roll

Available size:
Thickness : 0.11mm,0.12mm,0.125mm,0.13mm,0.15mm,0.17mm,0.18mm,0.25mm
Width : 15mm,17.5mm,18mm,19mm,25mm,38mm,1250mm.
Length : 6m,7m,10yards,10m,20yards,20m,25m,50m

Applications:

1. It is used for insulation protective handling to avoid connecting with over ground curve or others electrified body,personal accident and short circuit fault

caused by the small animal. For use as electrical insulation on joints and splices in wires and cables, bundling and reinforcing,etc.
2. It is used for protecting the electrified bare conductor that passes the tree and protect it from short circuit when through the channel.
3. For use as electrical insulation on joints and splices in wires and cables, bundling and reinforcing,and etc.

Production

PVC Insulation Tape

Temperature Humidity

23℃×50%RH

Color

Black, white, red, blue, yellow, green, yellow green, orange, Brown

Total Thickness (mm)

0.13±0.02

0.15±0.02

0.18±0.02

0.20±0.02

Tensile Strength(N/cm)

≥15

≥18

≥25

≥28

Elongation At Break (%)

≥150

≥180

≥200

≥220

180 º Adhesion To Steel (N/cm)

≥1.0

≥1.5

≥1.7

≥2.0

Dielectric Breakdown (V/Min)

≥3000

≥4000

≥4000

≥5000

Our Longong Service:

1.Our factory build in 1994,over 23 years produce&exporting experice,especially: USA,European,South America,Pakistan,Bangladesh,UAE, Syria,Thiland,Philippines,Turkey,Brizal ect,market.



2. We We have the best foreign trade team, fluent language communication environment, 24 hours the fastest response.

3. New customers always enjoy the most favorable discount price, the old customers always enjoy more discount price



4.We have winter and summer two season's glue formula, more reasonable and make sure glue and film matching with each other, depending on the geographical latitude location to debugging glue,100% ensure the viscosity.



5.If you have sample in your hand,pls send to us,we could produce totally same as your old supplies' sample.



6.Welcome to our real factory,and i am sure you will have big surprise.We have gift for you,your business travel is valued.Trust me.

We take part in the spring and Autumn Canton Fair every year.

We take part in foreign exhibitions every year, such as Germany, Mexico and so on.

Customers around the world to visit our factory, inspect our factory. Such as Amercia,UAE,Pakistan,European ect.

Packaging&Shipment:

PVC Electrical Tape Small Rolls

Each Roll wrapped with paper label+plastic material or wrapped by printed plastic packages material,10 rolls shrinked,250 rolls/500 rolls packed into a master colored or kraft cartons,about 350000 rolls in a 20feet container.

PVC Electrical Tape Log Roll

Offer free printing paper core,6 / 9 log rolls packed into a master kraft carton. A 20 fcl almost including 4950 log roll.

PVC Electrical Tape Small Rolls' shipping

A 20 fcl almost including 350000 rolls.

A 40 fcl almost including 700000 rolls.

PVC Electrical Tape Log Rolls' shipping

A 20 fcl almost including 4950 log rolls.

A 40 fcl almost including 10000 log rolls.

Our Factory Advantage:

Our factory own the unique advantages as below compared to our competitors :

1) Our factory build in 1994. we produce film by ourselves,we produce film by ourselves.

2) 5 coating lines in service, 36m/min. The most advanced.

3) PVC Insulation Tape,Pipe Wrap Tape,Warning tape,Self Fusing Tape,Black Fabric Cotton Tape,etc.

4) Do independent lab test. Our own adhesive formula on using.

Shijiazhuang Longgong Plastic Products CO. LTD

Shijiazhuang Longgong Plastic Products CO. LTD was founded in 1994. Our company has abundant advantage and our products take the leader role in this line in both exporting and domestic market.

A corner of the factory

Film producing workshop

A corner of the factory

Coating adhesive producing workshop

Coating machine

FAQ

Cutting machine

Quality test Lab

1.Are you a trading company or manufacturer?
Manufacturer with factory
2. What kinds of tape do you produce?
It covers for PVC Insulation Tape,Pipe Tape,Self Fusing Tape,Air Condition Tape,Sandblasting Film,BOPP tape.
3.Is Customized available?
Yes,please offer your required specifications & design requirment
4. Do you Accept OEM service?
YES!
5. What’s your delivery terms?
(1)FOB (2)CFR (3)CIF
6. What's your Delivery Time?
1)generally the samples will be sent immediately by the air express in 3-5days if the goods are in stock
2)Shipment Normally within 30 days,please confirm with us before order!
7. What's the Payment Terms?
1)30% deposit,70% TT aganist BL copy 2)Western Union acceptable for small amount.3) L/C acceptable
8.What's your available port of Shipment?
Normally, Tianjin, Other ports available but you should afford extra charges.
9. Trade and Market
Western European 5%;Northern European 5%;Asia 20%;Americas 5%;Domestic Market 15%;Middle East 50%
