About this product
- Materials: Steel
- Size: 2800x1800x1630mm
- Color: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
About this product
- Materials: Steel
- Size: 2800x1800x1630mm
- Color: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
Product details
| Materials | Steel |
|---|---|
| Size | 2800x1800x1630mm |
| Color | Customized |
From the supplier

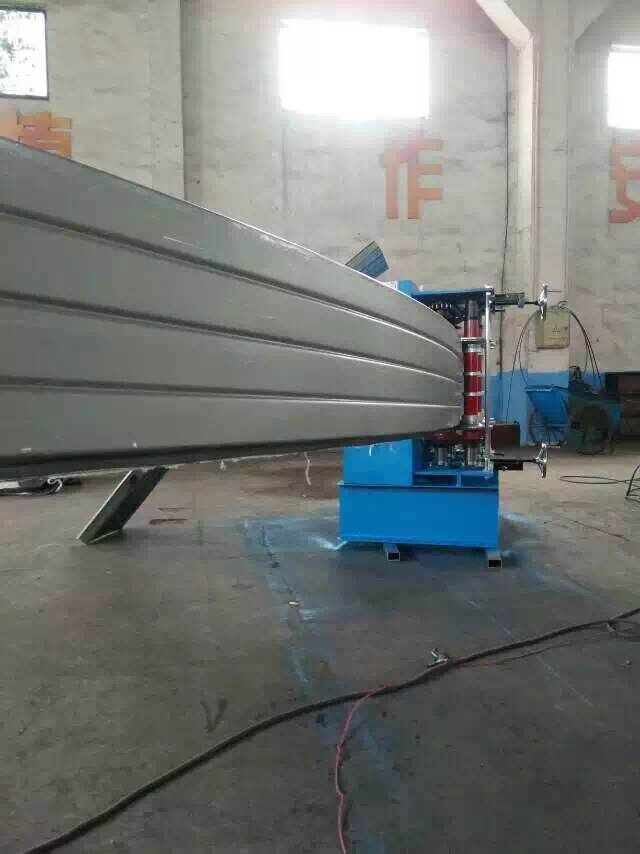

Flat Sheet Horizontal Curving Machine

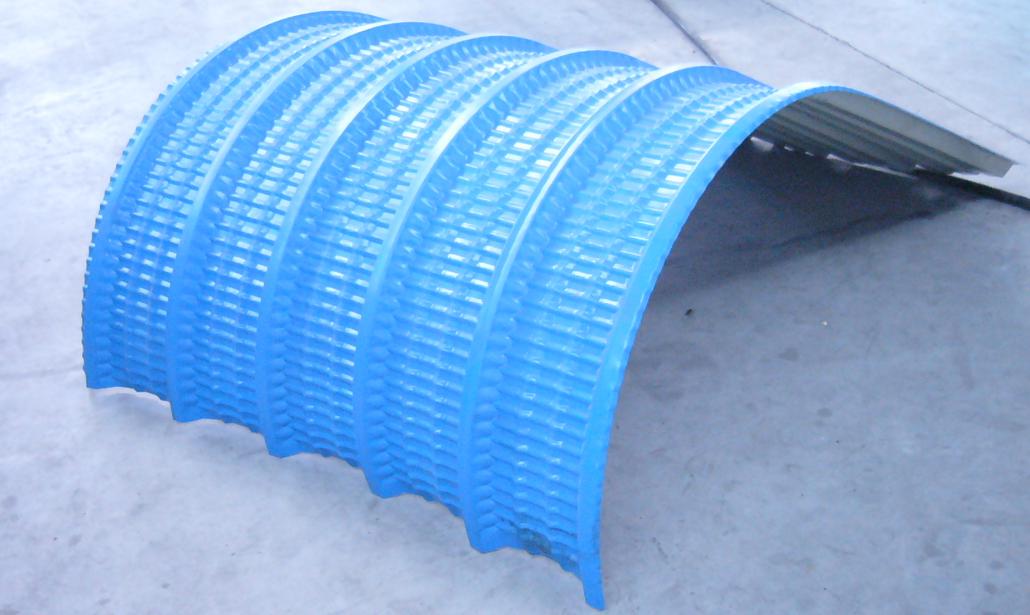

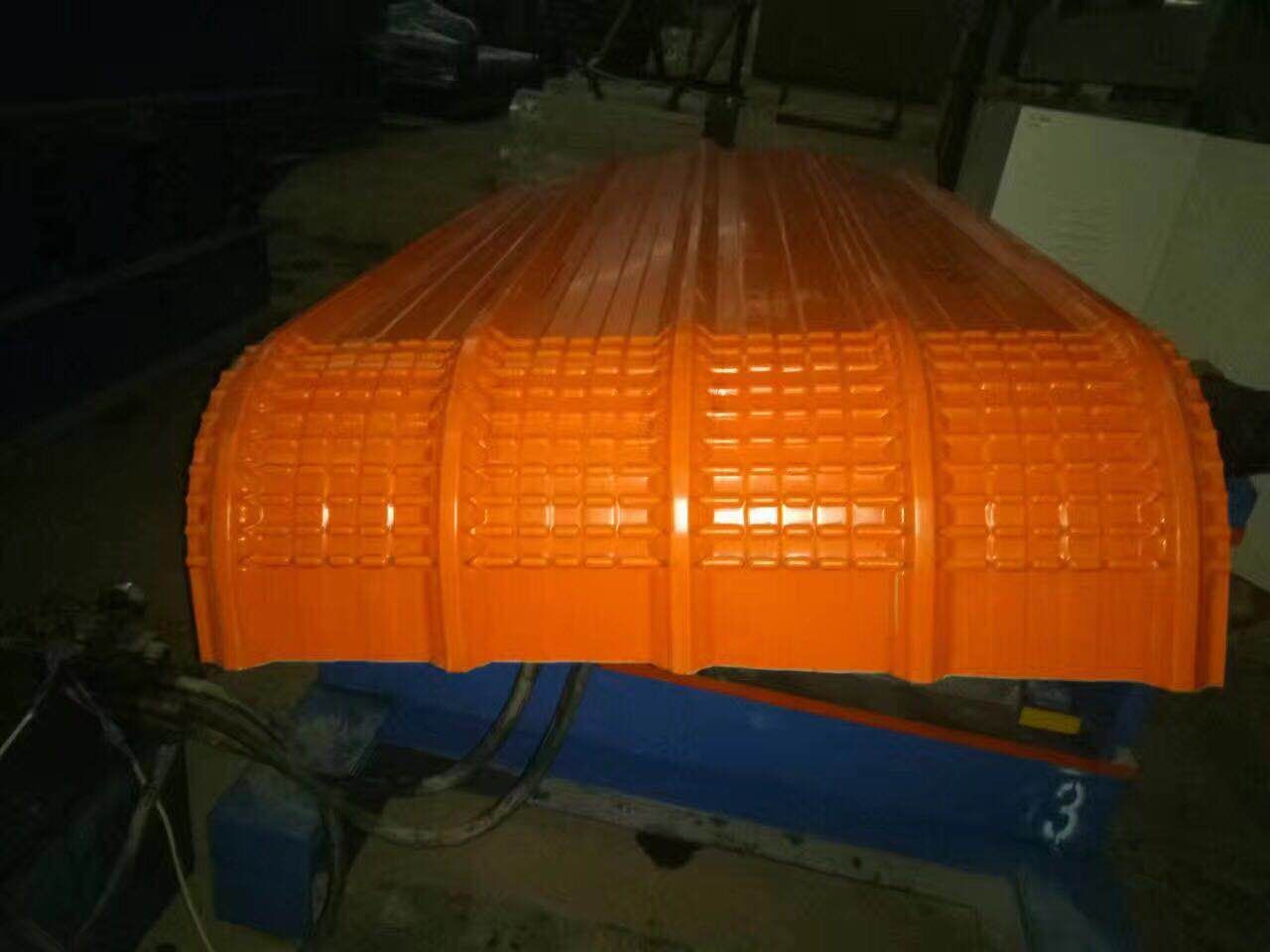

Curving sheet pictures
Main technical parameter:
1.Size: 2800x1800x1630(mm)
2.Install type: horizontal type
3.Working speed: 1-5m/min (adjust)
4.Steps of rollers:2 rollers upper+3 rollers under
5.Roller material: superior 45# steel forging
6.Thickness of Chrome plated on roller: 0.05mm
7.Diameter of shaft: ￠70mm
8.Chain: 1 inch drive
9.Thickness of wallboard: 14mm
10.Feeding width of the sheet : 820 mm
11.Thickness of material coils: 0.35-0.8mm
12.Bending range:0°~ 90°
13.Minimum curving radius: 400mm (semi-circle radius 550mm)
14.Hydraulic station power: 3.0KW
15.Controlling system: PLC, touch screen.
16.Voltage: 380V, 50Hz, 3 Phases
Structure:
Feeding equipment, driving device, bending part, hydraulic system, electronic control system.

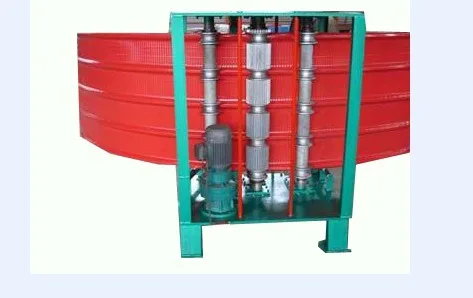

The other type of curving machine

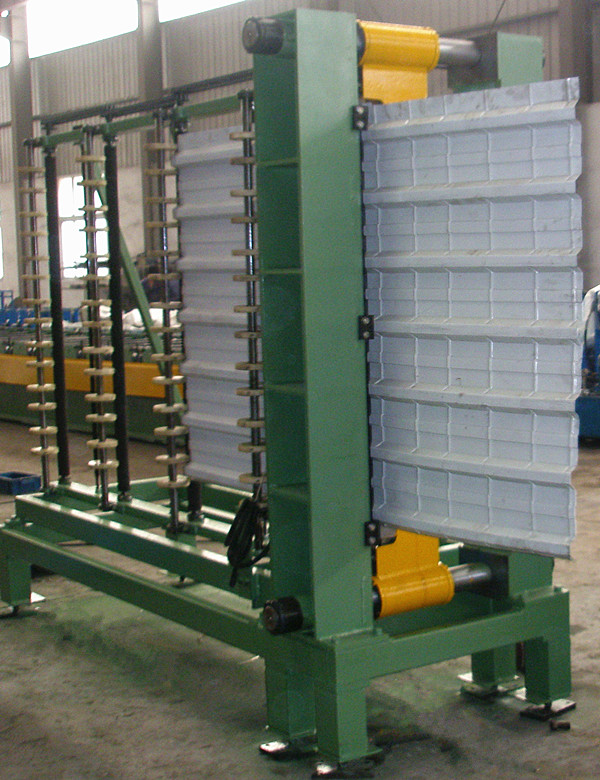

Vertical bending machine
Our comapny certification:
We are willing to supply goods with high quality but competive price and superior service to friends all over the world. Hope to establish business relationship with you!
