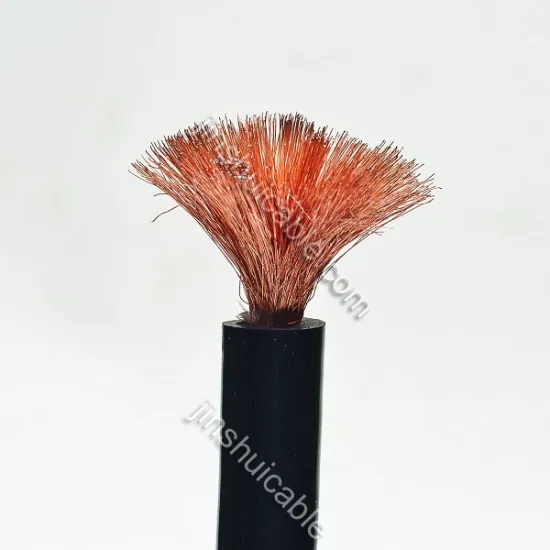

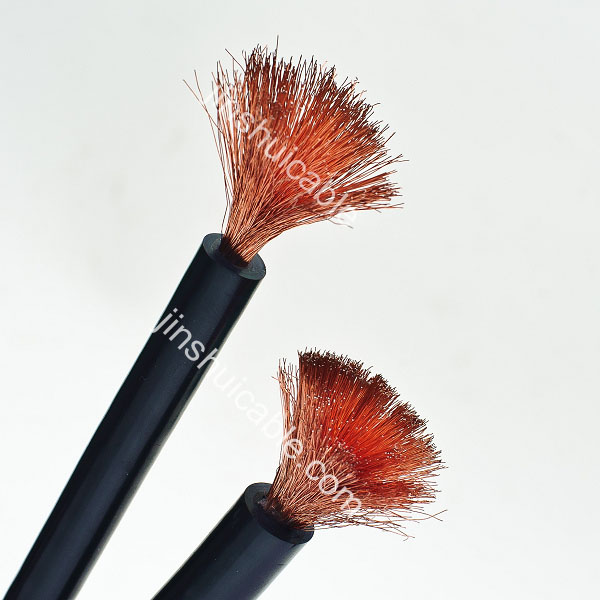

Rubber/EPR/Neoprene sheathed welding cable

Conductor Materials: Copper, Tinned Copper

Sheathed: Rubber/EPR/Neoprene

1. Specific property for using

1.1. The cable can be used in the connectors of electric weld and pliers of the electrical welding

Whose toward earth voltage of the low voltage is not more than AC 200V and the pulsating DC peak value is 400V.

1.2. The long term permissible working temperature of cable conductive core is not more than 65°C.

2. Type

A) Natural rubber sheath for welding cable(YH).

B) Neoprene rubber or other synthetic sheath welding cable(YHF).

3. Standard

(1) Rubber Sheathed Welding Cable 245 IEC 81

(2) Rubber Sheathed Welding Cable 245 IEC 82, which is made of chloroperene or the composite stretchy materials.

Conductor Nominal Section (mm2) Conductive Core Thickness of Section Sheath (mm) Average Outer Diameter (mm2) 20oC Conductor Resistance≤(Ω/km) Reference Weight(kg/km) Number/Diameter of Core(mm) Min Max YH YHF 10 322/0.20 1.8 7.5 9.7 1.91 146 153.51 16 513/0.20 2 9.2 11.5 1.16 218.9 230.44 25 798/0.20 2 10.5 13 0.758 316.6 331.15 35 1121/0.20 2 11.5 14.5 0.536 426 439.87 50 1596/0.20 2.2 13.5 17 0.379 592.47 610.55 70 2214/0.20 2.4 15 19.5 0.268 790 817.52 95 2997/0.20 2.6 17 22 0.198 1066.17 1102.97 120 1702/0.30 2.8 19 24 0.161 1348.25 1392.55 150 2135/0.30 3 21 27 0.129 1678.5 1698.72 185 1443/0.40 3.2 22 29 0.106 1983.8 2020.74

Company Description
Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou, Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm, ISO 14001 Environmental Management Systerm, OHSAS18001 occupational Heath Management Systerm, ISO 10012 Measurement Management Systerm and others from China and abroad.

We have been engaged in producing electric cable and wire for nearly 20 years and we are also 12 year gold supplier. And we are confident that we can offer the best service and quality for you.

Our product range is as following:
*Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)
*Aerial Bounded Cable (Duplex, Triplex, Quadruplex)
* PVC insulated wire (Rated voltage to 450/750V)
*THHN/THWN wire
*PVC insulated Power Cable
*XLPE insulated Power Cable
*Rubber sheathed Cable
*Control Cable
*Welding Cable
*Cable Accessories

We take part in many fairs and exhibitions in China and abroad. Our aim is to be our customer's factory in Zhengzhou, China. We are here to help you placing orders of cost-effective electric cable and keep tracking your products and shipment.

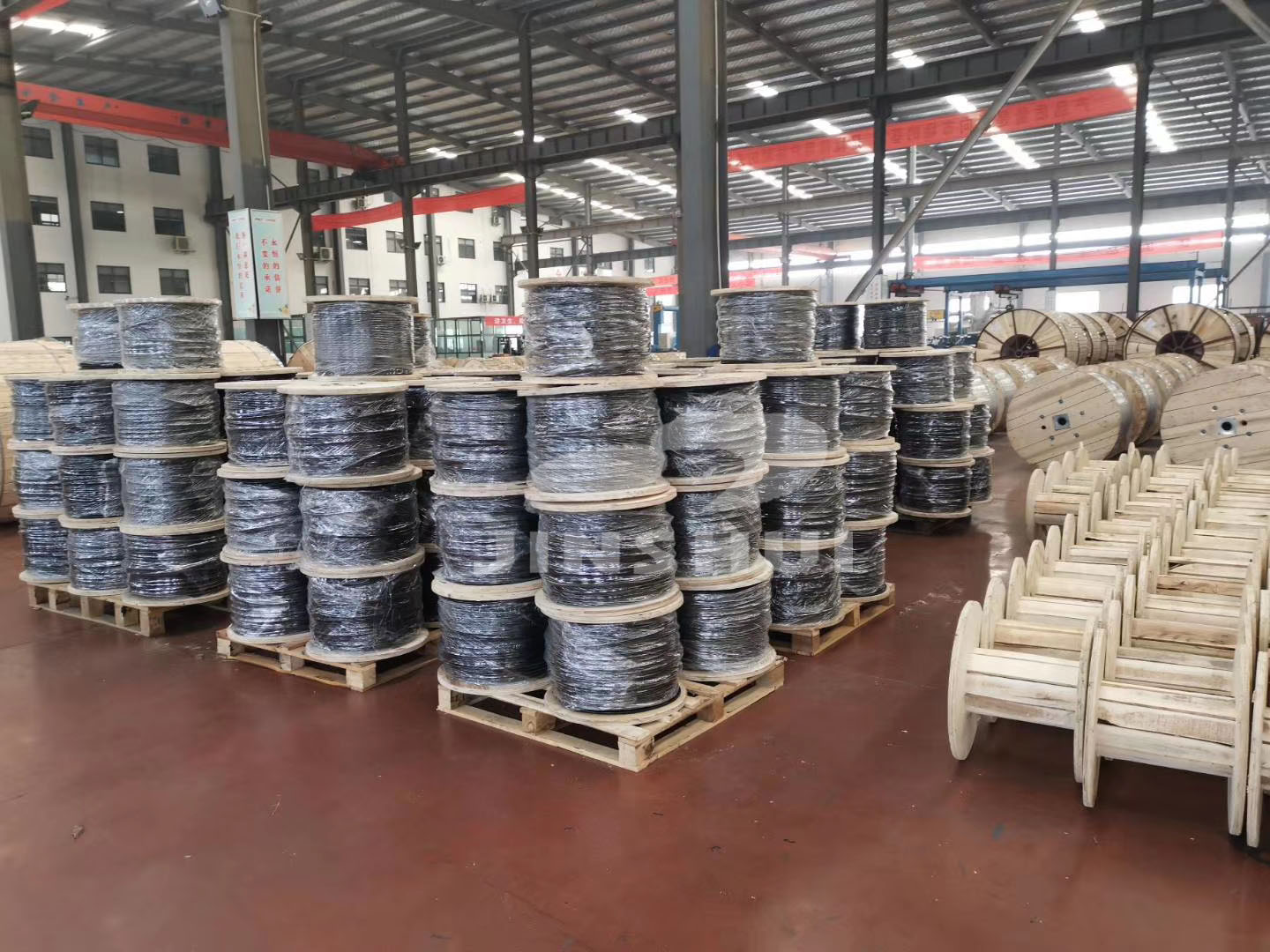

Our Factory

1. Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.

2. We choose excellent raw materials carefully to ensure the quality and meet the need of customers.

3. Mechanical testing of Cables is done to determine the quality and mechanical characteristics before delivery.

FAQ
=====================================================
(1) Are you the factory or trading company?
We are the manufacturer and 12 years gold supplier on alibaba.We are engaged in exporting cables for nearly 15 years.
(2) When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(3) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(4) What is the payment terms?
30% deposit by T/T,70% T/T after checking the copy of B/L. Or irrevocable L/C at sight .
(5) What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.



Welcome your kind enquiry!
