About this product
- Size: Touchscreen:10.1 inch
- Color: Black
- Material: Other
- Structure: Other
- Customized: Non-Customized
- Mathematical model: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: Touchscreen:10.1 inch
- Color: Black
- Material: Other
- Structure: Other
- Customized: Non-Customized
- Mathematical model: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | Touchscreen:10.1 inch |
|---|---|
| Color | Black |
| Material | Other |
| Structure | Other |
| Customized | Non-Customized |
| Mathematical model | Other |
| Task | Program |
| Function | Monitoring |
| Signal | Other |
Product details
| Size | Touchscreen:10.1 inch |
|---|---|
| Color | Black |
| Material | Other |
| Structure | Other |
| Customized | Non-Customized |
| Mathematical model | Other |
| Task | Program |
| Function | Monitoring |
| Signal | Other |
From the supplier

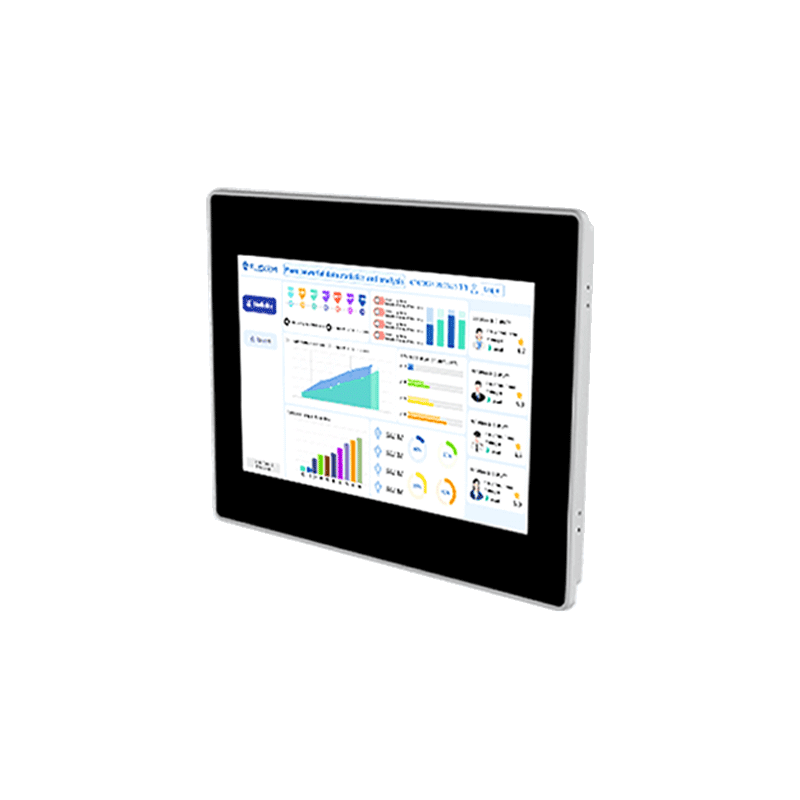

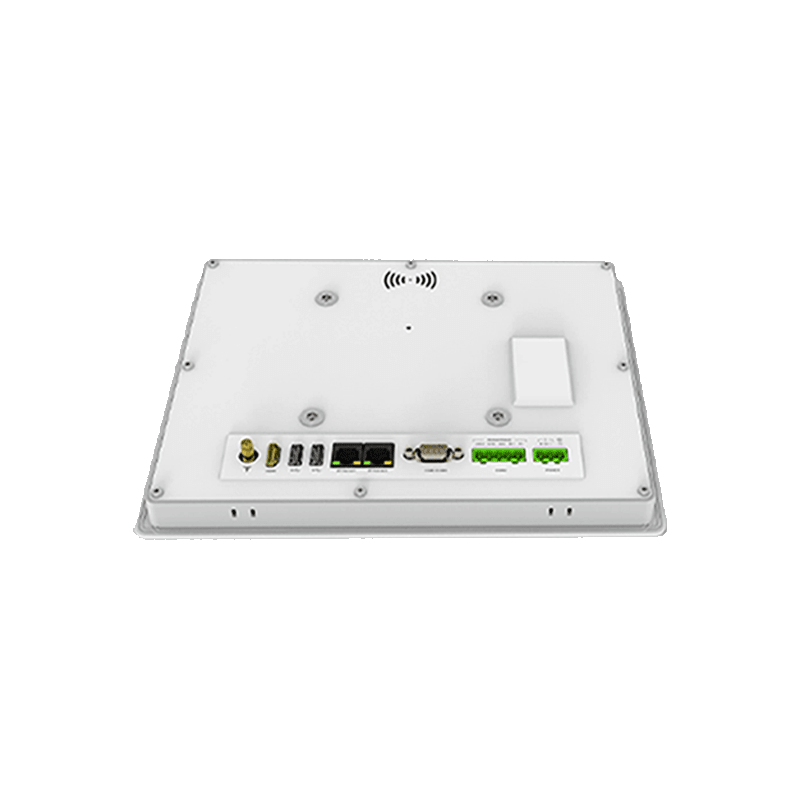

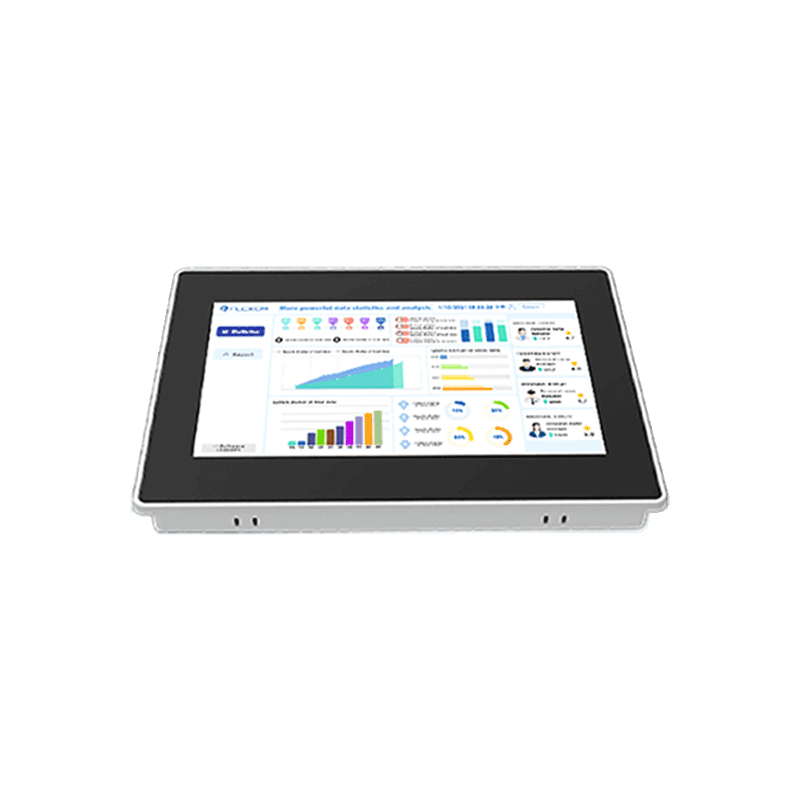

Flexem FPad710 intelligent HMI, 10.1" resistive touchscreen, metal enclosure, full-view display, 1280x800 resolution, 24-bit colors,1 HDMI ports, provides a new-generation industrial HMI intelligent solution for customers.
FEATURES FPad710 Display 10.1" 16:10 TFT LCD LCD Viewing Angles(T/B/L/R) 85'/85'/85'/85' Resolution 1280×800 Colors 24-bit Brightness 400 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel 4-wire resistive touchscreen CPU SOC 8nm Ai chip GPU Mali-G610 MC4 Storage 32GB EMMC+4GB DDR4 RTC Built-in SD Card NA Ethernet port 2*Gigabit Ethernet(10/100/1000M) USB Port 2*USB 3.0 Type-A port HDMI Port HDMI 2.0a port,support 1080P display Download Method USB slave/Flash drive/Ethernat Serial port COM1/COM2: RS232/RS485/RS422, COM2: RS485/RS422, COM3: RS232 WiFi Optional 4G Optional Rated power <10W Input Voltage DC24V,Working range DC18V-28V Power supply protection With lightning surge protection Power Interruption Tolerance <5mS Certification CE,RoHS Operating Temperature -10-60℃ StorageTemperature -20-70℃ UV Resistance Operating in high UV environment is prohibited Environmental Humidity 10-90%RH(Non condensing) Vibration Endurance 10-25Hz(X,Y,Z direction 2G/30 minutes) Cooling Mode Natural Cooling Protection Level Front:IP65,Rear:IP20 Enclosure Material Non-ferrous alloys Cutout Size 260mm×202mm Dimensions 274mm×214mm×27mm Weight About 1450g
From the supplier
Flexem FPad710 intelligent HMI, 10.1" resistive touchscreen, metal enclosure, full-view display, 1280x800 resolution, 24-bit colors,1 HDMI ports, provides a new-generation industrial HMI intelligent solution for customers.
FEATURES FPad710 Display 10.1" 16:10 TFT LCD LCD Viewing Angles(T/B/L/R) 85'/85'/85'/85' Resolution 1280×800 Colors 24-bit Brightness 400 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel 4-wire resistive touchscreen CPU SOC 8nm Ai chip GPU Mali-G610 MC4 Storage 32GB EMMC+4GB DDR4 RTC Built-in SD Card NA Ethernet port 2*Gigabit Ethernet(10/100/1000M) USB Port 2*USB 3.0 Type-A port HDMI Port HDMI 2.0a port,support 1080P display Download Method USB slave/Flash drive/Ethernat Serial port COM1/COM2: RS232/RS485/RS422, COM2: RS485/RS422, COM3: RS232 WiFi Optional 4G Optional Rated power <10W Input Voltage DC24V,Working range DC18V-28V Power supply protection With lightning surge protection Power Interruption Tolerance <5mS Certification CE,RoHS Operating Temperature -10-60℃ StorageTemperature -20-70℃ UV Resistance Operating in high UV environment is prohibited Environmental Humidity 10-90%RH(Non condensing) Vibration Endurance 10-25Hz(X,Y,Z direction 2G/30 minutes) Cooling Mode Natural Cooling Protection Level Front:IP65,Rear:IP20 Enclosure Material Non-ferrous alloys Cutout Size 260mm×202mm Dimensions 274mm×214mm×27mm Weight About 1450g
About the supplier
Shanghai Flexem Technology Co. Ltd.
Main products: PLC Programmable Controller Systems and Software, Human-Machine Interfaces, Servo Motors and Drives
