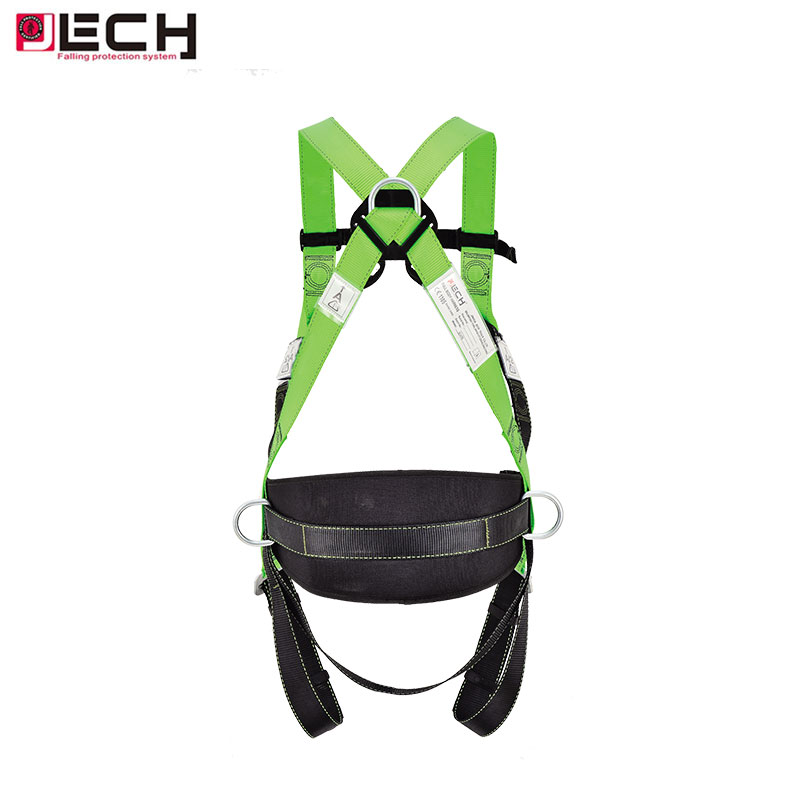

1: Product Introduction:

45mm polyester webbing with min breaking strength 25kN.

Color: Green/Black(Customizable).

Special design & high resistant polyethylene back plate for holding D-ring even after the fall.

1 pc dorsal attachment D-ring for fall arrest (EN361),with min breaking strength 25kN.

2 Side D-ring on waist belt for work position purpose (EN358)

2 webbing loops on front for fall arrest EN361.

PE material buckle type chest strap.

The back pad is made up of mesh Net for better shock absorption and comfort of the user.

Waistline adjustable from 810-1210mm

2: Products Parameter:

ITEM NO.:

JE1047

DESCRIPTION OF GOODS:

multipurpose full body safety harness

MATERIAL:

45mm high strength polyester

COLOR:

GREEN/BLACK(customizable)

HARDWARE:

EN361 D-RING &METAL BUCKLE&PLASTIC BUCKLE

DETAILS:

1pc dorsal attachment D-ring, 2 sides D-ring,with waist pad,2 webbing loops on front, 4 adjustable points(chest,waist,thigh), special design&high resistant polyethylene back plate,plastic clip.

BREAKING STRENGTH:

≧25KN

CERTIFICATE:

CE EN361:2002,EN358:2018

APPLICATION:

CONSTRUCTION & MAINTENANCE,FREE FALL ARREST,ELEVATED WORK PLATFORM,LADDER CLIMBING,TOWER HARNESS,WORK POSITIONING

PACKING:

10PCS/CTN,G.W.:14KGS,N.W.:13KGS,50*27*35cm

3: GENERAL REQUIREMENTS, WARNINGS AND LIMITATIONS

■Proper precautions should always be taken to remove any obstructions, debris, material, or other

recognized hazards from the work area that could cause injuries or interfere with the operation of

the system. All equipment must be inspected before each use according to the manufacturer's

instructions. All equipment should be inspected by a qualified person on a regular basis.

■To minimize the potential for accidental disengagement, a competent person must ensure system

compatibility.

■Equipment must not be altered in any way. Repairs must be performed only by the Manufacturer,

or persons or entities authorized in writing by the manufacturer.
