M-SD0900D 9-Brush Tunnel Car Wash Machine — Maximum Coverage Brush Sequence, Centerline Crossing, Auto-Tilt Side Arms & Contour-Following Air Dry for Cars, SUVs & Vans

When volume is high and standards are higher, nine brushes get the job done. The M-SD0900D 9-Brush Tunnel Car Wash Machine is the most comprehensive brush tunnel system in the lineup — adding two additional brush stages over the 7-brush M-SD0700D for greater coverage redundancy, deeper agitation on every surface, and a consistently flawless result that high-traffic, high-expectation operations demand. One pass through. Nothing left behind.

Description

The M-SD0900D is the flagship tunnel car wash system in the range — a 9-brush professional-grade machine built for car wash businesses, fleet service centers, and commercial operations where volume is high, standards are uncompromising, and a great wash needs to be delivered reliably, repeatedly, and at speed. Compatible with passenger cars, SUVs, vans, and commercial vehicles under 7 seats, it moves every vehicle through a precisely sequenced nine-stage brush wash that covers every surface with more passes, more contact, and more cleaning confidence than any fewer-brush system can provide.

The Case for Nine Brushes
More brushes mean more coverage passes on every surface. Where a 7-brush system delivers one contact opportunity per zone, the M-SD0900D's additional brush stages provide overlapping coverage that catches what earlier stages loosen, agitates what earlier stages soften, and finishes what earlier stages begin. In a high-volume operation processing hundreds of vehicles per day, that additional coverage translates directly into fewer customer complaints, more consistent results, and a wash quality that justifies premium pricing and builds loyal repeat business.

High-Pressure Pre-Wash — A Safer Start for Every Wash
Before a single brush makes contact, the M-SD0900D's powerful high-pressure pre-rinse floods the vehicle surface — blasting away loose grit, road debris, and surface contamination that would otherwise be dragged across paintwork by brush contact. A cleaner surface going into the brush stages means less abrasion risk, more effective brush cleaning, and better paint protection across every vehicle in every weather condition.

Front-to-Back Vertical Brushes for 360° Side Coverage
Two front-to-back vertical brushes deliver complete 360° side-to-side cleaning coverage in a single continuous tunnel pass — sweeping every door panel, window line, and body section with consistent, even brush contact from leading edge to trailing panel. No gaps. No missed sections. The full width of every vehicle, covered.

Electric Top Brush — Roof, Hood & Trunk Cleaned End to End
The electric top brush descends to the vehicle's upper surface and works systematically from front hood to rear trunk — removing road film, tree sap, bird deposits, and embedded grime from every horizontal surface that side brushes can't reach. The M-SD0900D delivers a complete top-down clean that elevates the finished appearance of every vehicle exiting the tunnel.

Centerline-Crossing Side Brushes — Full-Length Front and Rear Coverage
Front fascias and rear bumpers are the most visible — and most commonly under-cleaned — areas in any tunnel wash. The M-SD0900D's centerline-crossing side brushes extend deep into both ends of the vehicle, delivering thorough cleaning coverage across the front and rear sections that standard tunnel side brushes consistently fall short of. Full-length coverage on every vehicle, without exception.

Auto-Tilting Side Brushes + V-Shape & Vehicle-Tracking Mobile System
The M-SD0900D's side brush system goes beyond fixed-position cleaning. The brushes automatically tilt to match each vehicle's body contours, maintaining optimal surface contact across curved doors, angled fenders, and complex lower body panels. The V-shaped brush configuration paired with a vehicle-tracking mobile side brush system means the brushes actively follow the vehicle's shape and movement through the tunnel — adjusting in real time rather than operating at a set position. Greater contact area, better agitation, and a more thorough clean on every body shape that enters the tunnel.

Dual Following Large Brushes — The Final Word in Coverage
Where the 7-brush system finishes with one large following brush, the M-SD0900D deploys two. These final-stage brushes sweep across any remaining surface areas with broad, overlapping coverage — ensuring that by the time a vehicle exits the tunnel, every panel has received multiple brush passes and no section has been left with less than a complete, thorough clean. It's the difference between a good wash and a great one, delivered consistently at scale.

Contour-Following Air Dry — Spot-Free From First Panel to Last
The M-SD0900D's top air dryers track the contour of each vehicle automatically, adjusting height and angle in real time to maintain consistent, targeted airflow across the roof, hood, windshield, and rear glass. Fast, thorough water removal with minimal spots and zero streaks — sending every vehicle out of the tunnel dry, clean, and visibly impressive.

Double-Layer Anti-Rust Frame — Built for the Long Run
A 9-brush tunnel running at commercial volume operates in one of the harshest equipment environments imaginable — constant water exposure, chemical contact, and mechanical stress, hundreds of times per day. The M-SD0900D's double-layer frame is engineered for exactly this reality: exceptional structural strength, long-term corrosion resistance, and the durability to protect your investment across years of intensive operation with minimal structural maintenance.

Durable EVA Brushes — Clean More, Spend Less
The M-SD0900D's EVA brush material is selected for the optimal balance of cleaning performance and vehicle safety. Exceptionally effective at lifting and removing dirt, grime, and road contamination, EVA brushes are gentle enough to protect paintwork, trim, and glass across thousands of wash cycles — while their low water consumption keeps operating costs down and efficiency up at every stage of the wash sequence.

Specifications

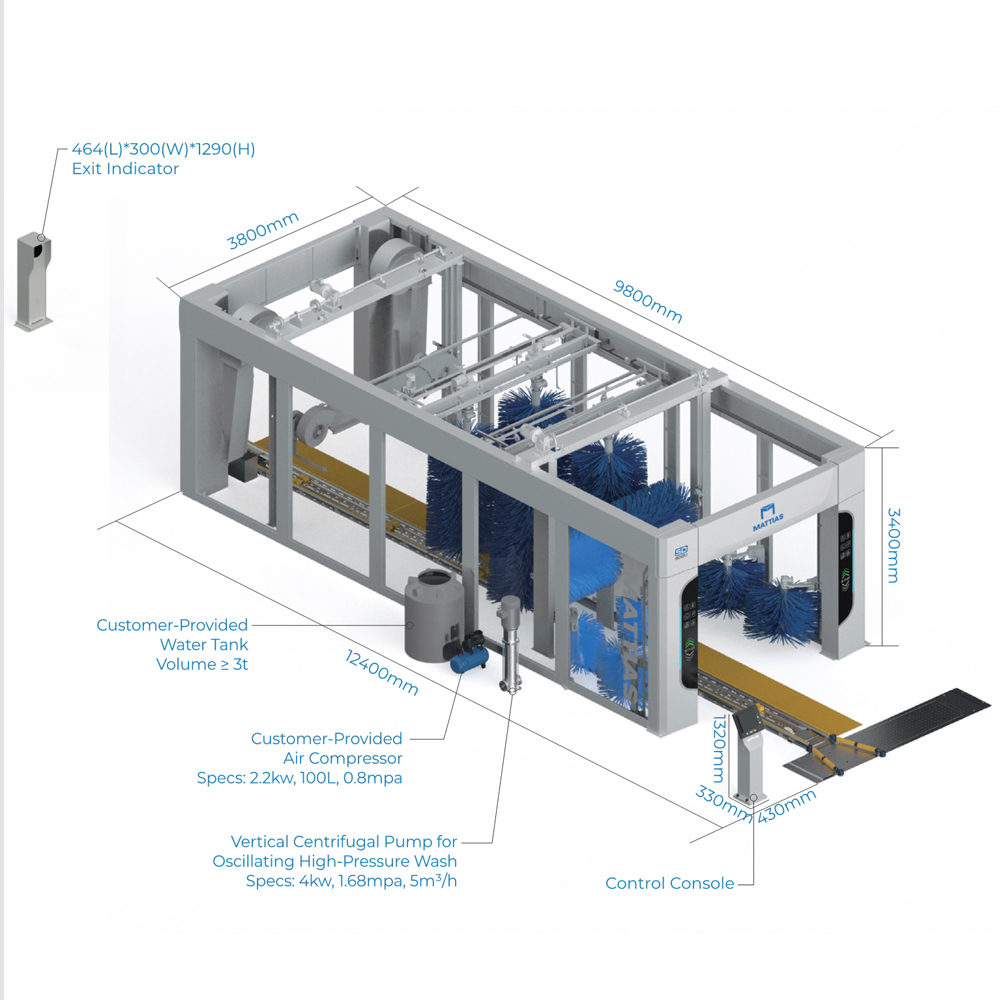

• Machine Dimensions (L×W×H): 11.75m × 3.8m × 3.45m
• Installation Space Required (L×W×H): 25.75m × 4.0m × 3.5m

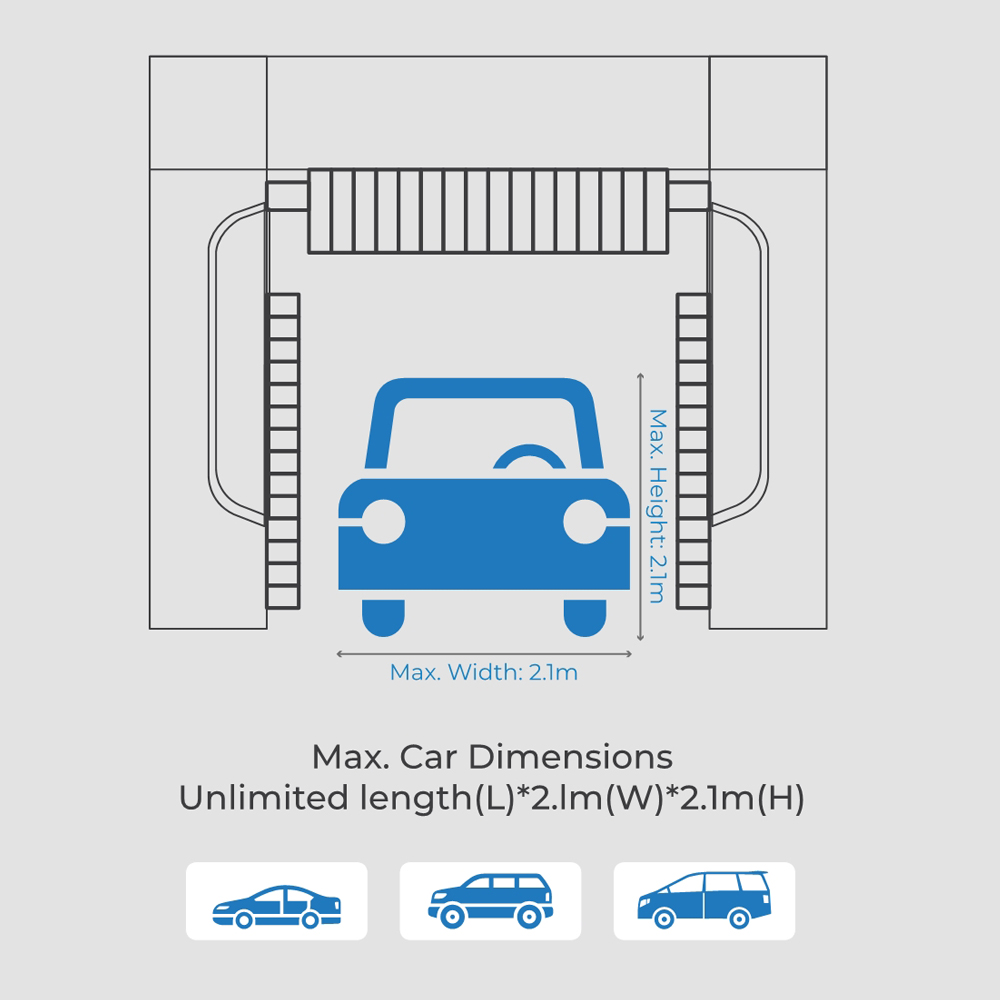

• Compatible Vehicles: Passenger cars, SUVs, vans, commercial vehicles (under 7 seats)
• Brush Count: 9
• Frame: Double-layer anti-rust construction
• Brush Material: EVA
