From the supplier

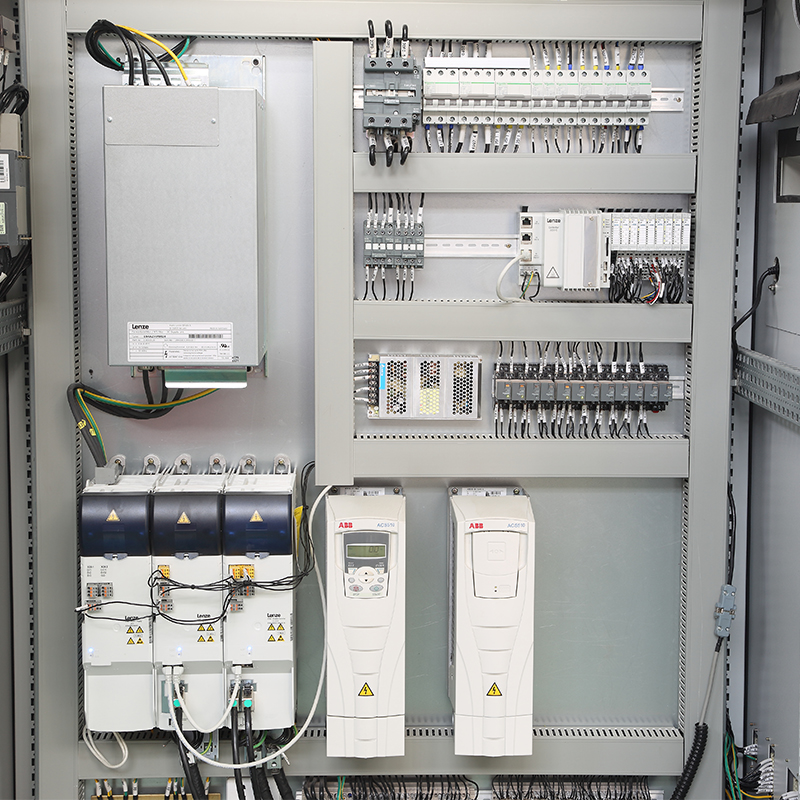

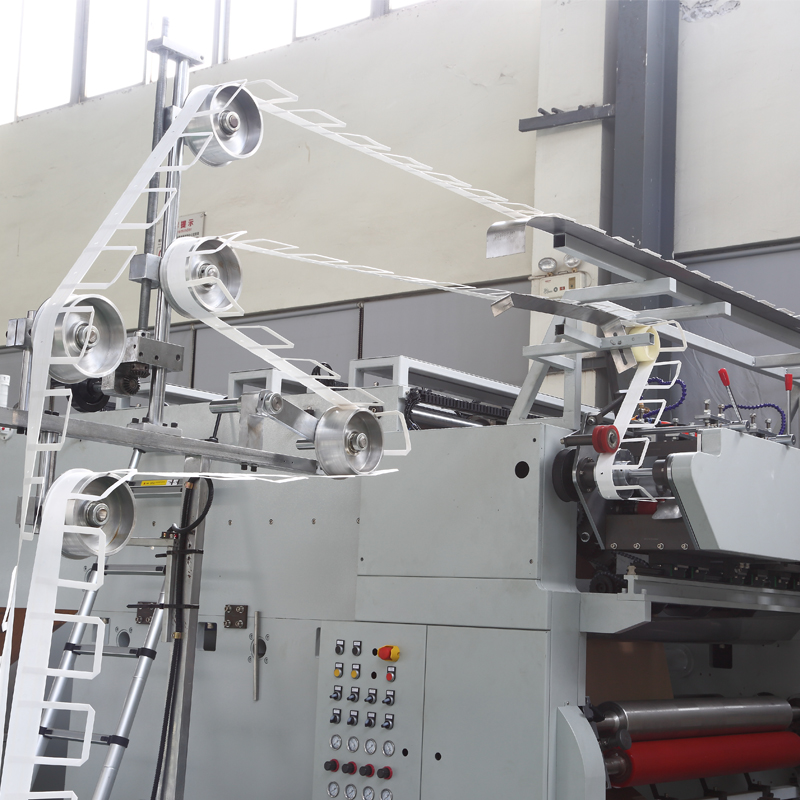

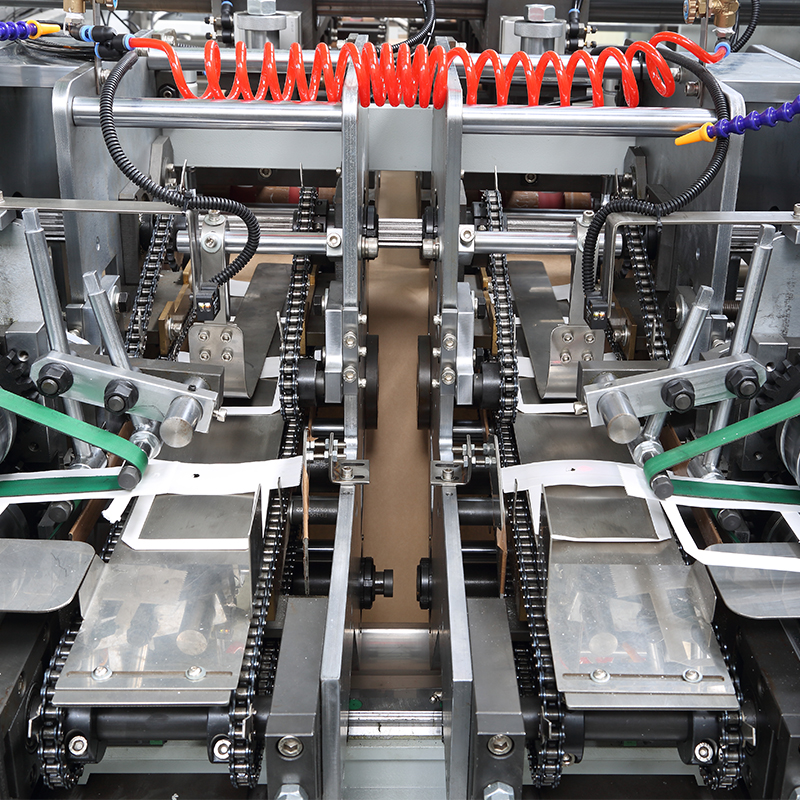

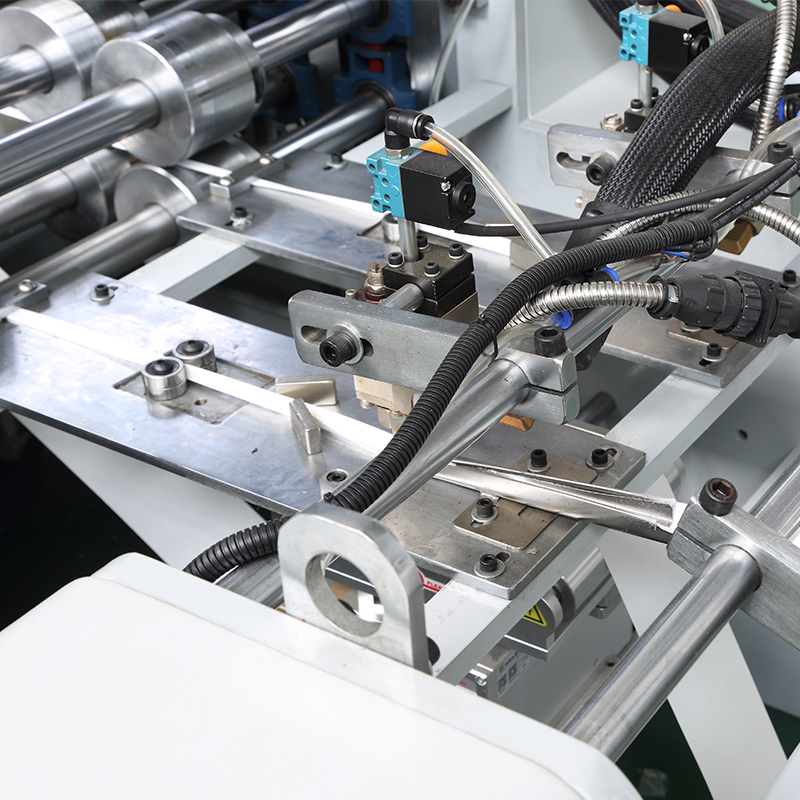

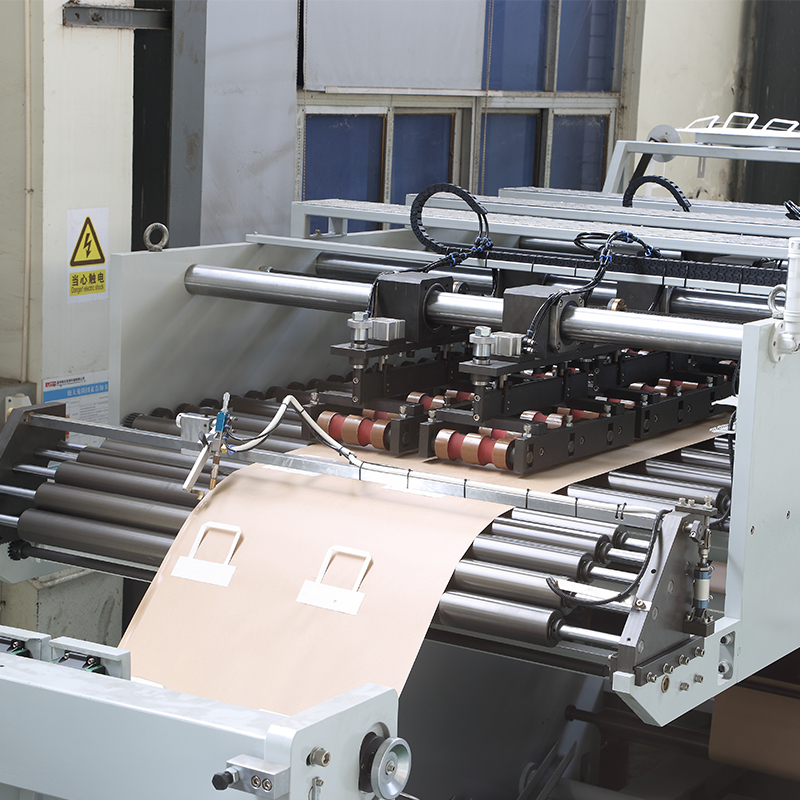

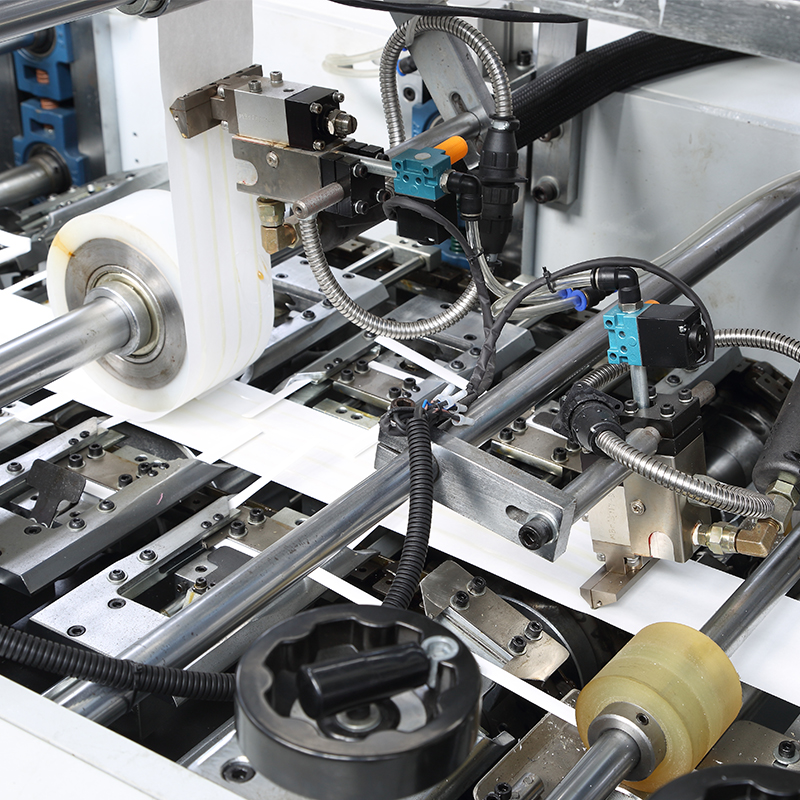

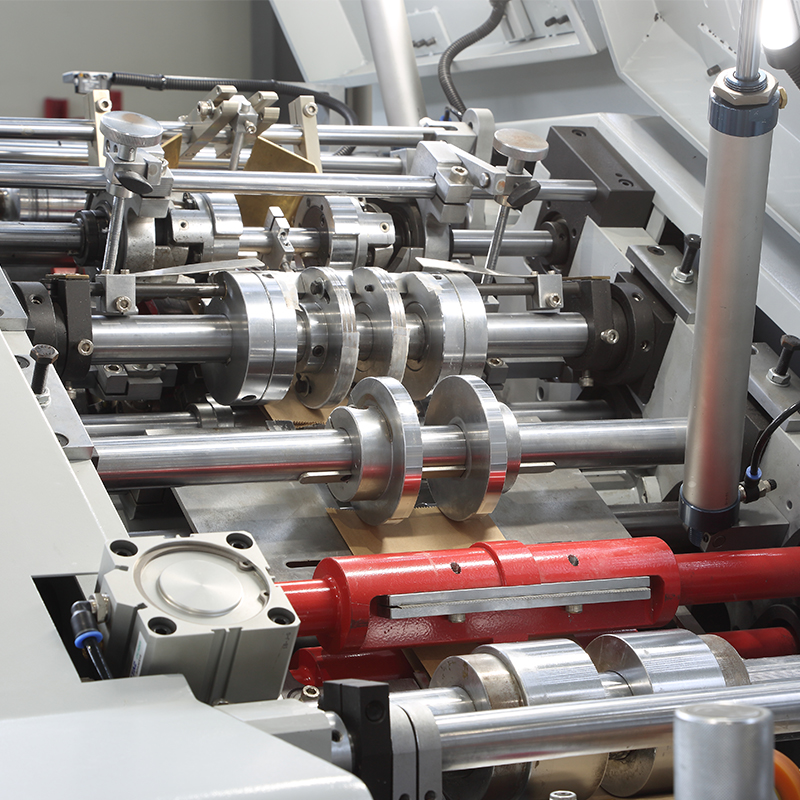

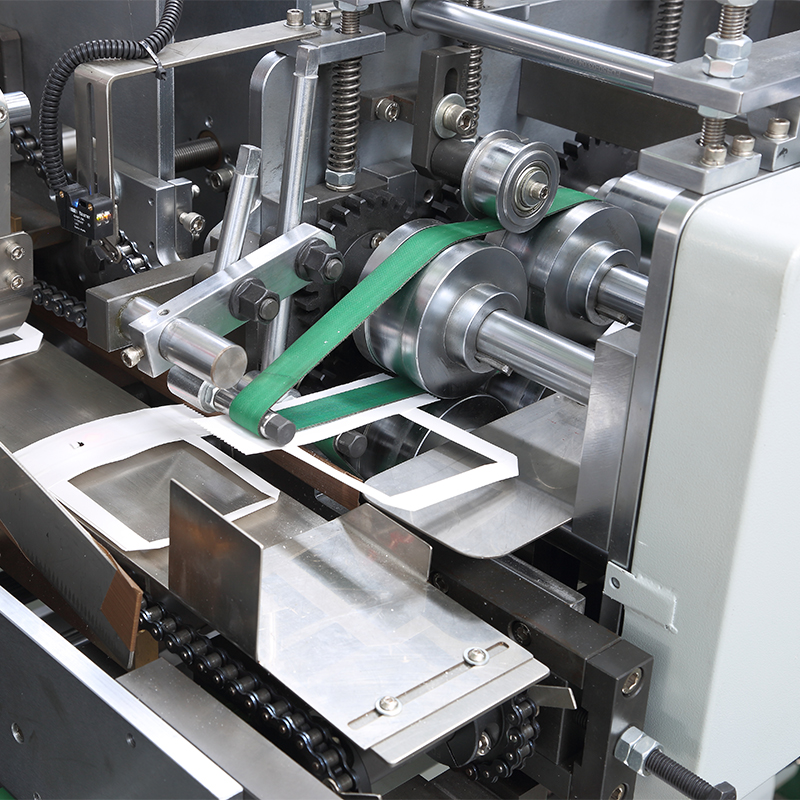

Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making. The paper bag making process consists of side gluing, tube forming cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts German imported high-speed motion controller(CPU), Which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.
Parameter Name
330T
450T
450BT
Cutting Length
270-530mm
270-530mm
380-760mm
Cutting Length(Handle)
270-430mm
270-430mm
380-660mm
Bag Width
120-330mm
210-450mm
220-450mm
Bag Width(Handle)
200-330mm
210-450mm
240-450mm
Bottom Width
60-180mm
90-180mm
100-200mm
Paper Thickness
60-150g/㎡
80-150g/㎡
80-150g/㎡
Paper Thickness(Handle)
80-150g/㎡
80-150g/㎡
80-150g/㎡
Paper Roll Width
380-1050mm
590-1290mm
630-1370mm
Paper Roll Width(Handle)
620-1050 mm
670-1290mm
710-1370mm
Roll Paper Diameter
Φ1200mm
Φ1200mm
Φ1200mm
Paper Core
Φ76mm
Φ76mm
Φ76mm
Patch Length
152mm
190mm
190mm
Patch Width
50mm
50mm
50mm
Handle Distance
75mm
95mm
95mm
Rope Diameter
Φ3-5mm
Φ3-5mm
Φ3-5mm
Patch Paper Roll Width
100mm
100mm
100mm
Patch Paper Roll Diameter
Φ1200mm
Φ1200mm
Φ1200mm
Patch Paper Thickness
100-135g/㎡
100-135g/㎡
100-135g/㎡
Machine Speed
30-200bags/min
30-180bags/min
30-150bags/min
(Without Handles)Production Speed For Bags With Handles
30-180bags/min
30-150bags/min
30-120bags/min
Production Speed For Bags With Handles
30-150bags/min
30-130bags/min
30-130bags/min
Bottom Folding Type
Cutting Knife
Sawtooth cutting
Sawtooth cutting
Sawtooth cutting
Power Supply
380v 3phase 4 line 41.5kw
380v 3phase 4 line 41.5kw
380v 3phase 4 line 43.5kw
Machine Weight
15000kg
15500kg
16500kg
Machine Size
14000x6000x2400mm
14000x6000x2400mm
16100x6500x2400mm
