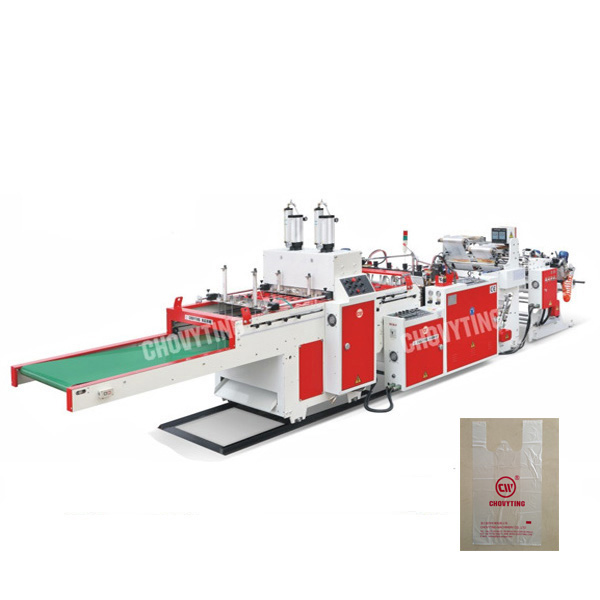

Fully automatic super high speed t-shirt bag making machine
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Fully automatic super high speed t-shirt bag making machine
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: steel
- Size: 8000*1850*1800
- Color: red+white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
About this product
- Materials: steel
- Size: 8000*1850*1800
- Color: red+white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
Product details
| Materials | steel |
|---|---|
| Size | 8000*1850*1800 |
| Color | red+white |
From the supplier
Functions and Features:
This is a special design of practical type T-shirt bag making machine, operating in fully automatic system. This machine including invert-er motor driven system in unwind unit, EPC control for dual line and finish product folding unit, providing the highest production speed and output.
Special design servo-driven bag feeding is easy to operate.
Equipped with multi auto alarms and automatic stop design.

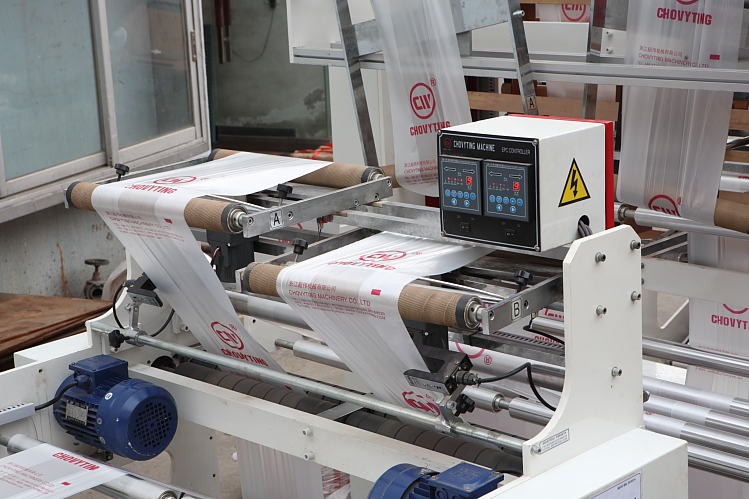

The EPC Control System
Whenever the film roll is not feeding in order it could be adjusted by EPC control unit and the film feeding will be corrected to the right position. This system will enhance the productivity of machine and there will provide one set of EPC for each line.
Product Specifications:
Model
CW-400V2
(current model)
CW-500V1
(single line model)
CW-300V3+GS+ST
(with hot slitting and gussets model)
Length of bag making
370-700mm
370-700mm
370-700mm
With of bag making
400mm X2 lines
500mm*1line
300mm*3lines
Width of cutting knife
480mm *2lines
580mm*1line
380mm*3lines
Set film dragging speed
125M/min
125M/min
125M/min
Machine speed
300pc/min×2lines
300pcs/min
220pcs/min*3lines
Total power
about 18.5KW
about 10KW
20kw
Machine weight
3100kg
2800kg
3800kg
Machine dimension
8000X1850X1800mm
8000X1350X1800mm
10000X2000X2000mm
Application Fields:
The most widely used plastic t-shirt bags are ideal for grocery, retail shopping, or use it for restaurant food carry out! Equipped with 2 carry handles that make it a practical perfect solution for any plastic shopping bag applications.
Machine Diagram:

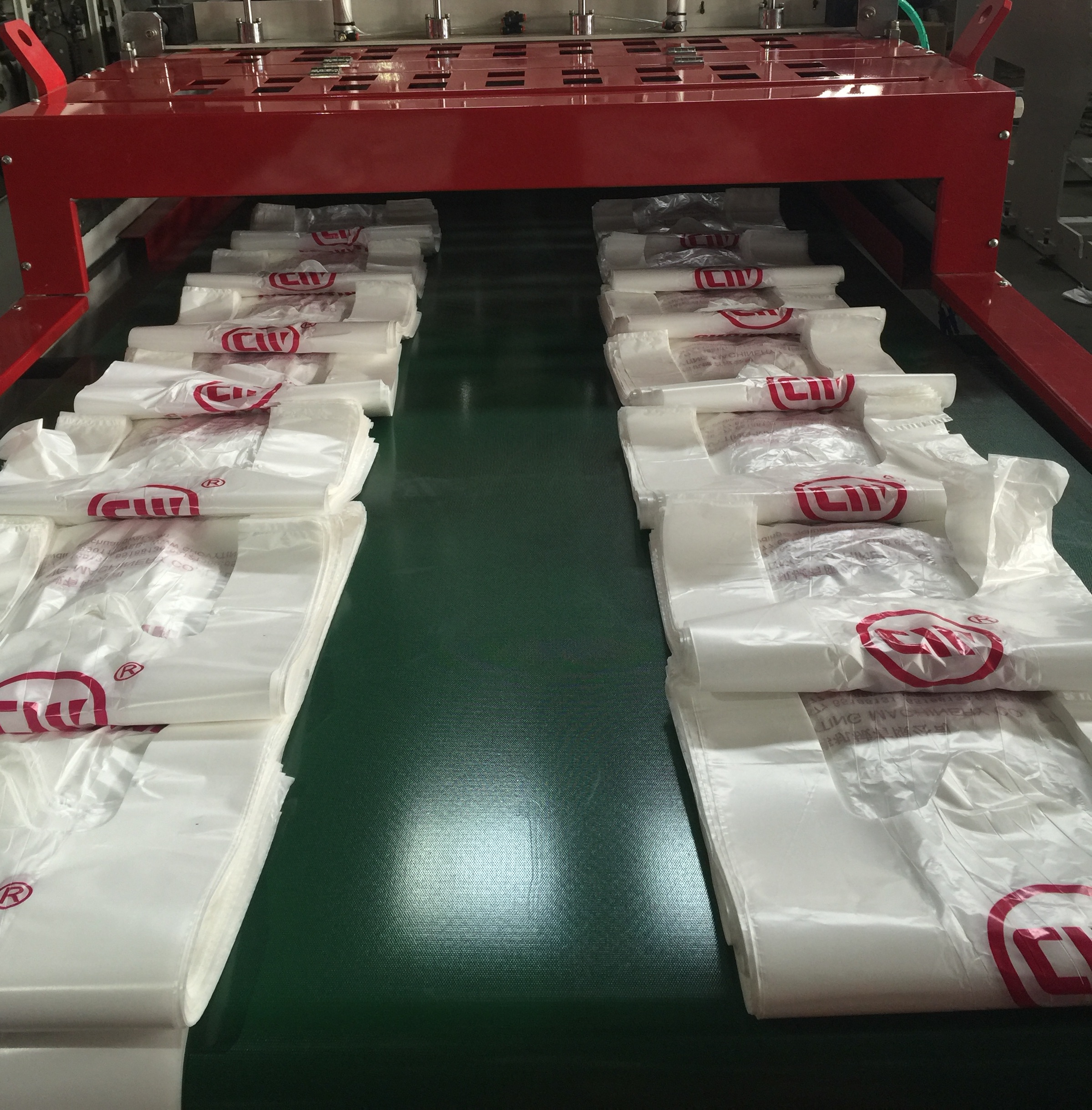

SAMPLE BAG:
