Gantry Machining Center GMC1120
WMT CNC INDUSTRIAL CO.,LTD
See what’s includedHide breakdown
- FOB goods (100)
- $9,800,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $343,000
- Section 301 tariff (25.0%)
- $2,450,000
- Customs fees (MPF/HMF)
- $12,885
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $9,800,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $343,000
- Section 301 tariff (25.0%)
- $2,450,000
- Customs fees (MPF/HMF)
- $12,885
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Gantry Machining Center GMC1120
WMT CNC INDUSTRIAL CO.,LTDSee what’s includedHide breakdown
- FOB goods (100)
- $9,800,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $343,000
- Section 301 tariff (25.0%)
- $2,450,000
- Customs fees (MPF/HMF)
- $12,885
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $9,800,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $343,000
- Section 301 tariff (25.0%)
- $2,450,000
- Customs fees (MPF/HMF)
- $12,885
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: metal
- Size: 6800×4000×3900mm
- Color: black and white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: metal
- Size: 6800×4000×3900mm
- Color: black and white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | metal |
|---|---|
| Size | 6800×4000×3900mm |
| Color | black and white |
Product details
| Materials | metal |
|---|---|
| Size | 6800×4000×3900mm |
| Color | black and white |
From the supplier

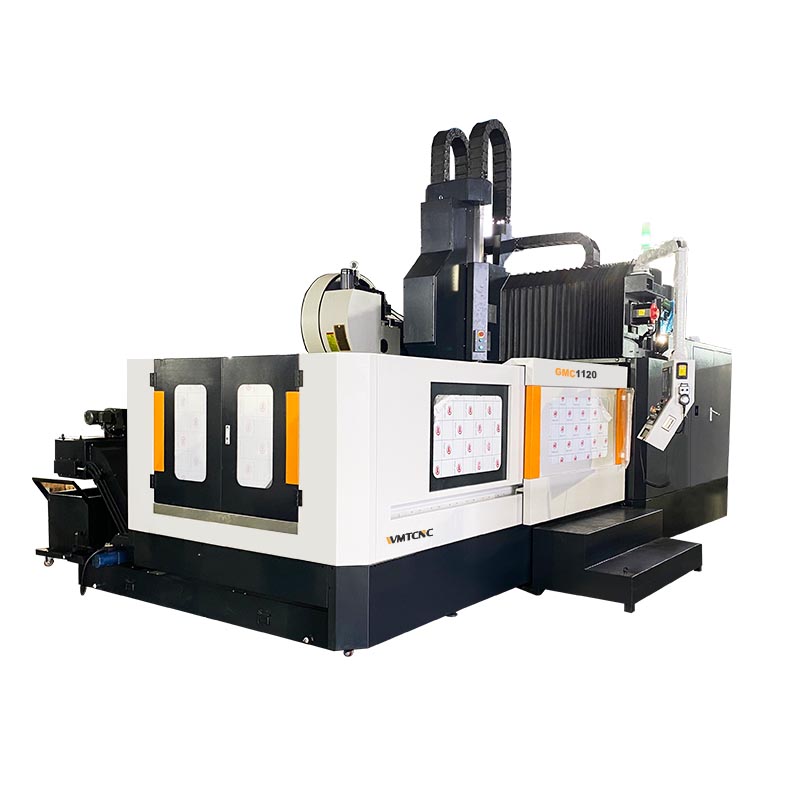

CNC gantry mill machine is suitable for milling, boring, drilling, threading, etc. Machining ferrous and non ferrous metals, it can finished various process with only once install the work piece, ensure the quality of products and production efficiency.
Specification Specification GMC1120 Worktable Worktable size (L×W) 2000×1000mm T-slots size (N×W×D) 7-22x125mm Travel X/Y/Z axis travel 2000/1100/600mm Capacity Distance from spindle nose to worktable surface 160-760mm Distance between two columns 1250mm Spindle Spindle taper BT50 Spindle power 15/18.5kw Max. spindle speed 7000rpm Spindle torque 143N·m Feed Rapid feed speed (X/Y/Z) 20/20/12m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 6320/5012/5020 X/Y/Z guideway type X/Y:roller linear guideways, Z:box guideway Tool magazine Tool magazine capacity 24T Max. length of tool 350mm Tool change time (T-T) 3s Positioning accuracy (GB standard) Positioning accuracy（X/Y/Z） 0.03mm Re-positioning accuracy（X/Y/Z） 0.018mm Machine dimension L×W×H 6800×4000×3900mm Machine weight Max. loading of worktable 4t N.W 19tDetails
From the supplier
CNC gantry mill machine is suitable for milling, boring, drilling, threading, etc. Machining ferrous and non ferrous metals, it can finished various process with only once install the work piece, ensure the quality of products and production efficiency.
Specification Specification GMC1120 Worktable Worktable size (L×W) 2000×1000mm T-slots size (N×W×D) 7-22x125mm Travel X/Y/Z axis travel 2000/1100/600mm Capacity Distance from spindle nose to worktable surface 160-760mm Distance between two columns 1250mm Spindle Spindle taper BT50 Spindle power 15/18.5kw Max. spindle speed 7000rpm Spindle torque 143N·m Feed Rapid feed speed (X/Y/Z) 20/20/12m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 6320/5012/5020 X/Y/Z guideway type X/Y:roller linear guideways, Z:box guideway Tool magazine Tool magazine capacity 24T Max. length of tool 350mm Tool change time (T-T) 3s Positioning accuracy (GB standard) Positioning accuracy（X/Y/Z） 0.03mm Re-positioning accuracy（X/Y/Z） 0.018mm Machine dimension L×W×H 6800×4000×3900mm Machine weight Max. loading of worktable 4t N.W 19tDetails
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
