About this product
- Materials: metal
- Size: 7800×5500×5000mm
- Color: black and white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries
About this product
- Materials: metal
- Size: 7800×5500×5000mm
- Color: black and white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries
Product details
| Materials | metal |
|---|---|
| Size | 7800×5500×5000mm |
| Color | black and white |
From the supplier

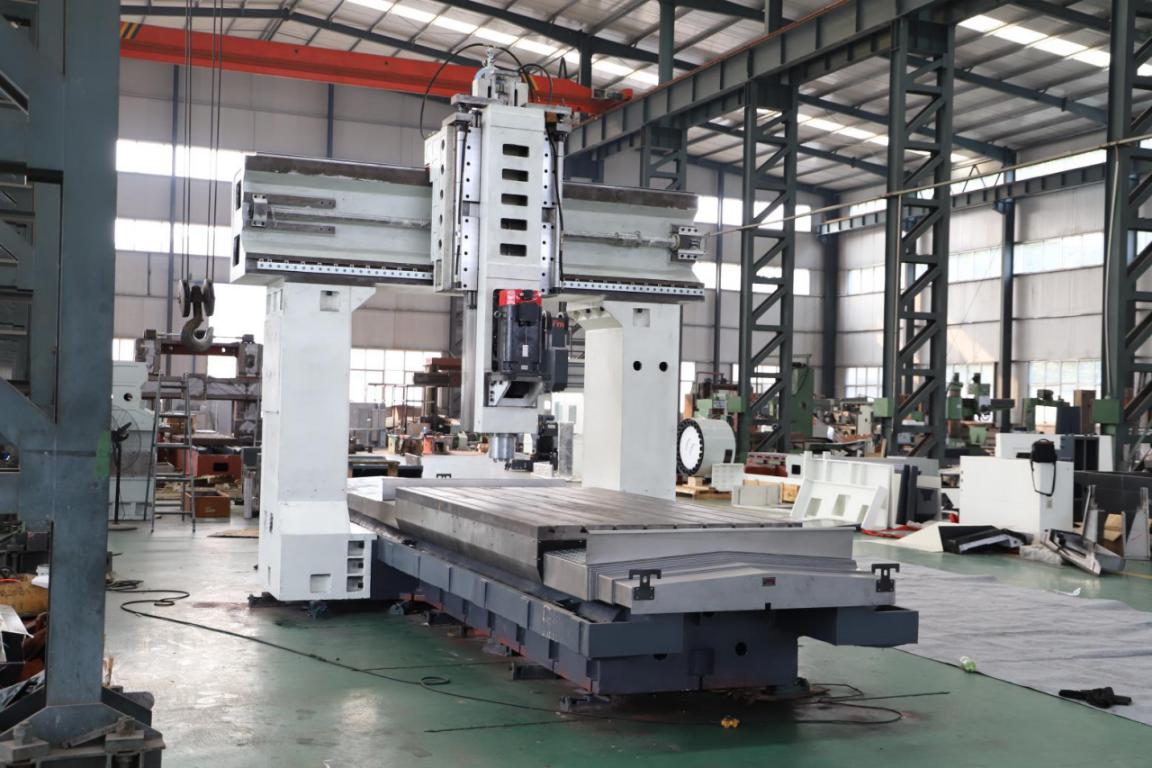

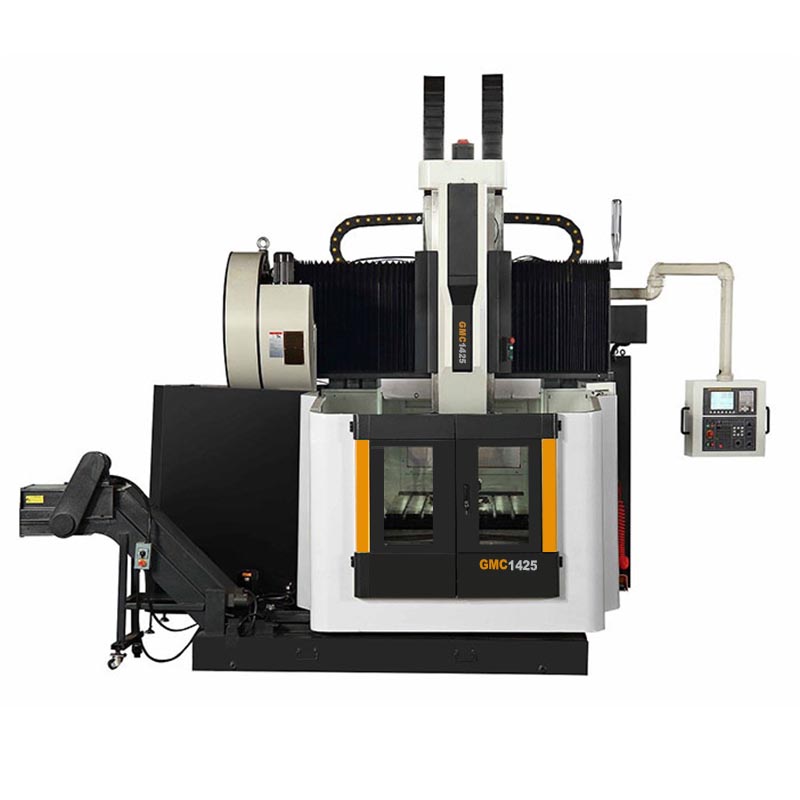

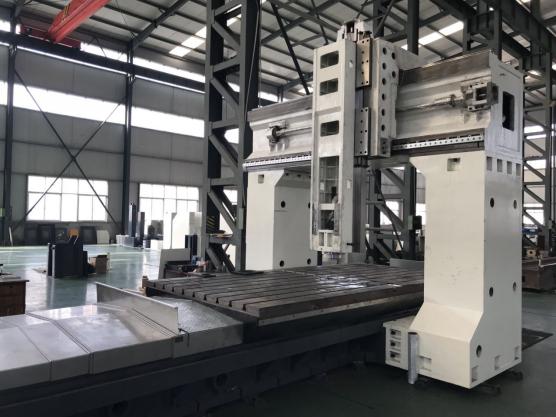

This CNC Gantry milling machine GMC1425 is suitable for milling, boring, drilling, threading, etc. Machining ferrous and non ferrous metals, it can finished various process with only once install the work piece, ensure the quality of products and production efficiency.

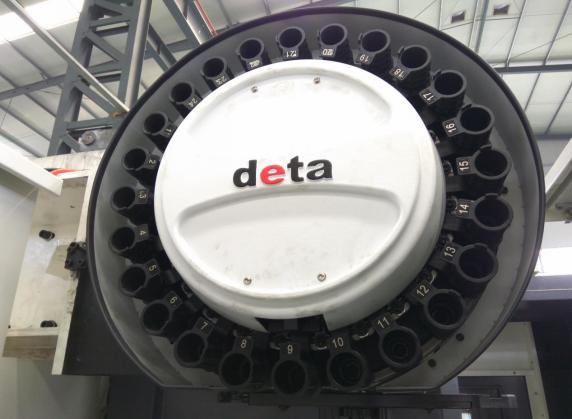

Specification Specification GMC1425 Worktable Worktable size (L×W) 2500×1300mm T-slots size (N×W×D) 7-22×160mm Travel X/Y/Z axis travel 2500/1400/800mm Capacity Distance from spindle nose to worktable surface 160-960mm Distance between two columns 1400mm Spindle Spindle taper BT50 Spindle power 15/18.5kw Max. spindle speed 6000rpm Spindle torque 143N·m Feed Rapid feed speed (X/Y/Z) 10/10/10m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 6316/5016/5016 X/Y/Z guideway type X/Y:roller linear guideways, Z:box guideway Tool magazine Tool magazine capacity 24T Max. length of tool 350mm Tool change time (T-T) 3s Positioning accuracy (GB standard) Positioning accuracy（X/Y/Z） 0.03mm Re-positioning accuracy（X/Y/Z） 0.018mm Machine dimension L×W×H 7800×5500×5000mm Machine weight Max. loading of worktable 6t N.W 22.5tDetails
