GT High accuracy, multiple output options TB3SDG Guide Rail Digital Transmitter Sensor force display and signal conversion
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
GT High accuracy, multiple output options TB3SDG Guide Rail Digital Transmitter Sensor force display and signal conversion
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
From the supplier

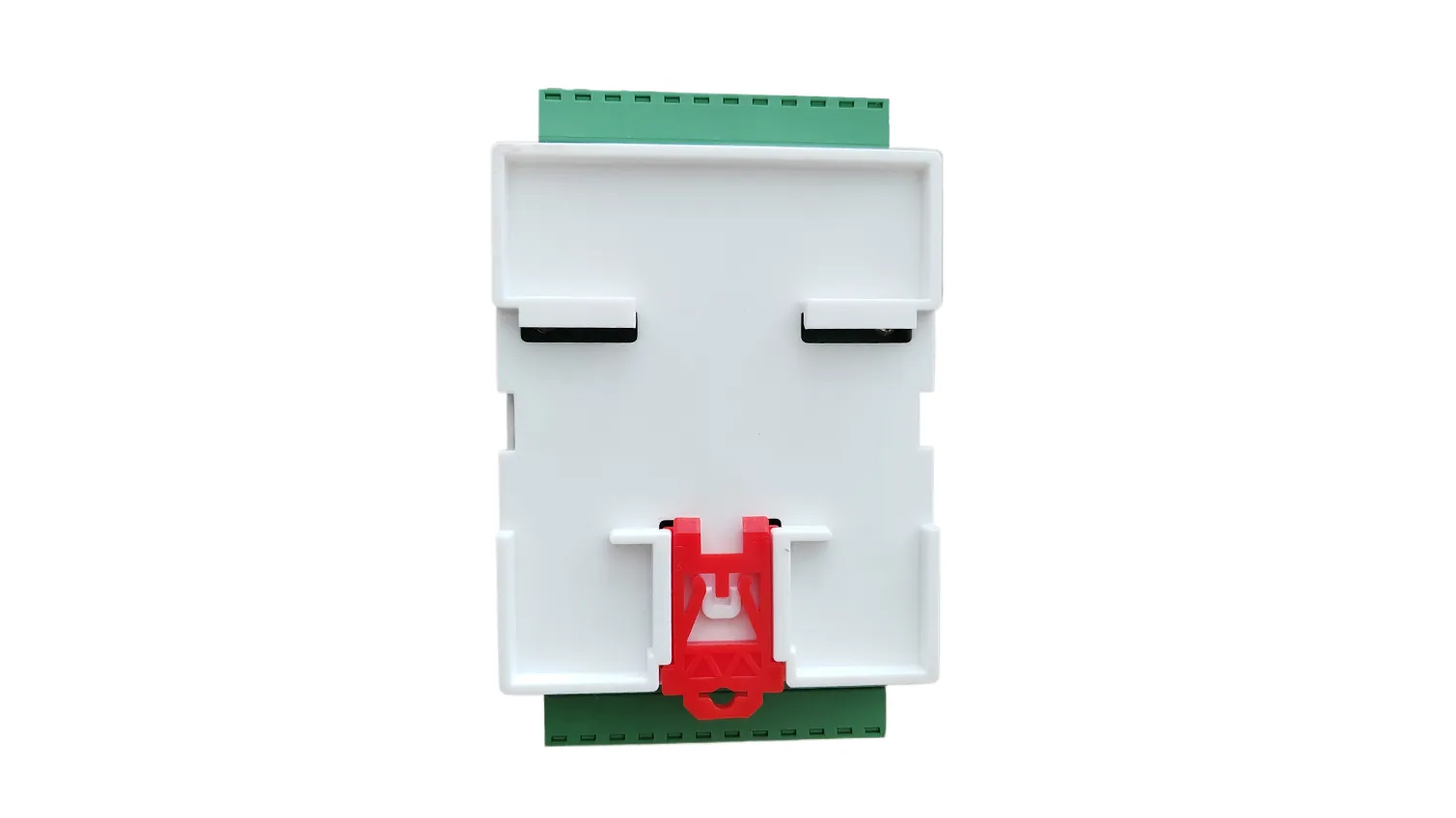

TB3SDG Guide Rail Digital Transmitter, suitable for analog sensors, also known as sensor transmitters, sensor amplifiers, and weighing transmitters. The TB3SDG rail-type digital transmitter is powerful and comes standard with relay output, analog output, digital output, etc.
technical parameters
1. Instrument power supply: 12~24V DC, power consumption <10W
2. Analog output: 4~ 20mA, 0~5V, 0~ 10V (one out of three)
3. Sensor interface: 5V DC excitation voltage, driving up to 6 350Ω sensors
4. A/D sampling frequency: 100Hz
5. Adaptive digital filtering, no need to manually set filter coefficients
6. Switch input: Three external switch input, which can be used for 1. Clearing 2. Peel 3. Tare recovery
7. Switching output: two upper and lower limits output, two optocoupler relays output
8. Communication interface: One way is isolated from RS232, and the other way is isolated from RS485
9. Communication protocol: MODBUS RTU
10. Display: 6-digit LED digital tube, display range: -199999 ~9999999, decimal point position can be set
11. Comprehensive accuracy: 0.1%
12. Working environment: Temperature-10 ￣ 50 ℃, relative humidity 10%~90%RH, no condensation
13. Overall size: 113*72* 60mm
14. Installation method: 35mm guide rail installation
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. Sensors support non-standard customization. Welcome to inquire with drawings or send samples for inquiry. Support personalized needs such as neutral packaging, brand labeling, and laser marking.
From the supplier
TB3SDG Guide Rail Digital Transmitter, suitable for analog sensors, also known as sensor transmitters, sensor amplifiers, and weighing transmitters. The TB3SDG rail-type digital transmitter is powerful and comes standard with relay output, analog output, digital output, etc.
technical parameters
1. Instrument power supply: 12~24V DC, power consumption <10W
2. Analog output: 4~ 20mA, 0~5V, 0~ 10V (one out of three)
3. Sensor interface: 5V DC excitation voltage, driving up to 6 350Ω sensors
4. A/D sampling frequency: 100Hz
5. Adaptive digital filtering, no need to manually set filter coefficients
6. Switch input: Three external switch input, which can be used for 1. Clearing 2. Peel 3. Tare recovery
7. Switching output: two upper and lower limits output, two optocoupler relays output
8. Communication interface: One way is isolated from RS232, and the other way is isolated from RS485
9. Communication protocol: MODBUS RTU
10. Display: 6-digit LED digital tube, display range: -199999 ~9999999, decimal point position can be set
11. Comprehensive accuracy: 0.1%
12. Working environment: Temperature-10 ￣ 50 ℃, relative humidity 10%~90%RH, no condensation
13. Overall size: 113*72* 60mm
14. Installation method: 35mm guide rail installation
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. Sensors support non-standard customization. Welcome to inquire with drawings or send samples for inquiry. Support personalized needs such as neutral packaging, brand labeling, and laser marking.
