GT High precision, multiple optional functions TL6D/C type high-precision intelligent measurement and control instrument Weighing instrument Weighing measurement and control instrument
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
GT High precision, multiple optional functions TL6D/C type high-precision intelligent measurement and control instrument Weighing instrument Weighing measurement and control instrument
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
From the supplier

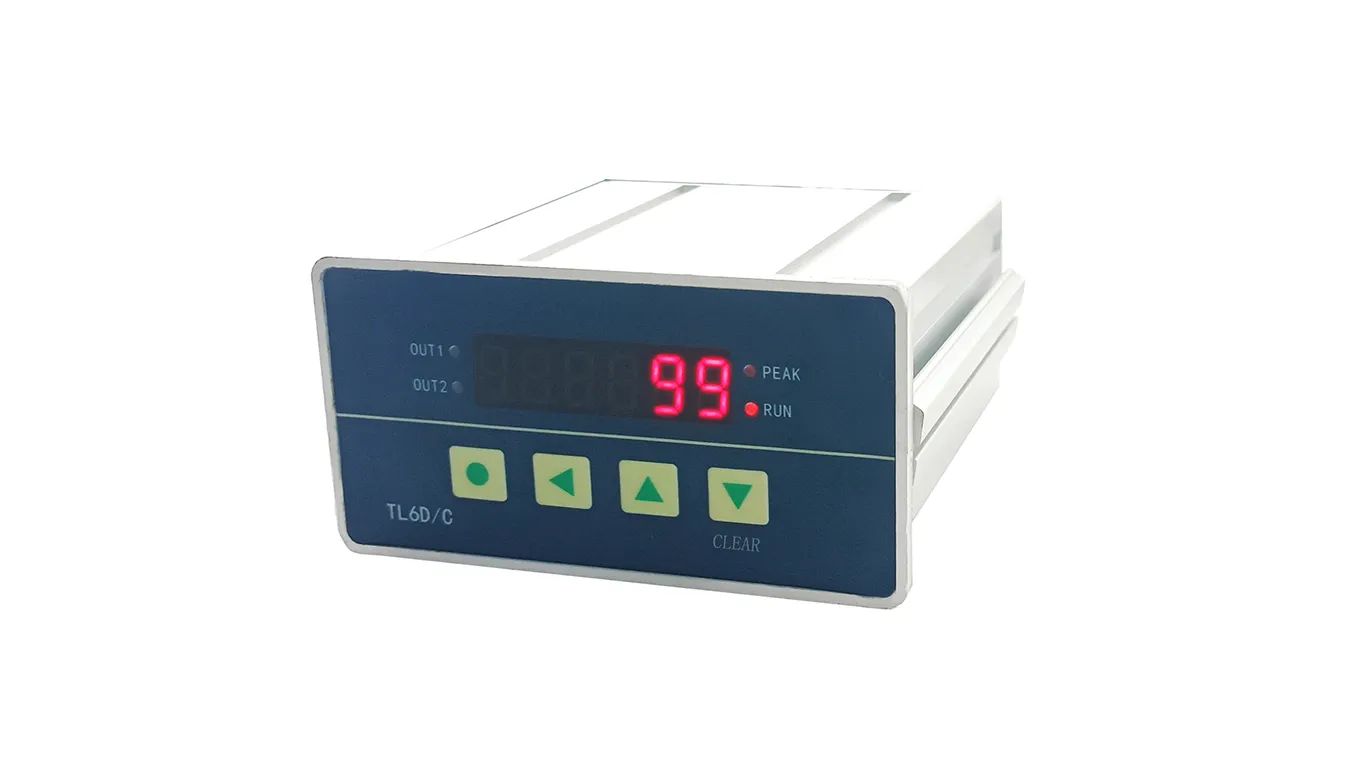

TL6D/C type high-precision intelligent measurement and control instrument, is a six-digit display of high-precision weighing control display, weighing instrument, weighing display, weighing control display instrument, weighing display instrument, and weighing control instrument. The instrument and sensor are connected through aviation plug and can output switching signals, analog signals and 485 signals.
technical parameters
1. Instrument power supply: 12~ 36V DC;12~24V AC
2. Working environment: 0℃~50℃, humidity below 90% R.H
3. Input signal type: Voltage 0~25mV
4. Measurement control period: 0.15 seconds Sampling speed: 10 times/second
5. Basic error: less than ± 0.05% F.S.
6. Display resolution: 4/999999
7. Measurement resolution: 24-bit A/D converter
8. Display range: -199999~999999, decimal point position can be set
9. Output excitation voltage 5V, current approximately 200mA
10. Overall size: 100×52×106 (mm)
Opening size: 92×44 (mm)
11. optional functions
a.2 relay outputs
b. High-precision analog output (4-20mA, 0-5V, 0-10V)
c. Support RS485 communication (ModBus RTU)
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. Sensors support non-standard customization. Welcome to inquire with drawings or send samples for inquiry. Support personalized needs such as neutral packaging, brand labeling, and laser marking.
