GT Simple structure, easy installation, and good moisture resistance NTJH-1B Load Cell Suitable for electronic belt scales, packaging scales, etc.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
GT Simple structure, easy installation, and good moisture resistance NTJH-1B Load Cell Suitable for electronic belt scales, packaging scales, etc.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
About this product
- Theory: Other
- Measured substance: Other
- Operation form: Other
- Composition: Other
- Brand: Other
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Nanjing, Jiangsu, China
Product details
| Theory | Other |
|---|---|
| Measured substance | Other |
| Operation form | Other |
| Composition | Other |
| Brand | Other |
| Usage | Other |
| Output | Other |
| Production process | Other |
| Material | Other |
From the supplier

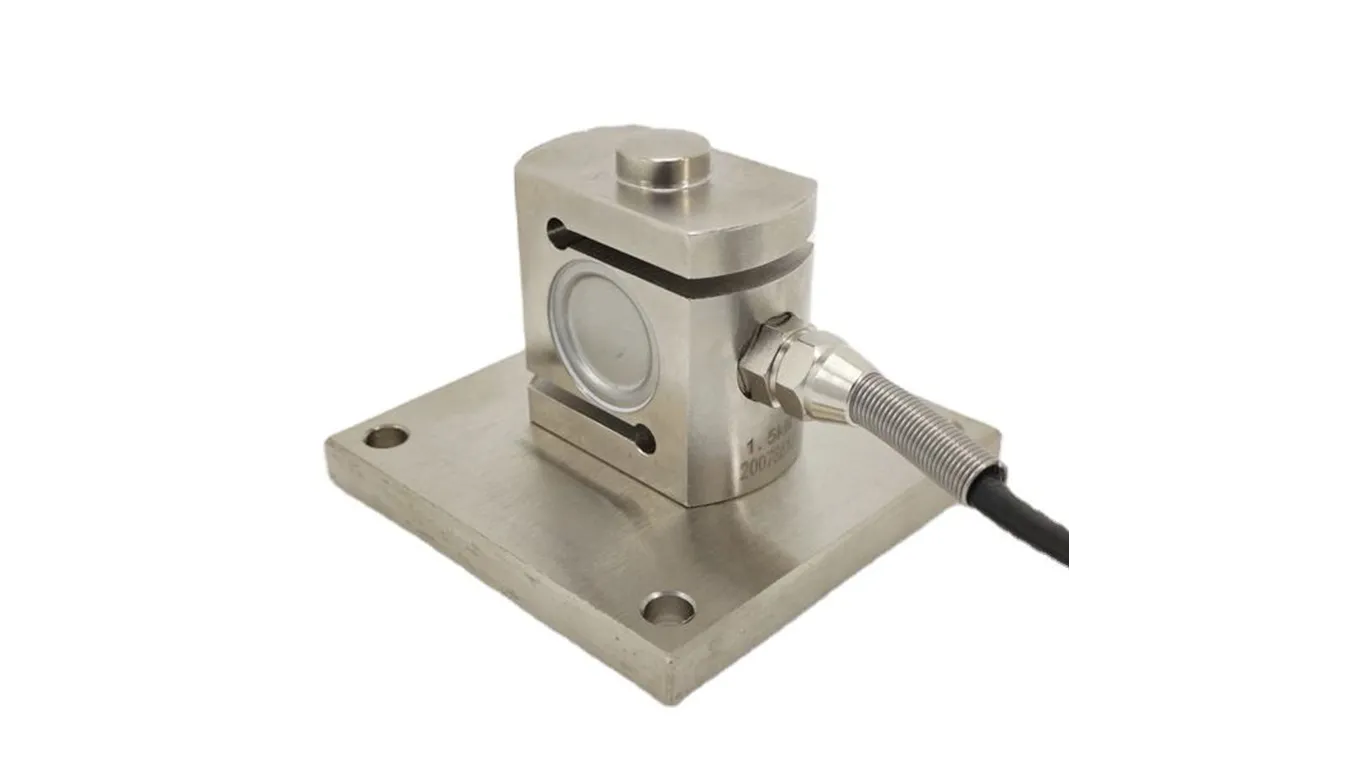

NTJH-1B Load Cell, is a kind of load cell, which can also be called a weight sensor or a load cell. The rated load of the spot model is 1.5KN. NTJH-1B load sensor has simple structure, easy installation, and good moisture-proof performance. It is suitable for electronic belt scales, packaging scales, etc.
technical parameters
Rated load: 1.5kN
Comprehensive accuracy: 0.05% F. S
Sensitivity: 1.5, 2.0mV/V
Creep: ± 0.05% F·S/30min
Zero output: ± 1% F·S
Effect of zero temperature: ± 0.05% F·S/10℃
Output temperature influence: ± 0.05% F·S/10℃
Operating temperature: -20℃~+65℃
Input impedance: 680±15Ω
Output impedance: 650±5Ω
Insulation resistance: 5000 MΩ
Safety overload: 150% F·S
Bridge voltage: 10V DC recommended
Material: Alloy steel
Sensor wiring method: input +: red input-: black output +: green output-: white
Product size
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. Sensors support non-standard customization. Welcome to inquire with drawings or send samples for inquiry. Support personalized needs such as neutral packaging, brand labeling, and laser marking.
