Han's SLE Square cell - wrapped Mylar machine
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: See figure
- Size: See Image
- Color: See figure
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: See figure
- Size: See Image
- Color: See figure
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | See figure |
|---|---|
| Size | See Image |
| Color | See figure |
From the supplier
· Product Description

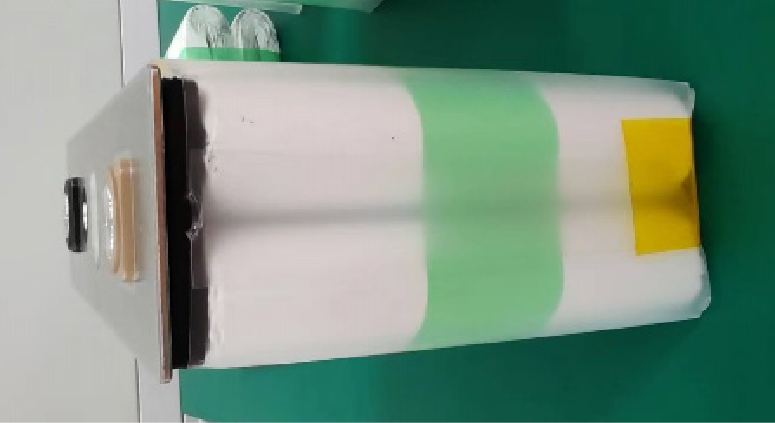

This equipment is mainly used for the hot melt assembly of battery cells, Myar films, and base plates. Mainly including cell loading, Mylar film loading, bottom plate loading, Mylar film hot melt, CCD detection, cell unloading, etc. Equipment size (length * width * height): 92000 * 4000 * 2800mm Equipment weight (ton): 17T
Equipment parameters:
Equipment efficiency: ≥ 15PPM Cell positioning accuracy: ≤ ± 0.5mm Welding speed: ≤ 200mm/s Hot melt temperature: room temperature -300 ℃ Temperature stability: ± 3 ℃Hot melt tensile force: ≥ 10N Gluing accuracy: ± 1mm Fault rate: ≤ 2% Excellent rate ≥ 99.85%
