I. Overview
The HDL-FC-100 handheld laser inhalable dust continuous detector (hereinafter referred to as the dust detector) is primarily used for detecting the concentration of dust particulate matter (PM2.5, PM10, TSP, temperature, humidity) and providing an over-limit alarm in industrial and mining enterprises. This instrument sucks in air containing dust particles from large public indoor spaces, industrial and mining enterprises, factory workshops, or production areas, analyzes it using a high-precision laser dust detection sensor, and displays the dust concentration value in that space on the instrument's display screen.
The HDL-FC-100 handheld laser inhalable dust continuous detector utilizes the advanced light scattering principle, employing a semiconductor laser as the measuring light source to conduct highly sensitive non-contact measurements of dust in the air. The entire testing process is managed and controlled by a single-chip microprocessor, and a high-resolution, large-screen, high-brightness liquid crystal display with full Chinese display is adopted.
II. Main Technical Indicators
1. Dust measurement categories: PM2.5, PM10, and TSP, temperature, humidity
2. Dust measurement range: 0.001~40.0mg/m³; various specifications can be customized;
3. Temperature measurement range: -30℃ to 200℃; Humidity RH (0-95) %
4. Detection sensitivity: 0.001mg/m³; repeatability error: ≤±3%;
5. Air sampling flow rate: 2.L/min (0.1 ft3/min);
6. Sampling time: 1 second... 100 minutes, manually settable to any time. Directly readable dust mass concentration (ug/m3).
7. It has a self-cleaning and correction function.
8. Working environment: Temperature (-30 to 75℃); Humidity RH (20 to 80) %
9. Operating power supply: Equipped with a high-capacity 5VDC lithium battery, it can operate continuously for over 2 hours and supports rechargeable use
10. The service life of the instrument is more than five years
11. Dimensions: 210mm × 130mm × 50mm;
12. Weight: approximately 2KG

III. Instrument structure and LCD display measurement and display

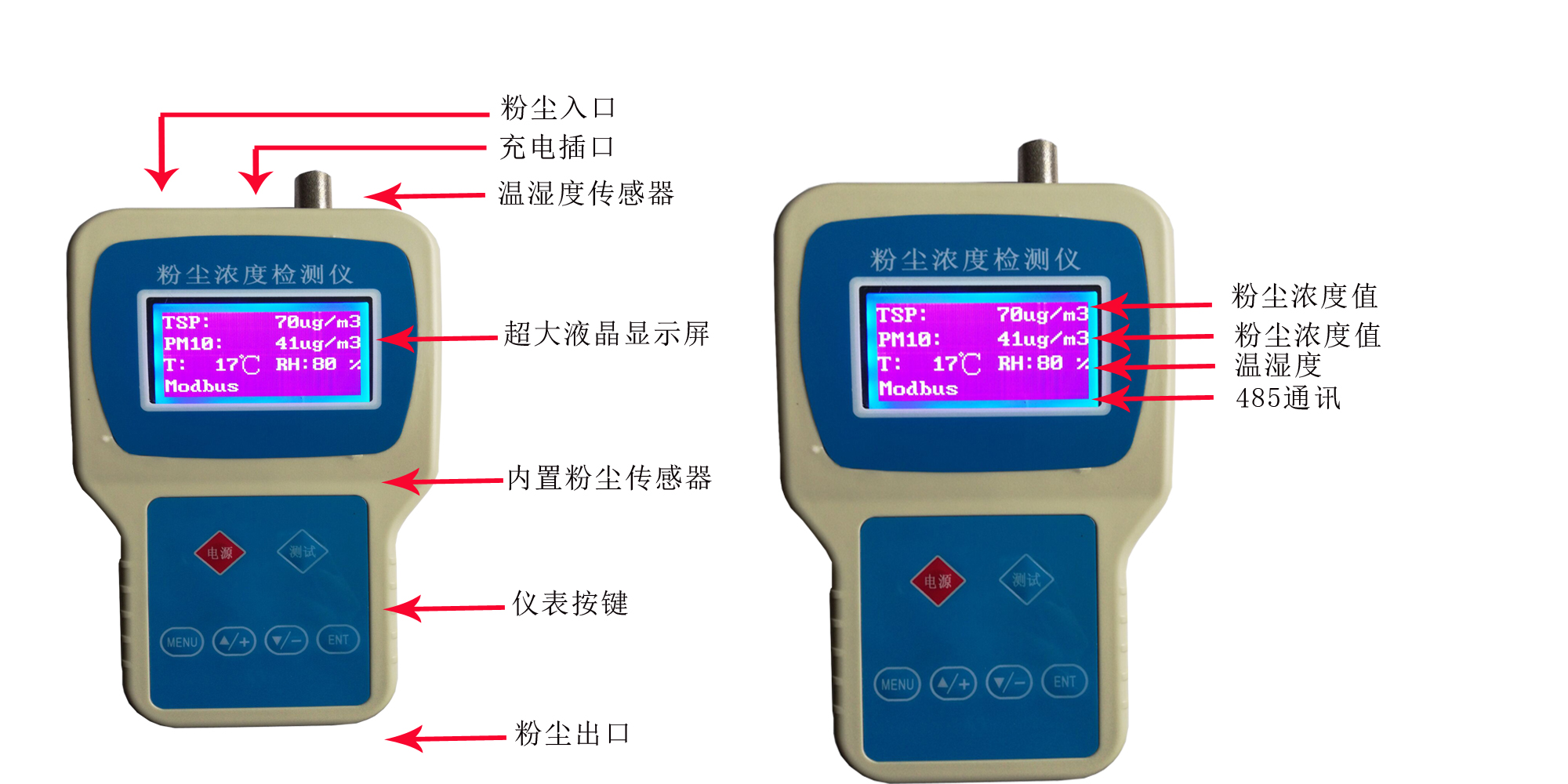

(Instrument structure diagram) (LCD measurement display)

IV. Features
This instrument is small in size, easy to carry, and boasts advantages such as fast testing speed, high sensitivity, good stability, light weight, simple operation, and dual-purpose for both AC and DC. It is suitable for measurements in large factories and workshop settings, ensuring safe production and real-time monitoring.
V. Applicable occasions
The HDL-FC-100 handheld dust detector is suitable for rapid determination of inhalable particulate matter (PM2.5, PM10, TSP, temperature, humidity) concentrations in public places, dust concentration detection at industrial and mining enterprise production sites, as well as monitoring of inhalable dust concentrations in the field of environmental protection. It can also be used for evaluating the purification efficiency of air purifiers and for real-time detection of dust concentrations in production workshops, factories, and other areas.
