Handheld ultrasonic flowmeter
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Handheld ultrasonic flowmeter
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Plastic
- Size: 200mmx92mm
- Color: grey
- Structure: Other
- Material: Other
- Standard: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia
About this product
- Materials: Plastic
- Size: 200mmx92mm
- Color: grey
- Structure: Other
- Material: Other
- Standard: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia
Product details
| Materials | Plastic |
|---|---|
| Size | 200mmx92mm |
| Color | grey |
| Structure | Other |
| Material | Other |
| Standard | Other |
From the supplier

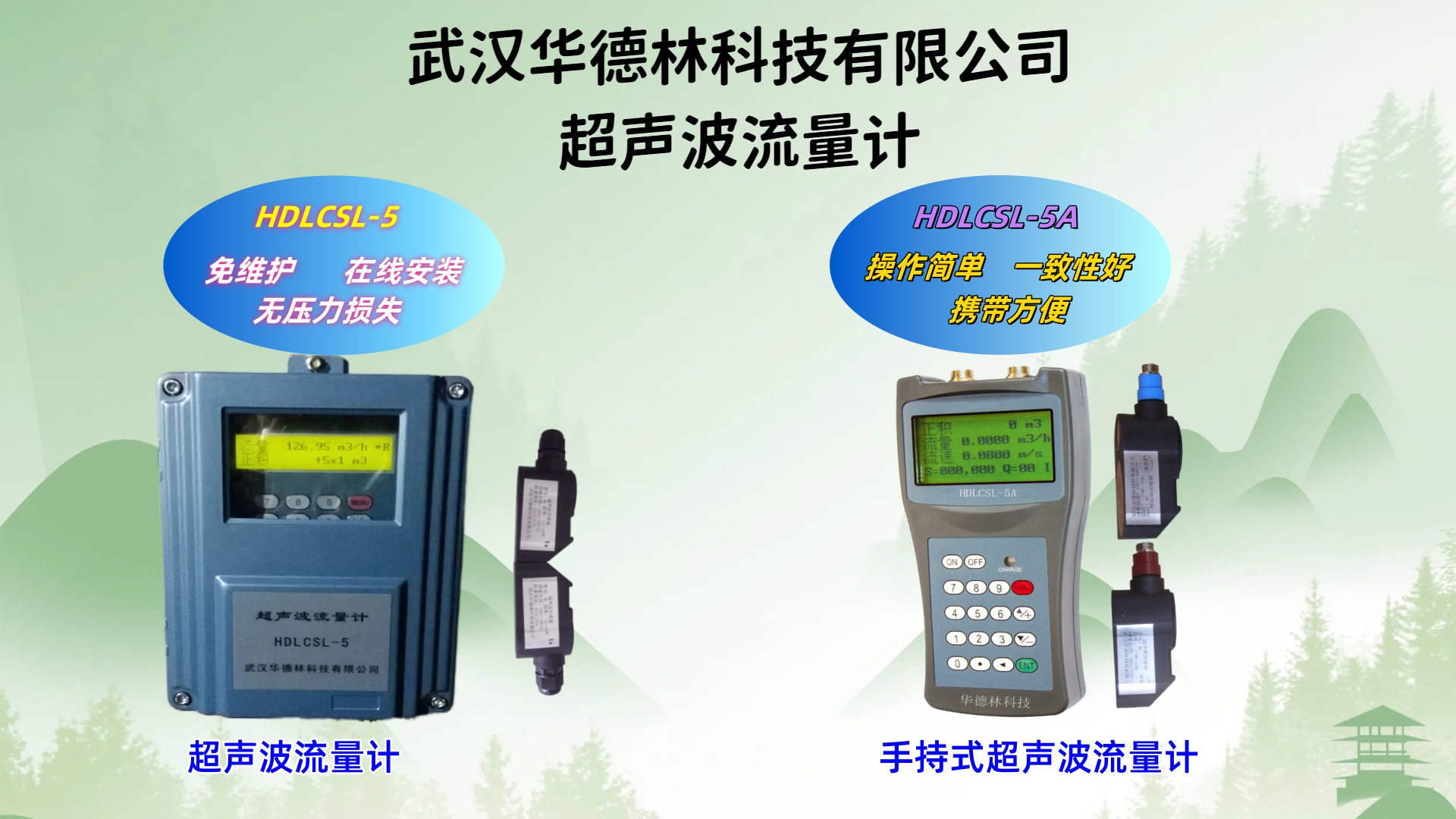

Wuhan Huadelin Technology Co., Ltd. specializes in producing various flowmeters, level gauges, transmitters, bag dust leak detectors, dust concentration meters, and solid flowmeters for dust, powder, and other solids.

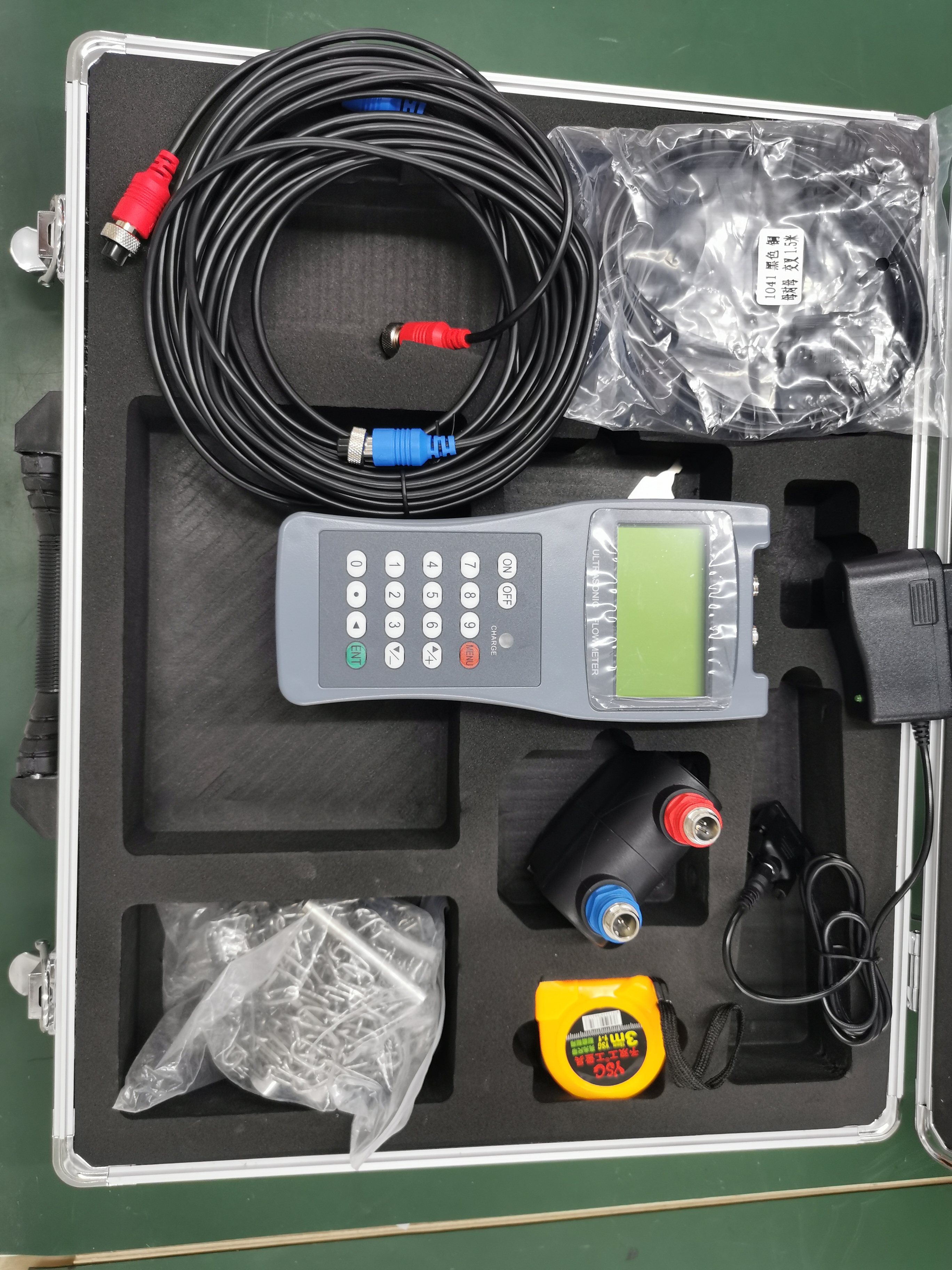

Handheld ultrasonic flowmeter Model: HDLCSL-5A
Principle:

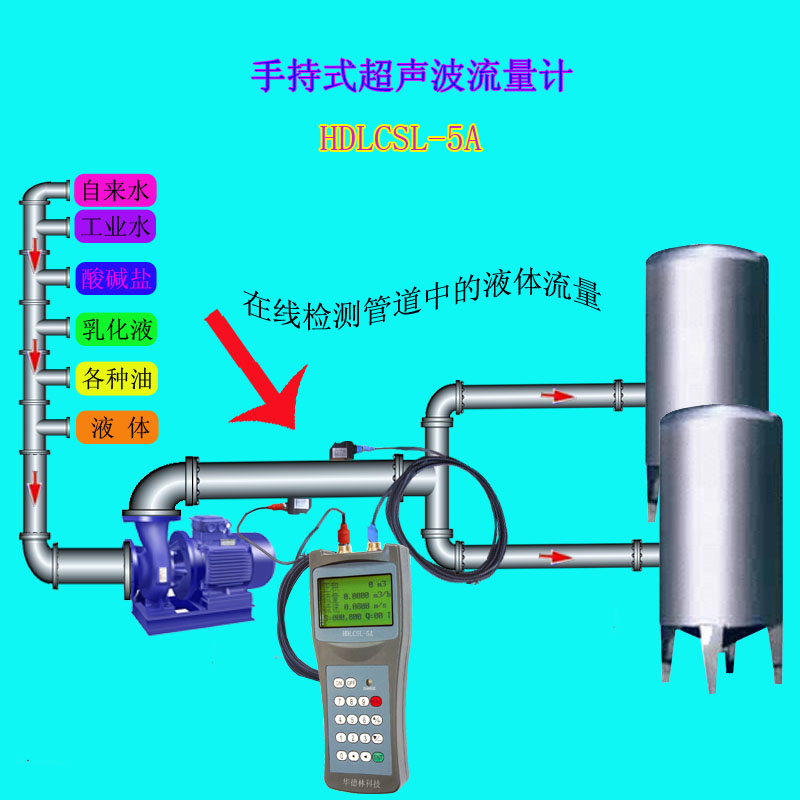

Ultrasonic flowmeters utilize the principle of low voltage and multi-pulse difference, employing high-precision and ultra-stable dual balanced signal differential transmission to measure the ultrasonic transmission time in both downstream and upstream directions, and calculate the flow velocity based on the time difference. When the ultrasonic beam propagates through the liquid, the flow of the liquid will cause a slight change in the propagation time, and the change in propagation time is proportional to the flow velocity of the liquid. At zero flow rate, the time required for the two sensors to transmit and receive ultrasonic waves is exactly the same
Features:
★ Handheld ultrasonic flowmeters are suitable for online calibration and patrol measurement of liquid flow in various industrial sites. They feature high measurement accuracy, good consistency, battery power supply, simple operation, and convenient portability,
Technical parameters:
★Flow velocity range: 0~32m/s
★Pipe diameter: φ20mm～φ3000mm
★Pressure range: ≤1.6Mpa
★Instrument accuracy: 1% FS (after calibration, it can reach Level 0.5).
★Installation method: External binding installation, with simple operation.
★Operating power supply: 220AVC (with built-in nickel-hydrogen rechargeable battery, capable of continuous operation for 12 hours after being fully charged)
★Other functions: It can record the cumulative flow and working status of the previous 64 days, 64 months, and 5 years. It can also record the previous 64 on-times, power-off time, and flow, and can achieve automatic or manual flow compensation
Measuring medium:
It can measure conductive and non-conductive uniform (liquid) flow. Such as: ionized water, seawater, acid and alkali liquids, vegetable oil, gasoline, kerosene, diesel, machine oil, alcohol, beer, and other uniform liquids that can transmit ultrasonic waves.
About the supplier
Main products: Other Industrial Automation Systems and Equipment
- ✓Manufacturer
- ✓Founded 2010
- ✓1 certificate on file
- Manufacturer
- Founded 2010
- 1 certificate on file
