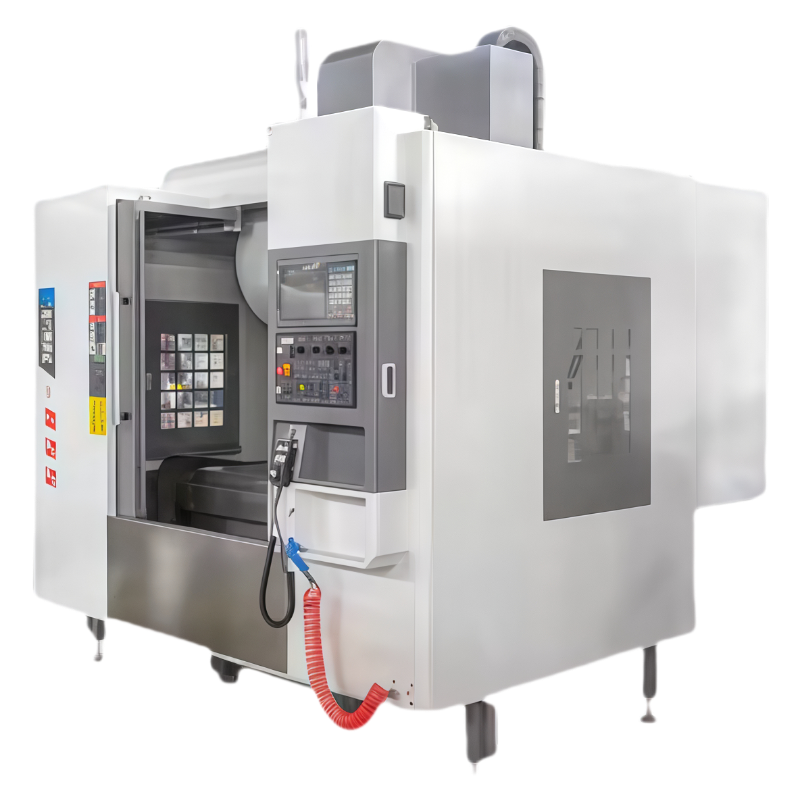

Hanyang VML855 CNC Machining Center
Taizhou Hanyang CNC Machine Tool Manufacturing Co., Ltd3/10 fairsManufacturerModel VML855
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Hanyang VML855 CNC Machining Center
Taizhou Hanyang CNC Machine Tool Manufacturing Co., Ltd3/10 fairsManufacturerModel VML855
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 2700*2250*2600
- Color: black white gray
- Structure: Horizontal
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Jiangsu, China
About this product
- Size: 2700*2250*2600
- Color: black white gray
- Structure: Horizontal
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Jiangsu, China
Product details
| Size | 2700*2250*2600 |
|---|---|
| Color | black white gray |
| Structure | Horizontal |
Product details
| Size | 2700*2250*2600 |
|---|---|
| Color | black white gray |
| Structure | Horizontal |
From the supplier
Model
VML855
Worktable size(mm)
550*1000
Xaxis travel(mm)
800
Y travel(mm)
550
Z travel(mm)
550
Distance from spindle center to z axis guide surface(mm)
560
Distance between spindle nose end to worktable(mm)
140-690
Table T-slot
(Number -Sizex spacing)
5-18*90
Spindle taper
1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 lbsNormal0
BT40

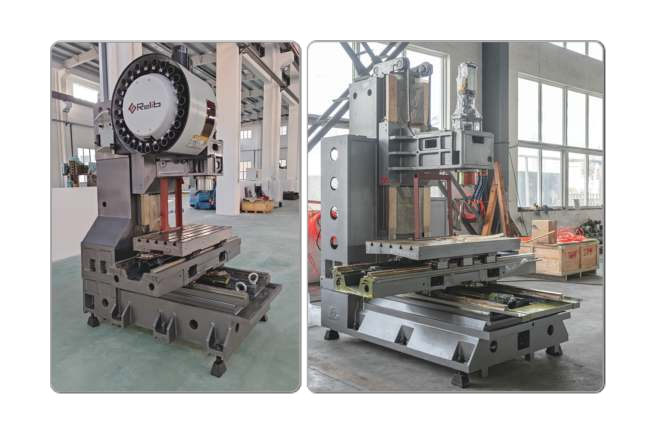

Spindle speed 8000/10000 Ball screw spec 4012 Positional accuracy ±0.005 Repeated positioning accuracy ±0.003 Spindle motor 7.5-11 Maximum load of table (kg) 500 Feed speed 0-36000 Tool magazine form (manipulator or bucket vertical) Number of tools 24 Machine weight(kg) 5900 System (optional) Mitsubishi,Siemens,Fanuc are optional Notes Because there are many machine models,the specific specifications are subject to the actual conditionsThe column adopts a herringbone structure design to enhance the rigidity of the fuselage and the anti twisting force during heavy cutting.
The machine tool itself comes standard with a spindle cooling system,ensuring stable machining quality during high-quality during high-speed machining. Standard configurations *Ball screw -Taiwan made c3 grade *Track -Taiwan HIWIN, etc *Taiwan cylinder *Coupling-(R+W) *Guideway cover *Volumetric lubricating oil circuit *japanese made bearings -(NSK, NTN)From the supplier
Model
VML855
Worktable size(mm)
550*1000
Xaxis travel(mm)
800
Y travel(mm)
550
Z travel(mm)
550
Distance from spindle center to z axis guide surface(mm)
560
Distance between spindle nose end to worktable(mm)
140-690
Table T-slot
(Number -Sizex spacing)
5-18*90
Spindle taper
1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 lbsNormal0
BT40
Spindle speed 8000/10000 Ball screw spec 4012 Positional accuracy ±0.005 Repeated positioning accuracy ±0.003 Spindle motor 7.5-11 Maximum load of table (kg) 500 Feed speed 0-36000 Tool magazine form (manipulator or bucket vertical) Number of tools 24 Machine weight(kg) 5900 System (optional) Mitsubishi,Siemens,Fanuc are optional Notes Because there are many machine models,the specific specifications are subject to the actual conditionsThe column adopts a herringbone structure design to enhance the rigidity of the fuselage and the anti twisting force during heavy cutting.
The machine tool itself comes standard with a spindle cooling system,ensuring stable machining quality during high-quality during high-speed machining. Standard configurations *Ball screw -Taiwan made c3 grade *Track -Taiwan HIWIN, etc *Taiwan cylinder *Coupling-(R+W) *Guideway cover *Volumetric lubricating oil circuit *japanese made bearings -(NSK, NTN)About the supplier
Taizhou Hanyang CNC Machine Tool Manufacturing Co., Ltd
Main products: CNC wire cutting machine, Metal Forming Machine Tools, Other Machine Tools
- ✓Exhibited at 3 recent Canton Fairs
- ✓Manufacturer
- ✓Founded 2003
- ✓1 certificate on file
52
trust
- Exhibited at 3 recent Canton Fairs
- Manufacturer
- Founded 2003
- 1 certificate on file
Canton Fair booth: 1.1Y5-6 · General Machinery, Small Processing Machinery and Industrial Accessories (140th session)
