Heat Resistant Conveyor Belt
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Heat Resistant Conveyor Belt
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: RUBBER
- Size: 300-2500mm
- Color: BLACK
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: RUBBER
- Size: 300-2500mm
- Color: BLACK
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | RUBBER |
|---|---|
| Size | 300-2500mm |
| Color | BLACK |
Product details
| Materials | RUBBER |
|---|---|
| Size | 300-2500mm |
| Color | BLACK |
From the supplier
Quick DetailsPlace of Origin:Zhejiang, ChinaBrand Name:HUJIA, OEMModel Number:EP, NN, CCCondition:NewType:Heat Resistant Conveyor BeltMaterial:RubberPly Thickness(mm/p):0.8-2 mmLower Cover Thichness(mm):0-4.5 mmTop Cover Thickness(mm):1.5-12 mmWidth Range:300-2500mmBelt Tensile Strength:200-3000N/MMCertificate:ISO9001:2008Quality Standards:GB/T7984-2001, DIN22102 ,RMA,AS1332, JISK6322Supply AbilitySupply Ability:2000 Meter/Meters per DayPackaging & DeliveryPackaging DetailsPacking with PVC water-proof cloth or according to the customers' need.PortNingbo Port/ Shanghai PortPicture Example:
first figure
Heat-resistance conveyor belt can be classified into three models:
Model 1: Capable of resisting experimental temperature no more than 100 ℃, in code of T1.
Model 2: Capable of resisting experimental temperature no more than 125 ℃, in code of T2.
Model 3: Capable of resisting experimental temperature no more than 150 ℃, in code of T3.
Model 4: Capable of resisting experimental temperature no more than 175 ℃, in code of T4.
Physical Properties of Cover Rubber after Heat-resistance Experiment Conform to Provisions of the Table
ItemModelModel 1Model 2Model 3Model 4Change RangeHardnessDifference after and before Aging(IRHD)20±20±20Maximum Value after Aging(IRHD)85Tensile StrengthReduction of Property Change Rate%≤-25-30-40-40Minimum Value after Aging(Mpa)121055Elongation at BreakProperty Change Rate%-50-55-55Minimum Value after Aging%200180180
Interlayer Bonding Strength
0.8-1.5mmCover layer thickness>1.5mmAverage of All Types, N/mm, No Less Than3.02.22.6Minimum Peak of All Types, No Less Than2.01.62.0
Advantages
product application
This product is applicable to the following scenario:

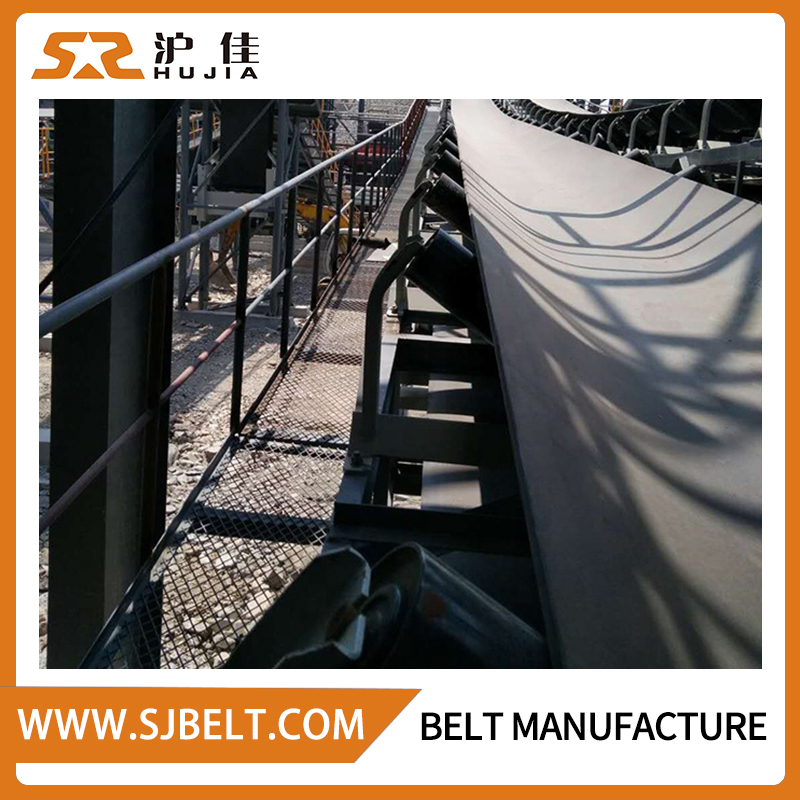

Used in mine, cement plant, steel and Iron factory, metallurgy, construction, ports and etc.
packing & shippingFrom the supplier
Quick DetailsPlace of Origin:Zhejiang, ChinaBrand Name:HUJIA, OEMModel Number:EP, NN, CCCondition:NewType:Heat Resistant Conveyor BeltMaterial:RubberPly Thickness(mm/p):0.8-2 mmLower Cover Thichness(mm):0-4.5 mmTop Cover Thickness(mm):1.5-12 mmWidth Range:300-2500mmBelt Tensile Strength:200-3000N/MMCertificate:ISO9001:2008Quality Standards:GB/T7984-2001, DIN22102 ,RMA,AS1332, JISK6322Supply AbilitySupply Ability:2000 Meter/Meters per DayPackaging & DeliveryPackaging DetailsPacking with PVC water-proof cloth or according to the customers' need.PortNingbo Port/ Shanghai PortPicture Example:
first figure
Heat-resistance conveyor belt can be classified into three models:
Model 1: Capable of resisting experimental temperature no more than 100 ℃, in code of T1.
Model 2: Capable of resisting experimental temperature no more than 125 ℃, in code of T2.
Model 3: Capable of resisting experimental temperature no more than 150 ℃, in code of T3.
Model 4: Capable of resisting experimental temperature no more than 175 ℃, in code of T4.
Physical Properties of Cover Rubber after Heat-resistance Experiment Conform to Provisions of the Table
ItemModelModel 1Model 2Model 3Model 4Change RangeHardnessDifference after and before Aging(IRHD)20±20±20Maximum Value after Aging(IRHD)85Tensile StrengthReduction of Property Change Rate%≤-25-30-40-40Minimum Value after Aging(Mpa)121055Elongation at BreakProperty Change Rate%-50-55-55Minimum Value after Aging%200180180
Interlayer Bonding Strength
0.8-1.5mmCover layer thickness>1.5mmAverage of All Types, N/mm, No Less Than3.02.22.6Minimum Peak of All Types, No Less Than2.01.62.0
Advantages
product application
This product is applicable to the following scenario:
Used in mine, cement plant, steel and Iron factory, metallurgy, construction, ports and etc.
