About this product
- Materials: steel
- Size: 3151*4950*1458
- Color: Blue
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Jiangsu, China
About this product
- Materials: steel
- Size: 3151*4950*1458
- Color: Blue
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Jiangsu, China
Product details
| Materials | steel |
|---|---|
| Size | 3151*4950*1458 |
| Color | Blue |
From the supplier

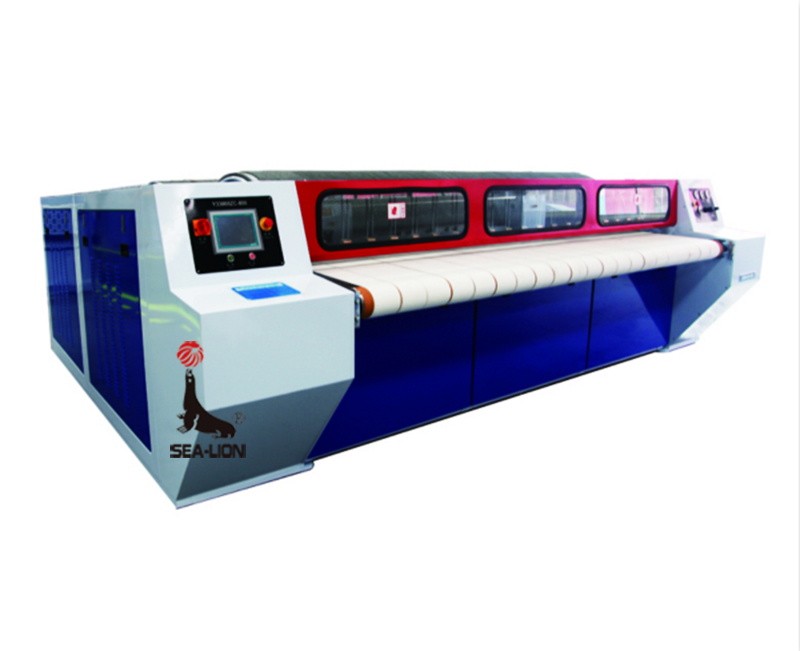

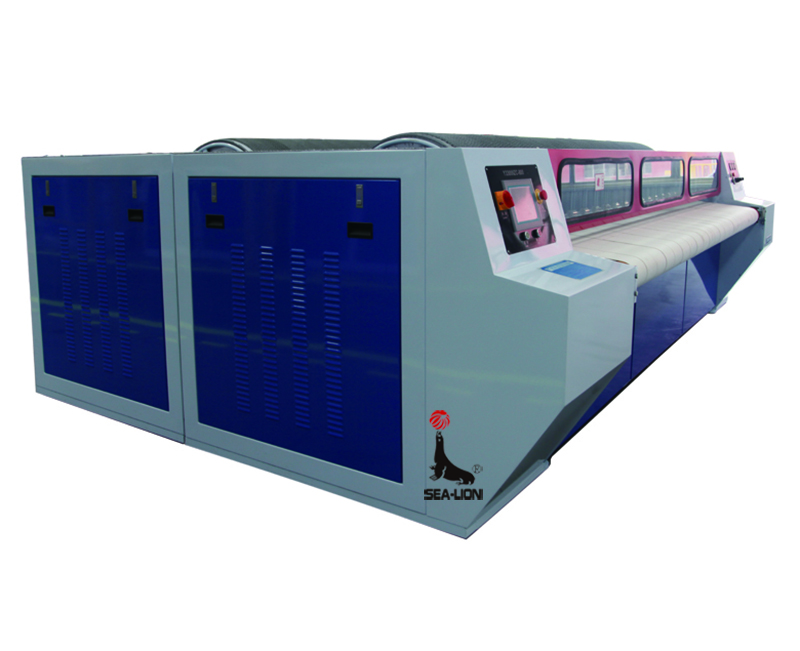

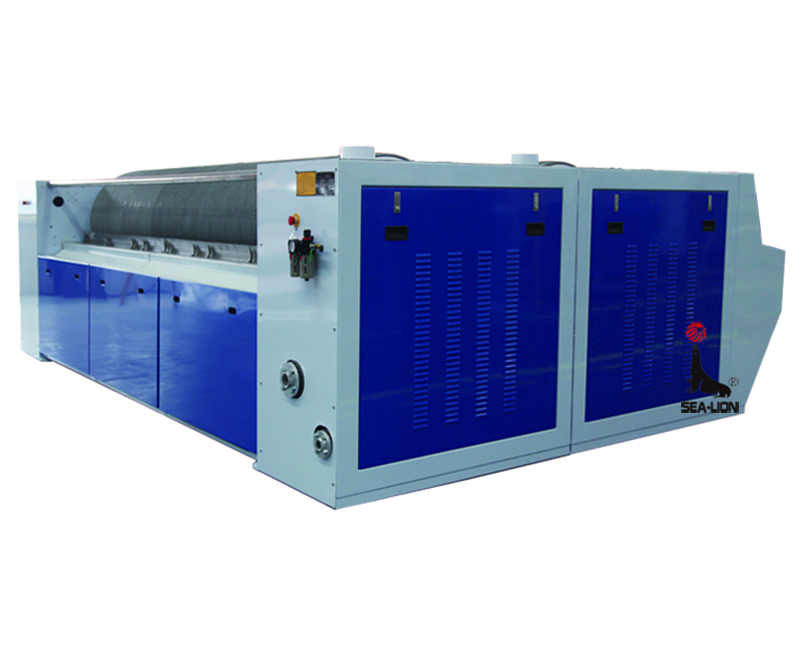

The ironer is a new product with large rolls. The main components are imported. It has the advantages of high efficiency, satisfying ironing result, high reliability, safety and low cost. It is suitable to iron dried sheet, quilt cover, table cloth and other large fabrics.
The precise structure of the double chest, springs and heating proof felt ensure the rolls to keep enough elasticity and spring cushion so that linen and the surface of the chest can keep well-touched.
An unique lever device is introduced on the cylinder to create pressure, which ensures the working rolls and chests to keep balanced pressure for high quality ironing . The lever device has positions for pause, repair and inspection.
The connecting plate can be heated by whirly steam system , because the holes are underneath of it so that the steam with high speed enable the whirpool to cover all the surface of the connecting plate . The speed and quality of ironing are increased markedly , because the flatworks are ironed through the hot surface of the arc connecting plate.
Description
Y3500IIZC-800
Maximum ironing width
mm
3500
Roll diameter (mm)
mm
∮774
Numbers of chests
unit
2
Ironing speed (m/min.)
m/min
6-30
Steam pressure
Mpa
0.6-1.0
Compressed air pressure
Mpa
0.5-0.7
Main drive electric motor
kW
11
Exhaust fan
kW
1.1×2
Exhaust pipe diameter
mm
2×∮138
Compressed air pipe diameter
mm
∮8
Steam pipe diameter
DN
40
Condenser pipe diameter
DN
25
Physical Dimension
mm
3151/4950/1458
Weight
kg
9320
