About this product
- Materials: Steel
- Size: 13500mm×2700mm×1600mm
- Color: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
About this product
- Materials: Steel
- Size: 13500mm×2700mm×1600mm
- Color: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
Product details
| Materials | Steel |
|---|---|
| Size | 13500mm×2700mm×1600mm |
| Color | Customized |
Product details
| Materials | Steel |
|---|---|
| Size | 13500mm×2700mm×1600mm |
| Color | Customized |
From the supplier

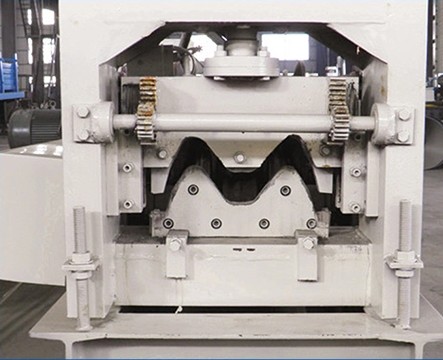

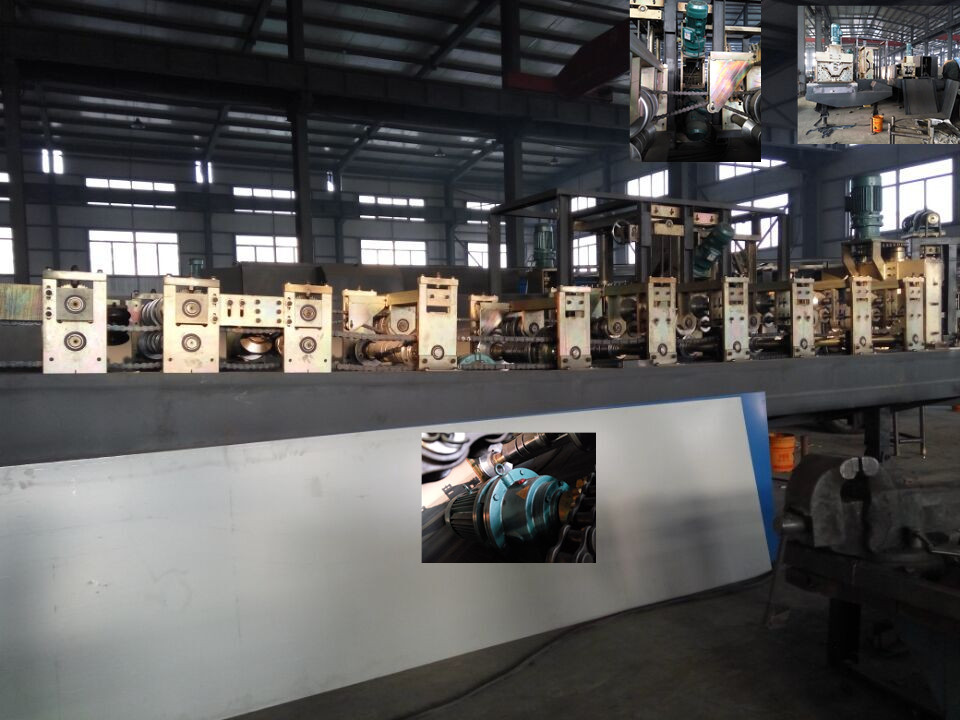

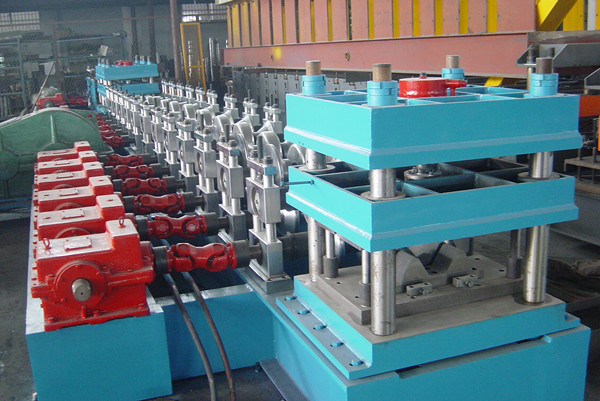

Roll Forming Machine for Highway Guardrail
Technical Parameters of BH-848-310mm
- Width: 480mm; Thickness:3-4mm;
- Q235A Galvanized steel sheet.
10 -12m/min

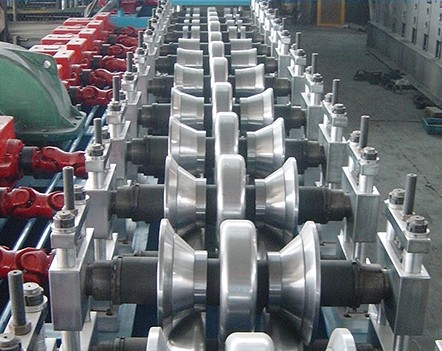

Roller steps13 pairs main rollers & 7 pairs flattening rollers
Material of roller GCr15 bearing steel, quenched, HRC58°-62°Material of main shaft
- superior 45# steel, tempered.
- ￠85 mm
- 35 kw
- wallboard
- 11 kw, Pressure: 20 Mpa
- HRC58°-62°

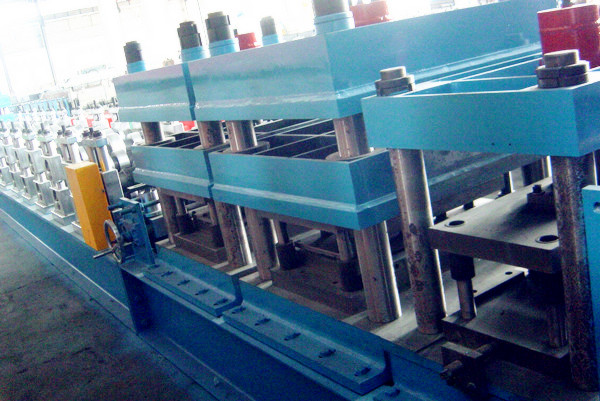

- Adopt hydraulic driving, flat panel punching, cutting after roll forming.
- whole machine adopts PLC frequency control, Cut-to-length error≤±2mm
Manual Feeding device (3 T capacity), transmission, flattening device, before-punching device (2 sets), main machine and roller (including guide table), cutting (after roll forming) device, hydraulic system, electric control system, run out table, etc.
Production process
Manually uncoiling →Feeding & Correcting→ Seven rollers flattening device → Flat panel Punching→ Roll forming → Cutting after roll forming → Finished product.
Highway guardrail panel drawing
Our company certificate:
We are willing to supply goods with high quality but competive price and superior service to friends all over the world.Hope to establish business relationship with you!
