The LTD6.3, LTD5, LTD3 powered traction hoist adopts the “α” shape wire rope guide system, which is handy in design, simple in structure, light in weight and convenient in maintenance. It is mainly used for medium and low load transportation.



The LTD8, LTD10 hoist adopts the "S" sharp wire rope guide system, which has large lifting force and stable operation, which is mainly used for heavy load transportation. Our company is currently one of the few professional suspended platform manufacturers in China that produce "S" structure. LTD3, LTD8 and LTD10 is our company's fist product.



Feature:



1. Manual decent control for emergency



2. Upper limit switch



3. Overload protection device for optional



4. CE Approval and SII Approval



5. Passed the KONE's 750 hours endurance test with excellent result and was fulfulling KONE criteria's for installation hoist.

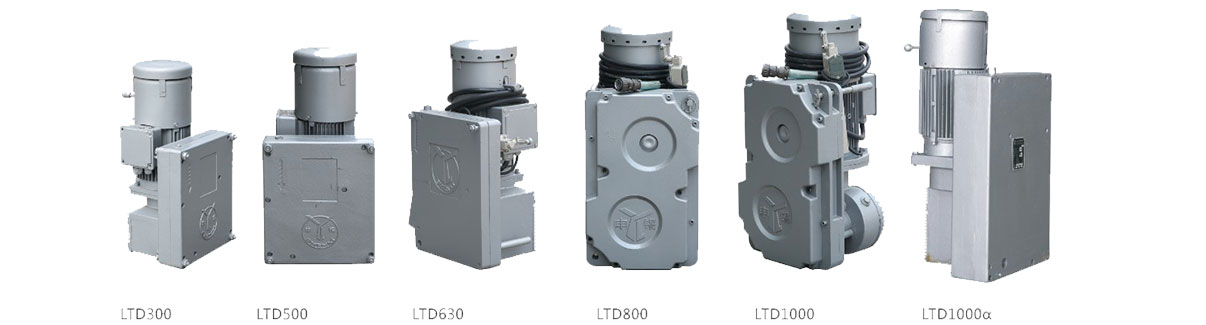

MODEL

LTD10

LTD8

LTD 6.3

LTD 5

LTD 3

Rated Capacity（kN）

9.8

8

6.3

5

3

Rated Lifting Speed（m/min）

8-10

8-10

9-11

9-11

9-11

Weight （kg）

92/60

87/56

53

51

32

Motor

Power（KW）

3

2.2/1.8

1.5

1.1

0.75

Voltage（V）

380

380

380

380

380

Frequency（Hz）

50

50

50

50

50

Break Torque (Nm)

30

15

15

15

7.5

Rotate Speed（r/min）

1420

1420

1420

1420

1400

Steel wire diameter（mm）

8.6/9.1

8.6

8.3

8.3

8.3

Shenxi is the leading manufacturer of traction hoist in China with 30+ years history.

Use: Traction hoist is the powered unit of the suspended platform.
And now it is widely used for installing elevators ( lift) and service lift for wind turbine tower, such as lift the track and materials, as the powered unit for lifting the elevator installation platform/service lift.

Compared with electric winch/hoist, it has electromagnetic brake. It is safer.

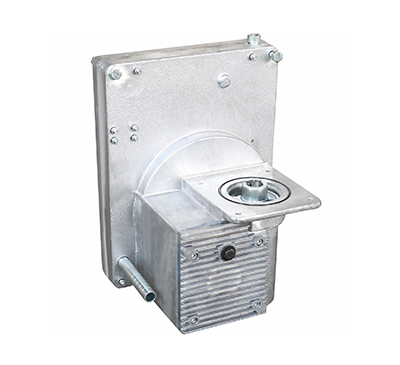

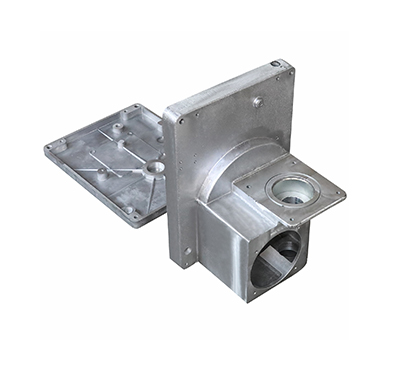

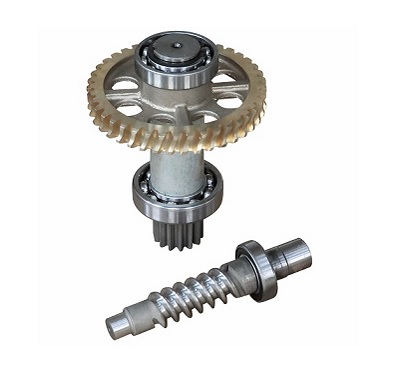

Working principle: The traction hoist Consists of electromagnetic brake motor, centrifugal speed limiter and dual speed reduction system and "α " or  "s "cable-guiding system. The hoist is driven by the electromagnetic brake, three-phase asynchronous motor through the worm gear and a pair of reduced gears. The steel wire rope goes through the rope guiding system to lift the platform or any other load.

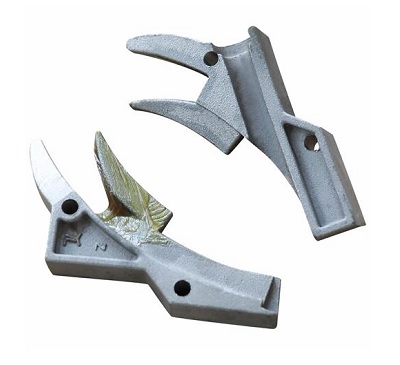

"α "cable-guiding system              "S "cable-guiding system




Technical Parameter

ModelLTD3LTD5LTD6.3LTD8 a/sLTD10SRated lifting force3KN6.3KN6.3KN8KN10KNRated load capacity300kg630kg630kg800kg1000kgSpeed 7-9m/min 9-11m/min 9-11m/min 8-10m/min 8-10m/min MotorModelYEJ80S-4YEJ90L-4YEJ90L-4YEJ90/100L-4YEJ100L-4Power0.75KW1.5 KW1.5 KW1.8/2.2 KW3KWPhase3 Phase3 Phase3 Phase3 Phase3 PhaseSpeed1420 r/m1420 r/m1420 r/m1420 r/m1420 r/mBrake force moment15 Nm15 Nm15 Nm15 Nm15 Nm

Safety Device

We suggest you use hoist together with the safety lock, LSB30 or LSL30. The safety lock is the fall-arrest device to prevent the danger brought by the broken steel wire rope.



Electric Control System

We have electric control panel to control one hoist, two hoist and multiple hoist.
And for single hoist, the control panel can be installed to the hoist for the convenience.
