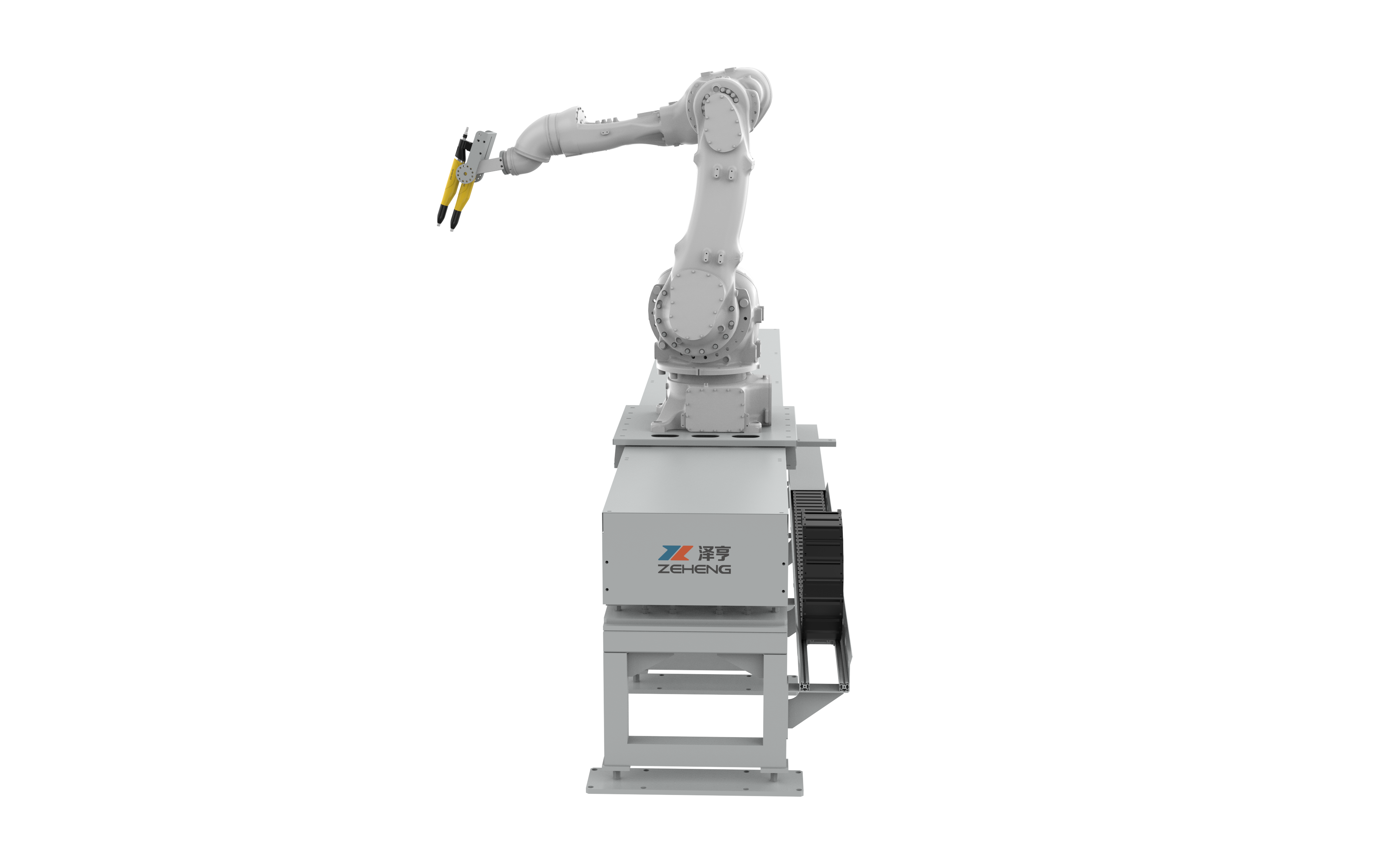

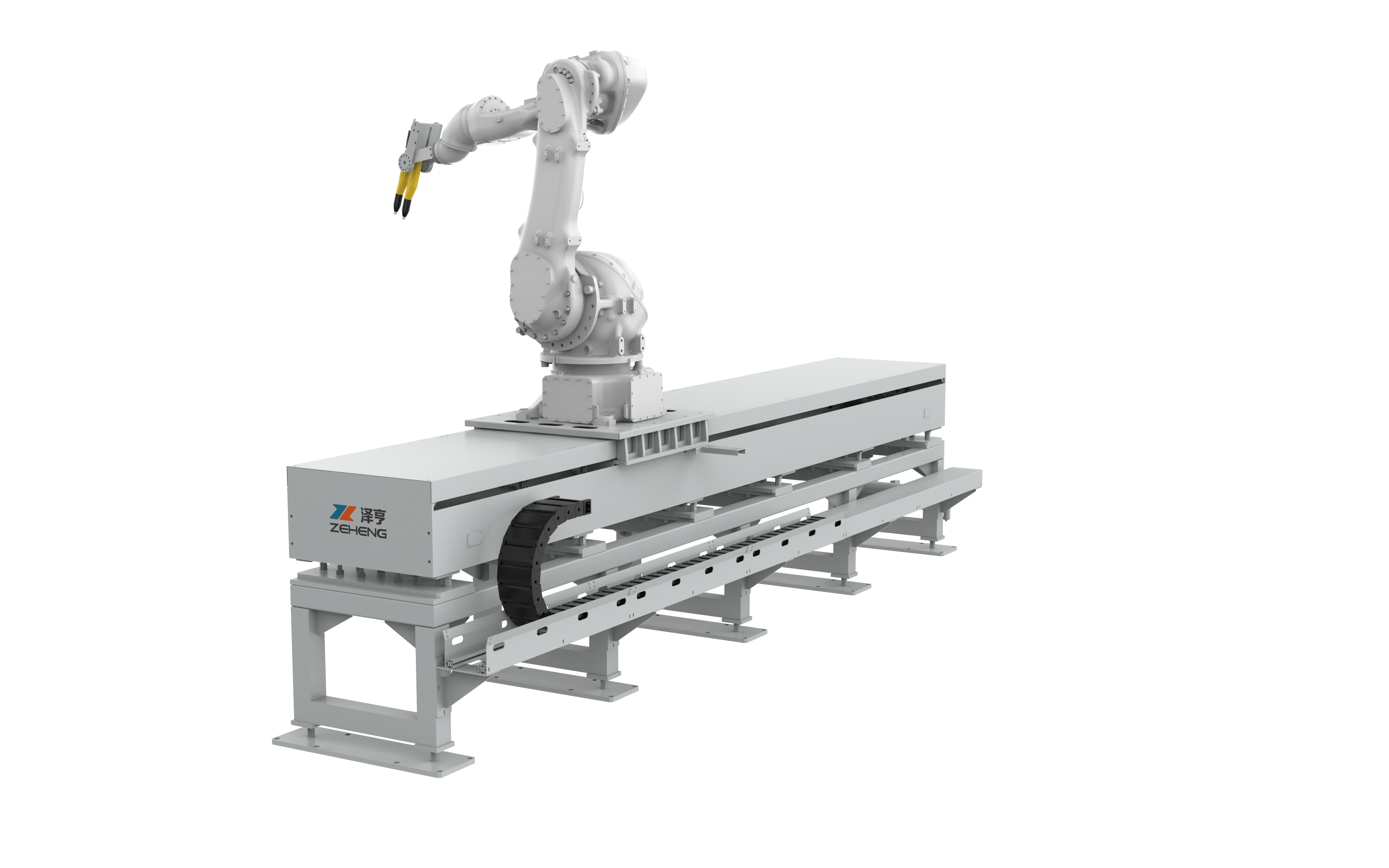

Basic parameters of horizontal seventh axis robot equipment
Load: 700kg (including bracket, robot such as MPX2600)
Itinerary: Standard itinerary can be selected as 4000mm (customization is acceptable in special circumstances)
Speed: 0.01-0.5m/s; 0.01-0.7m/s
Acceleration: 0.1-1.5m/s ^ 2
Accuracy: Repetitive positioning accuracy ± 0.1mm
Drive parameters: 2.0kw
Special note: The above parameters can be customized according to actual needs

Equipment functional characteristics
Expanding the workspace of robots - This product carries robots for horizontal reciprocating motion and can program trajectories at any effective position according to process requirements, greatly expanding the effective workspace of a single robot and achieving full range automated spraying of large and complex workpieces with a small number of robots
Dust resistant - This product can be used in dusty environments, is dust resistant, and there is no risk of dust entering and getting stuck.
Easy to clean - This device adopts a closed cover design, making it very easy to clean the dust on the top. Avoiding the drawbacks of difficult cleaning and frequent maintenance of structures such as organ covers
